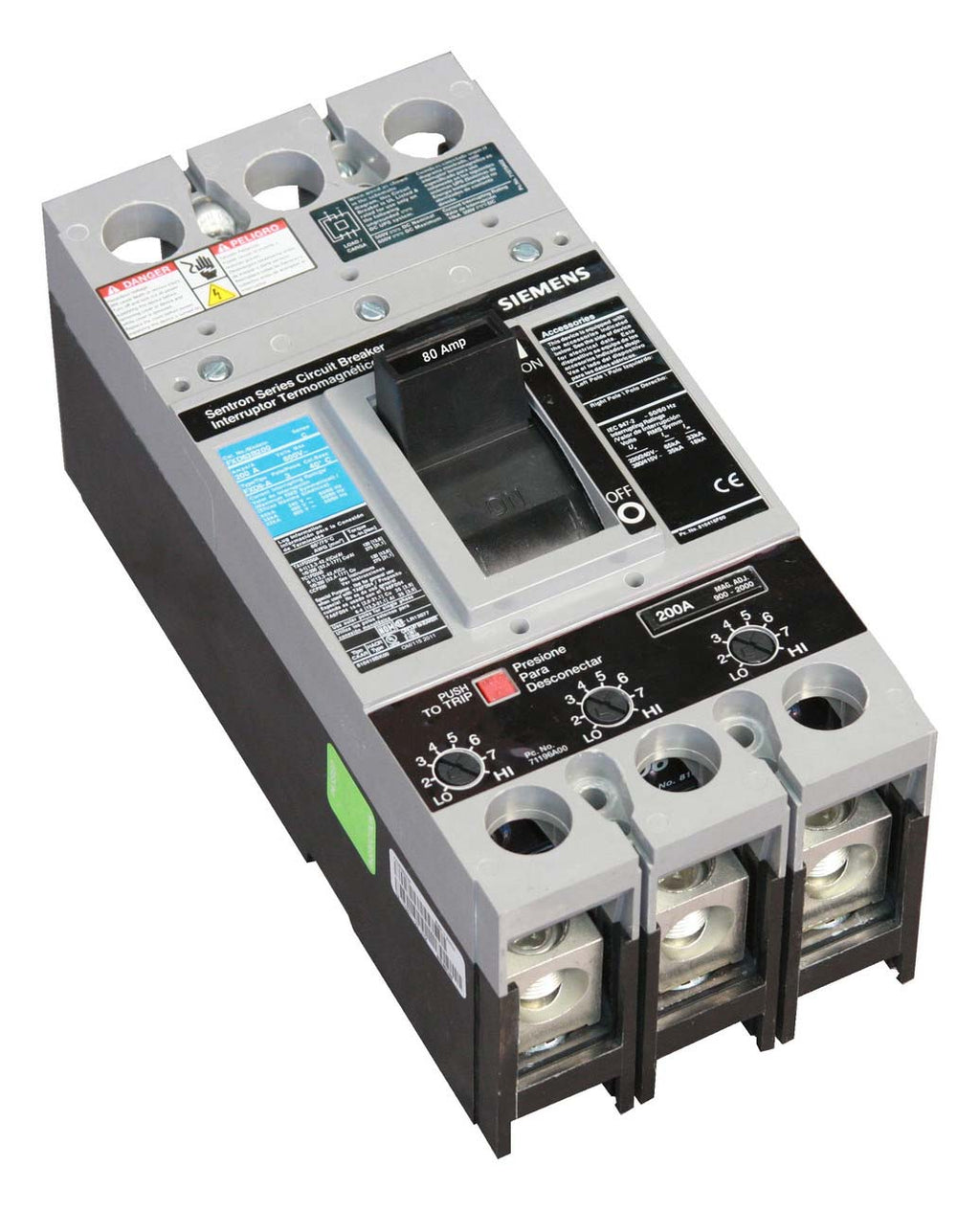

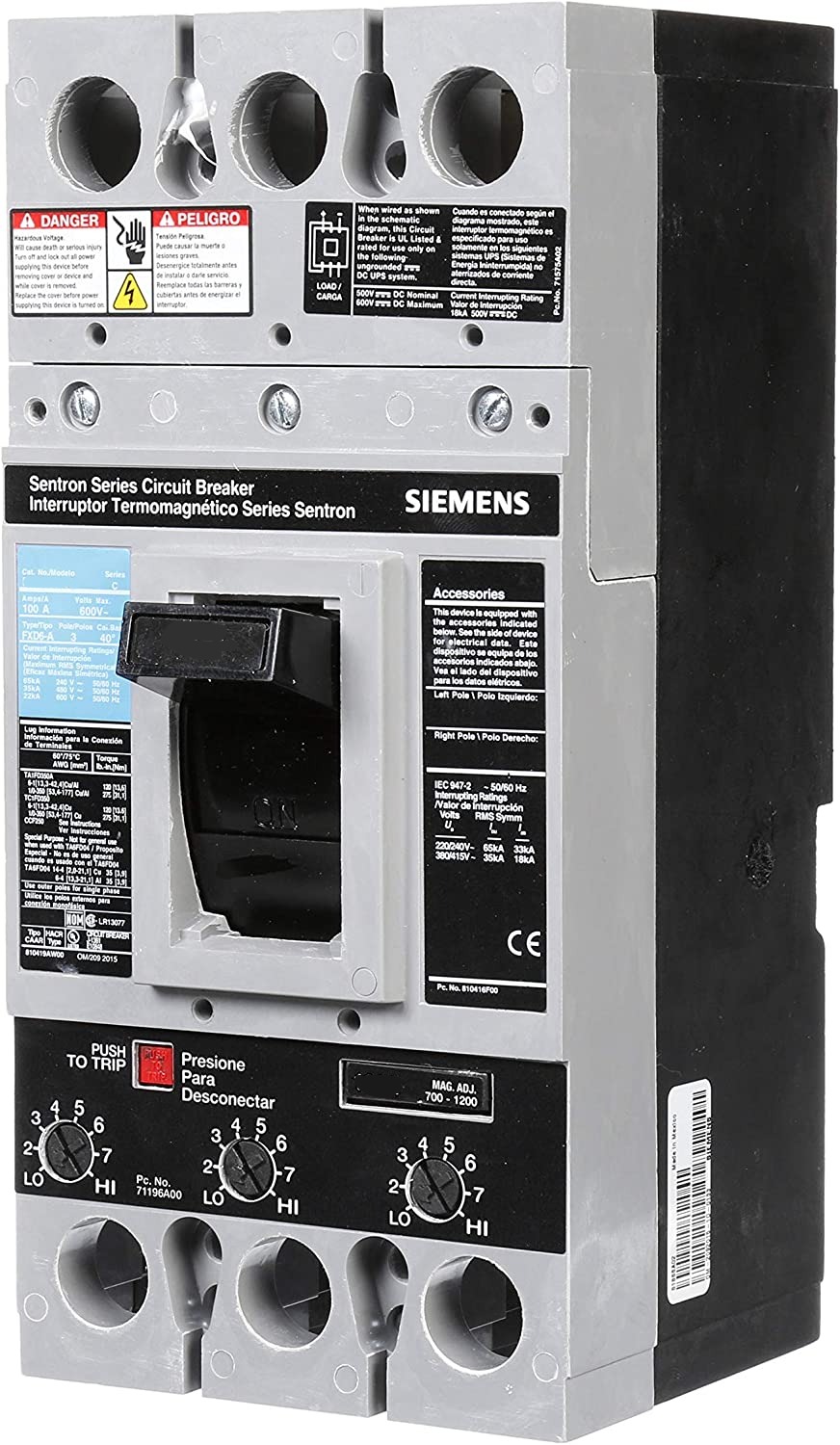

FD63B080 - Siemens 80A 600V 3-Pole Molded Case Circuit Breaker FD Frame Thermal Magnetic Trip

FD63B080

FD63B080 is a Siemens low voltage molded case circuit breaker designed for reliable protection in electrical distribution systems.

This circuit breaker features an 80 ampere rating, 3 poles, and a 600 volt AC maximum voltage rating. It uses a thermal-magnetic trip unit for dependable overload and short circuit protection. The breaker is part of the FD frame series and includes bolt-on mounting with lug-type line side terminations. It has a 22 kA interrupt rating at 600 VAC and is rated for operation at 40 degrees Celsius ambient temperature.

• Manufacturer: Siemens
• Part Number: FD63B080
• Amperage: 80 A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Interrupt Rating: 22 kA at 600 VAC
• Trip Unit: Thermal-Magnetic
• Frame/Series: FD
• Mounting Type: Bolt-On
• Temperature Rating: 40¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: FD63B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643211421
• GTIN : 00783643211421
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.973
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
