TRL07 - Cutler Hammer 7-Function Universal Timing Relay 24-240VAC/VDC 1 Pole SPDT

TRL07

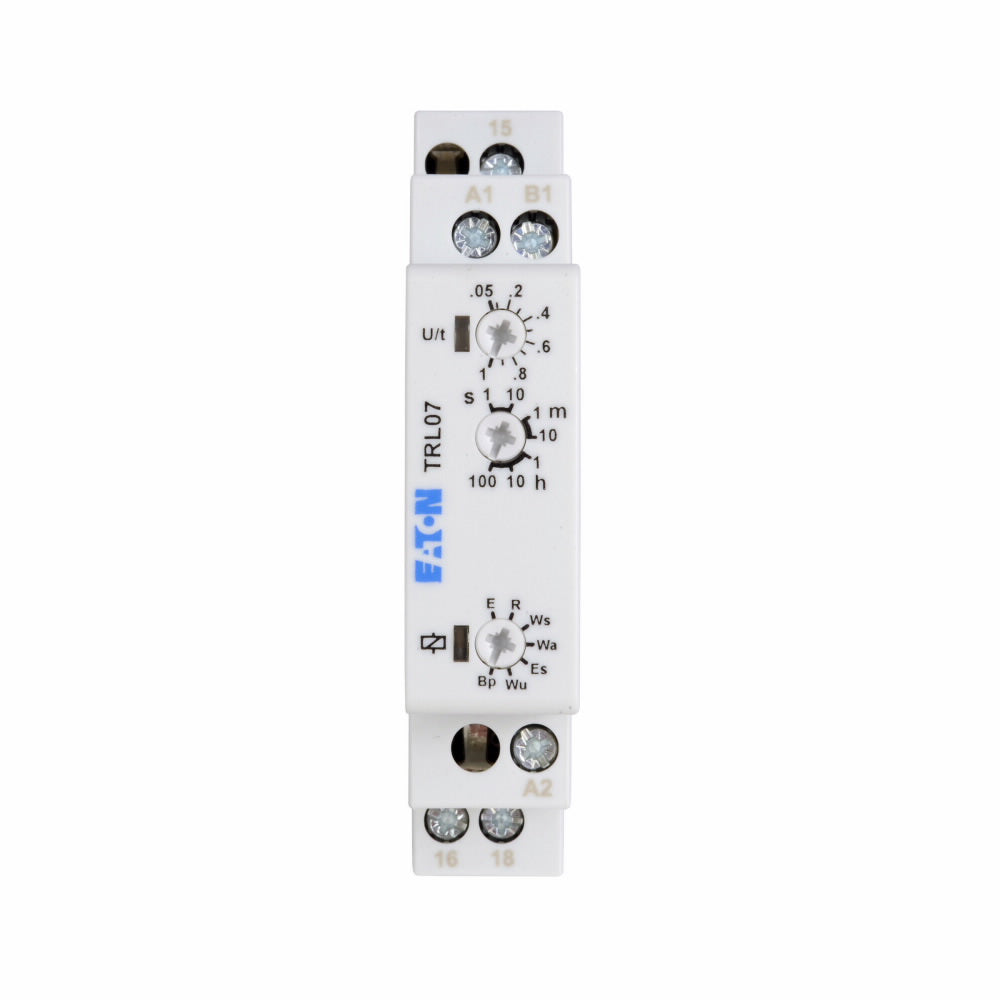

TRL07 is an EATON Cutler-Hammer 7-function universal timing relay designed for compact DIN rail mounting with versatile timing control capabilities. This TR Series relay features multiple user-selectable timing functions and ranges in a single unit, reducing product variations and inventory requirements. The relay operates on universal input voltages from 24 to 240 VAC/VDC, eliminating the need to stock separate coil versions, and provides 8 A contact rating with SPDT (1 Form C) contact configuration. Time delay settings range from 0.05 seconds to 100 hours across 20 selectable ranges, with advanced LED indication for simplified troubleshooting and maintenance. The compact case measures 2.56 in L x 0.69 in W x 3.43 in H and features staggered terminal locations for convenient access to lower-level terminals after wiring. The self-extinguishing plastic enclosure provides IP40 protection and DIN rail mounting capability.

• Series: TR Series Multifunction
• Timing Range: 0.05 seconds to 100 hours
• Input Voltage: 24 to 240 VAC/VDC
• Contact Configuration: 1 Pole SPDT (Form C)
• Contact Rating: 8 A
• Mounting: DIN Rail
• Enclosure Rating: IP40
• Dimensions: 2.56 in L x 0.69 in W x 3.43 in H
• Timing Functions: ON/OFF delay, power triggered, single shot leading or trailing edge, voltage controlled, flasher, pause first, on delay control signal start, trailing edge off
• Terminal Type: Style terminals with staggered locations
• Enclosure Material: Self-extinguishing plastic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TRL07
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Automation
• Item Subcategory : Automation Relay

Product Data

• UPC : 78668531358
• Country of Origin : Austria
• Dimensions : 2.56 in x 3.43 in x 0.69 in (Length/Depth x Height x Width)
• Weight : 0.16
• Certification : CE Certified, CSA Certified, cULus Listed, TUV Certified
