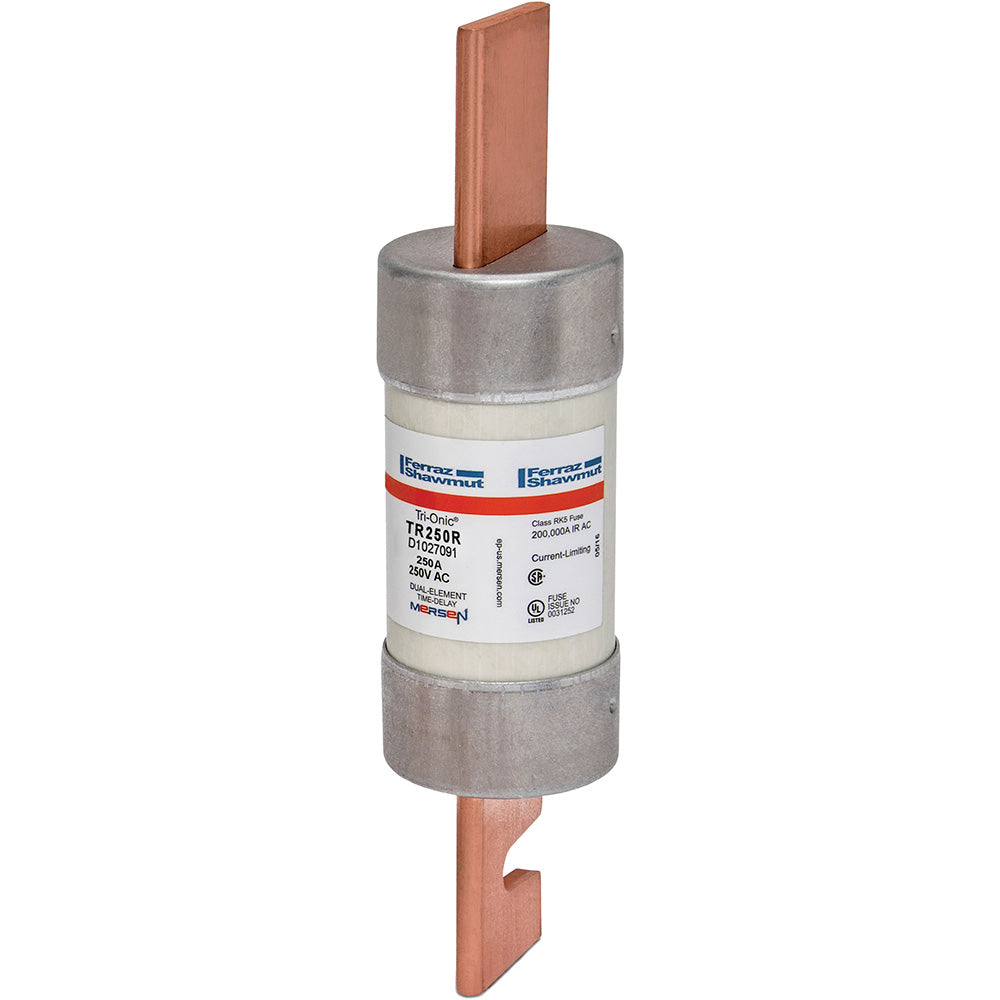

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Mersen
- Sub-Category
- Low Voltage Fuse
- Series
- Tri-Onic
- Frame
- TR
- Rated current
- 250
- Voltage
- 250V
- Interrupting rating
- 200kA@250V
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 2.06 in
- UPC
- 782001748128
- GTIN
- 00782001748128
- Weight
- 1
Product description & additional details
TR250R
TR250R is a Mersen Class RK5 time delay fuse rated for 250 amps and 250 volts AC/DC, designed for reliable current limiting protection.This Tri-Onic time delay fuse features a rejection-style design to prevent replacement errors and a fiberglass body for durability in industrial environments. It provides high interrupting ratings of 200kA AC and 20kA DC, suitable for motor circuits, feeders, branch circuits, and general-purpose equipment. The fuse is UL listed to standard 248-12 and CSA certified, ensuring compliance with safety standards.
- Key Specifications
- Amperage: 250 A
- Voltage: 250 V AC/DC
- Poles: 1
- Series/Frame: TR-R Class RK5
- Mounting Type: Rejection style
- Interrupt Rating: 200kA AC / 20kA DC
- Time Delay: Yes
- Body Material: Fiberglass
- Certifications: UL 248-12, CSA C22.2 No. 248.12
- Frequency: 50/60 Hz
- RoHS Compliant: Yes
Specifications
- Part Number: TR250R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 250
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748128
- GTIN : 00782001748128
- Weight : 1
