A4J150

A4J150

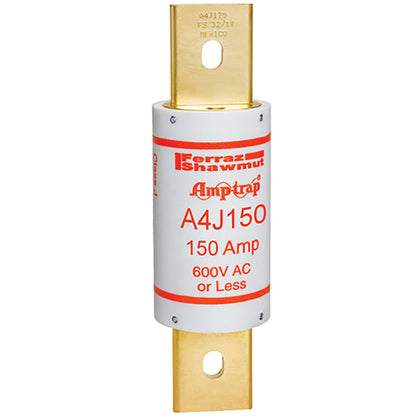

A4J150 is a Mersen Class J fast-acting fuse rated for 150 amps and 600 volts AC, designed for reliable current-limiting protection in industrial applications.This Amp-Trap® A4J150 fuse features a cylindrical fiberglass body for dimensional stability and easy identification with a clear imprint label. It provides excellent current limitation with a 200,000 A interrupt rating at 600 VAC and 100,000 A at 300 VDC. The fuse is UL 248-8 and CSA certified, suitable for use in load centers, panelboards, switchboards, bus ducts, and general lighting and heating loads.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class J
• Speed: Fast-Acting
• Interrupt Rating: 200,000 AIC (AC), 100,000 AIC (DC)
• Body Material: Fiberglass
• Dimensions: 1 5/8" diameter x 5 3/4" length
• Certifications: UL 248-8, CSA C22.2 No. 248.8, IEC 269-2-1
• Mounting Type: Cylindrical body for fuse holders
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4J150
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4J
• Voltage : 600
• Amperage : 150
• AIC rating : 200kA@600V
• Diameter : 1.63
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 782001960353
• GTIN : 00782001960353
• Country of Origin : Mexico
• Dimensions : x 5-3/4 in x
• Weight : 0.8
