Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Mersen
- Sub-Category
- Low Voltage Fuse
- Series
- A3T
- Frame
- A3T
- Rated current
- 400
- Voltage
- 300V
- Interrupting rating
- 200kA@300V
- Class rating
- T
- Barrels
- 1
- Diameter
- 1.33 in
- Clip Center
- 1.84
- UPC
- 782001890285
- GTIN
- 00782001890285
- Weight
- 2
Product description & additional details

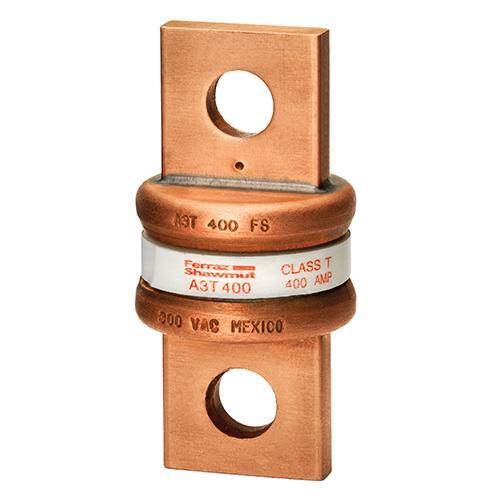

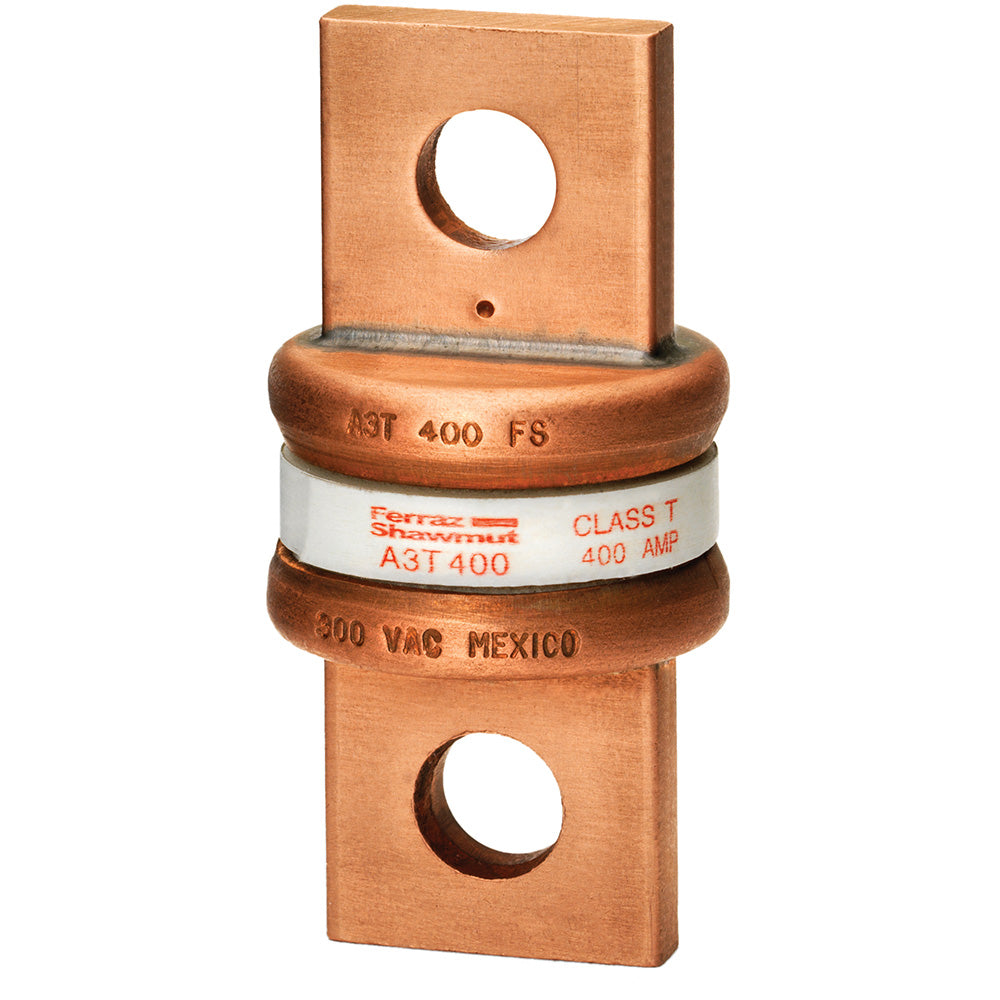

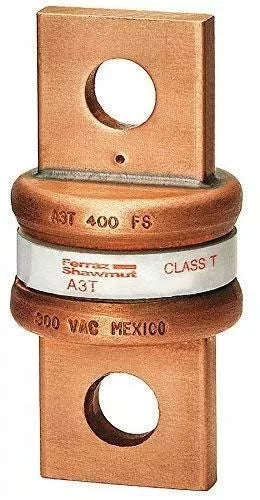

A3T400
A3T400 is a 400 Amp, 300 Volt Class T fast acting fuse designed for low voltage power protection. A3T400 features a compact size of 1.33" x 2.75" with extremely current limiting characteristics and fast acting response. It is UL listed to standard 248-15 and CSA certified to C22.2 no. 248.15, providing reliable interrupt ratings of 200,000 AIC AC and 50,000 AIC DC. The fuse has a blade-type mounting with copper terminals and unique dimensions that prevent replacement by other fuse classes.
- Key Specifications
- Amperage: 400 Amps
- Voltage Rating: 300 VAC, 160 VDC
- Fuse Type: Class T
- Fast Acting
- Interrupt Rating: 200,000 AIC AC, 50,000 AIC DC
- Physical Size: 1.33" diameter x 2.75" length
- Mounting Type: Blade
- Terminal Material: Copper
- Certifications: UL Listed (File E2137), CSA Certified
- Extremely Current Limiting
- Unique Dimensions for Replacement Prevention
Specifications
- Part Number: A3T400
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A3T
- Type : A3T
- Voltage : 300
- Amperage : 400
- AIC rating : 200kA@300V
- Diameter : 1.33
- Class Rating : T
- Barrels : 1
- Clip Center : 1.84
Product Data
- UPC : 782001890285
- GTIN : 00782001890285
- Weight : 2
