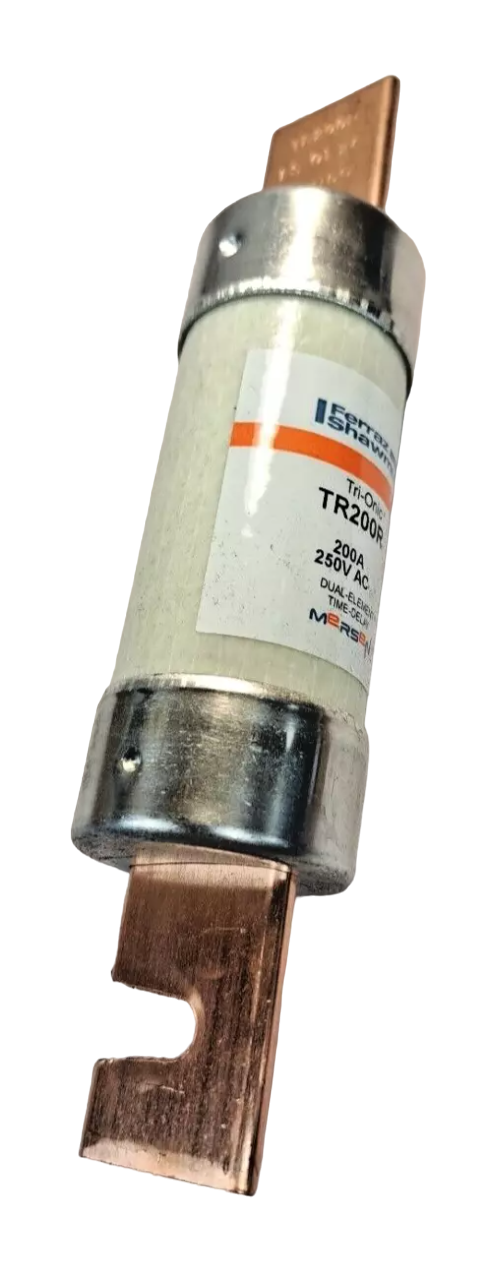

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Mersen
- Sub-Category
- Low Voltage Fuse
- Series
- Tri-Onic
- Frame
- TR
- Rated current
- 200
- Voltage
- 250V
- Interrupting rating
- 200kA@250V
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 2.06 in
- UPC
- 782001748081
- GTIN
- 00782001748081
- Weight
- 25
- Certification
- UL Listed and CSA Certified
Product description & additional details

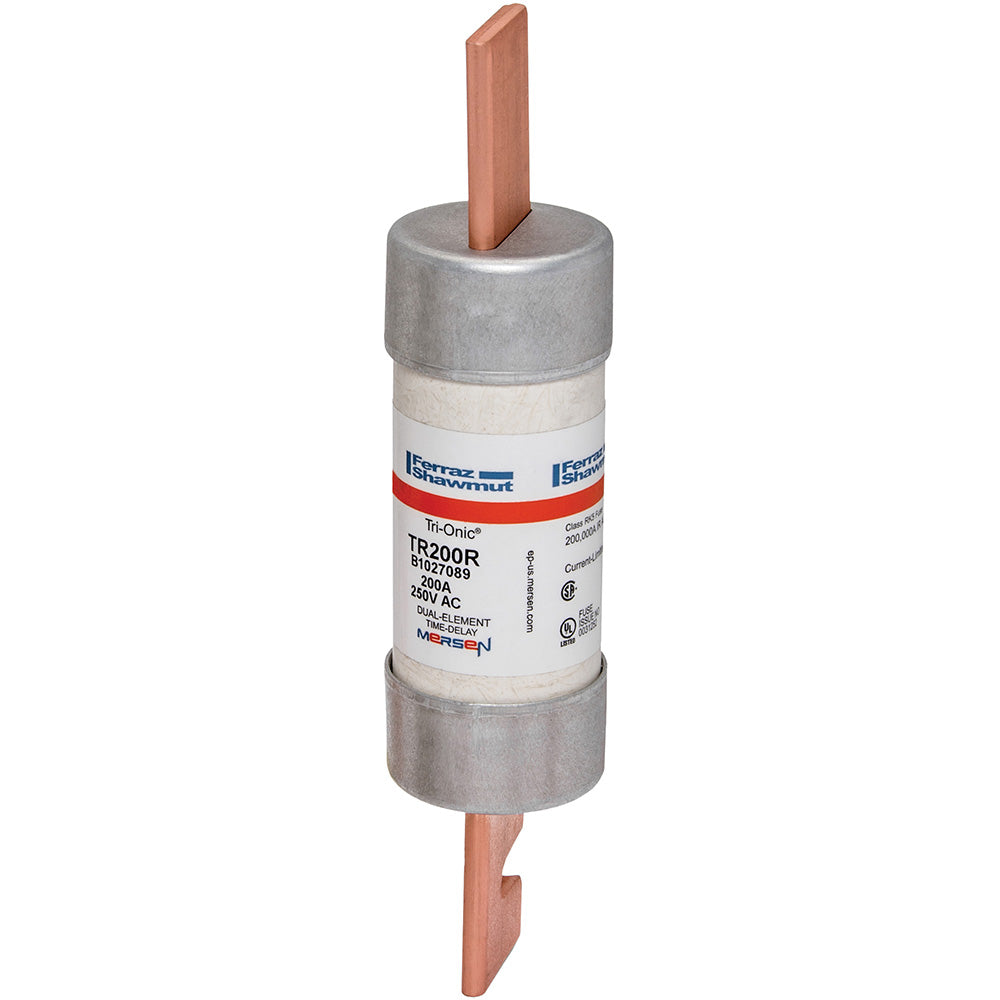

TR200R
TR200R is a Mersen Tri-Onic time-delay, current-limiting fuse designed for reliable circuit protection in demanding industrial and commercial applications.
This Class RK5 fuse features a dual-element design for superior time-delay performance, safely handling inrush currents while providing fast response to short circuits. The rejection-style construction prevents incorrect fuse replacement, and the fiberglass body ensures dimensional stability in harsh environments. It is suitable for motor circuits, mains, feeders, branch circuits, transformers, and general-purpose equipment.
-
Key Specifications
- Amperage: 200A
- Voltage: 250V AC/DC
- Poles: 1
- Mounting Type: Cartridge (blade terminal)
- Interrupt Rating: 200,000A AC, 20,000A DC
- Series/Frame: TR-R (Tri-Onic)
- Trip Unit: Dual element, time delay
- Certifications: UL Listed (248-12, File E2137), CSA Certified (C22.2 No. 248.12)
- Physical Size: 1-9/16" x 7-1/8"
- Terminal Material: Tin-plated copper
- Body Material: Fiberglass
- Design: Rejection style, non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TR200R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TR
- Voltage : 250
- Amperage : 200
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748081
- GTIN : 00782001748081
- Weight : 25
- Certification : UL Listed and CSA Certified
