Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Mersen
- Sub-Category
- Low Voltage Fuse
- Series
- Amp-Trap
- Frame
- A4J
- Rated current
- 200
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Class rating
- J
- Barrels
- 1
- Diameter
- 1.63 in
- Country of origin
- Mexico
- UPC
- 782001960377
- GTIN
- 00782001960377
- Dimensions
- x 5-3/4 in x
Show all specifications (1 more)
- Weight
- 1
Product description & additional details

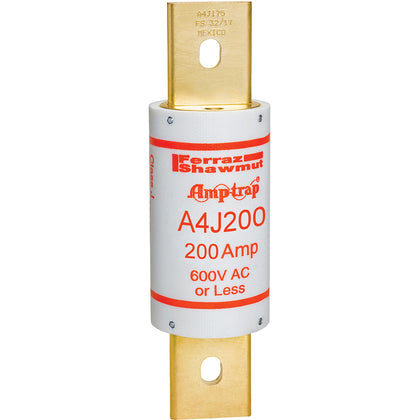

A4J200
A4J200 is a Mersen 200 amp, 600 volt Class J fast acting current limiting fuse designed for reliable circuit protection.This fuse features a fast-acting, current limiting design with a cylindrical cartridge blade body, rated for 200 amps and 600 VAC/300 VDC. It has a high interrupt rating of 200,000 AIC at AC and 100,000 AIC at DC, ensuring safe interruption of fault currents. The fuse is UL listed, CSA certified, and meets IEC standards, making it suitable for industrial and commercial applications requiring Class J protection.
- Key Specifications
- Amperage: 200 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: J
- Speed: Fast Acting
- Interrupt Rating: 200 kA AC / 100 kA DC
- Body Style: Cylindrical Cartridge Blade
- Series: A4J
- Certifications: UL Listed, CSA Certified, IEC 269-2-1
- Rejection Type: Rejection
- Physical Size: 1 5/8" x 5 3/4"
Specifications
- Part Number: A4J200
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960377
- GTIN : 00782001960377
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 1
