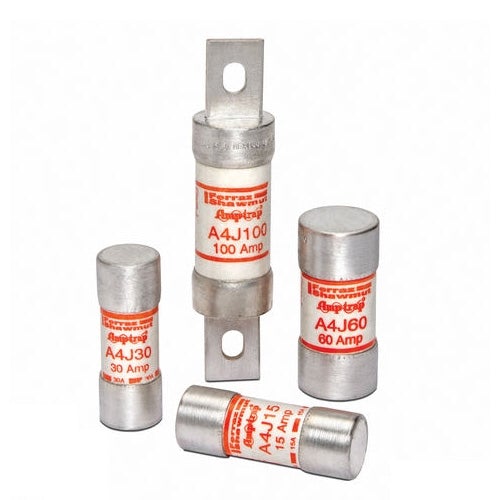

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Mersen
- Sub-Category
- Low Voltage Fuse
- Series
- Amp-Trap
- Frame
- A4J
- Rated current
- 600
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Class rating
- J
- Barrels
- 1
- Diameter
- 2.5 in
- Country of origin
- Mexico
- UPC
- 782001960537
- GTIN
- 00782001960537
- Dimensions
- x 8 in x
Show all specifications (1 more)
- Weight
- 5
Product description & additional details

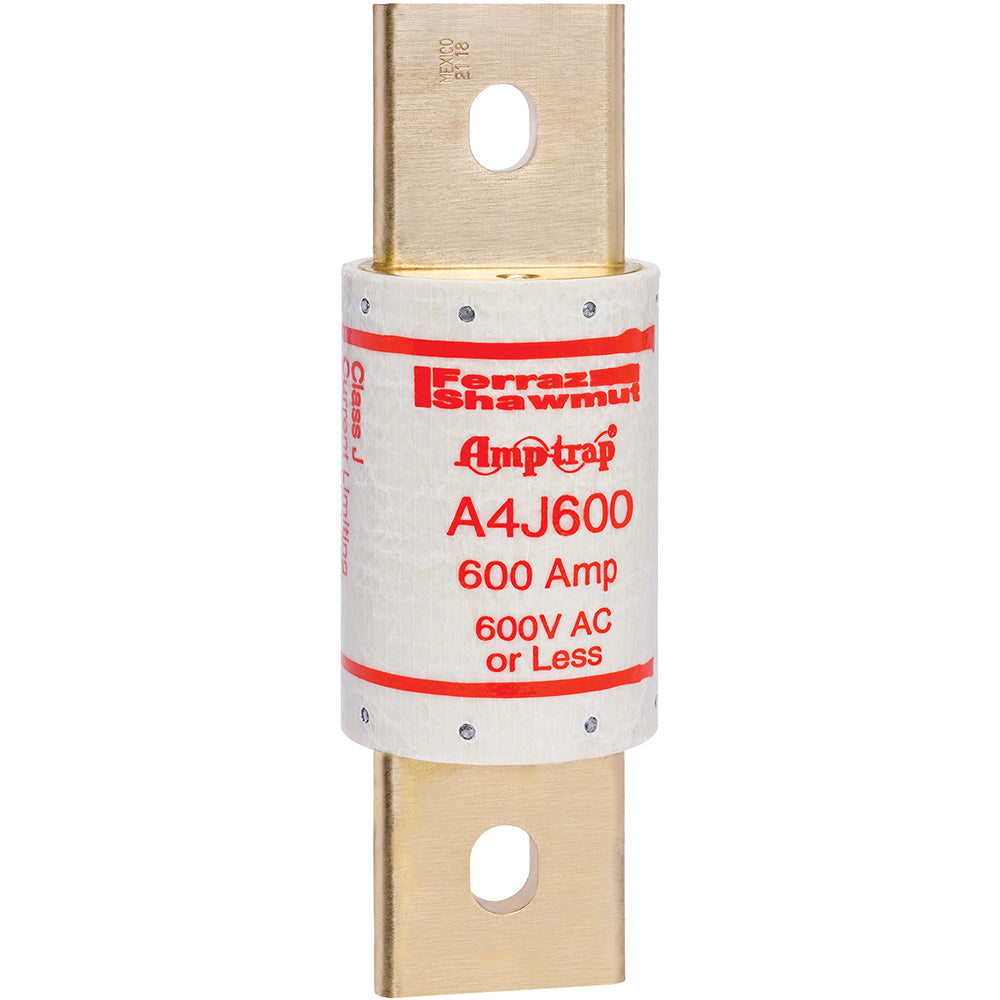

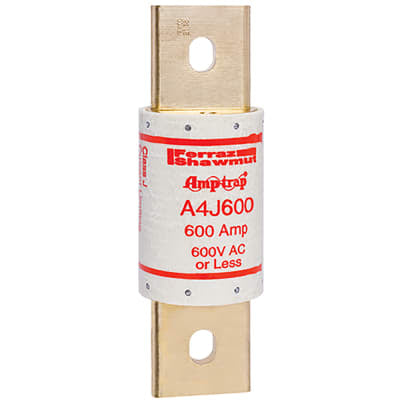

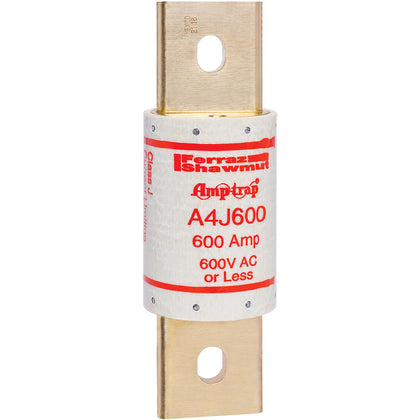

A4J600
A4J600 is a Class J fast-acting, current-limiting fuse from Mersen (formerly Ferraz Shawmut), designed for robust circuit protection in demanding applications.
This fuse offers 600A amperage rating, 600V AC (300V DC) voltage rating, and a 200kA AC interrupting rating. It features a unique 2-1/2" x 8" blade design that prevents substitution with lower-rated fuses, ensuring safety and compliance. The A4J600 is suitable for capacitors, load centers, panelboards, switchboards, bus duct, feeder circuits, circuit breakers, lighting, heating, and general loads.
-
Key Specifications
- Amperage: 600A
- Voltage: 600V AC / 300V DC
- Poles: 1
- Mounting Type: Blade (Clip)
- Interrupt Rating: 200kA AC / 100kA DC
- Series/Frame: A4J
- Trip Unit: Fast-Acting
- Certifications: UL 248-8 (File E2137), CSA C22.2 No. 248.8, IEC 269-2-1, RoHS Compliant
- Physical Size: 2-1/2" diameter x 8" length
- Terminal Connection: Blade
- Construction: Fiberglass
- Application: Capacitors, load centers, panelboards, switchboards, bus duct, feeder circuits, circuit breakers, lighting, heating, general loads
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A4J600
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960537
- GTIN : 00782001960537
- Country of Origin : Mexico
- Dimensions : x 8 in x
- Weight : 5
