Product Info
- Manufacturer:General Electric
- Sub-Category:Lug Terminal Kit
Description
TCAL24

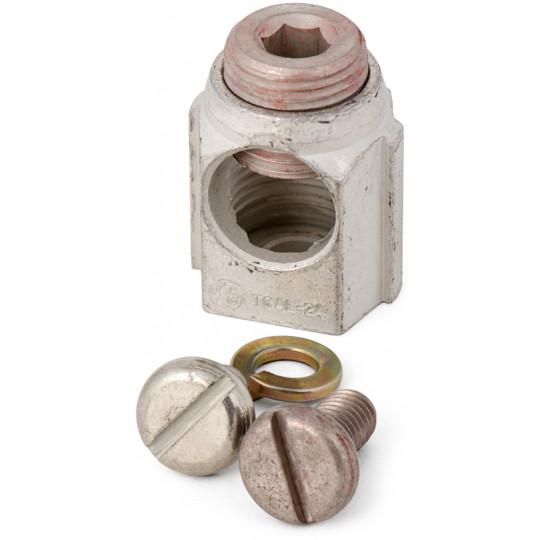

TCAL24 is a General Electric circuit breaker lug kit designed for use with 225 Amp, 600 Volt, 1 pole circuit breakers.TCAL24 lug kit supports current ratings from 70 to 225 Amps and is compatible with GE TFJ and TFK series molded case circuit breakers. It features a 1 lug connection type and is rated for 600 VAC applications, providing reliable electrical connections for circuit protection.
- Key Specifications
- Manufacturer: General Electric
- Part Number: TCAL24
- Amperage: 225 Amps max
- Voltage Rating: 600 Volts AC
- Poles: 1
- Breaker Series: TFJ, TFK
- Mounting Type: Lug Kit
- Connection Type: 1 Lug
- Compatible with Molded Case Circuit Breakers
Specifications
- Part Number: TCAL24
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : TCAL Series
- Type : TCAL
- Voltage : 600VAC
- Amperage : 70-225
- MCM Size : 300
- Barrels : 1
- Metal Type : Aluminum
- Compatible Frames : TFJ, TFK, THFK
Product Data
- UPC : 078316400434
- GTIN : 00783164004342
- Weight : 3 lb
- Wire Size : 1x AWG 4 to 300KCmil, Cu/Al
