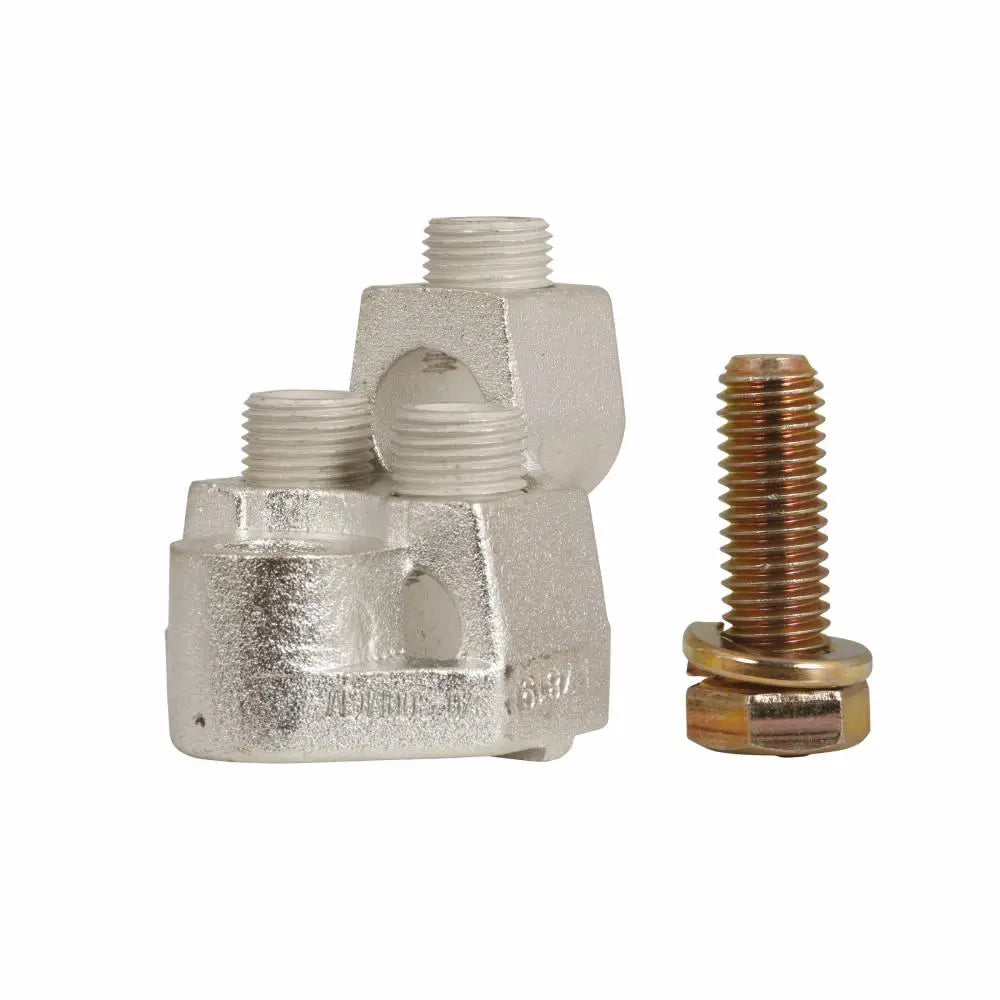

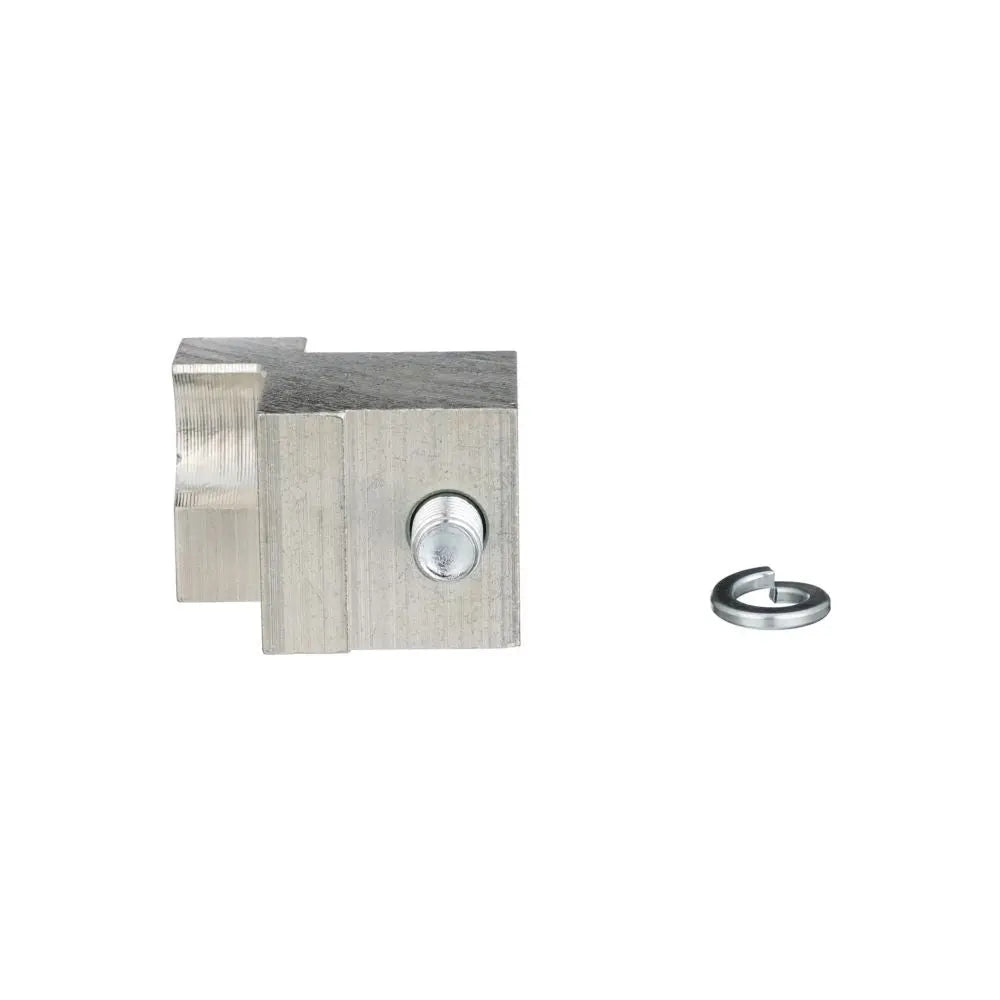

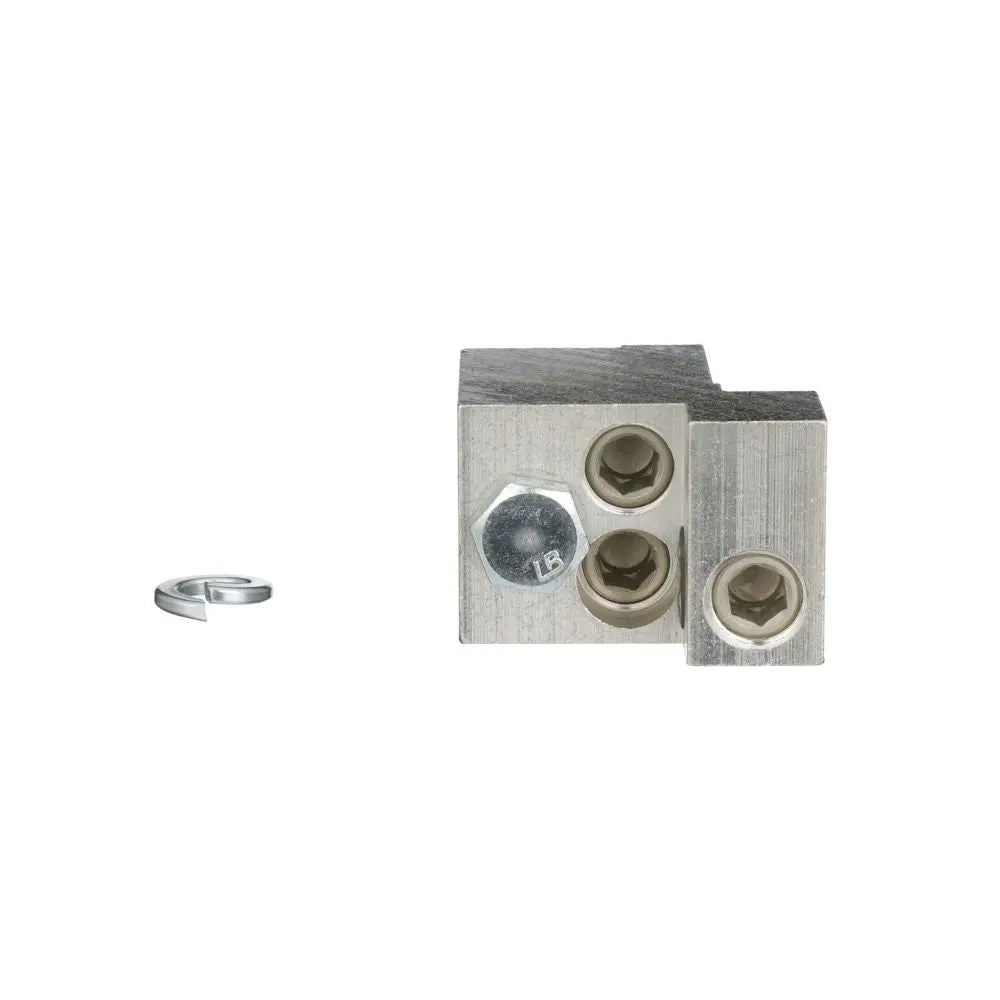

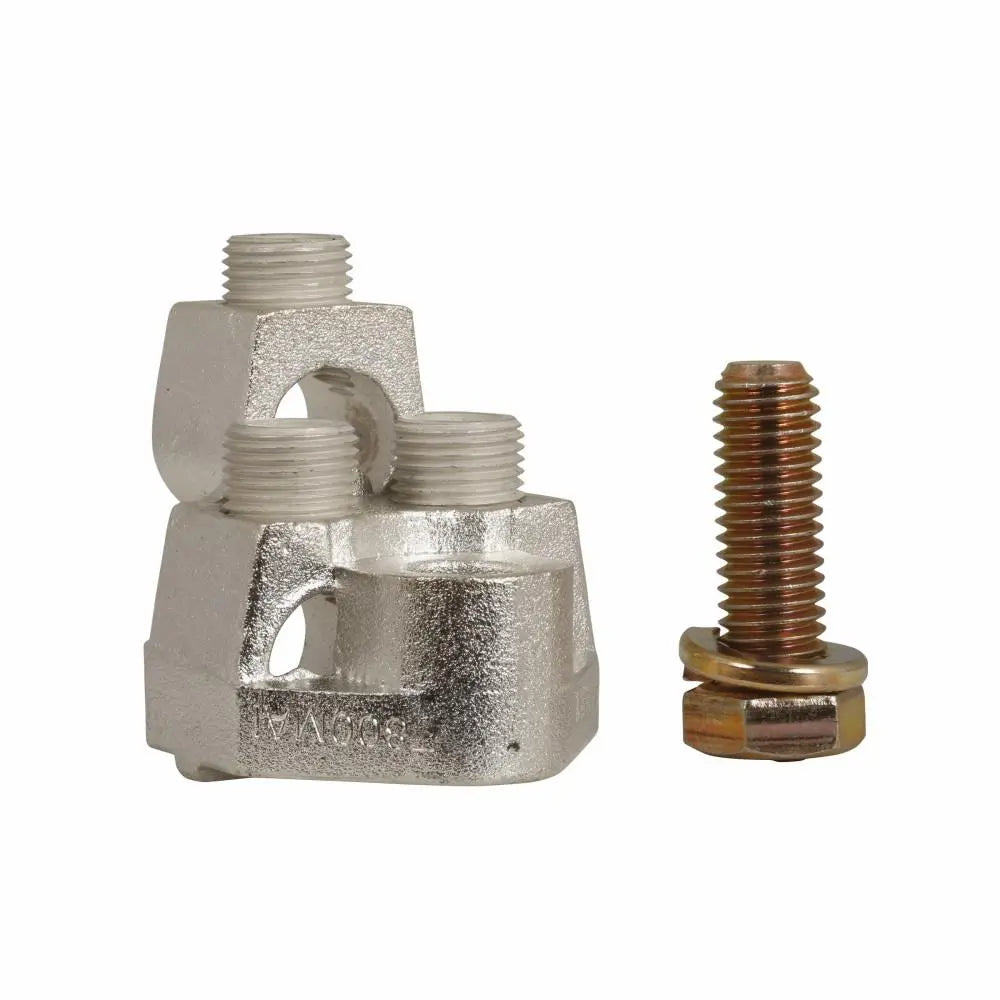

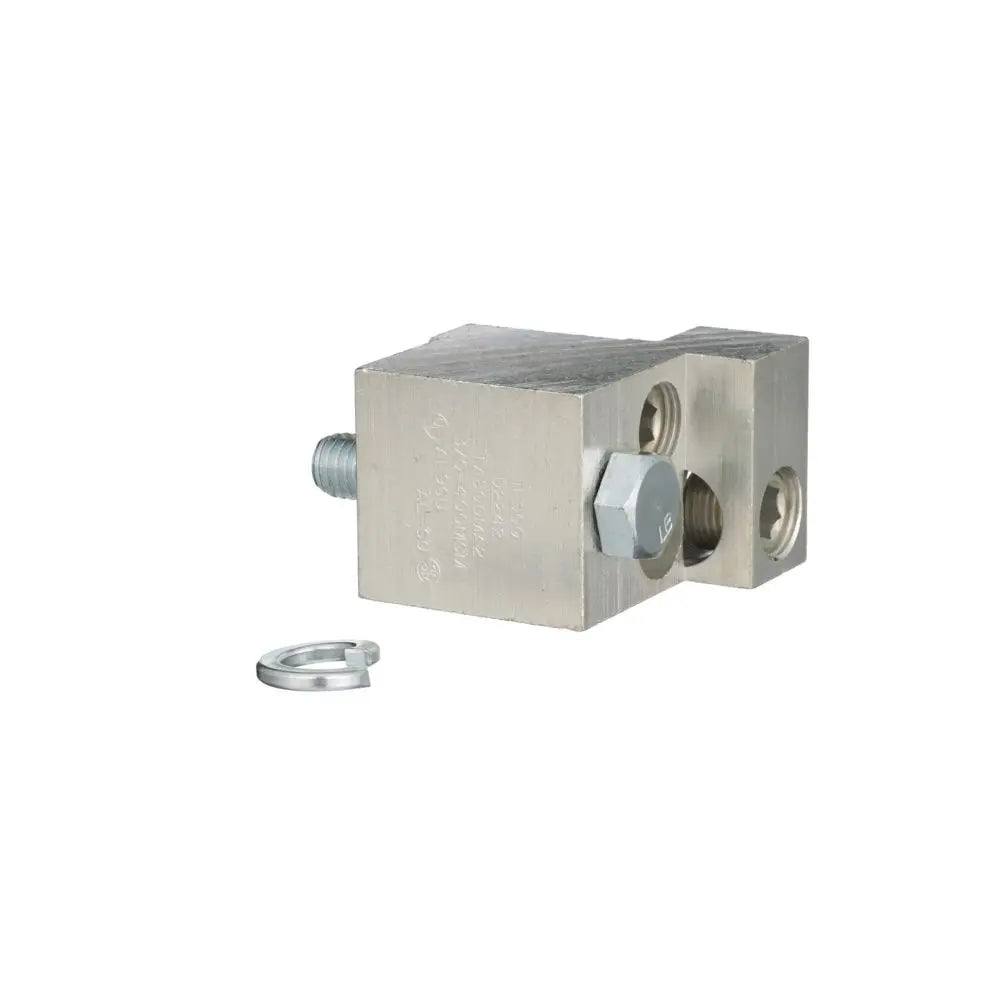

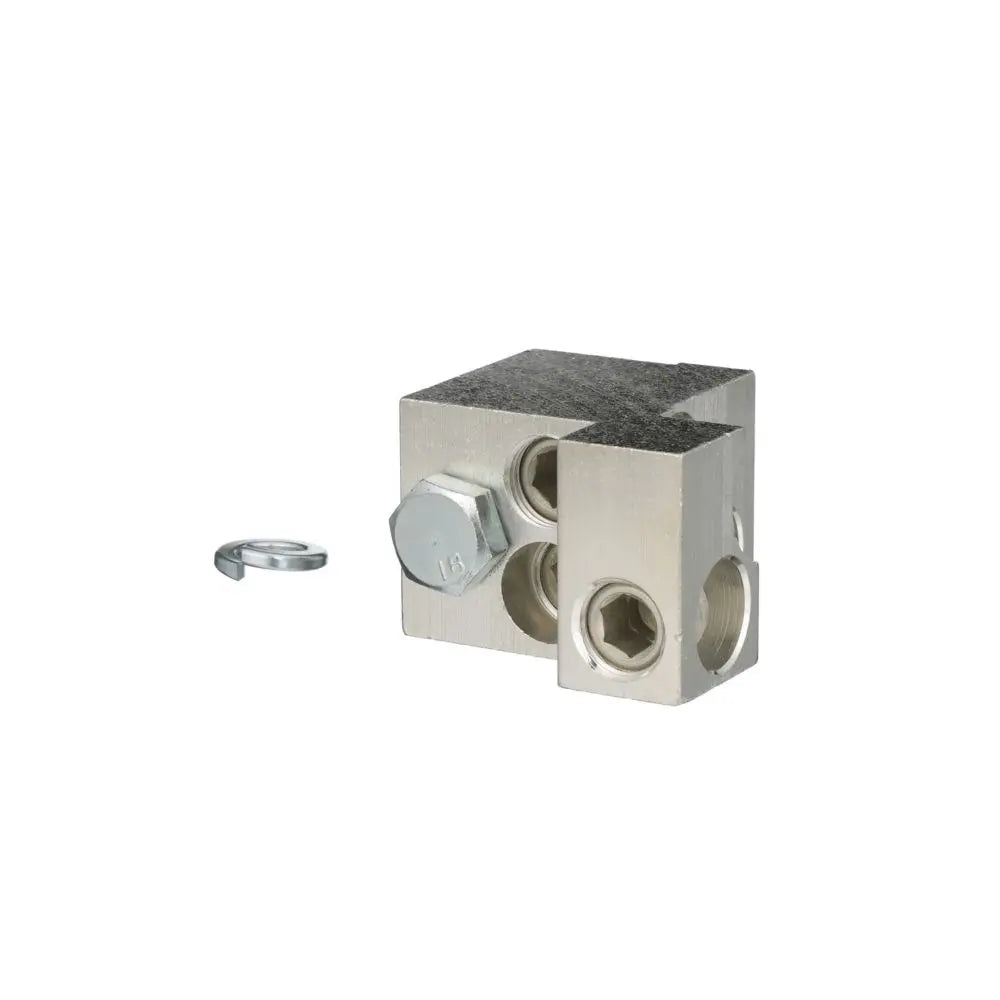

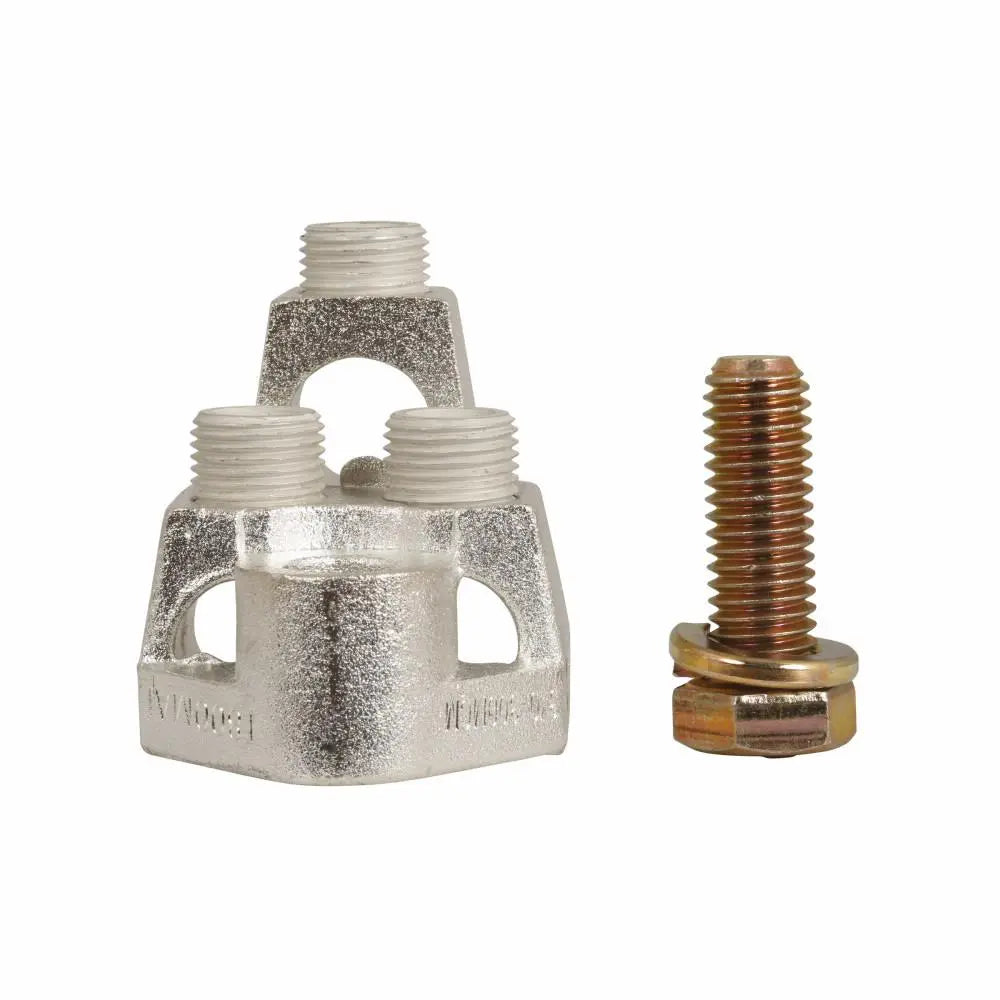

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Lug Terminal Kit
- Series
- Series C
- Frame
- C
- Rated current
- 800
- Voltage
- 600VAC
- Barrels
- 3
- Country of origin
- United States
- MCM Size
- 400
- Metal Type
- Aluminum
- Compatible Frames
- HMDLDC, E2M, E2MM, MAM, HMAM, MAMH, MDL, HMDL, MDLB, HMDLB, MD, MDY, MDS, MDSY
- UPC
- 786679679272
- GTIN
- 00786679679272
Show all specifications (4 more)
- Dimensions
- 2.6 in x 3.4 in x 2.5 in (Length/Depth x Height x Width)
- Weight
- 0.7
- Certification
- UL
- Wire Size
- 3x AWG 3/0 to 400KCmil, Cu/Al
Product description & additional details
TA800MA2
TA800MA2 is a Cutler Hammer molded case circuit breaker accessory terminal designed for use with MAM, HMAM, and MAMH breakers.TA800MA2 features optional aluminum/copper pressure terminals rated for 800 amperes, compatible with wire sizes from (3) #3/0 AWG to 400 kcmil Cu/Al. It fits Series C, Frame J-K breakers, providing reliable electrical connections for high-capacity circuit protection.
- Key Specifications
- Amperage Rating: 800 A
- Compatible Breakers: MAM, HMAM, MAMH
- Frame Size: J-K
- Series: C
- Terminal Type: Optional Al/Cu pressure terminals
- Wire Size Range: (3) #3/0 AWG to 400 kcmil Cu/Al
- Mounting Type: Accessory terminal for molded case breakers
- Dimensions: 3.4" x 2.5" x 2.6"
- Weight: 0.07 lbs
- Certifications: UL 489, ANSI C37 compliant (per breaker standards)
Specifications
- Part Number: TA800MA2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Series C
- Type : C
- Voltage : 600VAC
- Amperage : 800
- MCM Size : 400
- Barrels : 3
- Metal Type : Aluminum
- Compatible Frames : HMDLDC, E2M, E2MM, MAM, HMAM, MAMH, MDL, HMDL, MDLB, HMDLB, MD, MDY, MDS, MDSY
Product Data
- UPC : 786679679272
- GTIN : 00786679679272
- Country of Origin : United States
- Dimensions : 2.6 in x 3.4 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 0.7
- Certification : UL
- Wire Size : 3x AWG 3/0 to 400KCmil, Cu/Al
