AL800M23K - Essential Electric Supply
AL800M23K - Square D 800A 600V 3-Pole PowerPact M/P Frame Circuit Breaker Mechanical Lug Kit - Essential Electric Supply
Hover to zoom
AL800M23K - Essential Electric Supply
AL800M23K - Square D 800A 600V 3-Pole PowerPact M/P Frame Circuit Breaker Mechanical Lug Kit - Essential Electric Supply

Reference images. Contact us for photos of the available unit.


Schneider Electric

AL800M23K

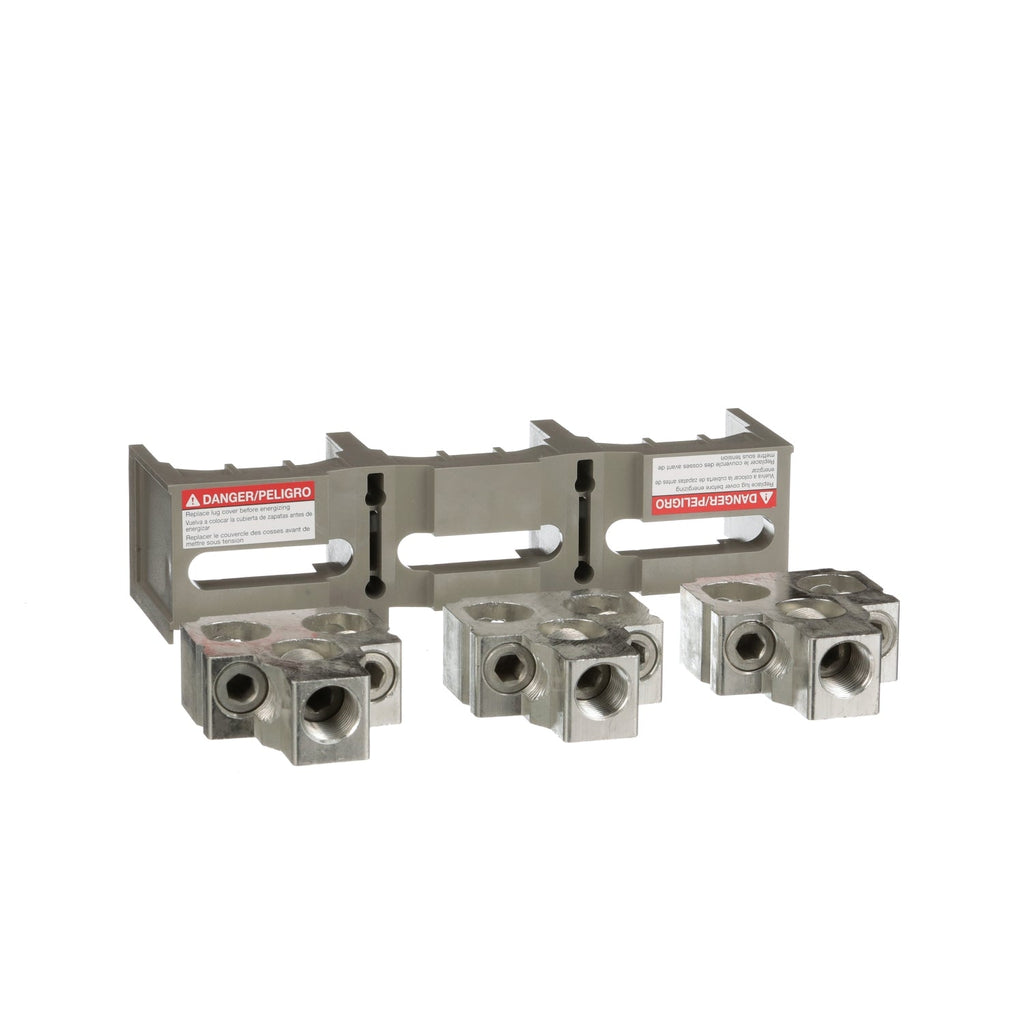

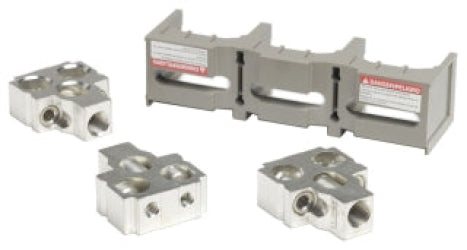

Square D 800A 600V 3-Pole PowerPact M/P Frame Circuit Breaker Mechanical Lug Kit

Current: 800Poles: 3Voltage: 600V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$346.81
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Brand
Square D
Sub-Category
Lug Terminal Kit
Series
Powerpact
Frame
PowerPact M/P
Rated current
800
Voltage
600V
Poles
3
Barrels
3
Standards
RoHS, REACh
Country of origin
United States
MCM Size
500
Metal Type
Aluminum
Compatible Frames
PGL,PJL,PGM,PGP,PGA,PKL,PKM,PKP,PKA,PLL,PLM,PLP,PLA,MGL,MGM,MGP,MGA,MJL,MJM,MJP,MJA
Show all specifications (6 more)
UPC
785901463764
GTIN
00785901463764
Dimensions
Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Weight
1.805
Certification
UL, CSA
Wire Size
AWG 3/0...500 kcmil aluminium/copper
Product description & additional details

AL800M23K


AL800M23K is a Square D mechanical lug kit designed for 800 amp, 600 volt, 3-pole PowerPact M and P frame circuit breakers.This lug kit features tin-plated aluminum lugs compatible with copper and aluminum conductors ranging from 3/0 AWG to 500 kcmil. It supports unit mount I-Line installation for line or load side connections. The kit is UL Listed and CSA certified, ensuring compliance with industry standards.
  • Amperage: 800A
  • Voltage: 600V
  • Poles: 3
  • Mounting Type: Unit mount, I-Line
  • Compatible Frame: PowerPact M and P
  • Conductor Size: 3/0 AWG to 500 kcmil
  • Conductor Material: Copper and Aluminum
  • Lug Material: Tin-plated aluminum
  • UL Listed and CSA Certified
  • Application: Mechanical lug kit accessory for circuit breakers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: AL800M23K
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Lug Terminal Kit
  • Family : Powerpact
  • Type : PowerPact M/P
  • Voltage : 600
  • Amperage : 800
  • Poles : 3
  • MCM Size : 500
  • Barrels : 3
  • Metal Type : Aluminum
  • Compatible Frames : PGL,PJL,PGM,PGP,PGA,PKL,PKM,PKP,PKA,PLL,PLM,PLP,PLA,MGL,MGM,MGP,MGA,MJL,MJM,MJP,MJA

Product Data

  • UPC : 785901463764
  • GTIN : 00785901463764
  • Country of Origin : United States
  • Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight : 1.805
  • Standards : RoHS, REACh
  • Certification : UL, CSA
  • Wire Size : AWG 3/0...500 kcmil aluminium/copper

Technical Documents
Product Datasheet
Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
