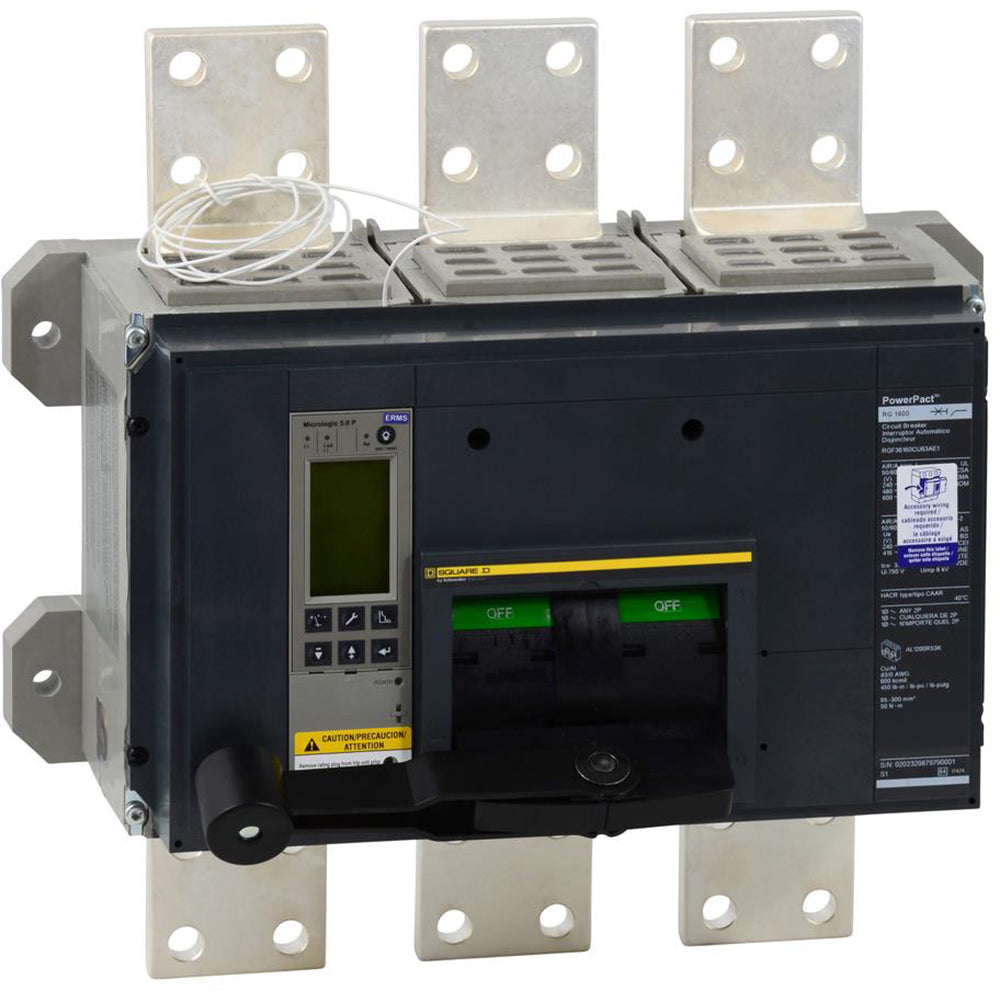

RGF36160U63AE1 - Schneider Electric PowerPact R 1600A 3-Pole 600V Circuit Breaker 18kA Busbar Micrologic 5.0P

RGF36160U63AE1

This molded case circuit breaker features an 18kA interrupt rating at 600VAC, busbar mounting type, and advanced Micrologic 5.0P trip unit with 80% rated current setting and Modbus communication capability. It provides reliable protection against overloads and short circuits in industrial and commercial electrical systems.

Key Specifications
• Amperage: 1600A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Interrupt Rating: 18kA at 600VAC
• Mounting Type: Busbar
• Series/Frame: PowerPact R
• Trip Unit: Micrologic 5.0P with Modbus
• Rated Current Setting: 80%
• Certifications: IEC 60947-2 compliant
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: RGF36160U63AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State



Product Data

• UPC : 3606486120071
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001 lb
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
