Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Lug Terminal Kit
- Series
- Powerpact
- Frame
- AL
- Rated current
- 2500
- Barrels
- 1
- Mounting
- Unit Mount
- Standards
- UL 489, CSA, IEC
- Country of origin
- United States
- MCM Size
- 750
- Metal Type
- Aluminum
- Compatible Frames
- RGL,RGM,RGP,RJL,RJM,RJP,RKL,RKM,RKP,RLL,RLM,RLP
- UPC
- 785901441304
Show all specifications (4 more)
- GTIN
- 00785901441304
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 0.76
- Wire Size
- AWG 1/0...750 kcmil aluminium/copper
Product description & additional details
AL2500RK

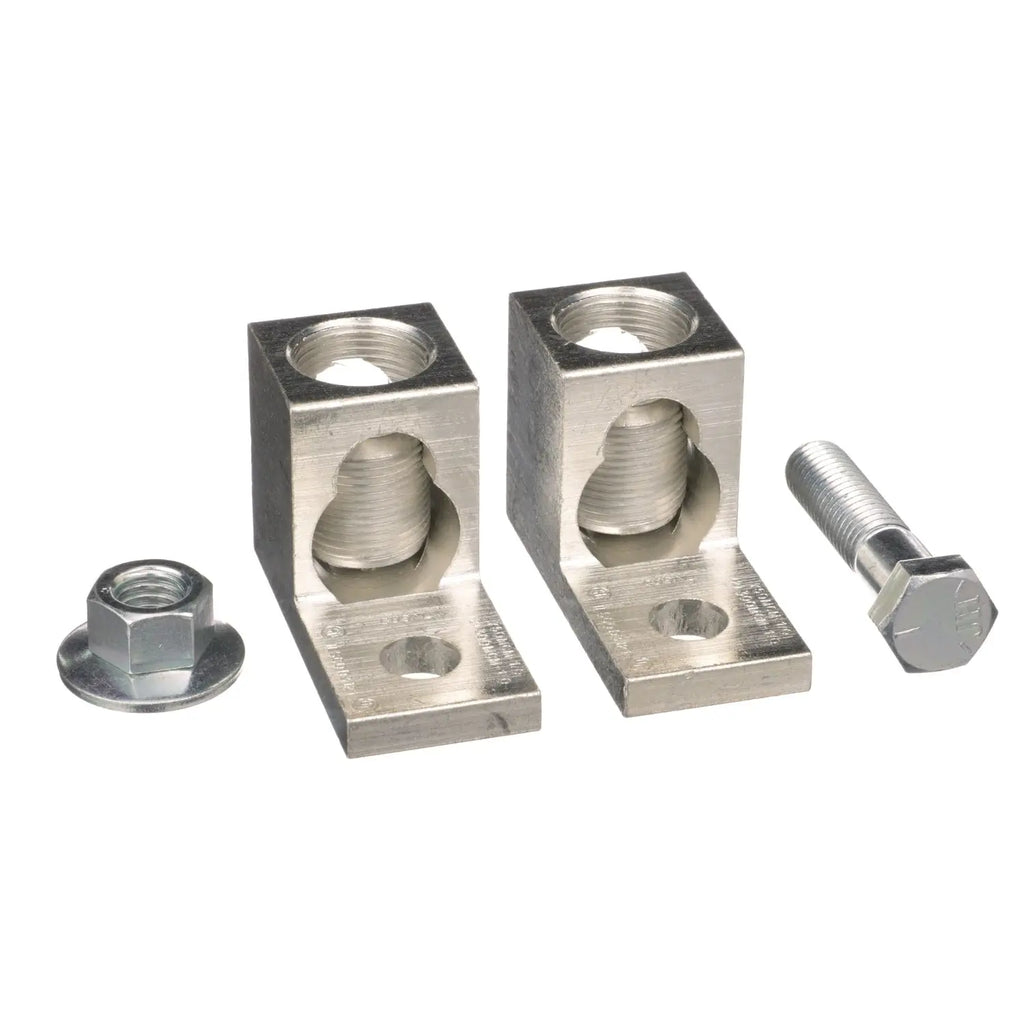

AL2500RK is a mechanical lug terminal kit designed for PowerPact R-frame circuit breakers rated at 2500 amperes. This accessory provides aluminum or copper wire connection capability and includes two lugs with required hardware for secure terminal installation. AL2500RK is compatible with PowerPact R circuit breakers including RGL, RGM, RGP, RJL, RJM, RJP, RKL, RKM, RKP, RLL, RLM, and RLP frame models. The kit supports wire sizes from 1/0 AWG to 750 kcmil and is designed for unit mount installation. This accessory complies with UL 489 listed, CSA, and IEC standards for reliable performance in industrial power distribution applications.
- Amperage Rating: 2500 A
- Mounting Type: Unit Mount
- Wire Size Range: 1/0 AWG to 750 kcmil
- Material Compatibility: Aluminum or Copper
- Includes: Two lugs and required hardware
- Series: PowerPact R-Frame
- Standards: UL 489, CSA, IEC
- Quantity: 2 lugs per kit
Specifications
- Part Number: AL2500RK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Powerpact
- Type : AL
- Amperage : 2500
- MCM Size : 750
- Barrels : 1
- Circuit Breaker Mounting Style : Unit Mount
- Metal Type : Aluminum
- Compatible Frames : RGL,RGM,RGP,RJL,RJM,RJP,RKL,RKM,RKP,RLL,RLM,RLP
Product Data
- UPC : 785901441304
- GTIN : 00785901441304
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.76
- Standards : UL 489, CSA, IEC
- Wire Size : AWG 1/0...750 kcmil aluminium/copper
