RGF36160CU31A - Schneider Electric PowerPact R Frame 1600A 3 Pole 600VAC 18kA Molded Case Circuit Breaker

RGF36160CU31A

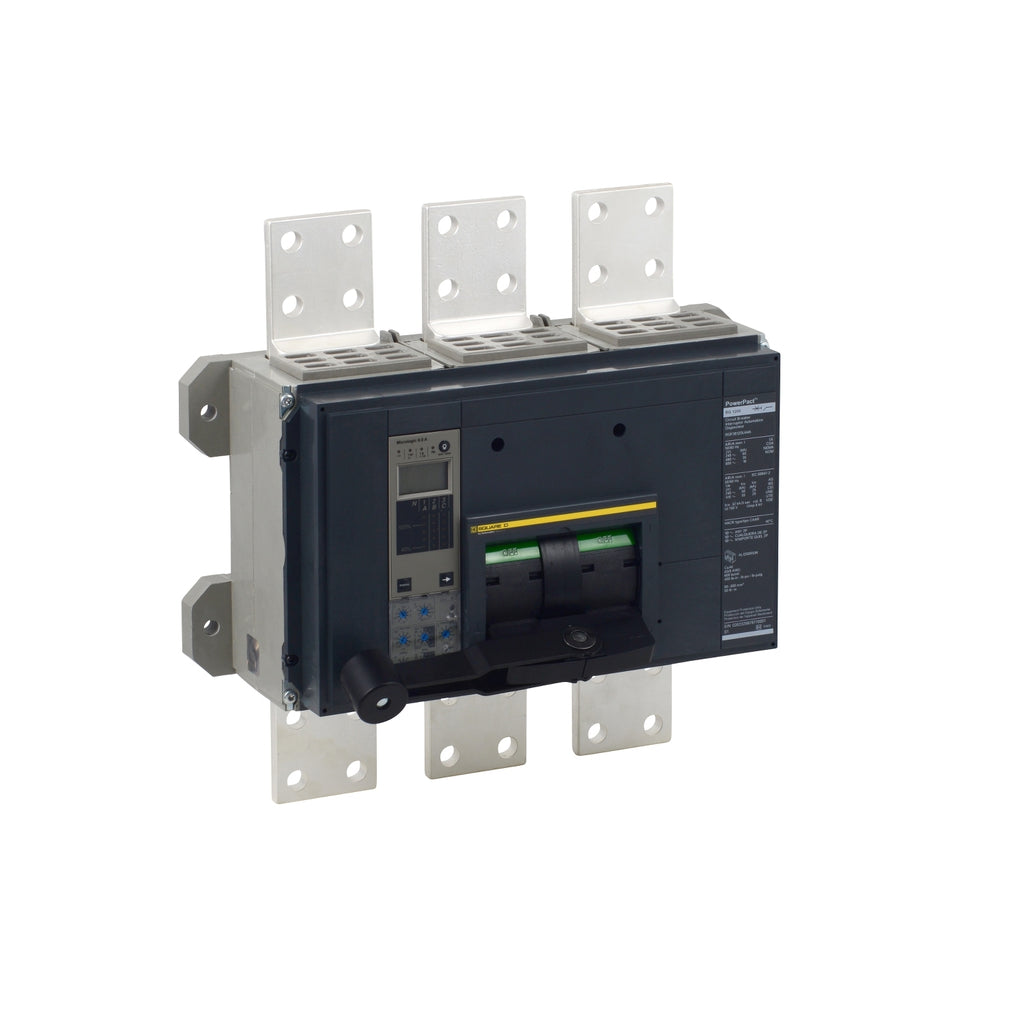

RGF36160CU31A is a Schneider Electric PowerPact R Frame molded case circuit breaker designed for high-amperage applications requiring reliable protection and advanced trip technology. This 3-pole, 1600A circuit breaker features a 600VAC rating, 18kA interrupt rating, and is equipped with the Micrologic 3.0 electronic trip unit for precise overload and short circuit protection. The unit is busbar-connected and suitable for unit mounting in industrial and commercial power distribution systems. It is UL 489 listed, CSA NMX, and IEC certified for safety and compliance.

• Part Number: RGF36160CU31A
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact R Frame
• Amperage Rating: 1600A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Interrupt Rating: 18kA at 600VAC
• Mounting Type: Unit Mount
• Connection Type: Busbar
• Trip Unit: Micrologic 3.0 Electronic
• Certifications: UL 489, CSA NMX, IEC
• Application: Industrial and Commercial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGF36160CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : RGF
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 78590153660
• GTIN : 00785901536604
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
