Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
RGF36160CU43A

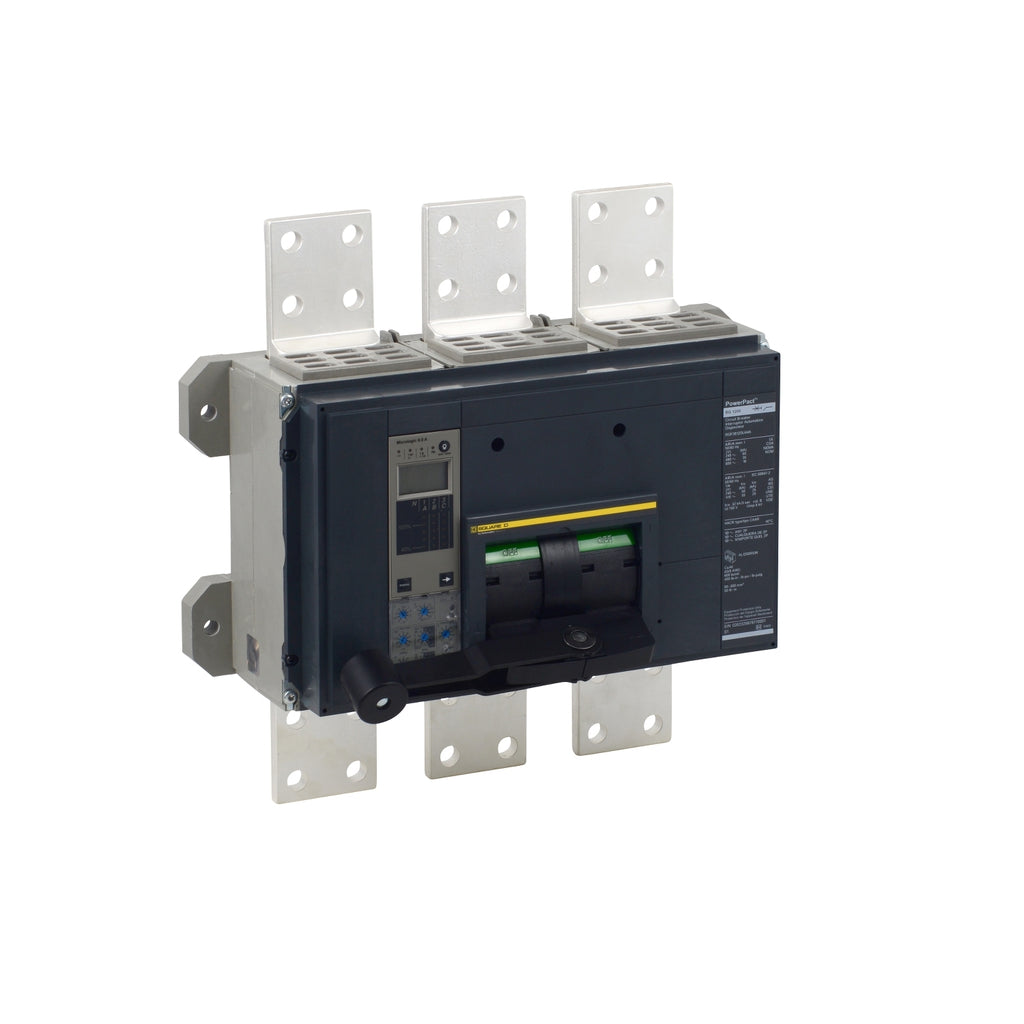

RGF36160CU43A is a Square D PowerPact RGF molded case circuit breaker designed for high-capacity electrical protection.This 3 pole circuit breaker is rated for 1600 amps and 600 volts, providing reliable interruption for industrial and commercial power distribution. It features a bolt-on mounting type and a 35kA interrupting rating at 480V, ensuring robust performance under fault conditions. The breaker is part of the PowerPact RGF series, known for durable construction and precise trip characteristics.
- Key Specifications
- Manufacturer: Square D
- Part Number: RGF36160CU43A
- Amperage: 1600A
- Voltage Rating: 600V
- Poles: 3
- Interrupt Rating: 35kA @ 480V
- Series/Frame: PowerPact RGF
- Mounting Type: Bolt-On
- Part Number: RGF36160CU43A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : RGF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : R Frame
- Protection : Solid State
- Country of Origin : Mexico
- Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
- Weight : 52.001
- Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...750 kcmil aluminium/copper
