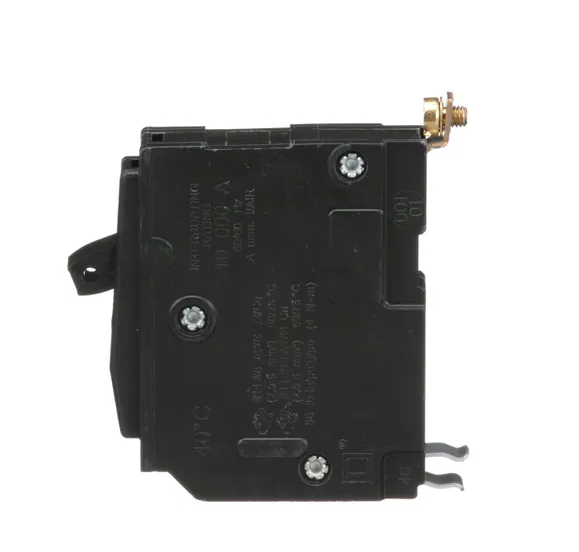

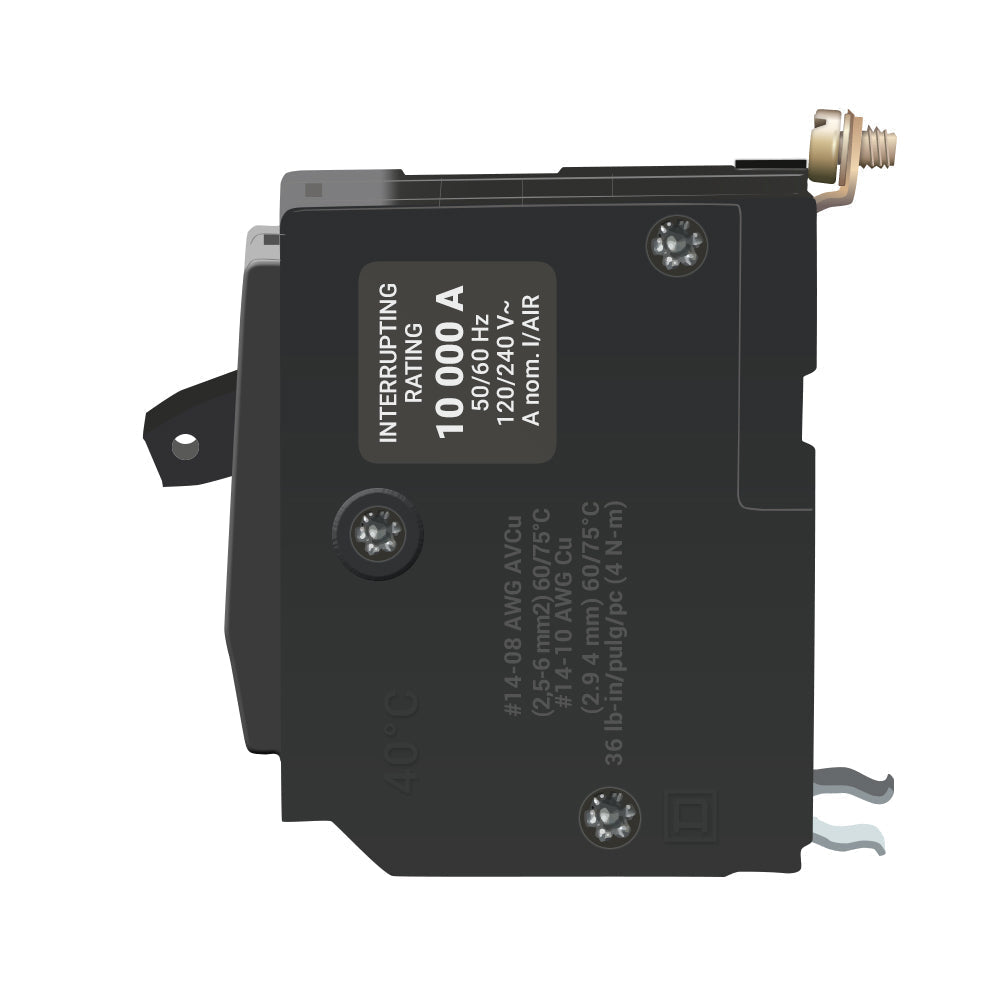

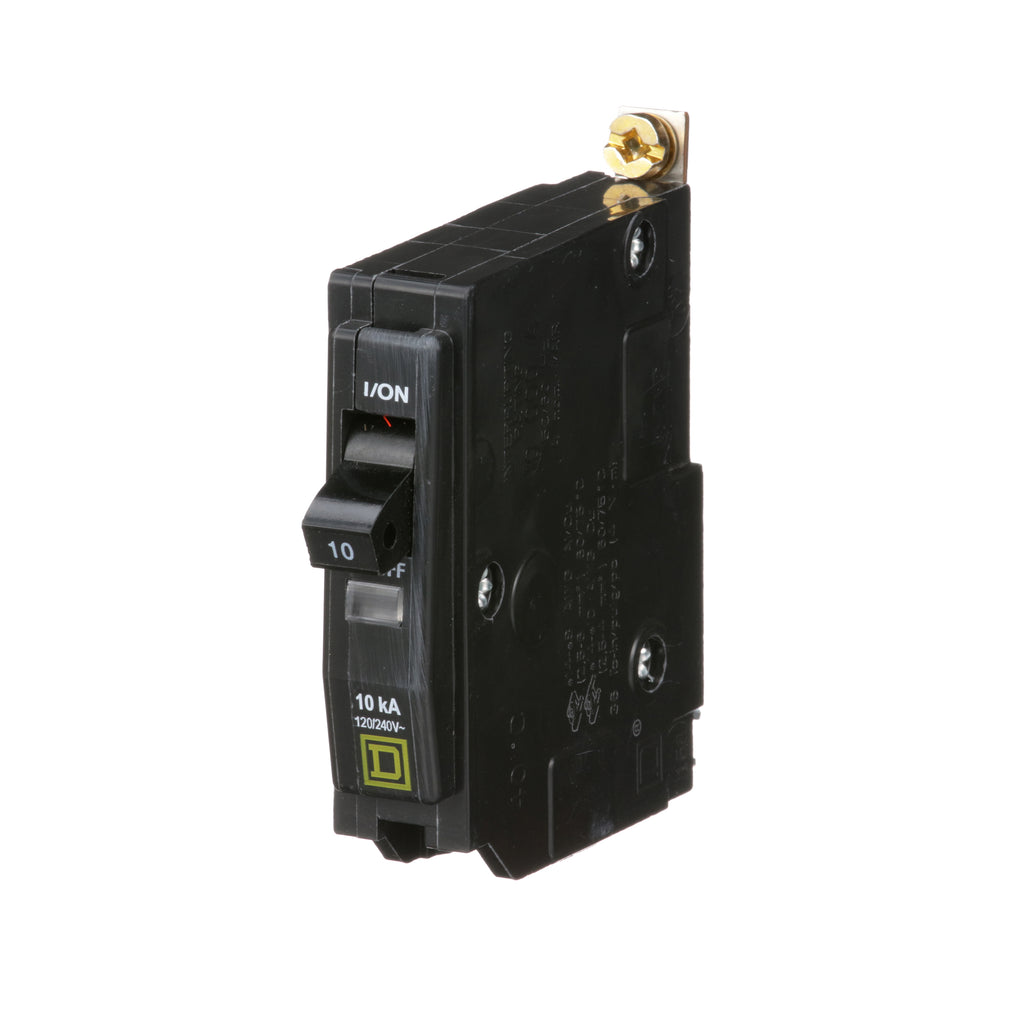

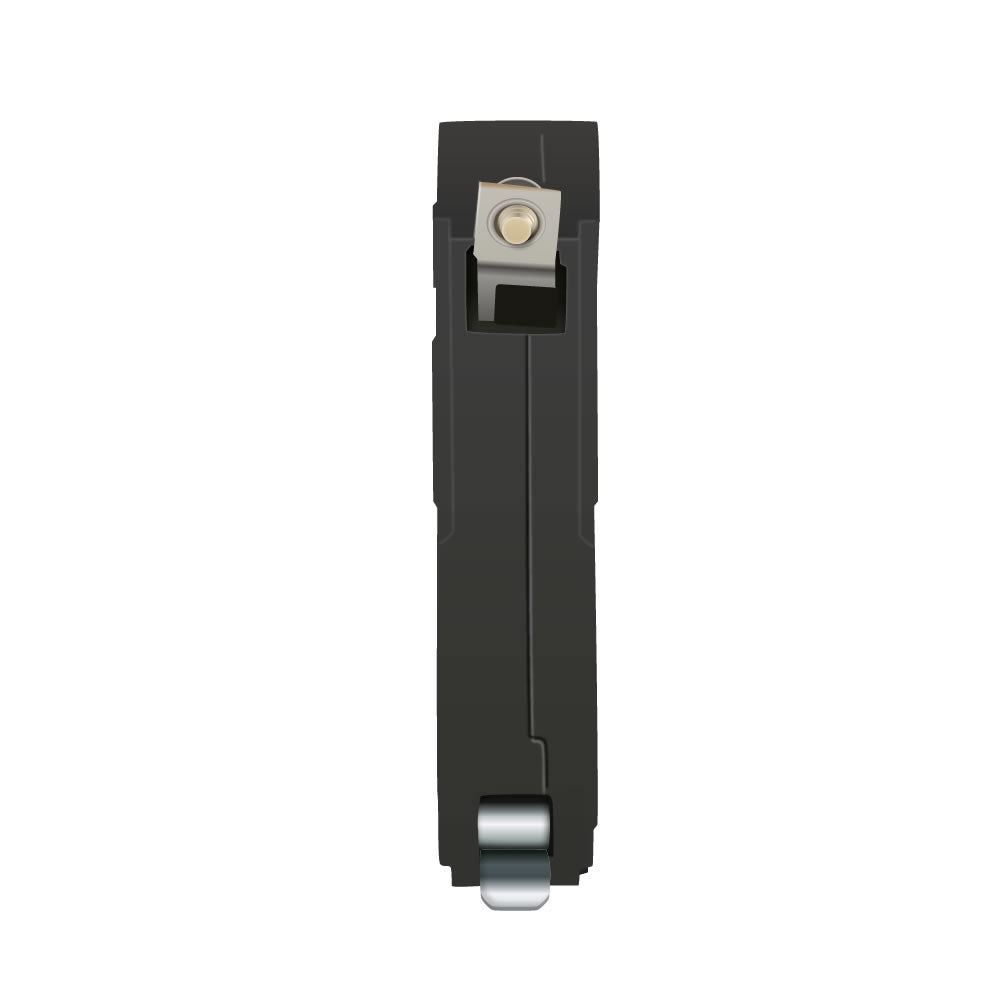

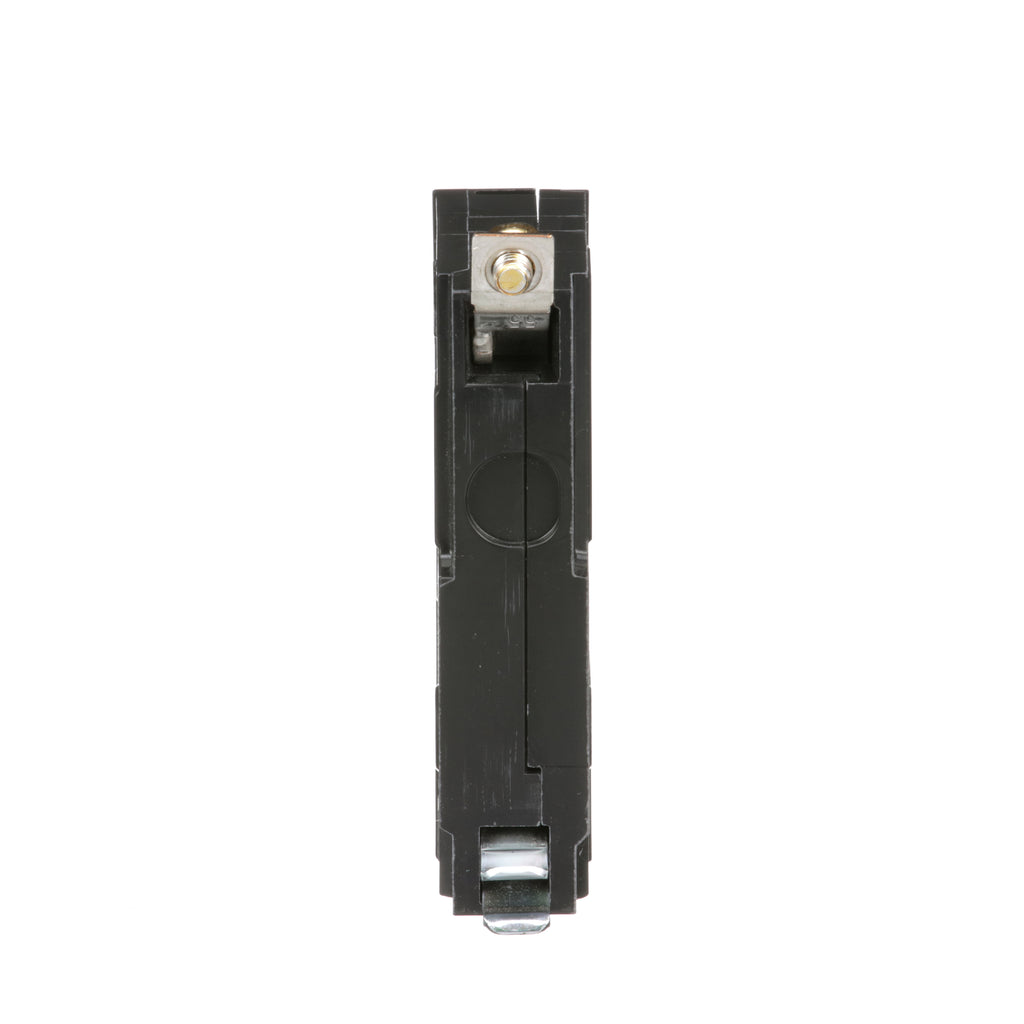

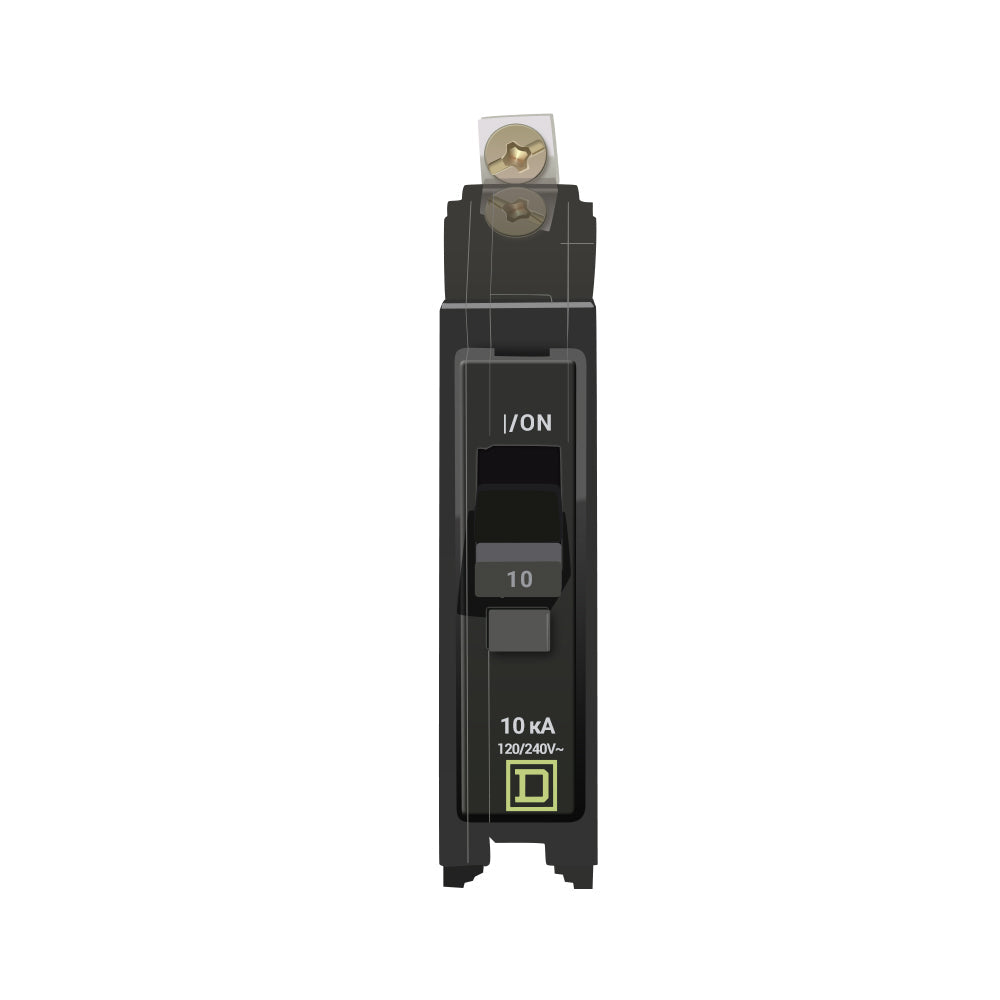

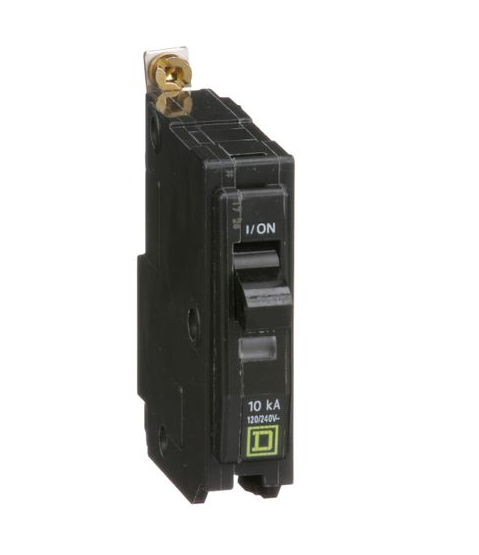

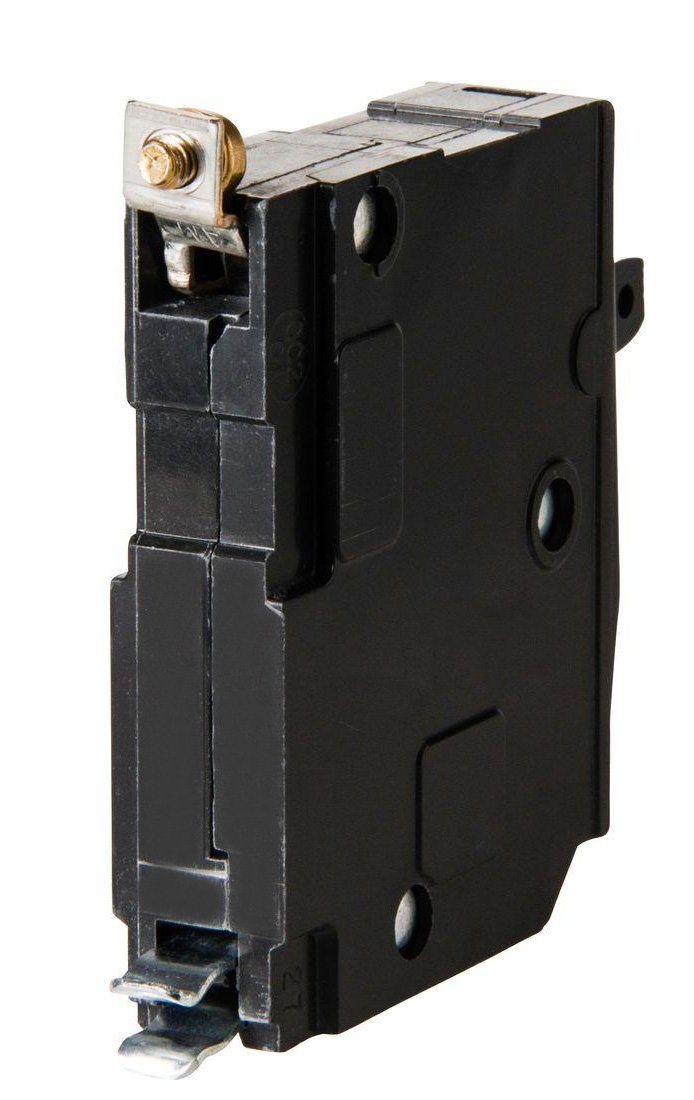

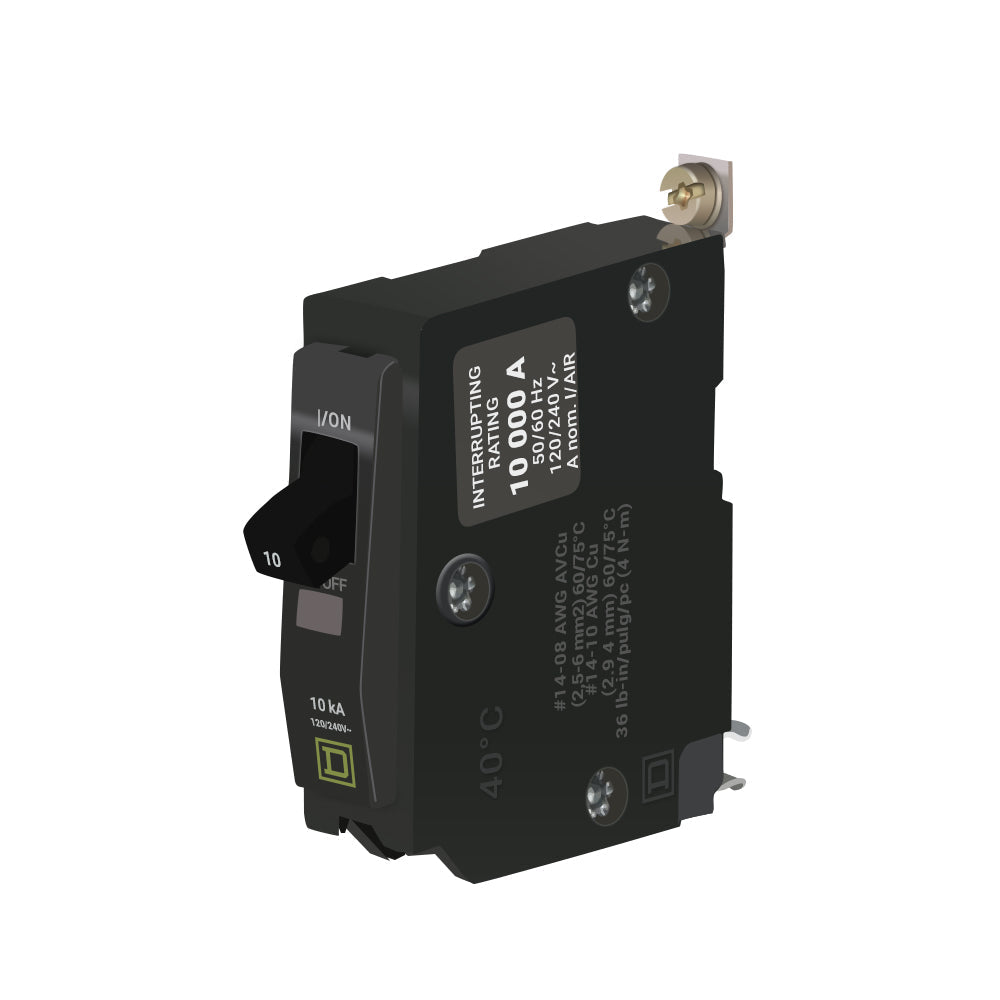

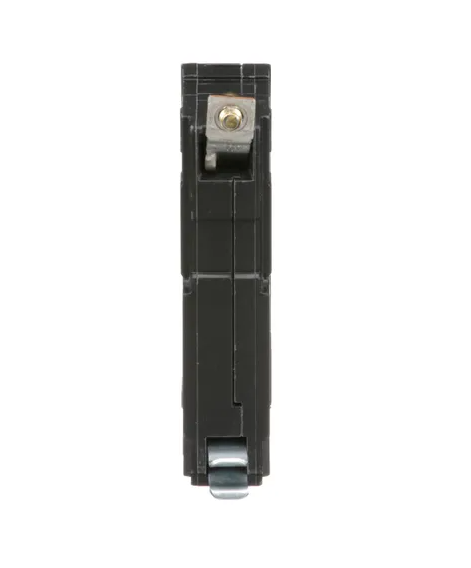

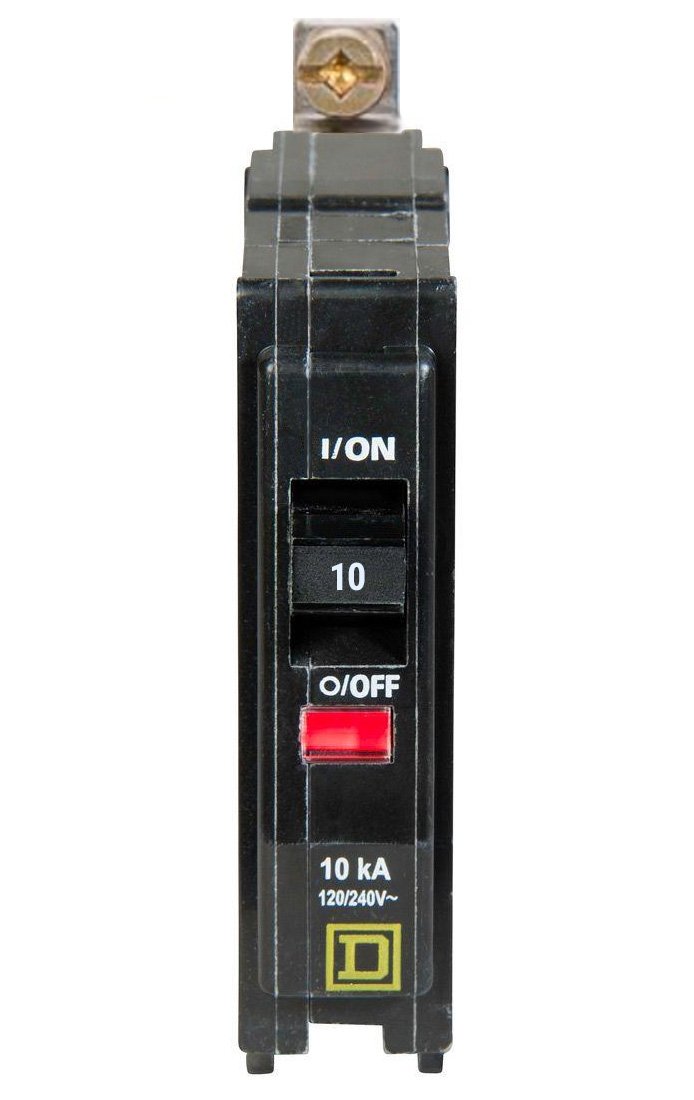

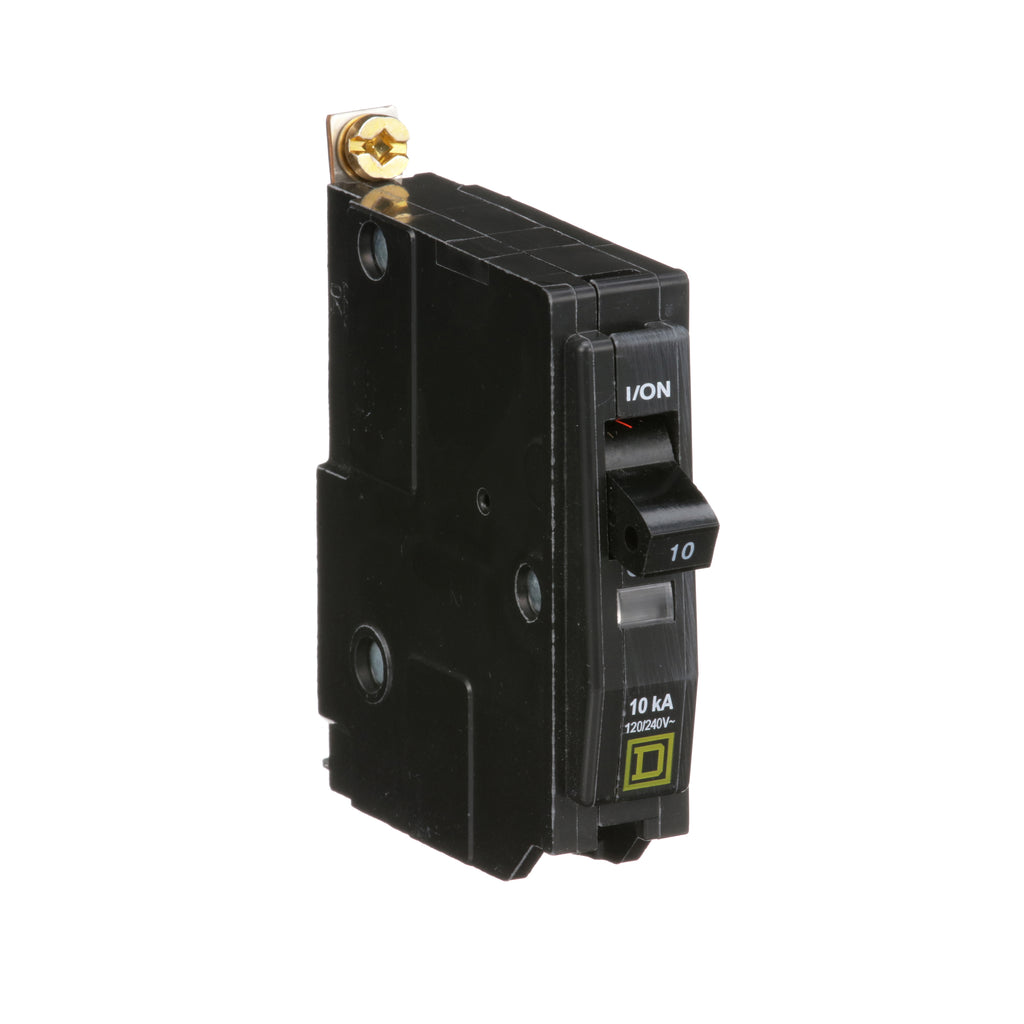

QOB110 - Square D 10A 1 Pole Miniature Circuit Breaker 120/240V AC Bolt-On QO Series 10kA

QOB110

QOB110 is a 10A, 1 Pole miniature circuit breaker designed for use in Square D QO series panelboards. This Square D QOB110 circuit breaker features a bolt-on mounting design, 120/240V AC voltage rating, and a 10kA interrupting rating. It is a standard thermal magnetic trip unit suitable for residential and light commercial applications. The breaker is UL and CSA listed for safety and reliability.

• Part Number: QOB110
• Manufacturer: Square D
• Amperage Rating: 10A
• Number of Poles: 1
• Voltage Rating: 120/240V AC
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 120/240V AC
• Series/Frame: QO Series
• DC Voltage Rating: 48V DC
• Wire Size: 14-8 AWG (Copper/Aluminum)
• Approvals: UL, CSA
• Dimensions: 3" H x 0.75" W x 2.91" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 10
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901477495
• GTIN : 00785901477495
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.29
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
