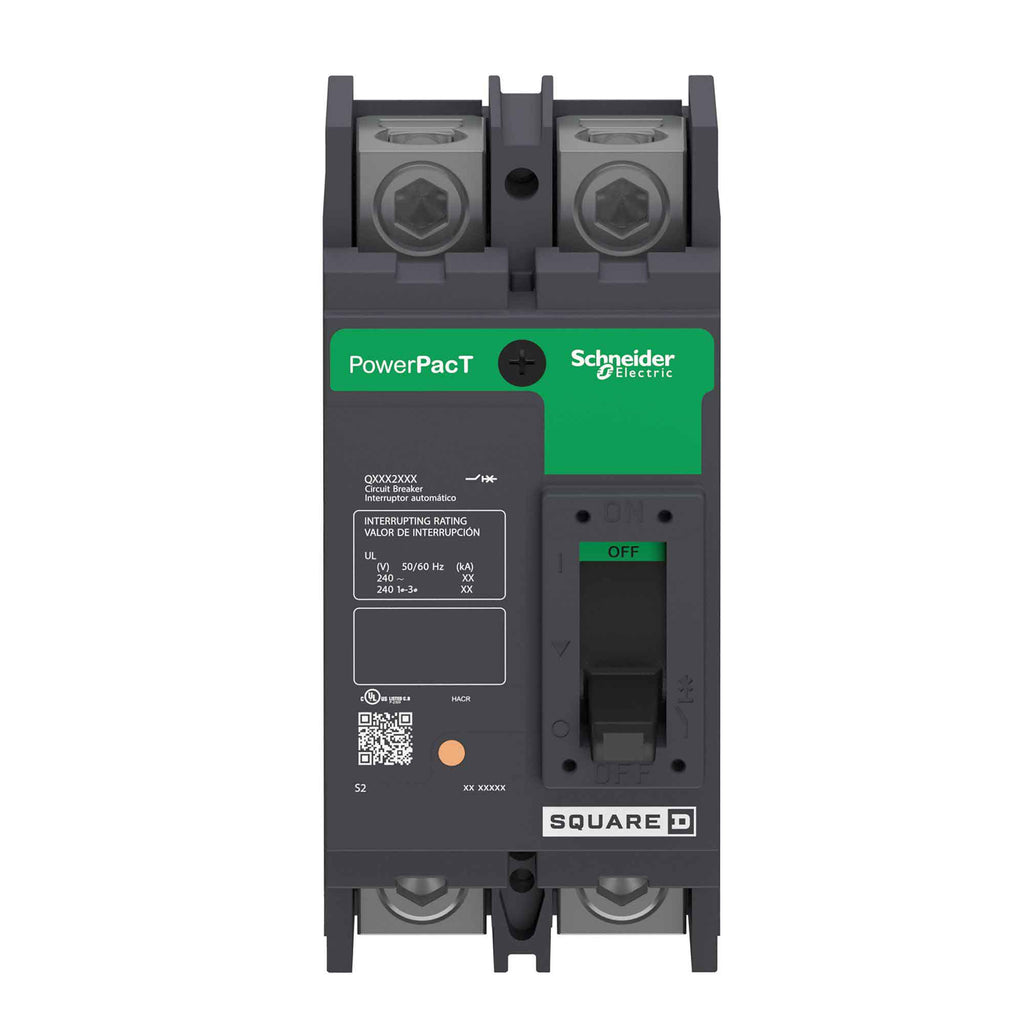

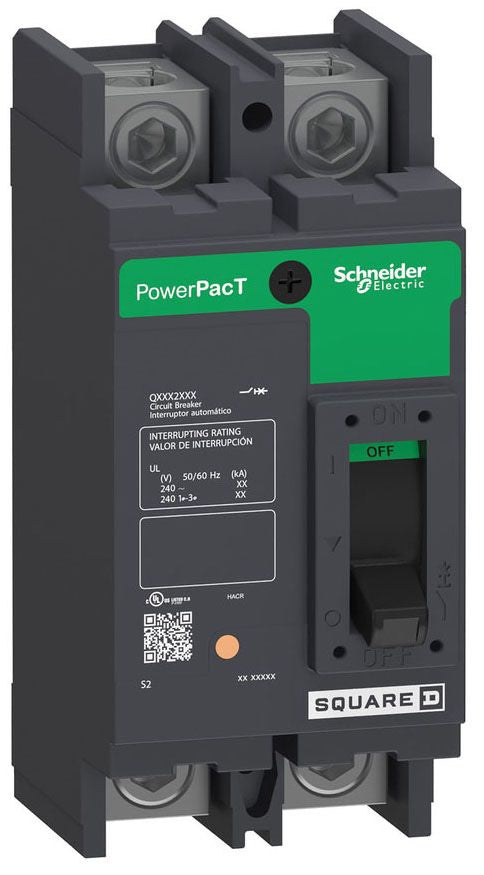

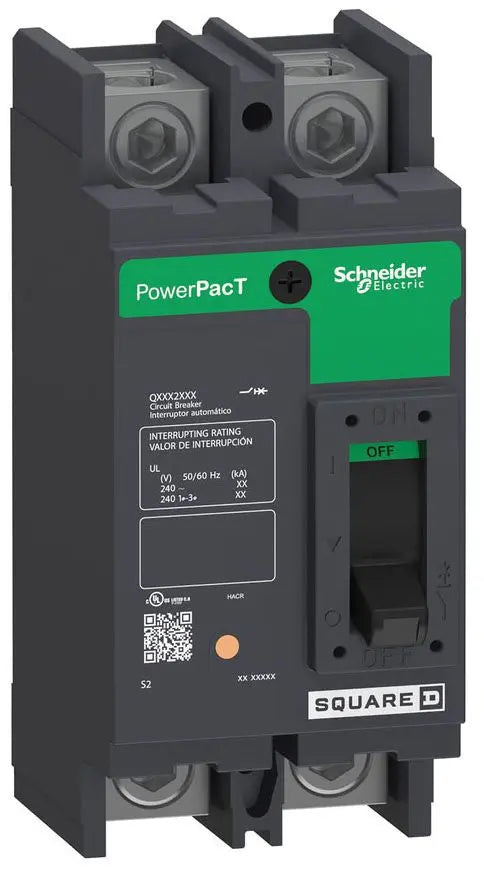

QDL22250 - Square D 250A 240V 2-Pole Q Frame Molded Case Circuit Breaker Thermal Magnetic

QDL22250

QDL22250 is a Square D 250 Amp, 240 Volt, 2-Pole molded case circuit breaker designed for reliable overcurrent protection.This Square D PowerPact QDL22250 circuit breaker features a Q frame with a thermal magnetic trip unit, 25 kA interrupt rating at 240 VAC, and unit mounting type. It supports wire sizes from 4 AWG to 300 kcmil Al/Cu with line/load lug connections. The breaker is rated for single-phase 50/60 Hz systems and offers long time and instantaneous trip functions for enhanced protection.

Key Specifications
• Amperage: 250 A
• Voltage: 240 VAC
• Poles: 2
• Frame Type: QDL (Q Frame)
• Interrupt Rating: 25 kA at 240 V
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Connection Type: Line and Load Lugs
• Wire Size Range: 4 AWG to 300 kcmil Al/Cu
• Phase: Single-phase
• Frequency: 50/60 Hz
• Certifications: UL, CSA, NOM, NEMA, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901546030
• GTIN : 00785901546030
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
