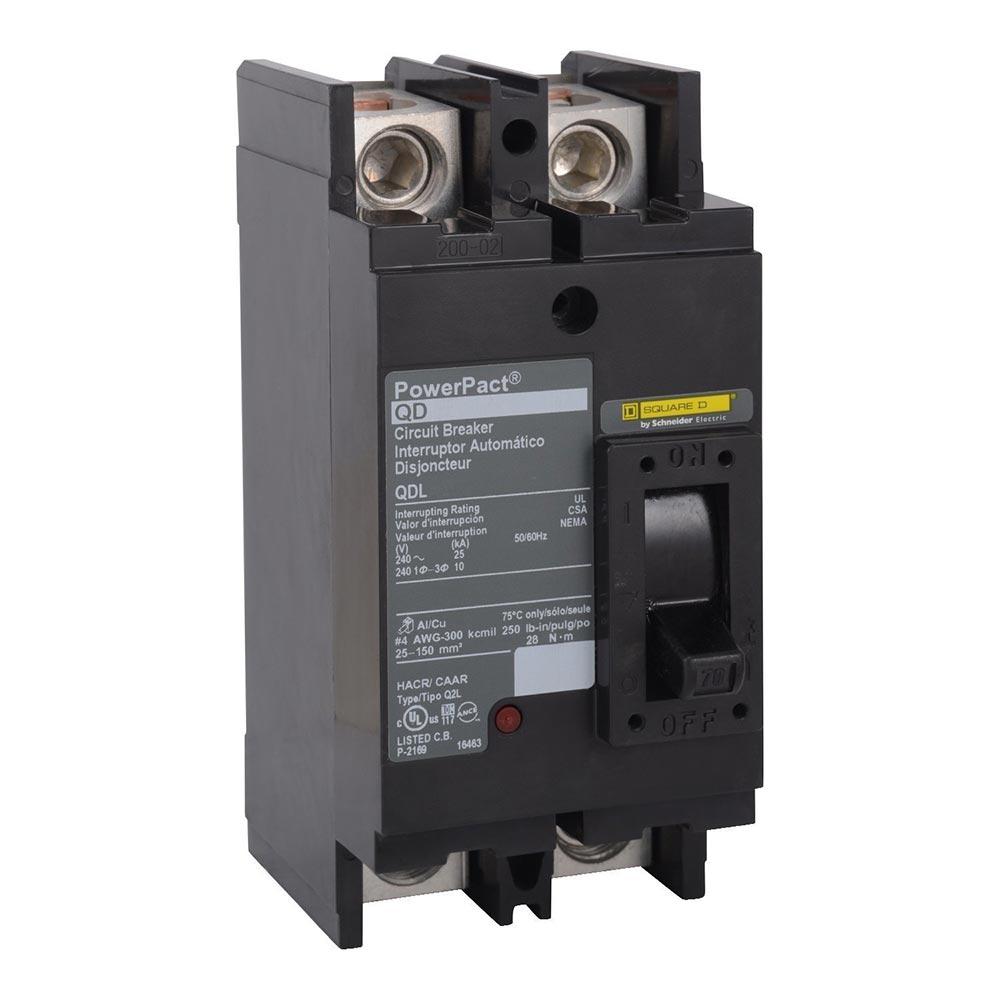

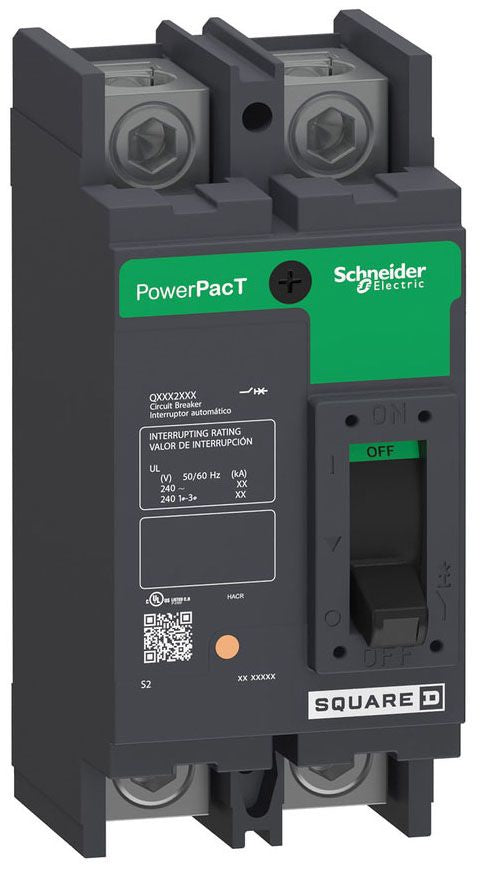

QDL22090 - Square D 90A 240V 2 Pole PowerPact Q Frame Molded Case Circuit Breaker 25kA Interrupt

QDL22090

This circuit breaker features thermal magnetic trip protection, unit mount design, and line and load side lug terminals. It complies with UL, CSA, NOM standards and is IEC certified. The breaker has a continuous current rating of 80% and includes an integral push-to-trip button for manual tripping. It is designed for overcurrent protection and switching in 240VAC systems.

Key Specifications
• Amperage: 90 A
• Voltage: 240 VAC
• Poles: 2
• Interrupt Rating: 25 kA at 240 VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Series/Frame: PowerPact Q Frame
• Certifications: UL, CSA, NOM, IEC
• Continuous Current Rating: 80%
• Line and Load Side Lugs
• Integral Push-to-Trip Button

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: QDL22090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901408062
• GTIN : 00785901408062
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...300 kcmil aluminium/copper
