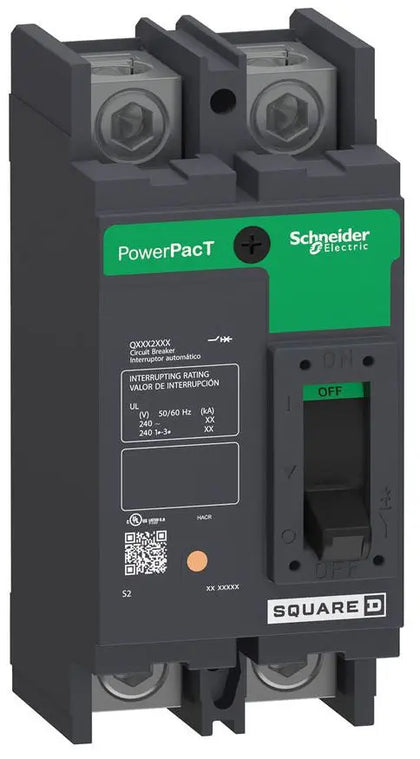

QDL22070 - Square D PowerPacT Q 70A 2 Pole 240VAC Molded Case Circuit Breaker, Thermal Magnetic, 25kA Interrupt, Unit Mount, UL 489 Listed, Feed-Thru, Line & Load Lugs

QDL22070

QDL22070 is a Square D PowerPacT Q-frame molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal-magnetic, two-pole breaker features a 70A current rating, 240VAC voltage rating, and a 25kA interrupt rating. It is unit mount with line and load side lug terminals, offers feed-thru capability, and includes non-interchangeable trip with long-time and instantaneous trip functions. The QDL22070 is UL 489 listed and part of the PowerPacT Q series, ensuring compatibility and safety in panelboard and switchboard installations.

Key Specifications

• Part Number: QDL22070
• Manufacturer: Square D by Schneider Electric
• Amperage: 70A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Unit mount (lug connection)
• Interrupt Rating: 25kA at 240VAC
• Series/Frame: PowerPacT Q (QDL)
• Trip Unit: Thermal-magnetic, non-interchangeable
• Certifications: UL 489 Listed
• Trip Functions: Long-time and instantaneous
• Terminals: Line & load side lugs (feed-thru)
• Application: Panelboard/switchboard, suitable for 4 AWG to 300 kcmil conductors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901408048
• GTIN : 00785901408048
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : 4 AWG Min, 300 KCMIL Max
