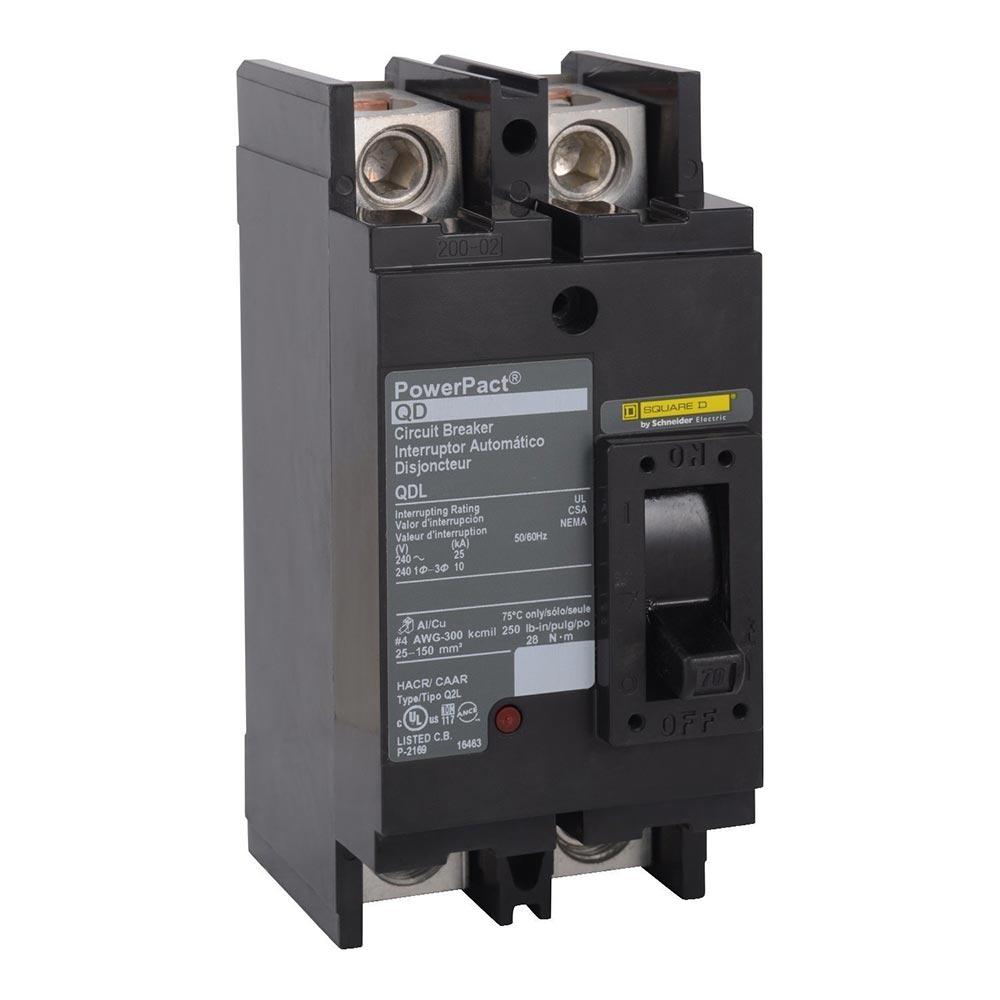

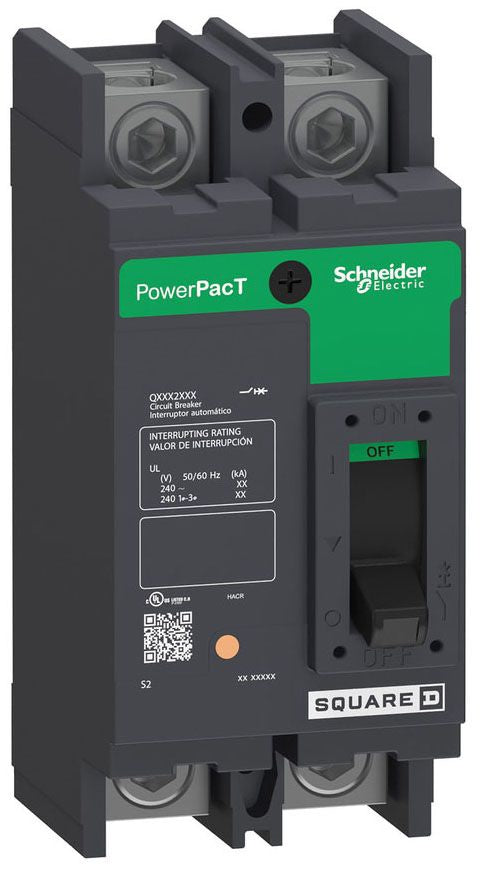

QDL22100 - Square D 100 Amp 240 Volt 2 Pole PowerPact Q Molded Case Circuit Breaker

QDL22100

QDL22100 is a Square D 2 pole, 100 amp, 240 volt PowerPact Q frame molded case circuit breaker designed for reliable circuit protection.This thermal magnetic circuit breaker features a 25 kA interrupt rating at 240 VAC, unit mount construction, and line and load side lug terminals. It includes a thermal-magnetic trip unit with long-time and instantaneous trip functions, suitable for panelboard and switchboard applications. The breaker supports 50/60 Hz frequency and complies with UL 489 standards.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 240 VAC
• Poles: 2
• Interrupt Rating: 25 kA at 240 VAC
• Frame: PowerPact Q
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Standards: UL 489 Listed
• Dimensions: 3 in W x 3.93 in D x 6.47 in H
• Frequency: 50/60 Hz
• Electrical Connection: Line and Load Side Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901522812
• GTIN : 00785901522812
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
