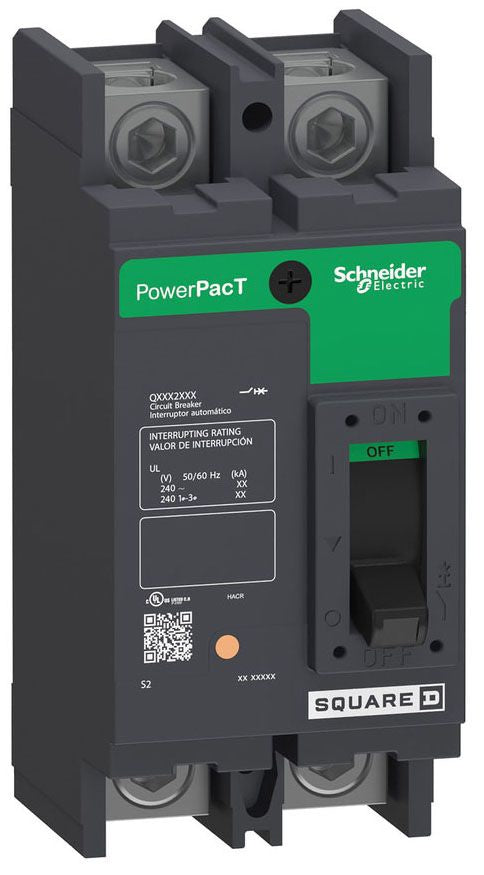

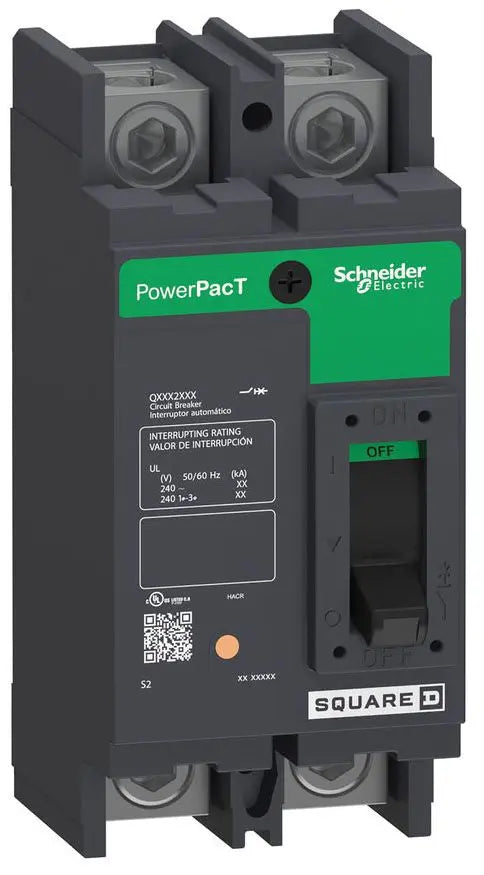

QDL22080 - Square D 80A 240V 2-Pole Molded Case Circuit Breaker Powerpact QDL Frame

QDL22080

QDL22080 is a Square D 2-pole molded case circuit breaker rated for 80 amps and 240 volts, designed for reliable power distribution protection.This Powerpact QDL series breaker features a thermal magnetic trip unit, a 25kA interrupt rating at 240V, and bolt-on mounting. It is UL 489 listed and suitable for panelboard and switchboard applications, providing robust circuit protection with lug-type electrical connections.

• Amperage: 80A
• Voltage Rating: 240V AC
• Poles: 2
• Interrupt Rating: 25kA at 240V
• Mounting Type: Bolt-On
• Series/Frame: Powerpact QDL
• Trip Unit: Thermal Magnetic
• Electrical Connection: Lug load and line
• Dimensions: Approx. 3" W x 3.93" D x 6.47" H
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901374039
• GTIN : 00785901374039
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...300 kcmil aluminium/copper
