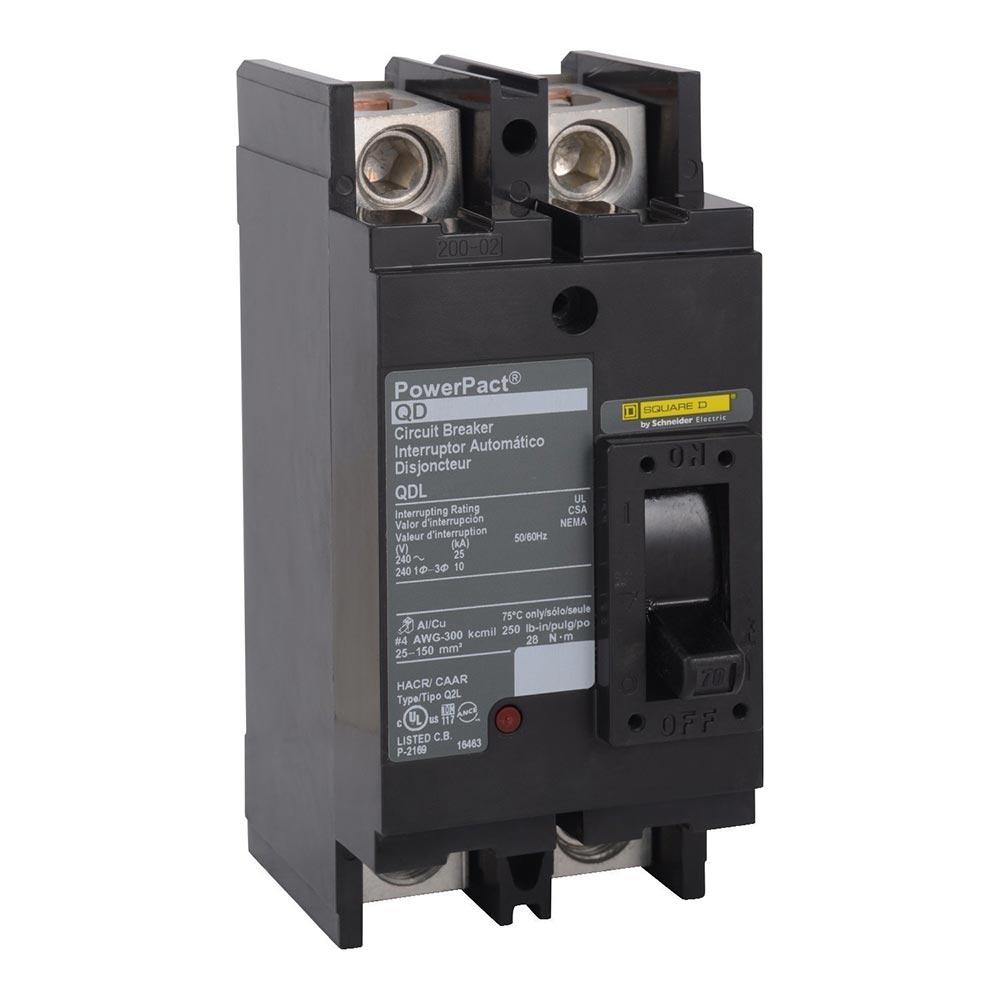

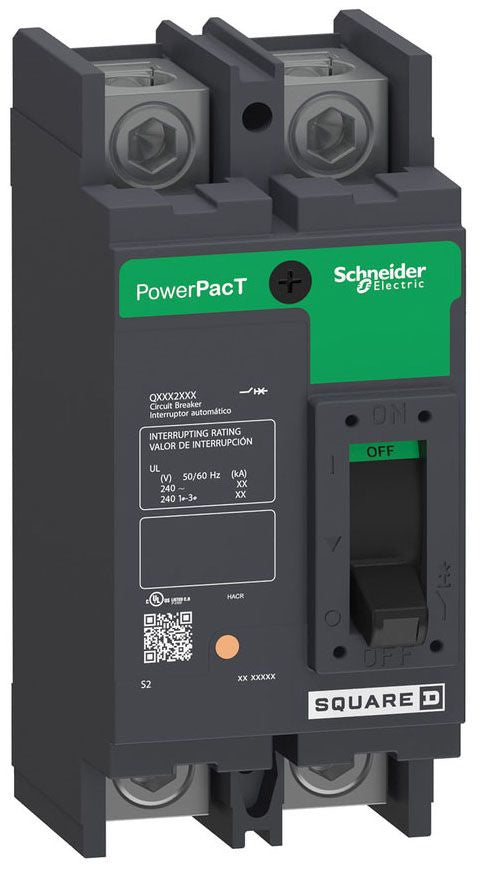

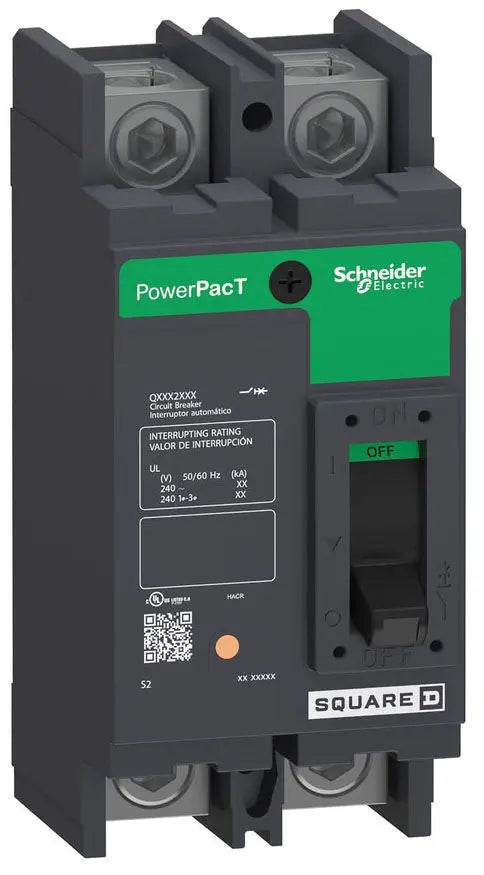

QDL22110 - Square D 110 Amp 2 Pole 240V Circuit Breaker Thermal Magnetic Q Frame

QDL22110

QDL22110 is a Square D 2 pole circuit breaker rated for 110 amps and 240 volts, designed with a thermal magnetic trip unit for reliable protection.QDL22110 features a molded case with a Q frame size, a 25kA interrupt rating at 240V, and is UL 489 listed. It includes line and load side lug terminals with feed-thru connection and offers long-time and instantaneous trip functions. This breaker is suitable for single-phase applications and unit mount installation.

• Manufacturer: Square D (Schneider Electric)
• Part Number: QDL22110
• Amperage: 110 A
• Voltage Rating: 240 V AC
• Poles: 2
• Frame Size: Q Frame (QDL series)
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25 kA @ 240 V
• Mounting Type: Unit Mount
• Connection Type: Line and Load Side Lugs, Feed-Thru
• UL Listed: UL 489
• Phase: Single Phase
• Trip Functions: Long-Time and Instantaneous

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901482048
• GTIN : 00785901482048
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
