QDL22175 - Square D PowerPacT QDL 175 Amp 2 Pole 240VAC Molded Case Circuit Breaker, 25kAIC, Feed-Thru Mount, Thermal Magnetic Trip, UL/CSA/NEMA/NOM

QDL22175

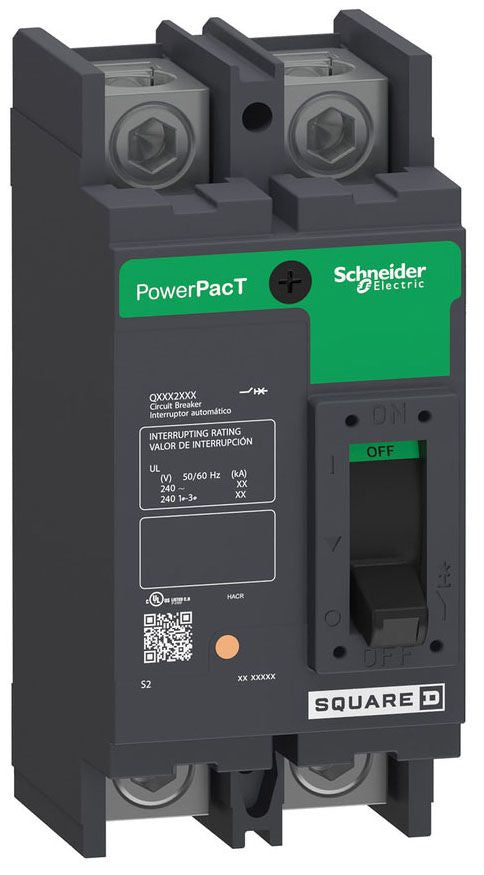

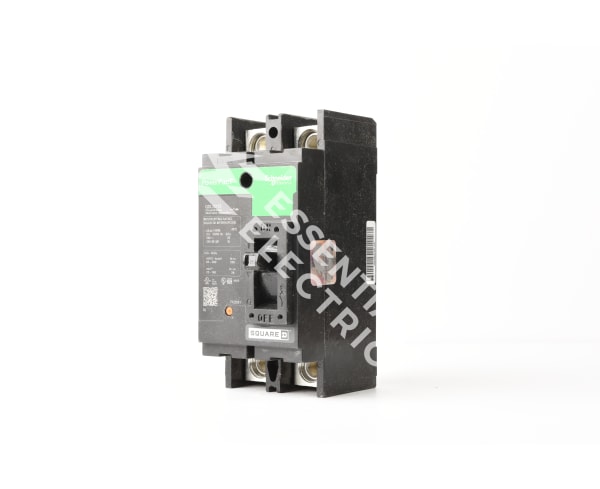

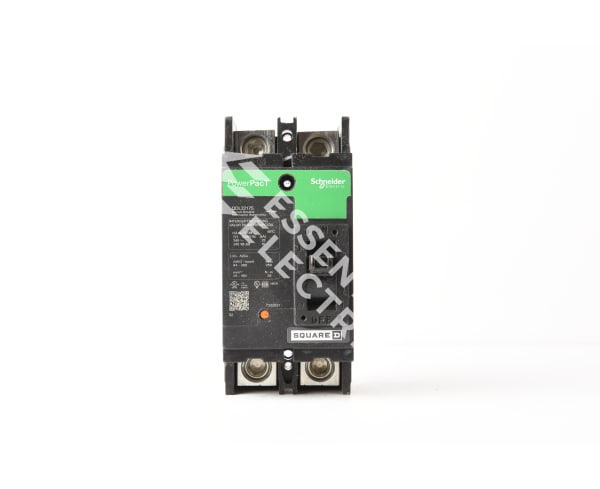

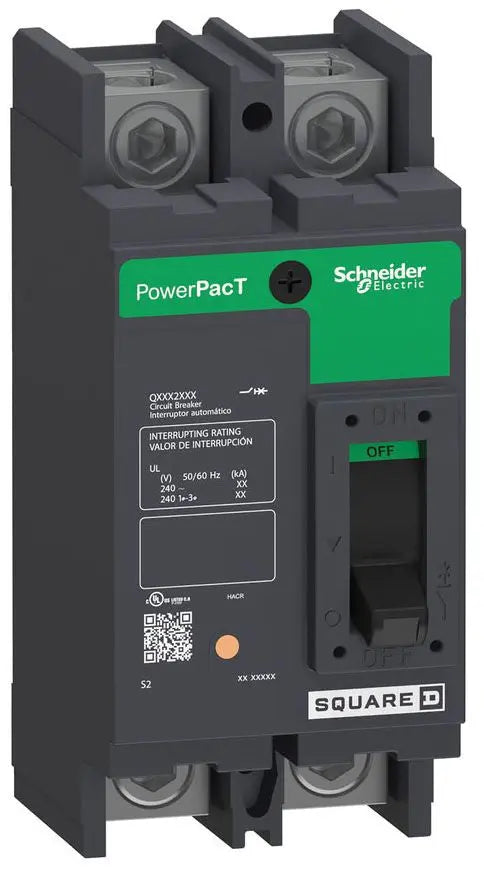

QDL22175 is a Square D PowerPacT QDL series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic, feed-thru mounted breaker features a 175 Amp current rating, 240VAC voltage rating, and 25kA interrupting capacity at 240VAC. It is certified to UL, CSA, NEMA, and NOM standards, ensuring compliance and safety for a wide range of installations. The QDL22175 includes line and load side lug terminals and is equipped with long-time and instantaneous (LI) trip functions for enhanced protection.

Key Specifications
• Manufacturer: Square D
• Series/Frame: PowerPacT QDL
• Amperage: 175A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Feed-Thru (Unit Mount)
• Interrupt Rating: 25kAIC at 240VAC
• Trip Unit: Thermal Magnetic, LI (Long-Time and Instantaneous)
• Certifications: UL, CSA, NEMA, NOM
• Connection: Line and Load Side Lug
• Standards: HACR
• Temperature Rating: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901522836
• GTIN : 00785901522836
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.411
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
