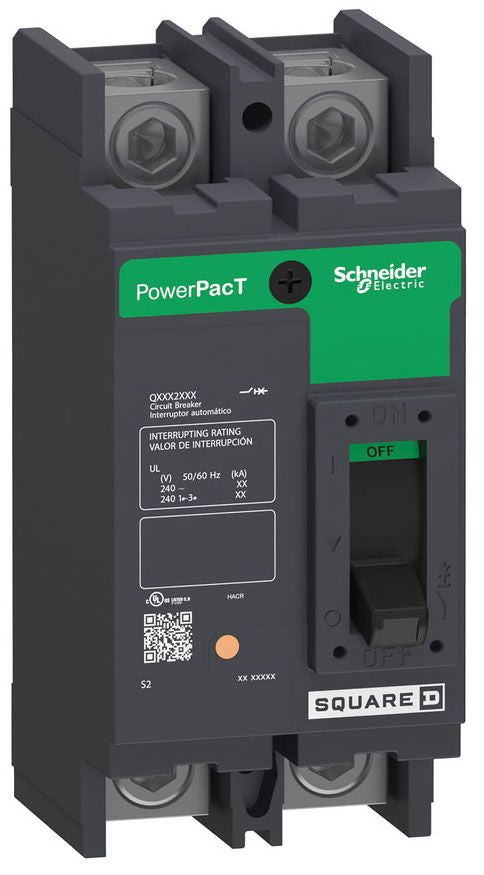

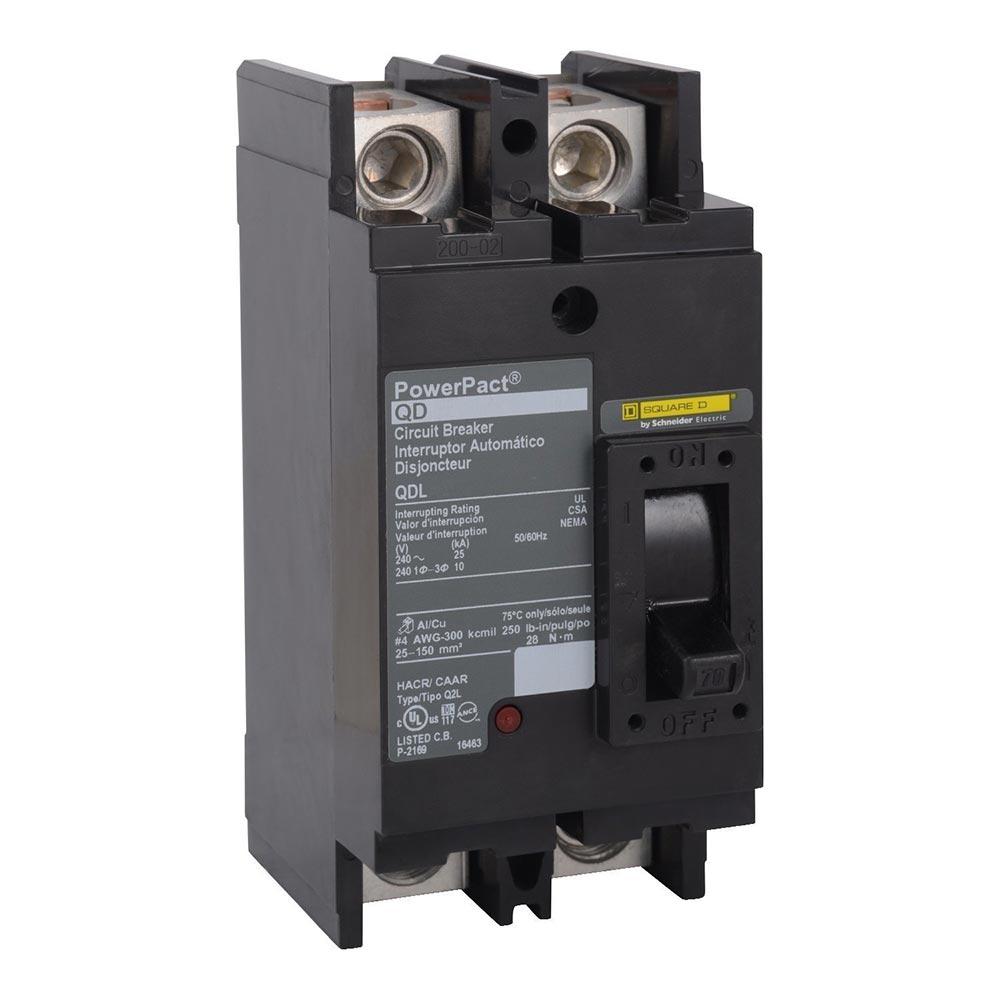

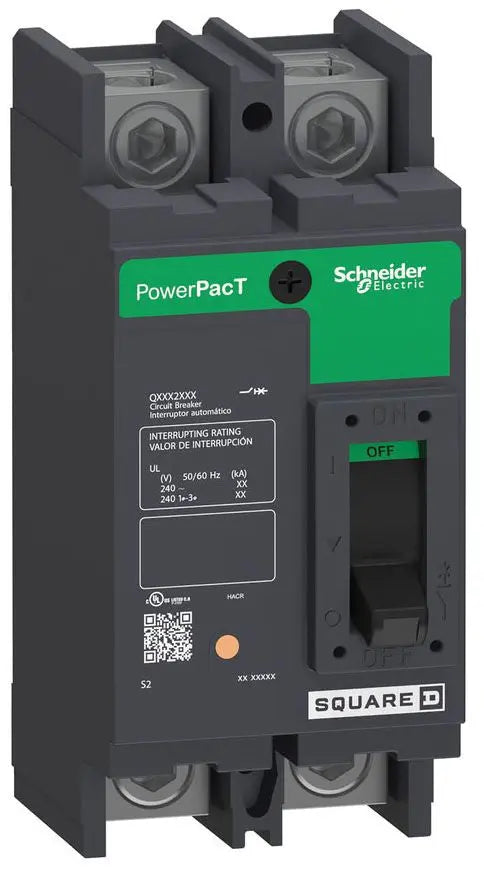

QDL22125 - Square D 125 Amp 2 Pole 240VAC PowerPacT Q Molded Case Circuit Breaker, 25kAIC, Feed-Thru, Thermal Magnetic Trip, UL/CSA/NEMA/NOM Certified

QDL22125

QDL22125 is a Square D PowerPacT Q series molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 2-pole, 125 Amp, 240VAC thermal magnetic circuit breaker features a 25kA interrupting rating, feed-thru connection, and is suitable for panelboard or switchboard mounting. It is certified to UL, CSA, NEMA, and NOM standards, ensuring compliance and safety in diverse environments.

Key Specifications
• Amperage: 125A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Unit (Panelboard/Switchboard)
• Interrupt Rating: 25kAIC at 240VAC
• Series/Frame: PowerPacT Q, QDL
• Trip Unit: Thermal Magnetic (LI – Long-Time and Instantaneous)
• Connection Type: Feed-Thru (Line and Load Side Lugs)
• Certifications: UL, CSA, NEMA, NOM
• Standards: HACR, California Proposition 65
• Temperature Rating: 40 to 70 °C
• Dimensions: 3.93" D x 3" W x 6.47" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL22125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901522829
• GTIN : 00785901522829
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.318
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
