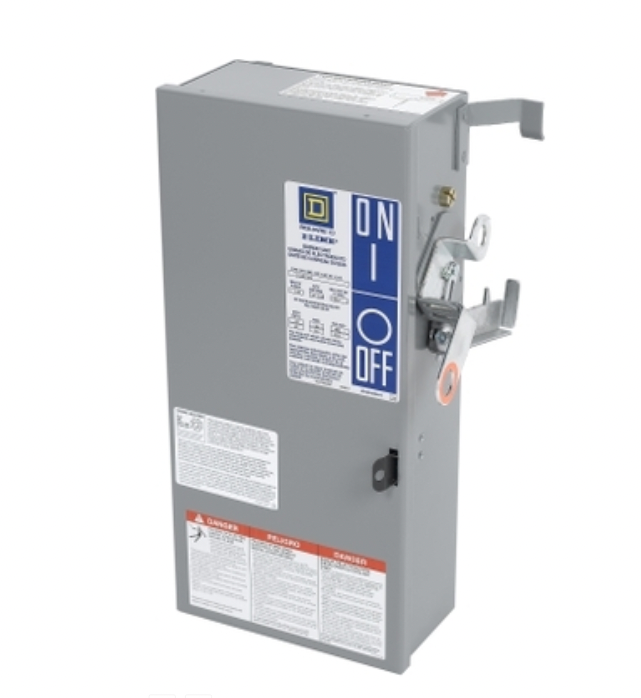

PQ3610GRA - Schneider Electric 100A 600V 3-Pole Fusible Bus Plug I-Line

PQ3610GRA

PQ3610GRA is a Schneider Electric 3-pole fusible bus plug rated for 100 amps and 600 volts, designed for I-Line busway systems.PQ3610GRA features a 3-phase, 3-wire configuration with an integral ground bus and accepts Class H, K, J, or R fuses. It has a 200kA interrupting rating at 480V, making it suitable for reliable power distribution in commercial and industrial applications. The plug-in unit allows for quick installation with mounting hook alignment and is compatible with aluminum and copper busway systems.

Key Specifications
• Amperage: 100 Amps
• Voltage: 600 Volts
• Poles: 3
• Phase: 3
• Wiring: 3-wire with integral ground
• Interrupt Rating: 200kA at 480V
• Fuse Class: H, K, J, or R
• Mounting Type: Plug-in unit with mounting hook alignment
• Series/Frame: PQ Series
• Certifications: UL 857

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3610GRA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 3

Product Data

• UPC : 785901330394
• GTIN : 00785901330394
• Country of Origin : Mexico
• Dimensions : 18.9 in (480 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 8.02
• Certification : UL - CSA
