Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Essential Electric Supply
- Series
- Eaton MDA
- Rated current
- 5
- Weight
- 0.6
Product description & additional details
MDA-5

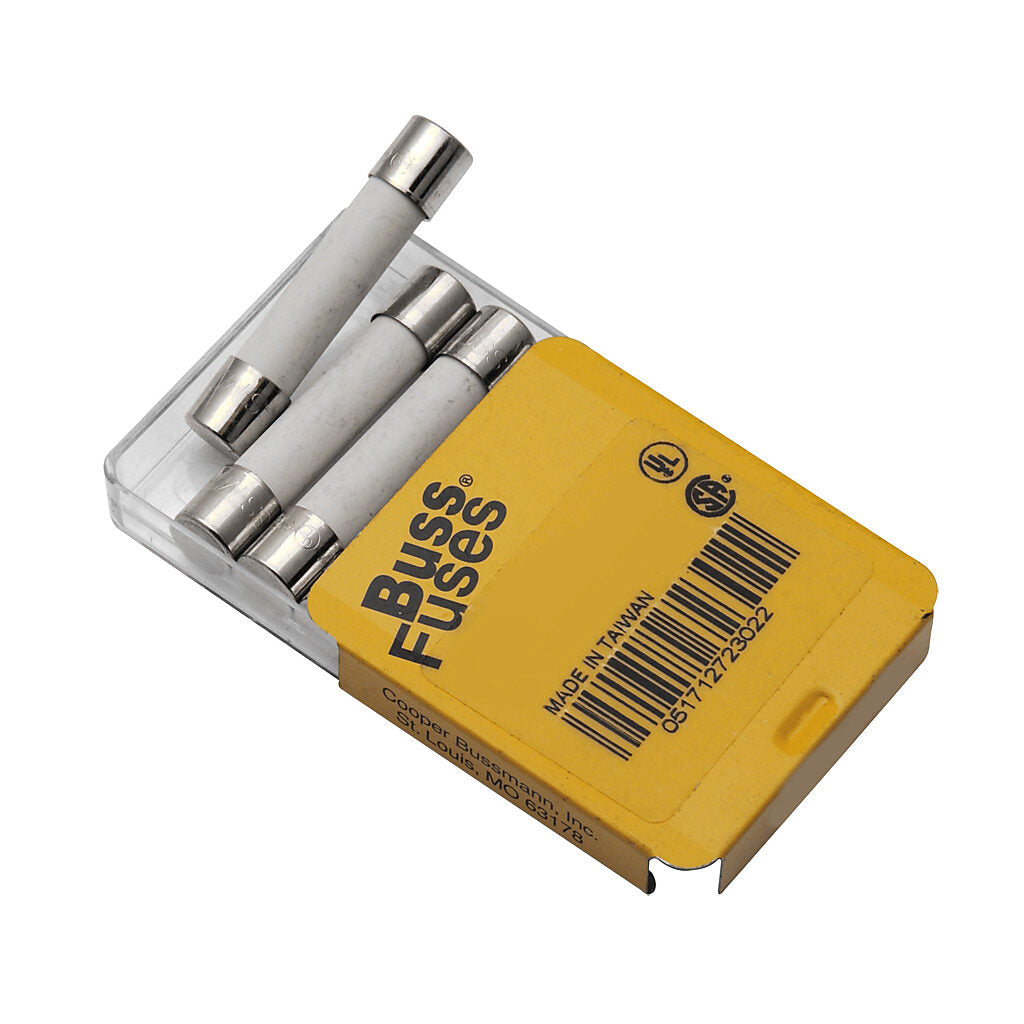

MDA-5 is a 5 amp, 250 VAC time delay ceramic fuse with a 1/4 inch by 1-1/4 inch (6.35 mm x 31.75 mm) 3AB footprint designed for supplemental electronic protection.
This Eaton MDA series fuse features a time-delay characteristic suitable for applications requiring temporary current surges tolerance. It is constructed with a ceramic tube and nickel-plated brass endcaps, rated for 5 amps at 250 volts AC and 125 volts DC. The fuse has a high interrupt rating of 200 A at 250 VAC and 10,000 A at 125 VDC, ensuring reliable circuit protection. It meets UL and CSA certifications and is designed for axial lead mounting or panel installation.
- Key Specifications
- Current Rating: 5 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: Time Delay (Slow Blow)
- Fuse Size: 1/4" x 1-1/4" (6.35 mm x 31.75 mm), 3AB Group
- Interrupt Rating: 200 A @ 250 VAC, 10,000 A @ 125 VDC
- Construction: Ceramic tube with nickel-plated brass endcaps
- Mounting Type: Axial lead or panel mount
- Certifications: UL Listed, CSA Certified
- Series: Eaton MDA
- Typical DC Cold Resistance: Approx. 0.0261 Ohm
- Part Number: MDA-5
- Family : Eaton MDA
- Amperage : 5
- Weight : 0.6
