Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LP1K0901BD

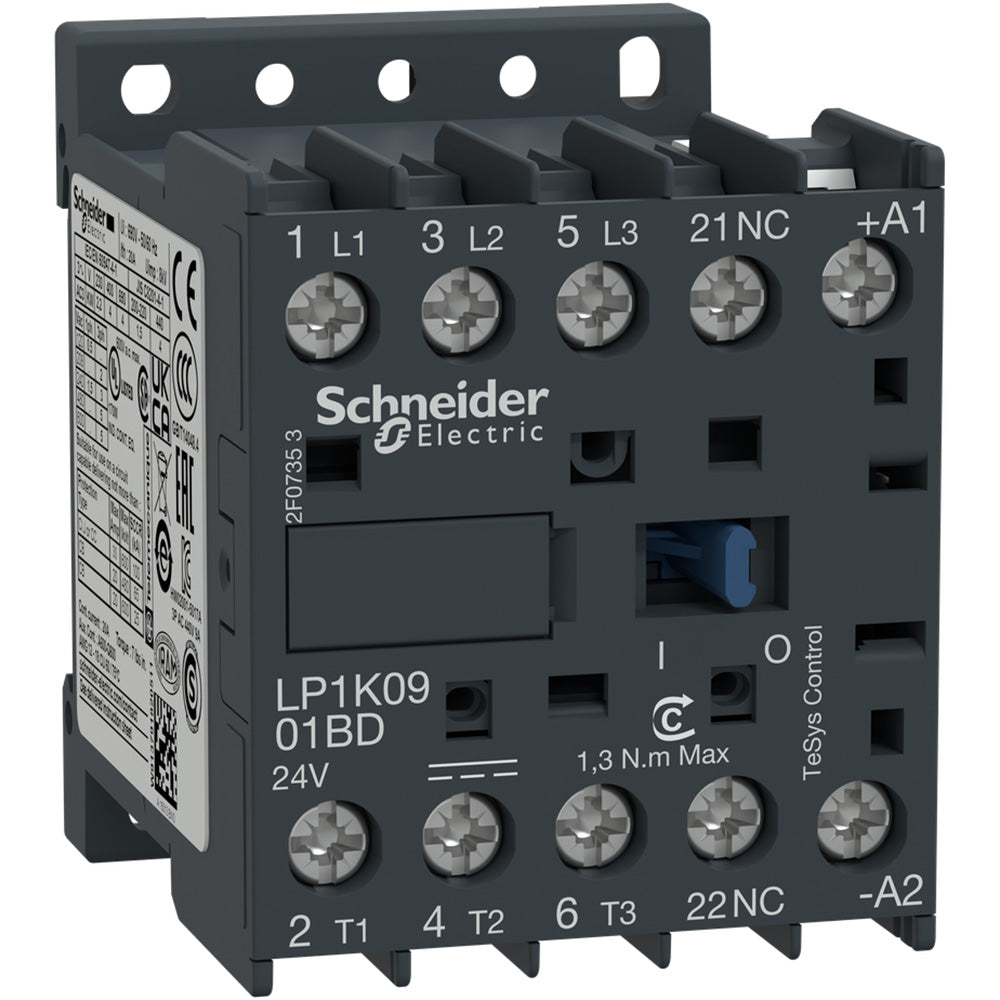

LP1K0901BD is a Schneider Electric TeSys K 3-pole motor contactor designed for reliable motor control applications.This compact contactor features a 9A AC-3 rating at 440V, a 24V DC coil, and includes one normally closed (1NC) auxiliary contact. It supports screw clamp terminals for secure wiring and is suitable for mounting on plate or rail. The device is rated for 3-phase operation with a non-reversing configuration and complies with IEC and UL standards. Its compact size and efficient coil power consumption make it ideal for industrial and infrastructure applications.
- Amperage: 9A AC-3
- Voltage: 440V AC (AC-3), up to 690V AC
- Poles: 3
- Coil Voltage: 24V DC
- Auxiliary Contacts: 1 Normally Closed (1NC)
- Mounting Type: Plate/Rail
- Terminal Type: Screw Clamp
- Interrupt Rating: Suitable for motor control and non-inductive loads
- Series/Frame: TeSys K LP1K
- Operating Frequency: 50/60 Hz
- Operating Temperature: -25 to 50 °C
- Certifications: IEC 60947-4-1, UL 508, CSA C22.2 No 14
Specifications
- Part Number: LP1K0901BD
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys K
- Type : LP1K
- Voltage : 690
- Amperage : 9
- Phase : 3
- Poles : 3
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24V
- Coil Voltage Minimum : 24V
Product Data
- UPC : 038911036323
- GTIN : 03389110363234
- Country of Origin : Indonesia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
- Weight : 0.485
- Certification : CSA, UKCA, UL Listed
