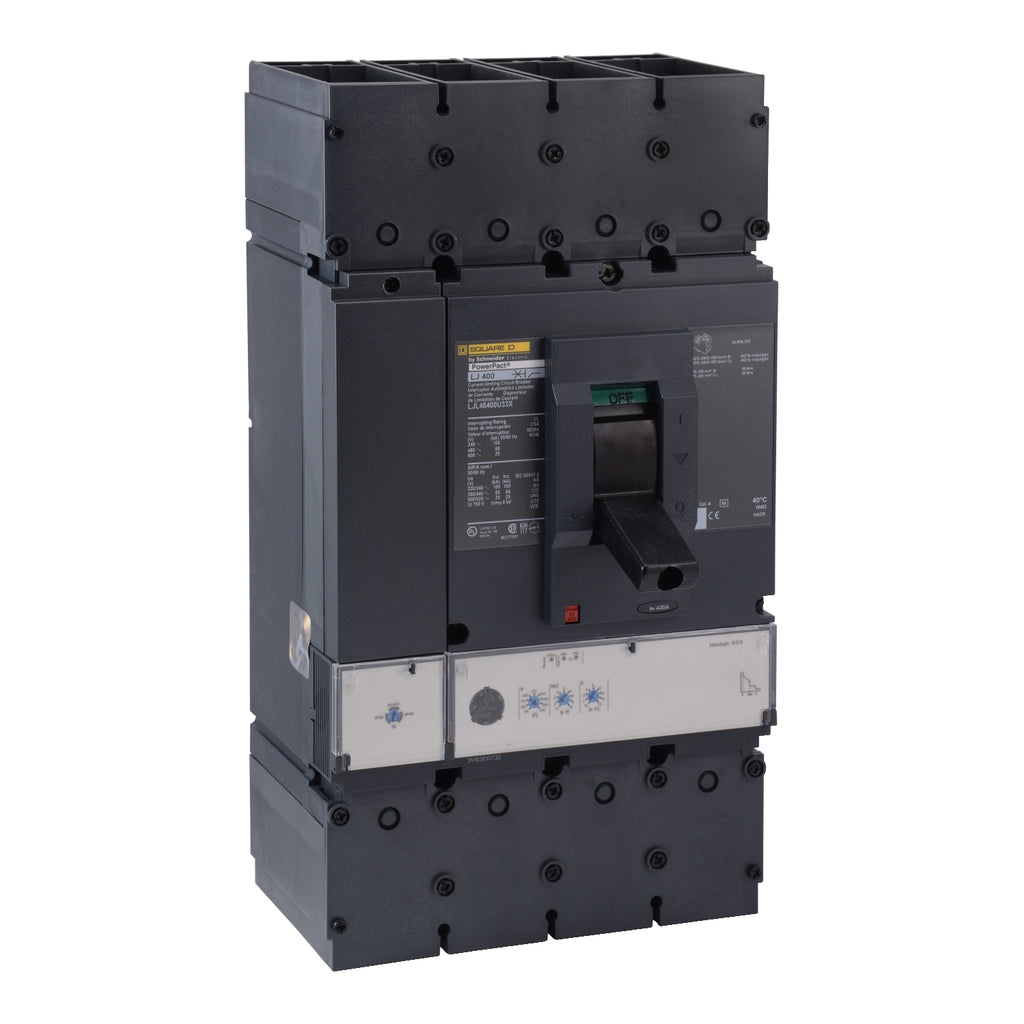

LLL36600U33X - Square D 600 Amp 600 Volt 3 Pole Molded Case Circuit Breaker PowerPact LLL Frame Feed-Through Mount

LLL36600U33X

LLL36600U33X is a Square D PowerPact LLL Frame molded case circuit breaker designed for 600 Amp, 600 Volt, 3 Pole applications with feed-through mounting.This circuit breaker features a high interrupt rating of 100 kA at 480 VAC, suitable for demanding industrial and commercial power distribution. It is UL 489 listed and built to meet rigorous safety and performance standards. The PowerPact LLL series offers reliable protection with adjustable trip units and robust construction for long service life.

• Amperage: 600 Amp
• Voltage Rating: 600 Volt AC
• Poles: 3 Pole
• Interrupt Rating: 100 kA at 480 VAC
• Frame Type: PowerPact LLL
• Mounting Type: Feed-Through
• UL Listed: UL 489
• Trip Unit: Adjustable Magnetic Trip
• Phase: 3 Phase
• Manufacturer: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLL36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901204985
• GTIN : 00785901204985
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
