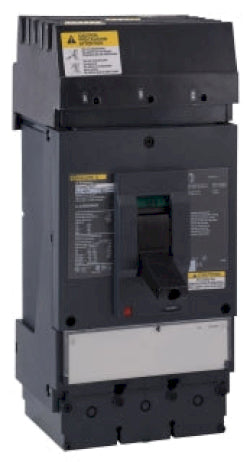

LLA36000S40X - Square D 400A 600V 3-Pole LLA Frame Thermal Magnetic Circuit Breaker

LLA36000S40X

LLA36000S40X is a Square D 3-pole, 400 amp, 600 volt thermal magnetic circuit breaker designed for power distribution applications.This molded case circuit breaker features an LLA frame with a 50 kA interrupting rating at 600 VAC, suitable for I-Line panelboards and switchboards. It includes a line lug load terminal and is UL, CSA, and CE certified. The breaker uses a thermal magnetic trip unit and is part of the Powerpact family.

• Amperage: 400 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupting Rating: 50 kA at 600 VAC
• Frame/Series: LLA
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Style Plug-In
• Certifications: UL, CSA, CE
• Application: Power Distribution
• Brand: Square D
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLA36000S40X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : NA - No Overcurrent Protection
• Frame Size : L Frame
• Protection : Non-Automatic

Product Data

• UPC : 785901133391
• GTIN : 00785901133391
• Country of Origin : United States
• Dimensions : 13.38 in (339.85 mm) x 5.51 in (139.95 mm) x 6.61 in (167.89 mm) (Height x Width x Depth)
• Weight : 7.71
• Certification : CSA - NMX - CCC - UL listed - IEC - CE
• Wire Size : 2 x AWG 3/0...500 kcmil ( aluminium/copper )
