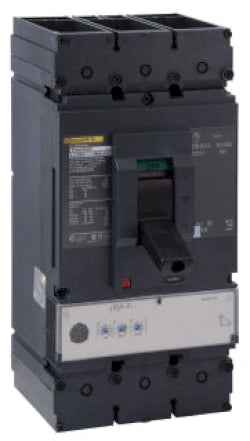

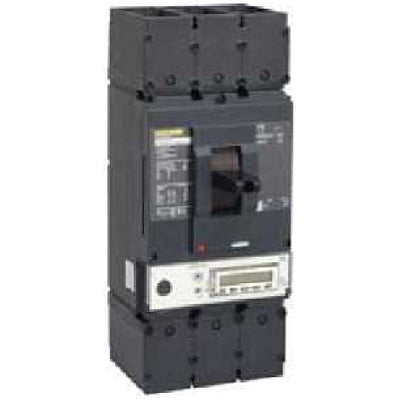

LJL36250U33X - Schneider Electric 250A 3-Pole L-Frame Molded Case Circuit Breaker with Micrologic Trip Unit

LJL36250U33X

LJL36250U33X is a Schneider Electric L-Frame molded case circuit breaker designed for reliable protection of electrical systems against overloads and short circuits.This 3-pole circuit breaker features a 250 ampere rating and incorporates a Micrologic electronic trip unit for precise and adjustable protection. It belongs to the PowerPacT L-frame series, known for high performance and global certification standards. The breaker is suitable for unit-mount applications and provides current limiting capabilities as UL certified. It is engineered to meet rigorous UL and CSA certifications, ensuring safety and compliance in demanding electrical environments.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LJL36250U33X
• Frame/Series: PowerPacT L-Frame
• Amperage: 250A
• Poles: 3
• Trip Unit: Micrologic electronic trip
• Mounting Type: Unit-mount
• Interrupt Rating: UL Certified current limiting
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and

Specifications

• Part Number: LJL36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State



Product Data

• UPC : 785901597186
• GTIN : 00785901597186
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
