LGP36400CU33X

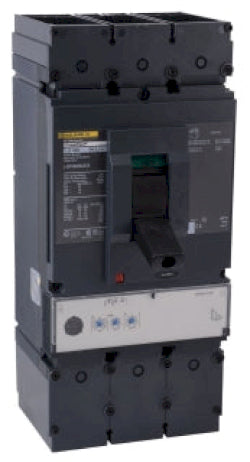

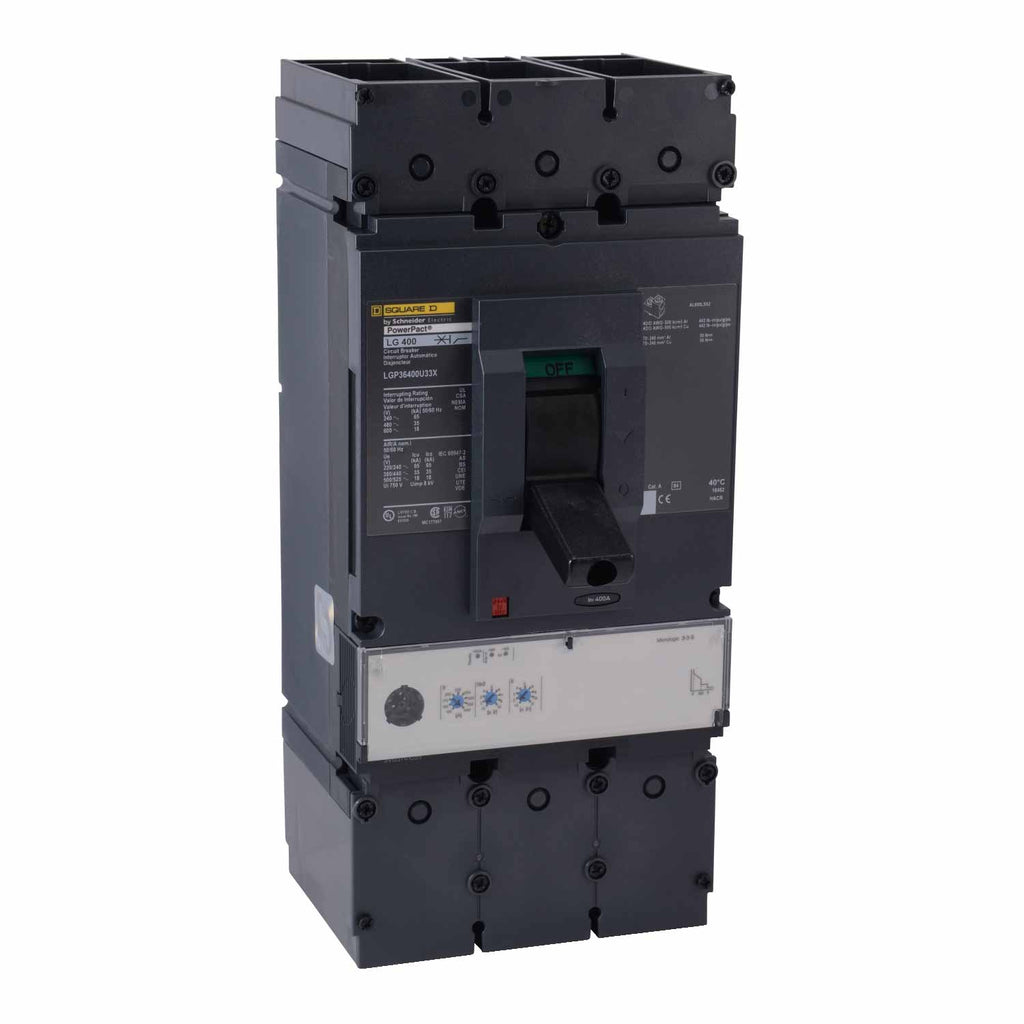

LGP36400CU33X is a Square D PowerPact L molded case circuit breaker designed for 400 amp, 3-pole electrical protection at up to 600 volts AC.This breaker features a bolt-on mounting type and an 18kA interrupt rating at 600VAC. It includes MicroLogic 3.3S standard trip unit technology for precise and reliable circuit protection. The breaker is UL 489 listed and suitable for industrial and commercial power distribution applications.
- Amperage: 400A
- Voltage Rating: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA at 600VAC
- Series/Frame: PowerPact L
- Trip Unit: MicroLogic 3.3S Standard
- Certifications: UL 489 Listed
- Connection: Lugs
- Phase: 3
Specifications
- Part Number: LGP36400CU33X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LGP
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : L Frame
- Protection : Solid State
Product Data
- UPC : 785901981862
- GTIN : 00785901981862
- Country of Origin : Mexico
- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 15
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
