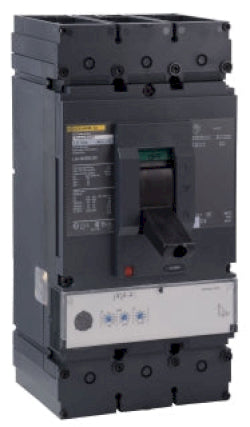

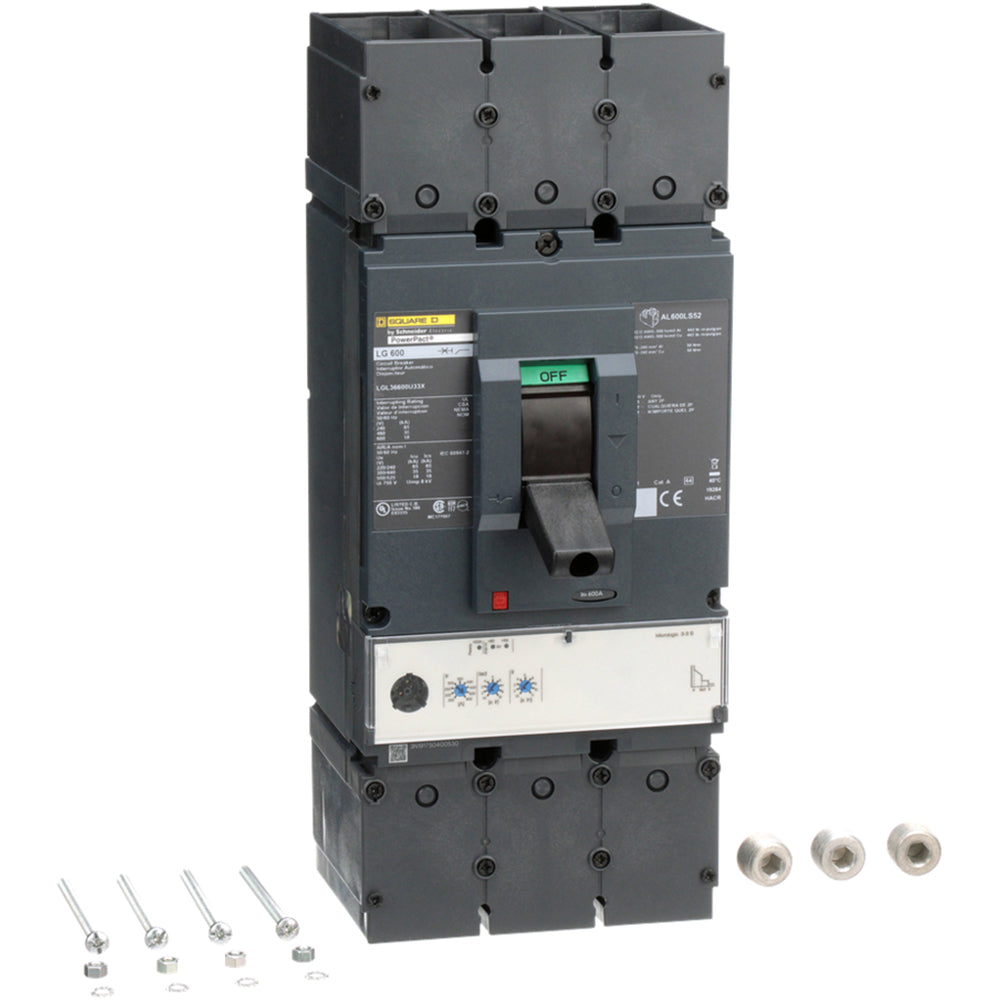

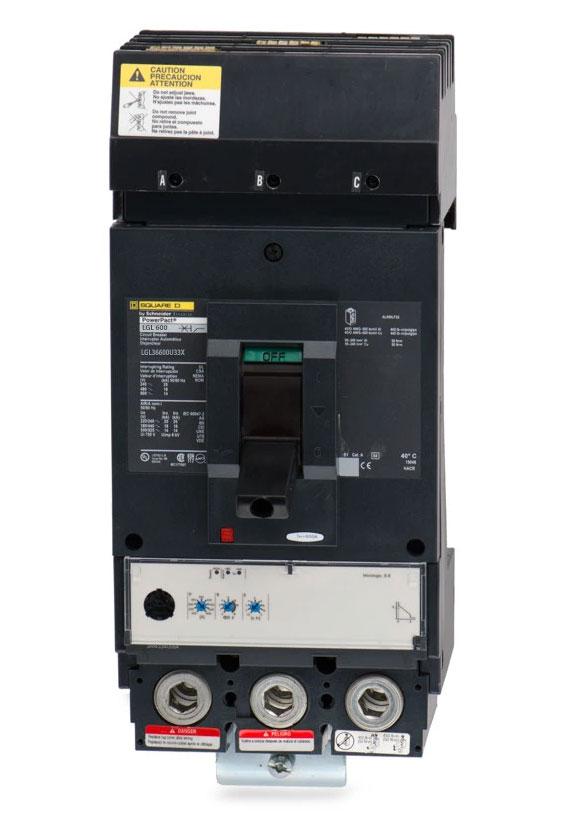

LGL36600U33X - Square D 600A 600VAC 3 Pole L Frame Molded Case Circuit Breaker with Micrologic 3.3S Trip Unit

LGL36600U33X

LGL36600U33X is a 600 Amp, 600 Volt, 3 Pole molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D L Frame circuit breaker features an electronic Micrologic 3.3S trip unit with long-time and instantaneous (LSI) protection functions. It has a unit mount design with lug connections for both line and load, supporting wire sizes up to 500 kcmil aluminum or copper. The breaker offers interrupt ratings of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, meeting UL 489, CSA, IEC, NEMA, and other international certifications.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Part Number: LGL36600U33X
• Amperage: 600 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Type: L Frame
• Trip Unit: Electronic Micrologic 3.3S, LSI
• Interrupt Rating: 65 kA @ 240 V, 35 kA @ 480 V, 18 kA @ 600 V
• Mounting Type: Unit Mount
• Connection Type: Lugs (Line and Load)
• Certifications: UL 489, CSA 22-2, IEC, NEMA, CE, CCC, NMX
• Wire Size Capacity: AWG 2/0 to 500 kcmil Aluminum/Co(more...)


  Specifications

  • Part Number: LGL36600U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LGL
  • Voltage : 600
  • Amperage : 600
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
  • Protection : Solid State



  Product Data

  • UPC : 785901638674
  • GTIN : 00785901638674
  • Country of Origin : United States
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 17.099
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
