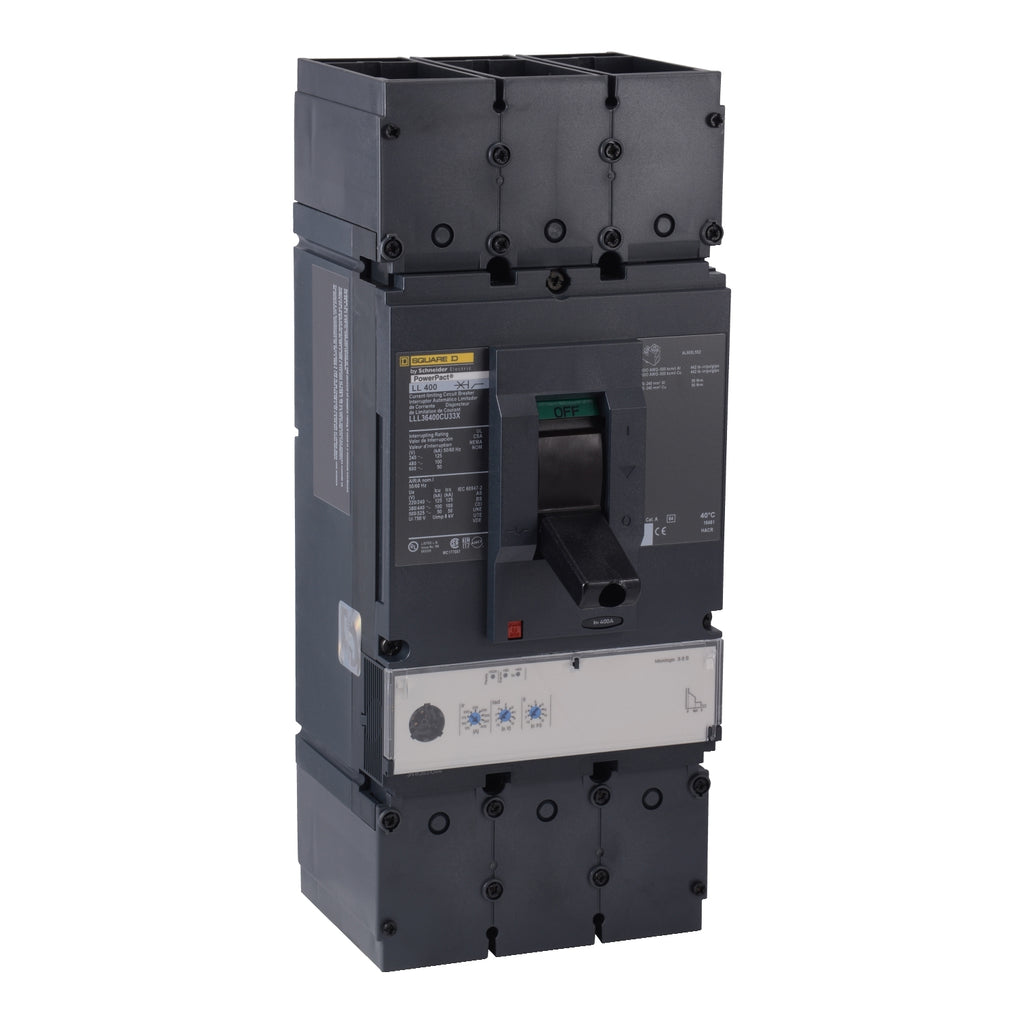

LGL36400CU33X - Square D 400A 600V 3-Pole PowerPact L Frame Molded Case Circuit Breaker with Micrologic 3.3S Trip Unit

LGL36400CU33X

LGL36400CU33X is a Square D PowerPact L Frame molded case circuit breaker designed for 400 amp, 600 volt applications with 3 poles.This circuit breaker features a Micrologic 3.3S electronic trip unit providing adjustable protection settings and reliable performance. It is UL 489 listed for unit mount installation and offers an interrupt rating of 18kA at 600VAC, suitable for demanding power distribution needs.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600VAC
• Poles: 3
• Frame/Series: PowerPact L
• Trip Unit: Micrologic 3.3S electronic trip
• Interrupt Rating: 18kA at 600VAC
• Mounting Type: Unit Mount
• Certifications: UL 489 Listed
• Manufacturer: Square D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LGL36400CU33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : 100% rated
• Protection : Solid State



Product Data

• UPC : 78590148683
• GTIN : 00785901486831
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
