Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LGL36400M37X

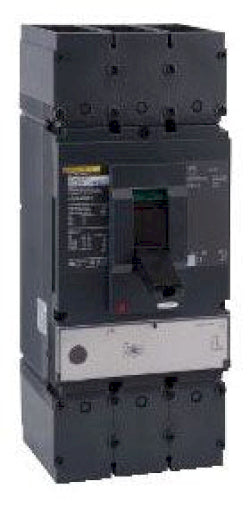

LGL36400M37X is a Square D PowerPact L Frame motor circuit protector rated for 400 amps and 600 volts AC with three poles.This motor circuit protector features a bolt-on mounting type and is designed for short circuit and overload protection in motor applications. It has a G interrupt rating and includes a Micrologic 1.3M trip unit for precise motor protection. The breaker is UL 489 listed and suitable for use up to 600 VAC.
- Amperage: 400 A
- Voltage: 600 VAC
- Poles: 3
- Frame/Series: PowerPact L
- Mounting Type: Bolt On
- Interrupt Rating: G
- Trip Unit: Micrologic 1.3M
- UL 489 Listed
- Application: Motor Circuit Protector
Specifications
- Part Number: LGL36400M37X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LGL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Terminal Connection : Lug
- Frame Size : L Frame
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- Protection : Solid State
Product Data
- UPC : 785901435785
- GTIN : 00785901435785
- Country of Origin : United States
- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 13.7
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
