Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LDL36400CU31X

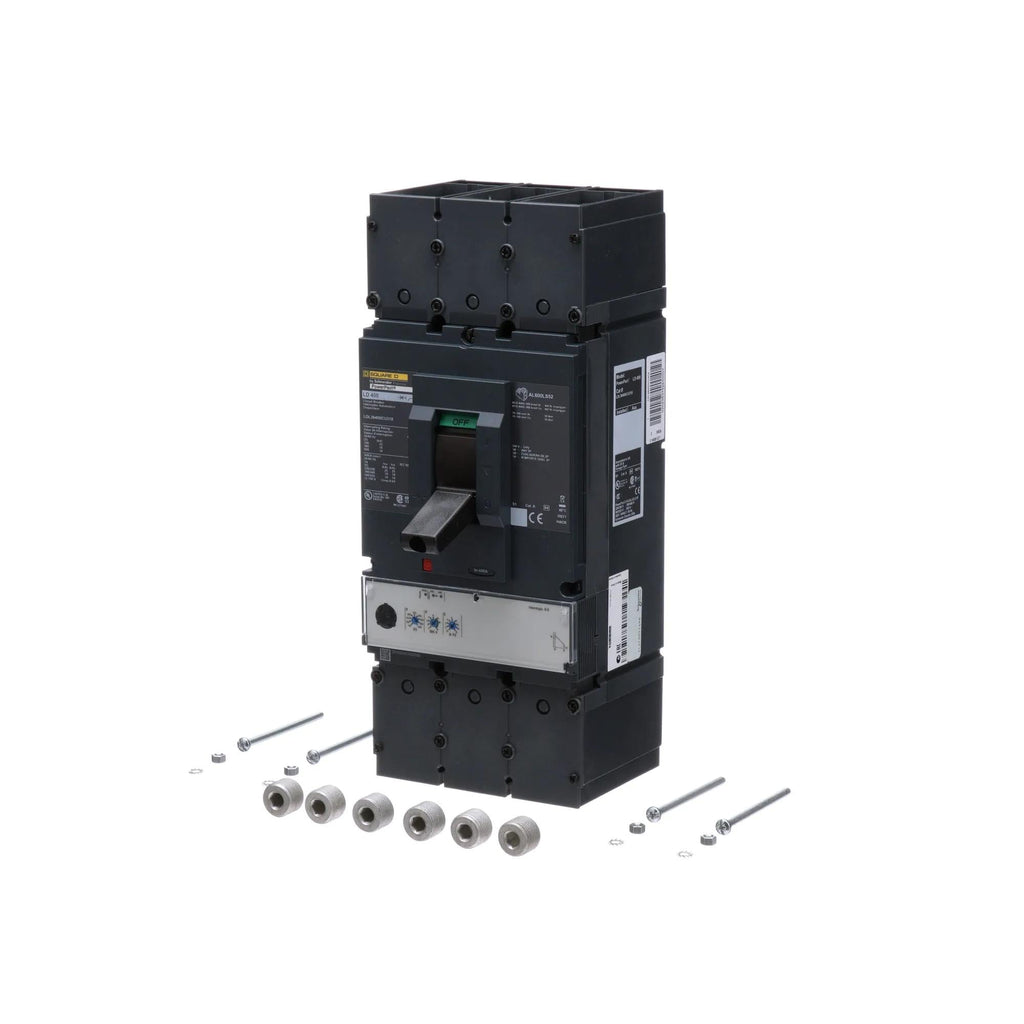

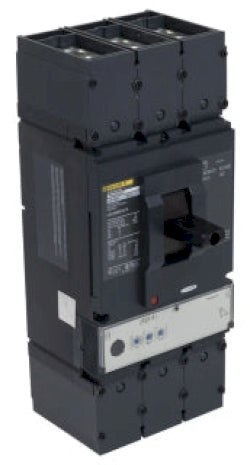

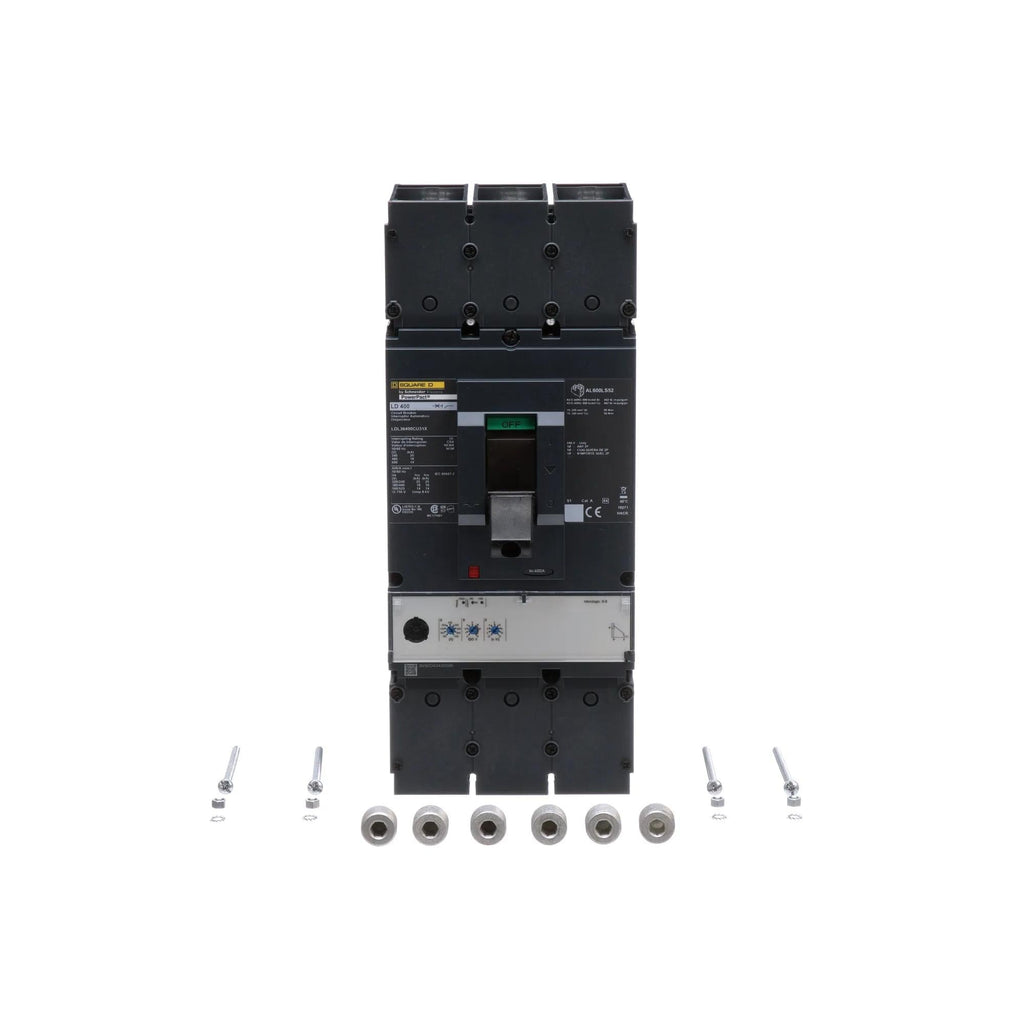

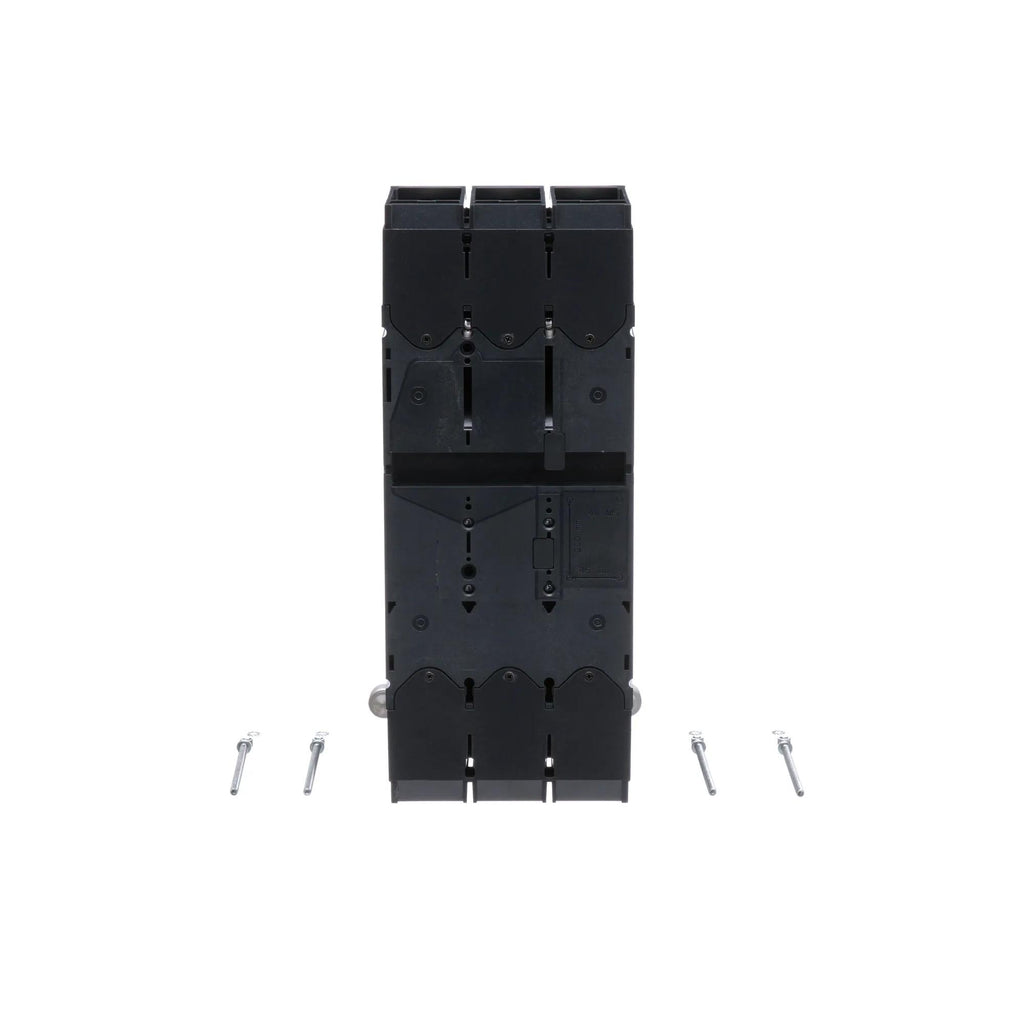

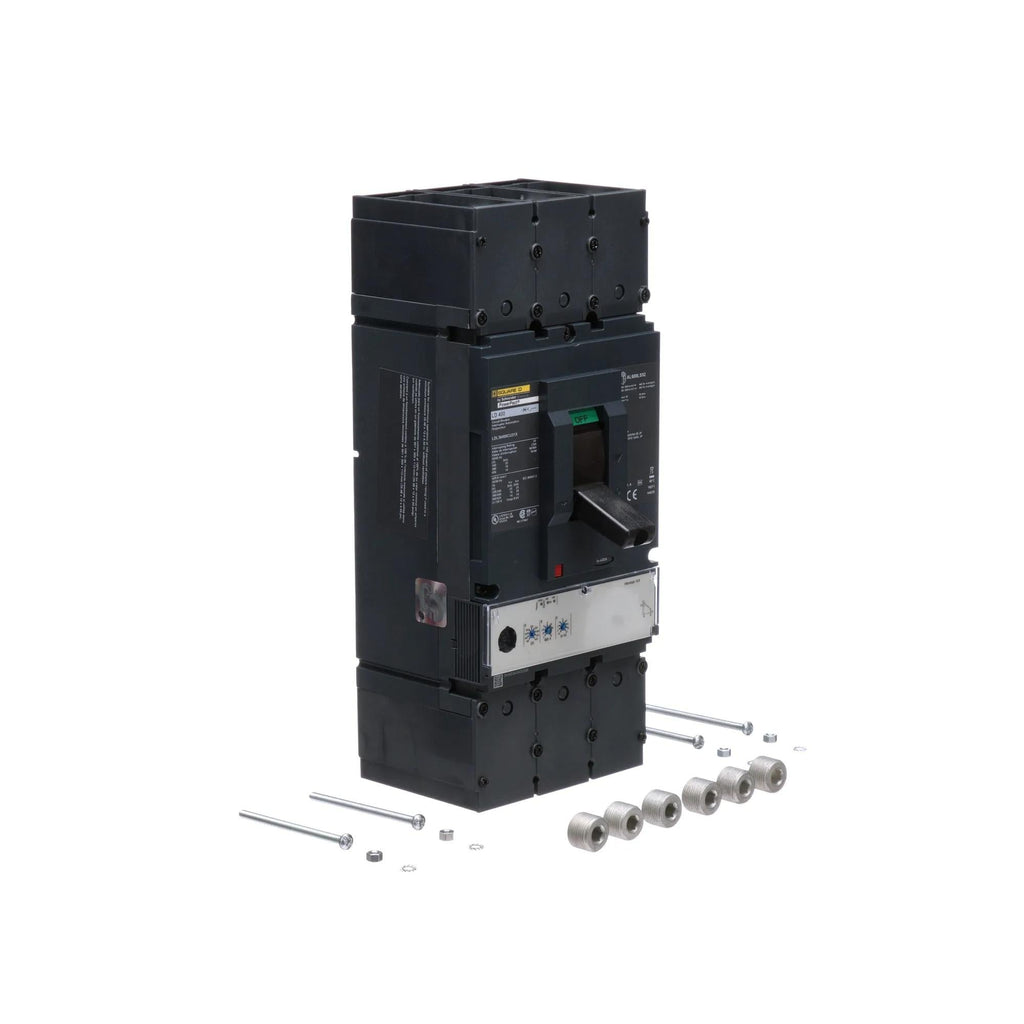

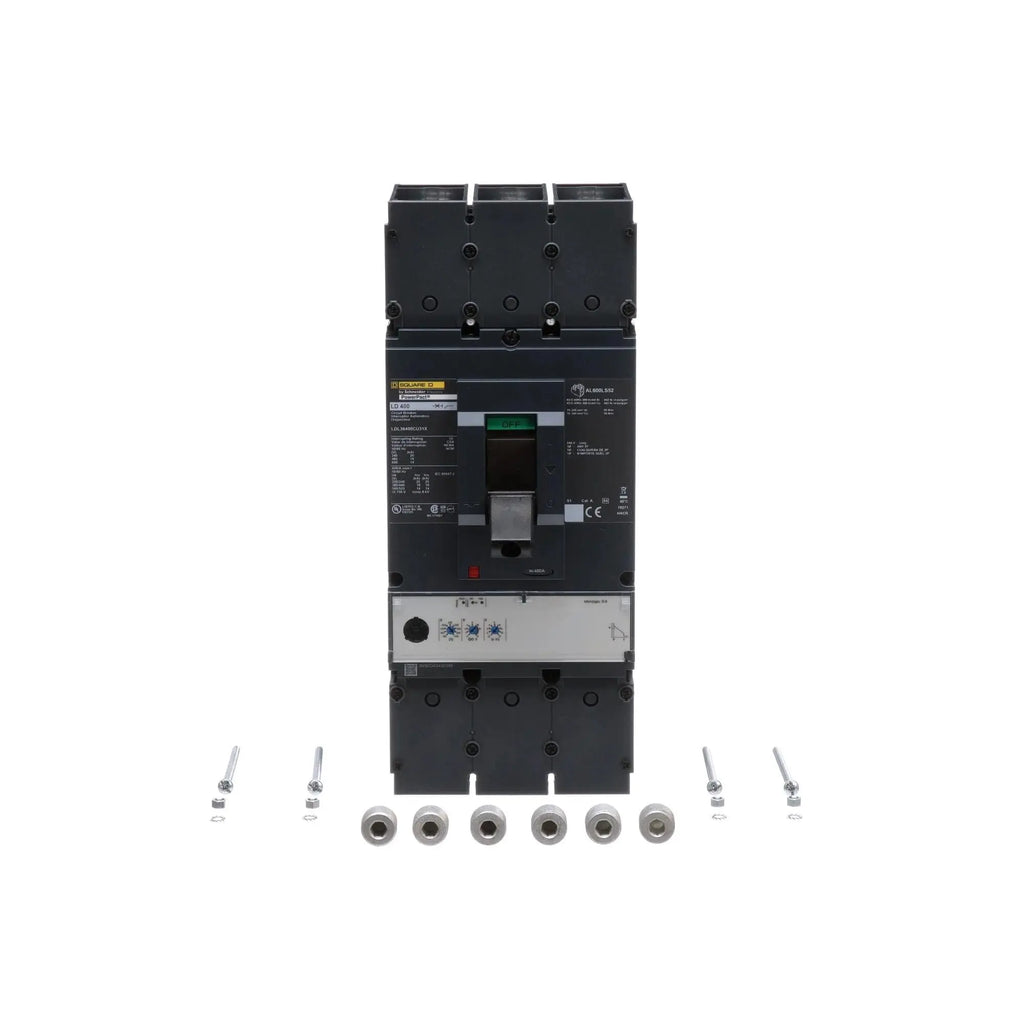

LDL36400CU31X is a Square D PowerPact L Frame 400A 3 pole molded case circuit breaker with MicroLogic 3.3 trip unit and lugs on both line and load sides. This unit provides reliable protection for electrical systems with solid-state electronic trip technology and dual-break rotating contacts for reduced peak current during faults. Designed for use in main panel disconnects and control panels, the LDL36400CU31X features a continuous current rating of 100% and is suitable for 240/480/600VAC applications. It is UL 489 listed and certified to CSA, CE, IEC, NEMA, NMX, VDE, BS, and CCC standards. The breaker is available in unit mount construction and is part of the PowerPact L series, known for robust performance and compatibility across a wide range of accessories.
- Part Number: LDL36400CU31X
- Manufacturer: Square D
- Series/Frame: PowerPact L Frame
- Amperage: 400A
- Poles: 3
- Voltage Rating: 600VAC
- Mounting Type: Unit Mount
- Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC, 25kA @ 240VAC
- Protection Type: Solid-State Electronic Trip
- Trip Unit: MicroLogic 3.3 (LI Functi(more...)
Specifications
- Part Number: LDL36400CU31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LDL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : L Frame
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
- Breaker Type : 100% rated
- Protection : Solid State
Product Data
- UPC : 078590162666
- GTIN : 00785901626664
- Country of Origin : Mexico
- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 17.09 lb
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
