Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- Series C
- Frame
- LD
- Rated current
- 600
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Line/Load Lug
- Phase connection
- ABC
- Frequency
- 50/60 Hz
- Panel / equipment
- Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
- Standards
- CSA Certified, IEC Rated, UL Listed
- Country of origin
- United States
Show all specifications (9 more)
- Frame Size
- 600A/L
- Temp Rating
- -4°F to 158°F
- MCM Size
- Min. Wire Size 400 MCM Max. Wire Size 500 MCM
- Breaker Type
- Standard
- UPC
- 786679341827
- GTIN
- 00786679341827
- Dimensions
- 8.25 in x 8 in x 8.25 in (Length/Depth x Height x Width)
- Weight
- 16
- Certification
- CSA Certified, IEC Rated, UL Listed
Product description & additional details
LD3600

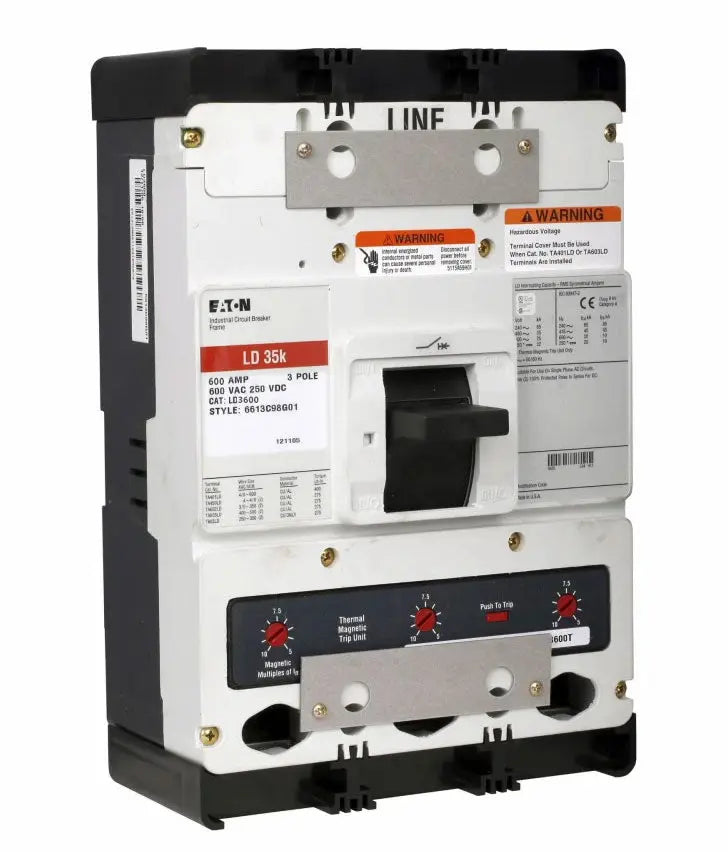

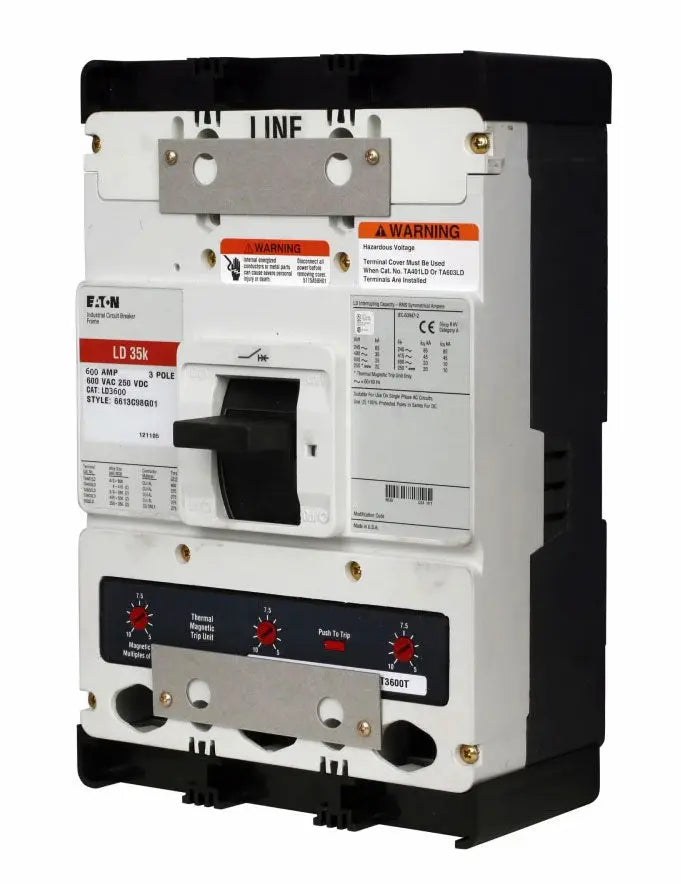

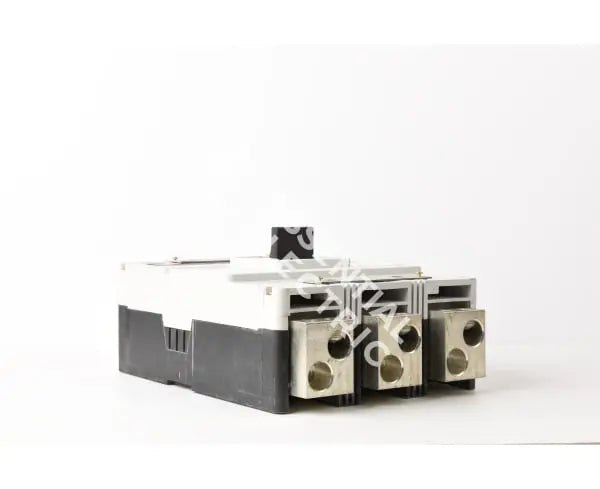

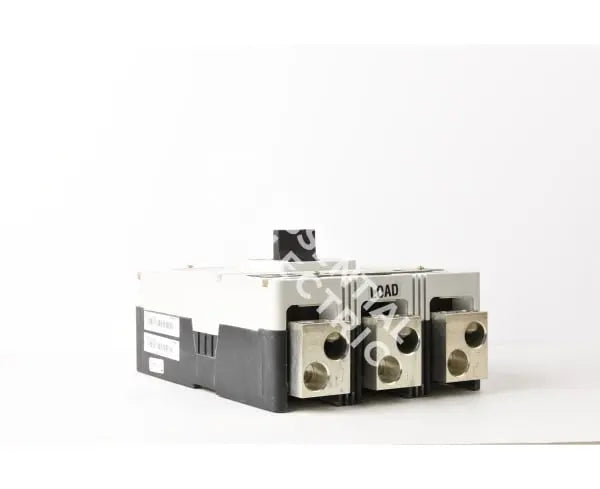

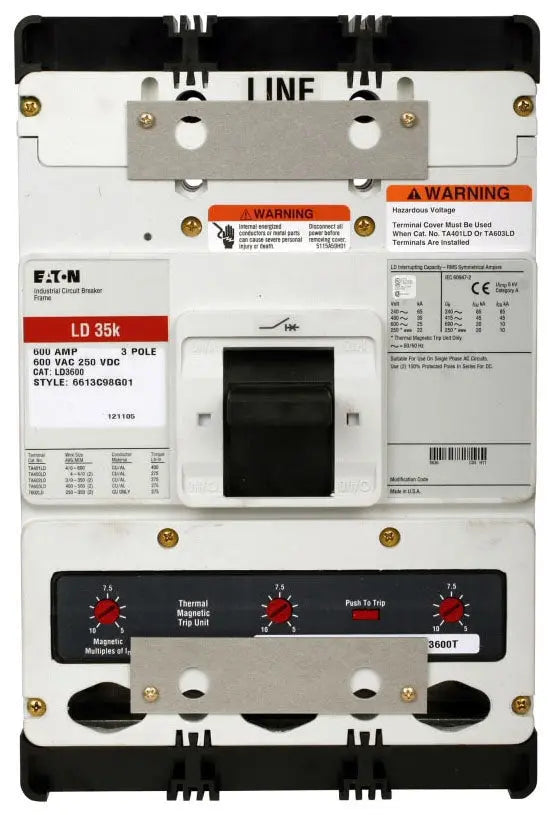

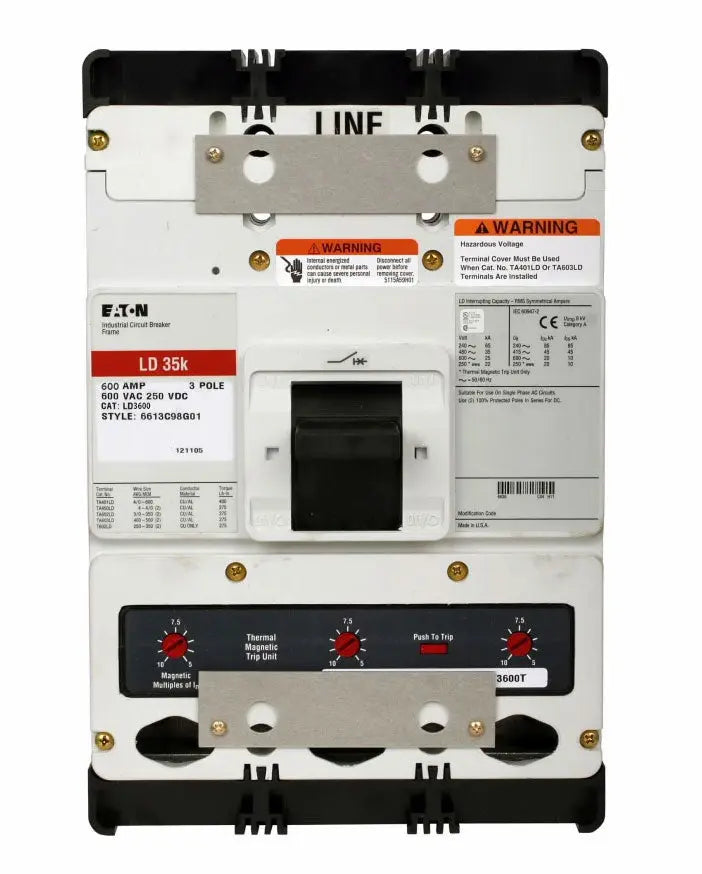

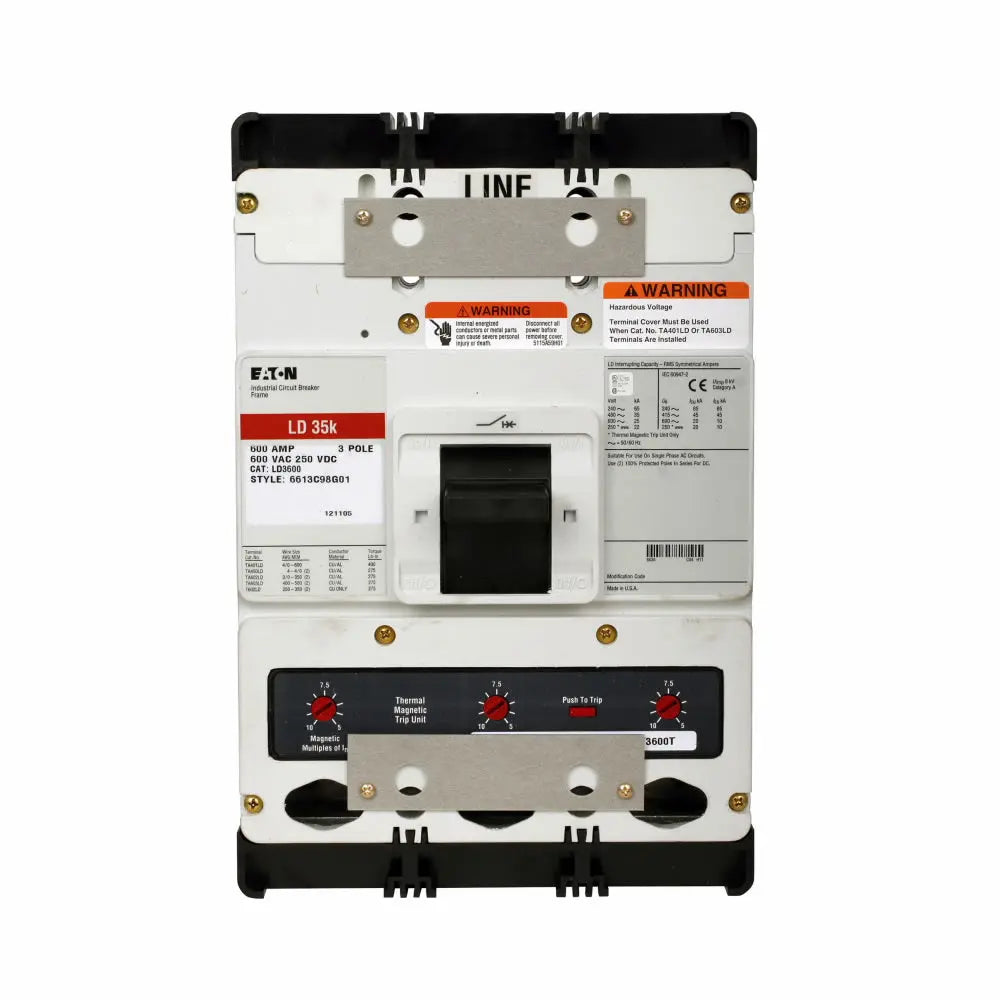

LD3600 is a Cutler Hammer 600A, 600V, 3-pole, L-frame molded case circuit breaker designed for industrial power distribution applications.
This Series C breaker features a thermal magnetic trip unit, feed-thru mounting, and is rated for 35kAIC at 480VAC and 65kAIC at 240VAC. It is suitable for use in three-phase systems and is certified to UL 489 and CSA standards. The breaker includes standard pressure line and load terminals and is designed for reliable protection in demanding environments.
-
Key Specifications
- Amperage: 600A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupt Rating: 35kAIC @ 480VAC, 65kAIC @ 240VAC
- Series/Frame: Series C, L-Frame
- Trip Unit: Thermal Magnetic (Fixed)
- Certifications: UL 489 Listed, CSA Certified
- Terminal: Aluminum/Copper, standard pressure
- Frequency: 50/60 Hz
- Dimensions: 8-1/4" W x 4-1/16" D x 10-3/4" H (approximate)
- Weight: 16 lbs (approximate)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LD3600
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 600A/L
- Temp Rating : -4°F to 158°F
- MCM Size : Min. Wire Size 400 MCM Max. Wire Size 500 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 786679341827
- GTIN : 00786679341827
- Country of Origin : United States
- Dimensions : 8.25 in x 8 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 16
- Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
- Standards : CSA Certified, IEC Rated, UL Listed
- Certification : CSA Certified, IEC Rated, UL Listed
