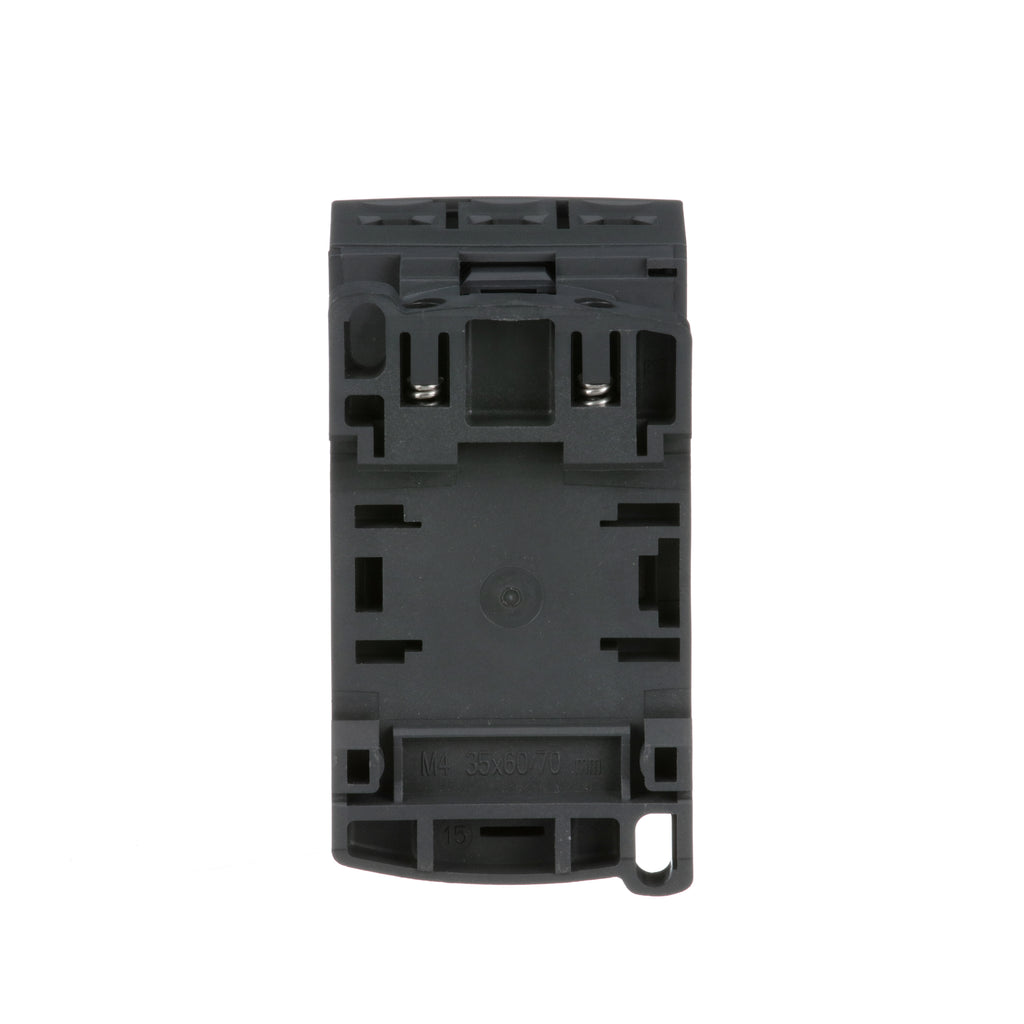

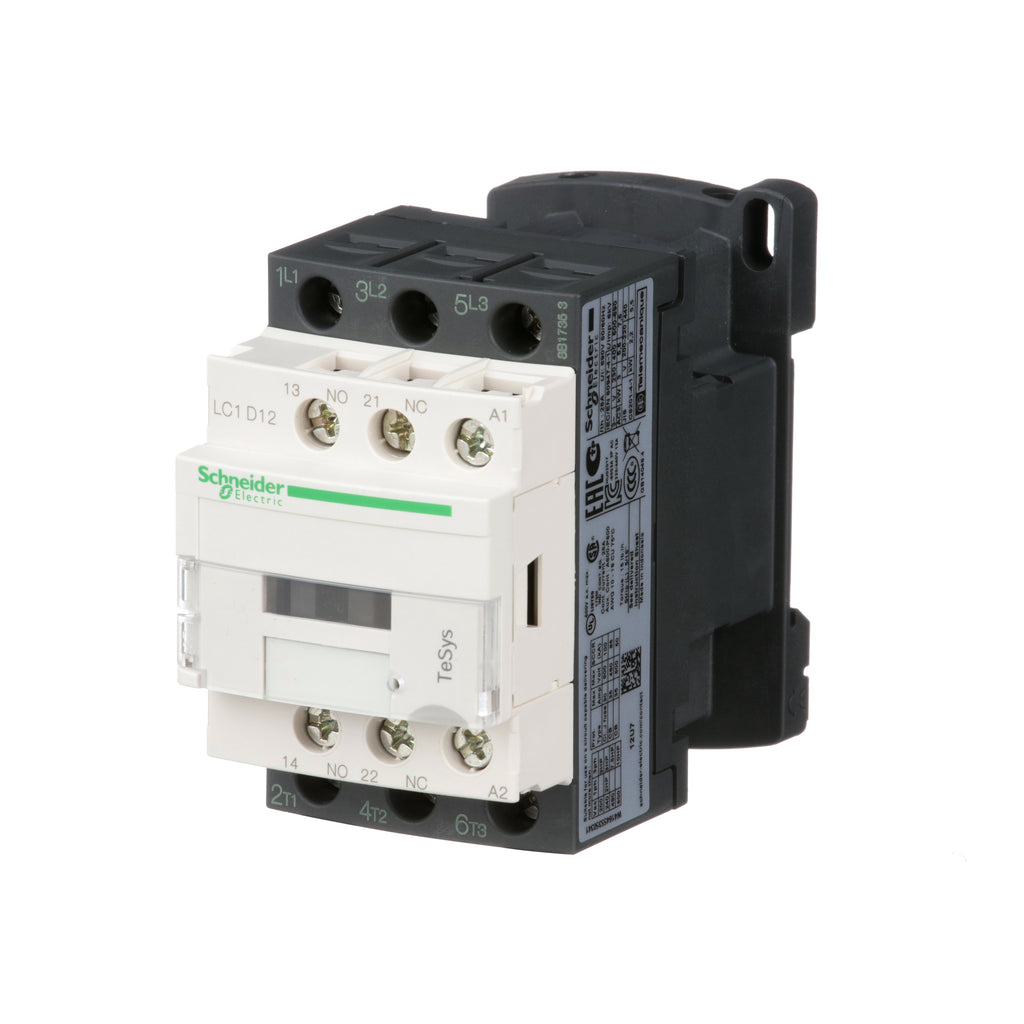

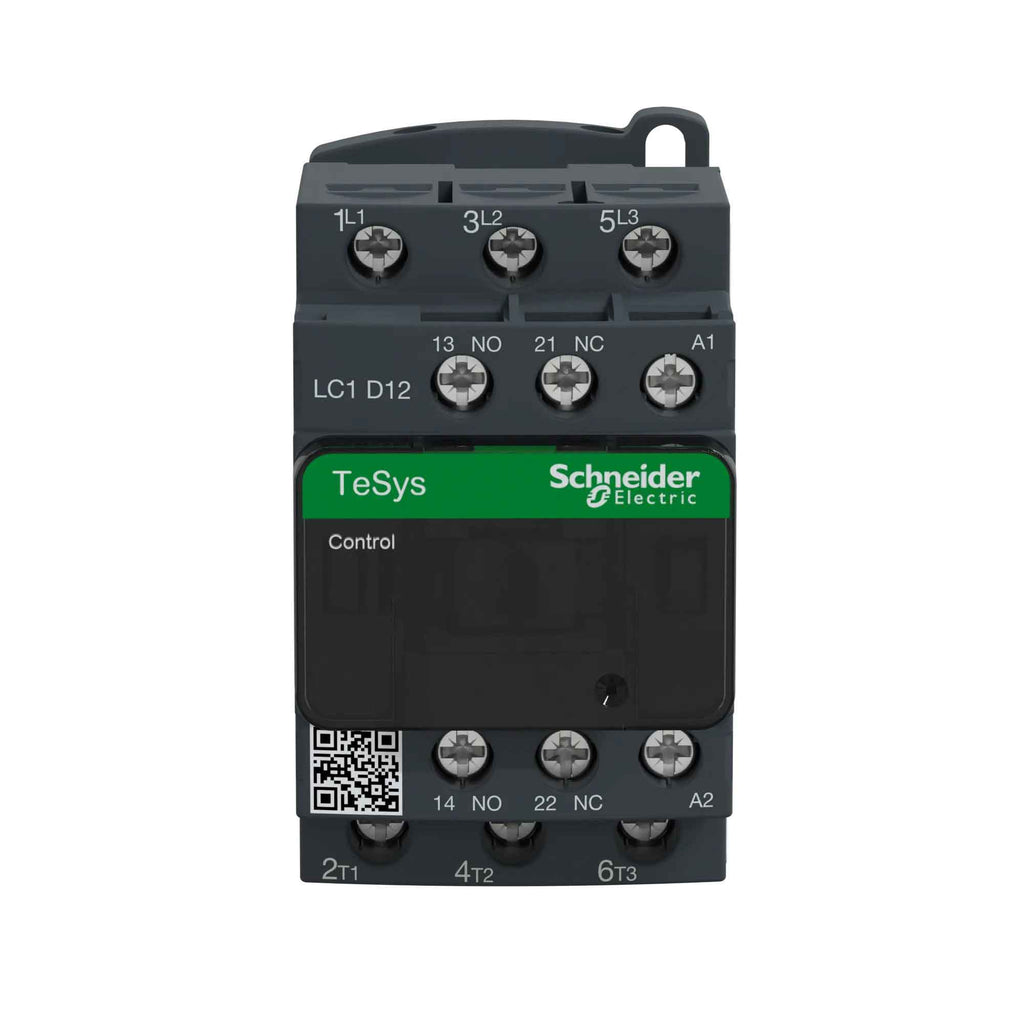

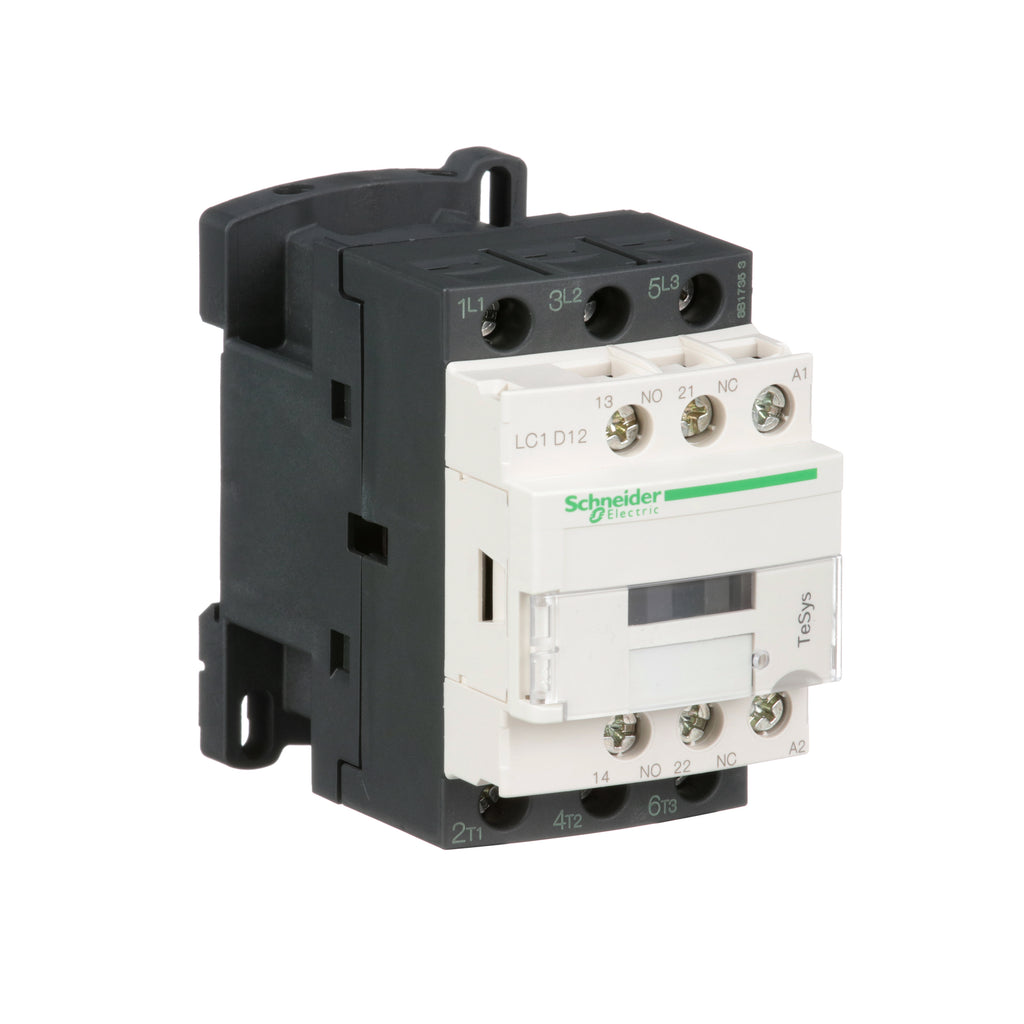

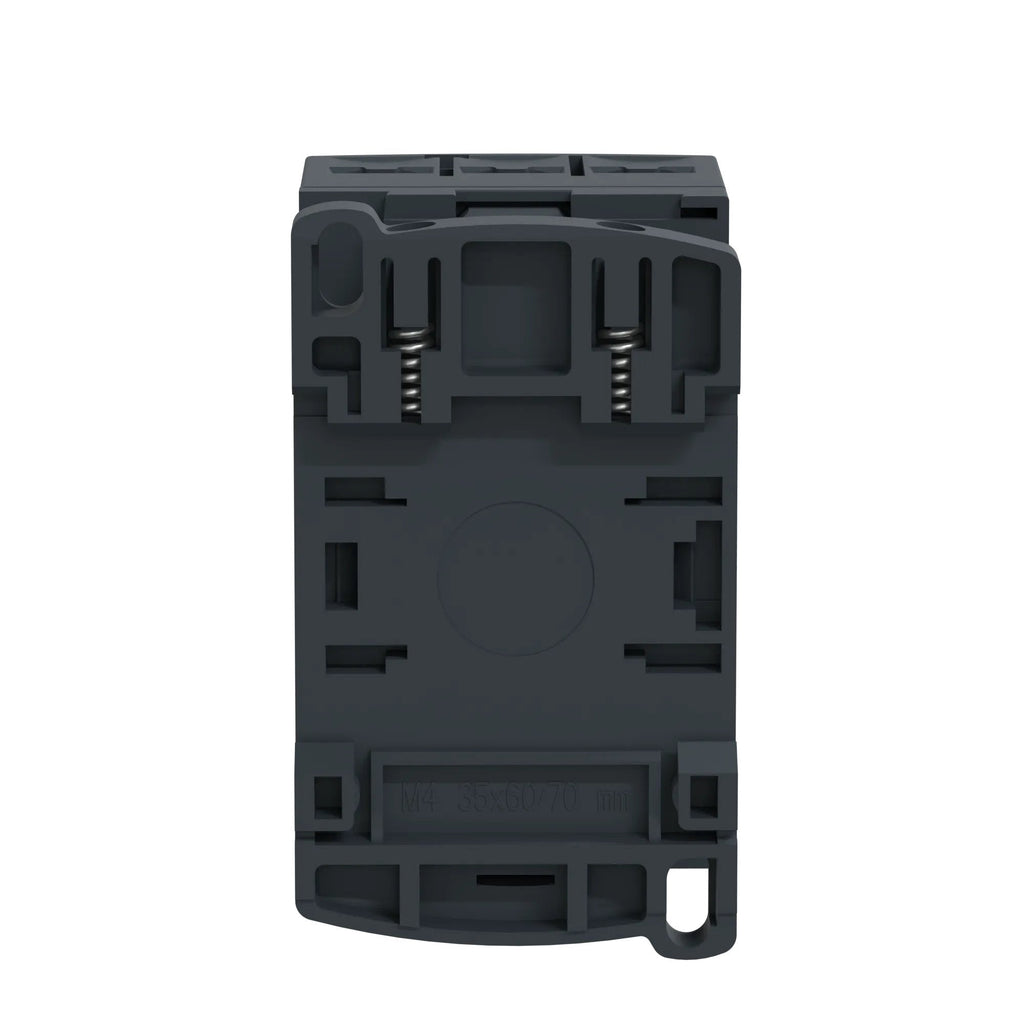

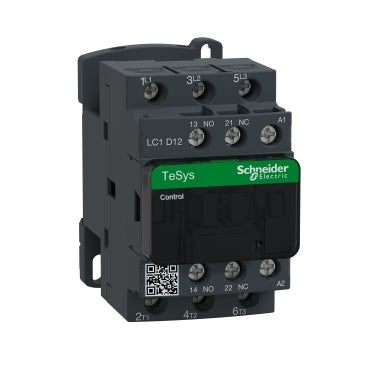

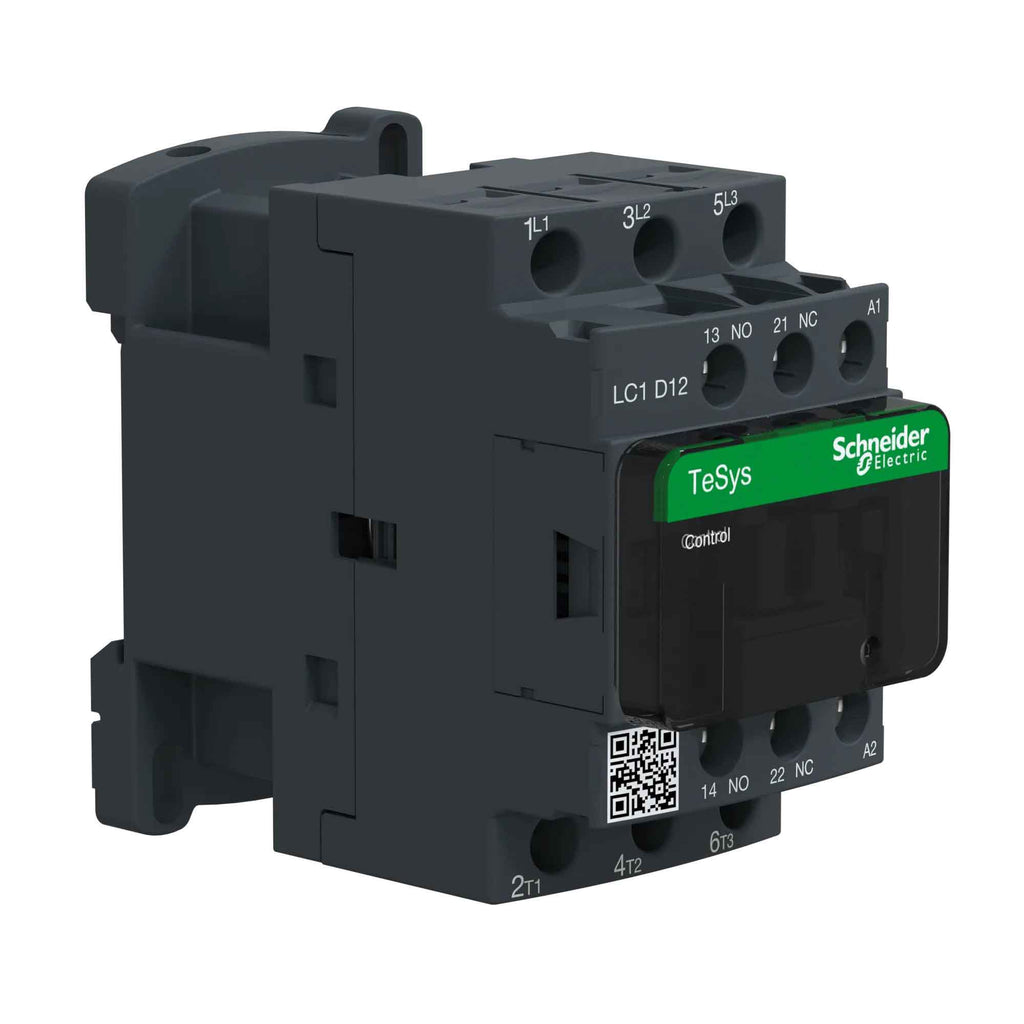

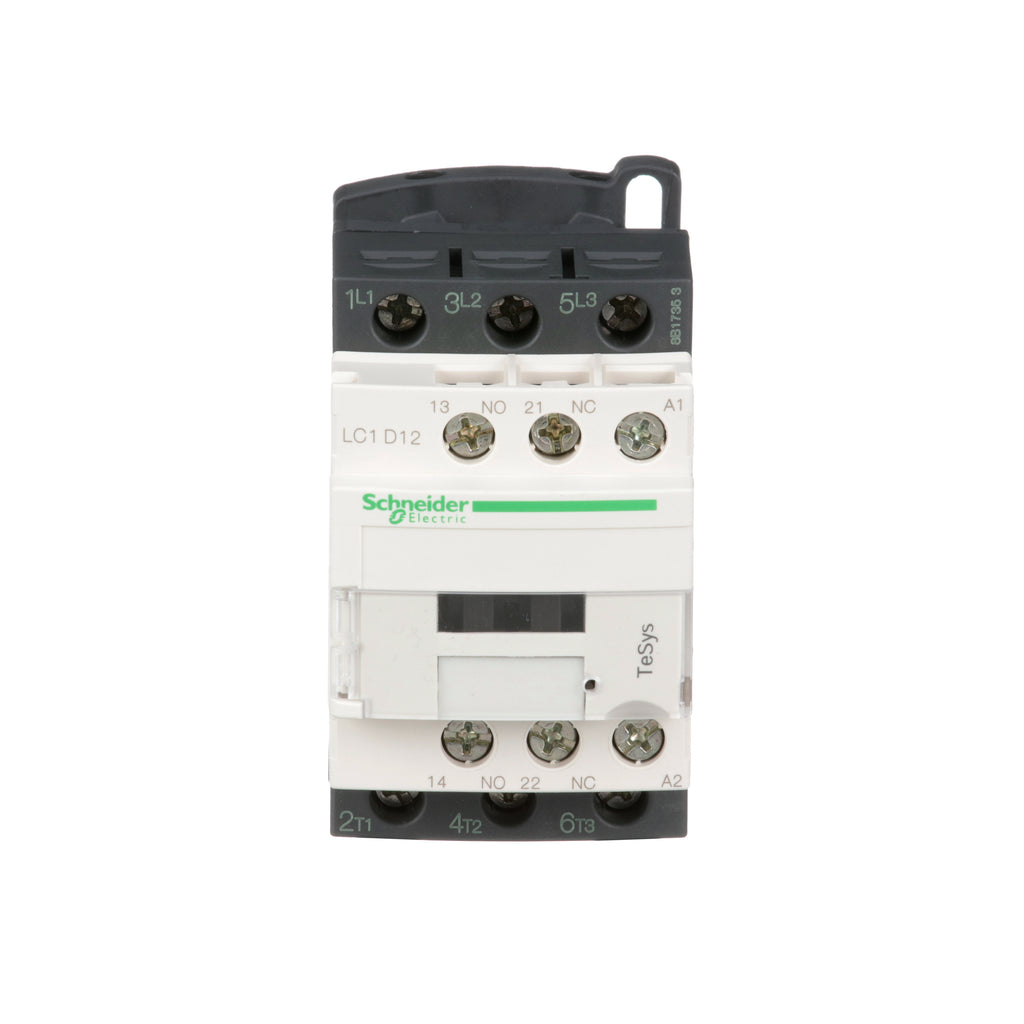

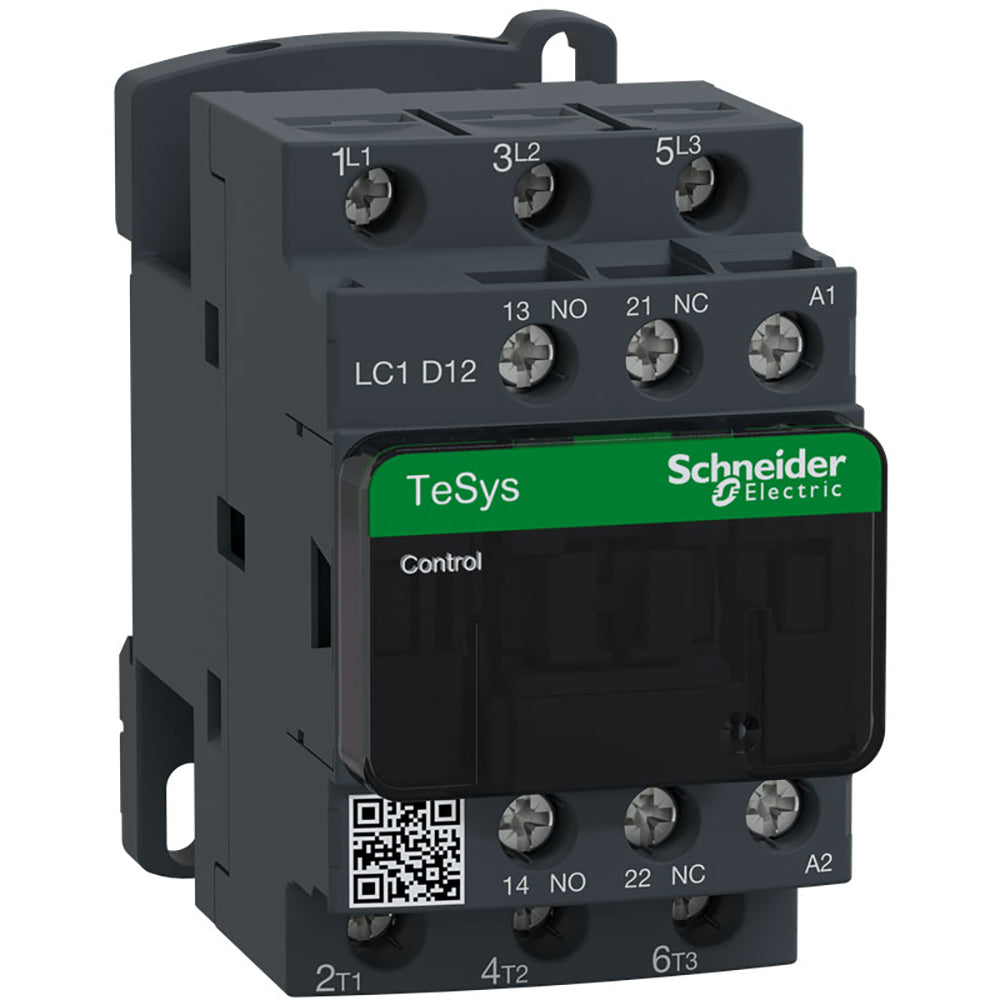

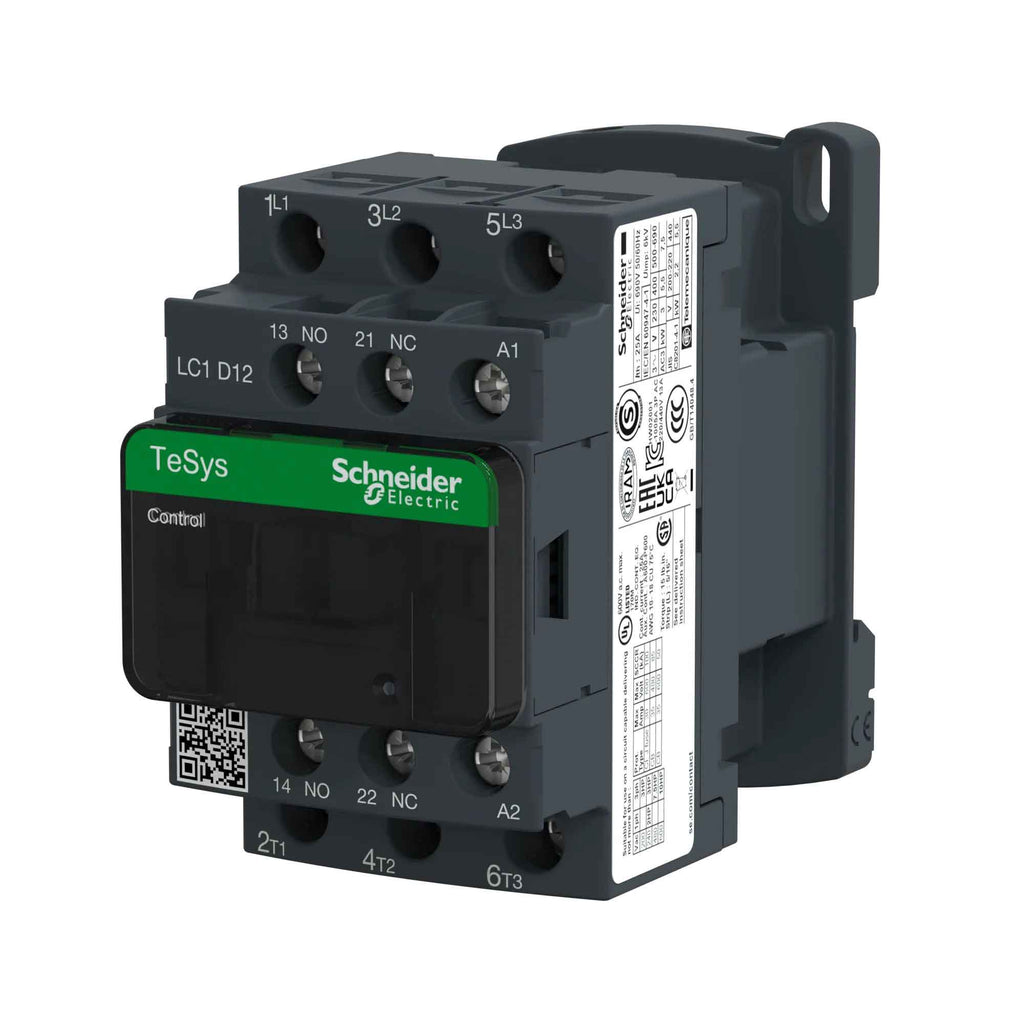

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 12
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 220–240 V
- Auxiliary contacts
- 1 NO, 1 NC
- Country of origin
- Indonesia
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Horse Power
- 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 240
Show all specifications (8 more)
- Full Load Amps
- Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
- Coil Voltage Minimum
- 220
- Frequency
- 50/60 Hz
- UPC
- 785901207061
- GTIN
- 03389110349344

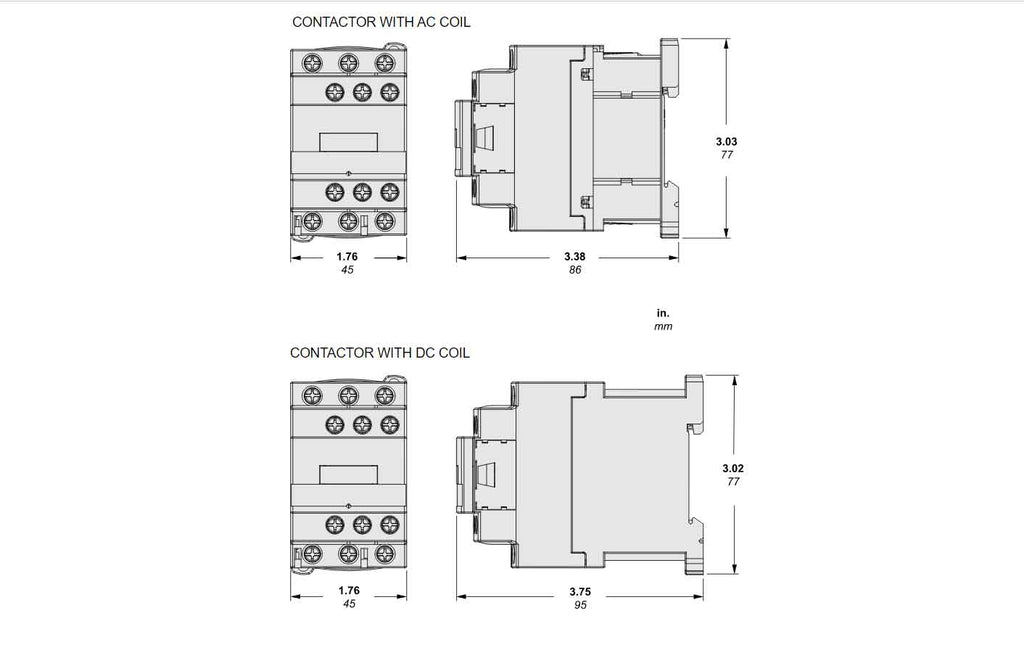

- Dimensions
- 1.77 in x 3.03 in
- Weight
- 0.785
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D12U7
LC1D12U7 is a Schneider Electric 3-pole IEC contactor designed for motor control applications with a 12 amp rating and 240V AC coil.This contactor supports motor loads up to 3 HP at 230V and 7.5 HP at 460V, conforming to IEC 60947 standards. It features a 3-phase non-reversing design with screw clamp terminals and an interrupt rating suitable for industrial and HVAC use. The coil operates at 240V 50/60 Hz, and the device offers IP20 protection with improved fire resistance and multi-standard screws for easier installation.
- Key Specifications
- Amperage: 12 A
- Voltage: 240 V AC coil
- Poles: 3 (3 NO contacts)
- Motor HP rating: 3 HP at 230V, 7.5 HP at 460V
- Mounting Type: DIN rail compatible
- Interrupt Rating: Up to 100 kA SCCR
- Series/Frame: TeSys D / Deca
- Trip Unit: Non-reversing contactor
- Certifications: IEC 60947, IEC 60335-1 fire resistance
- Degree of Protection: IP20
- Part Number: LC1D12U7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Horse Power : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1 NO, 1 NC
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
- Coil Voltage Minimum : 220
- Frequency : 50/60 Hz
- UPC : 785901207061
- GTIN : 03389110349344
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.03 in
- Weight : 0.785
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Additional Information
This TeSys D IEC Contactor includes a 240 VAC coil.
