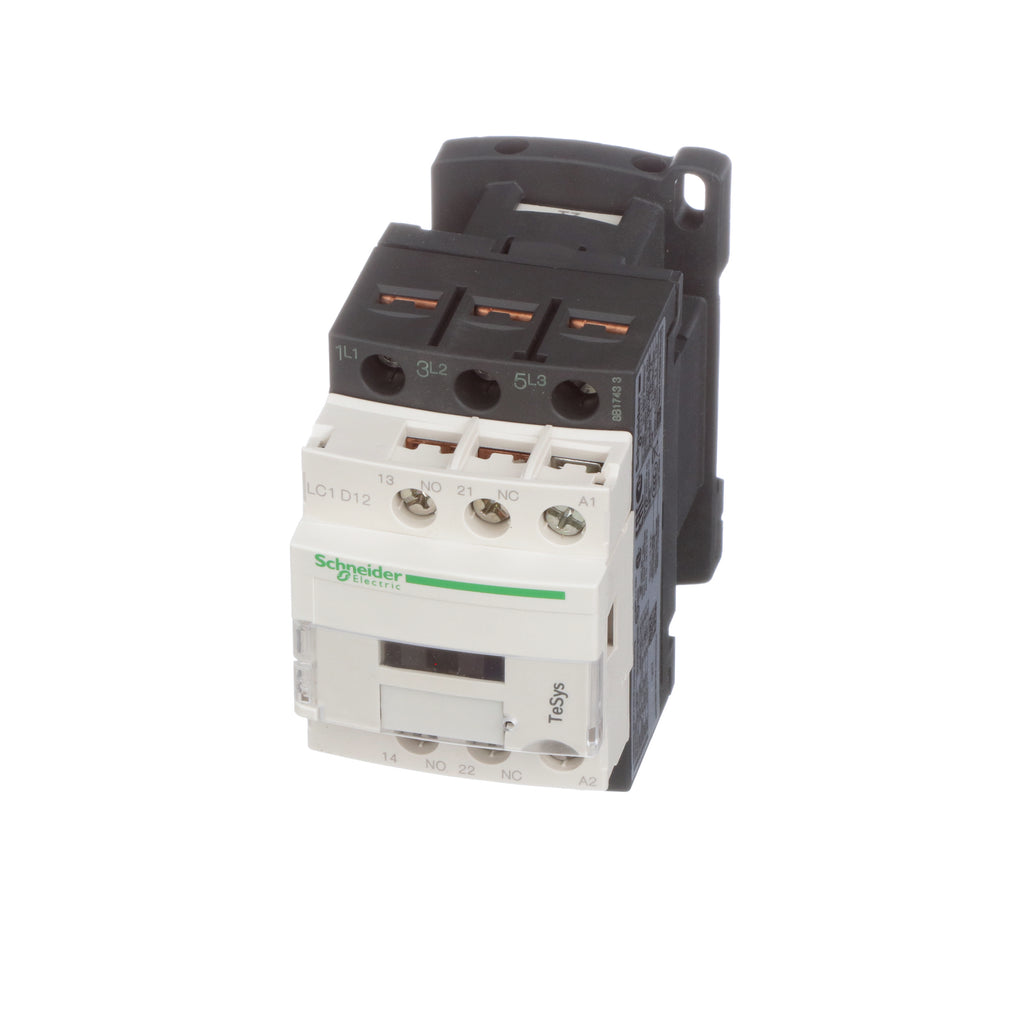

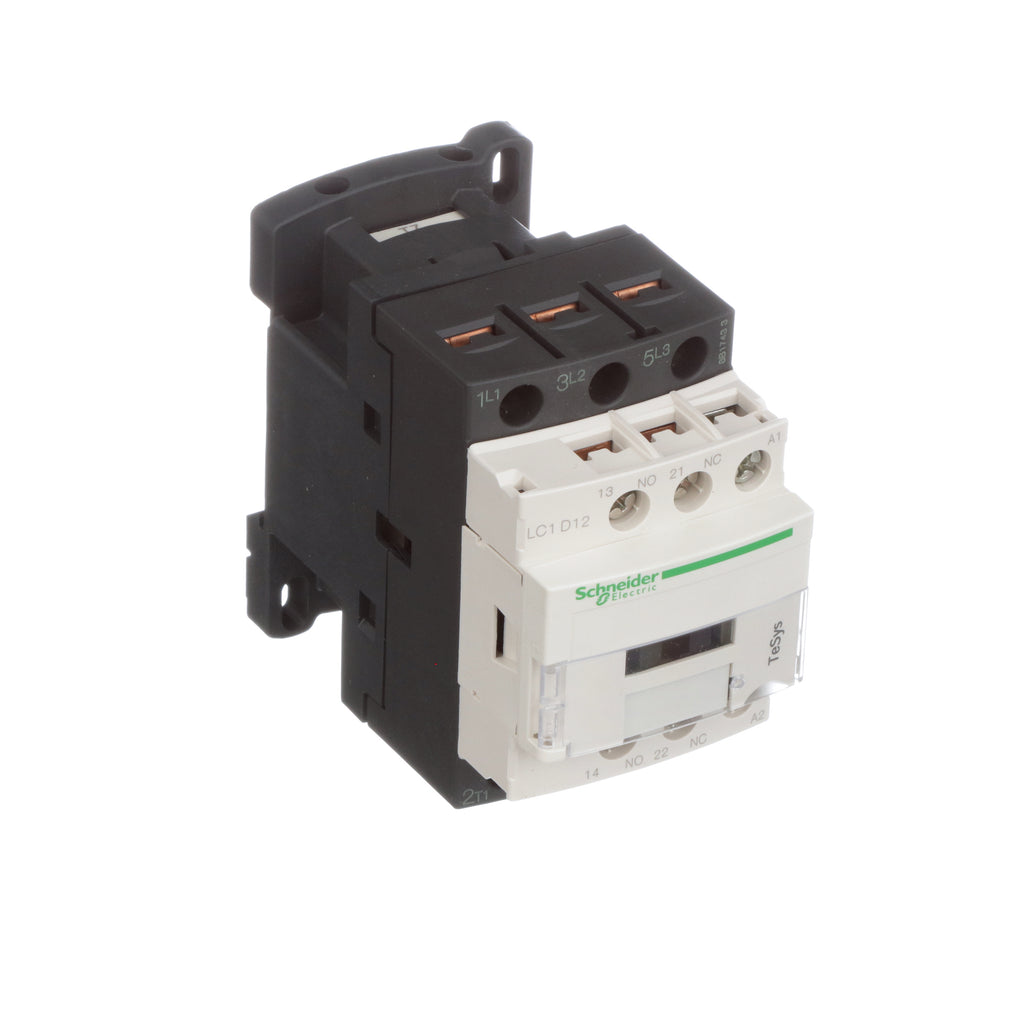

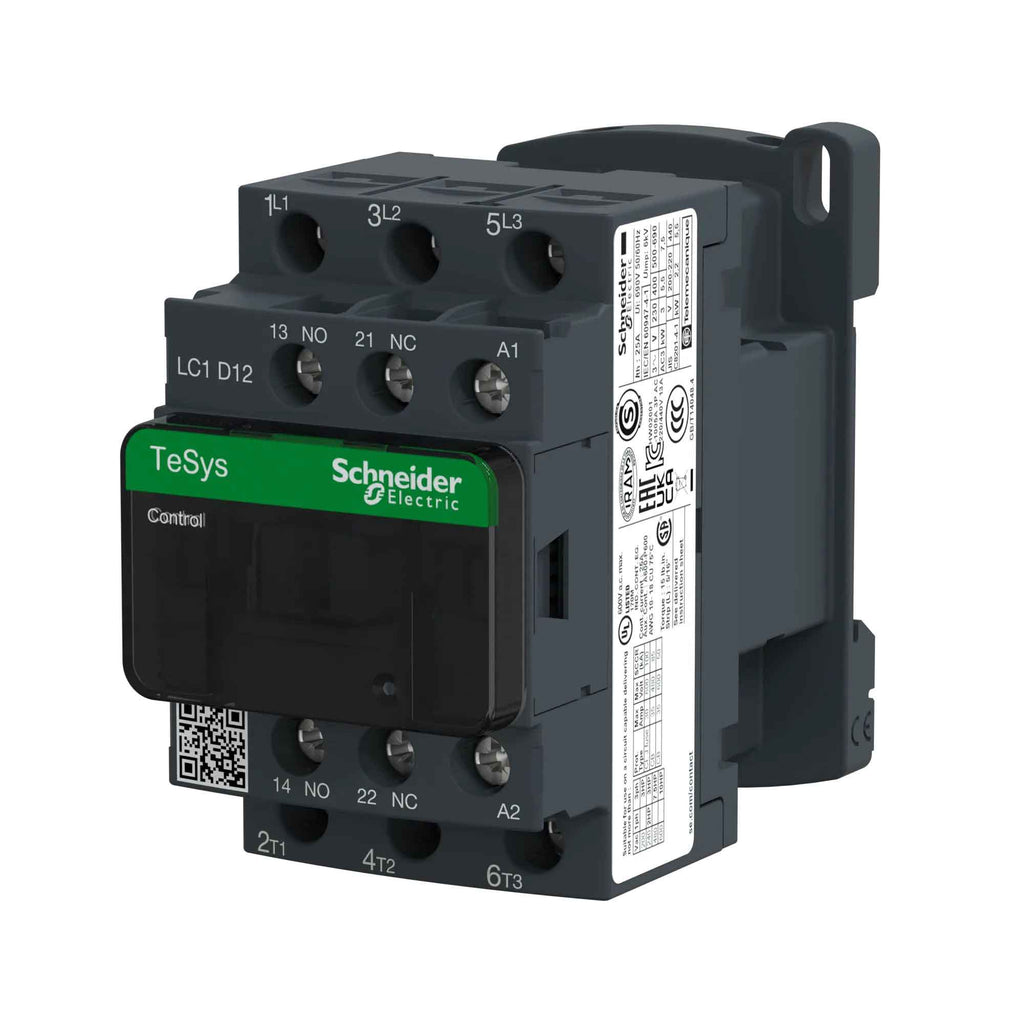

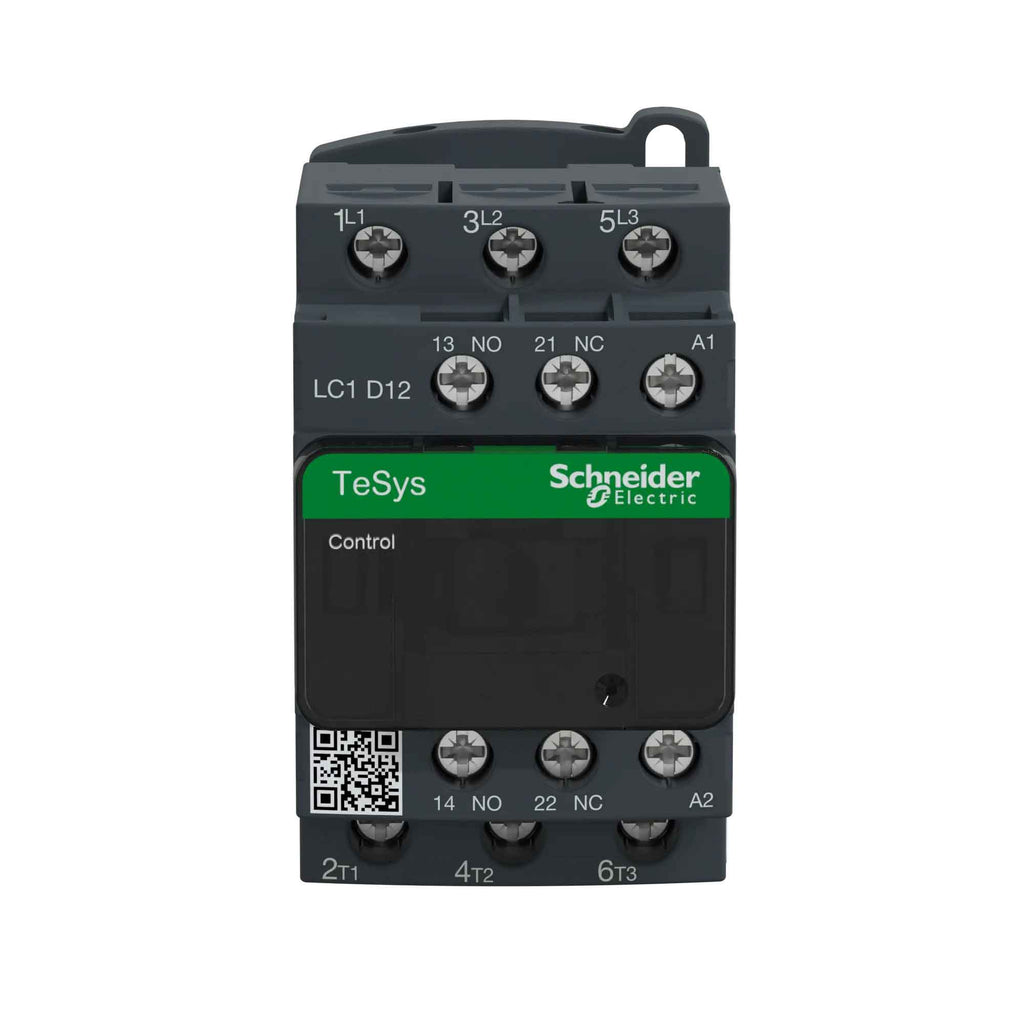

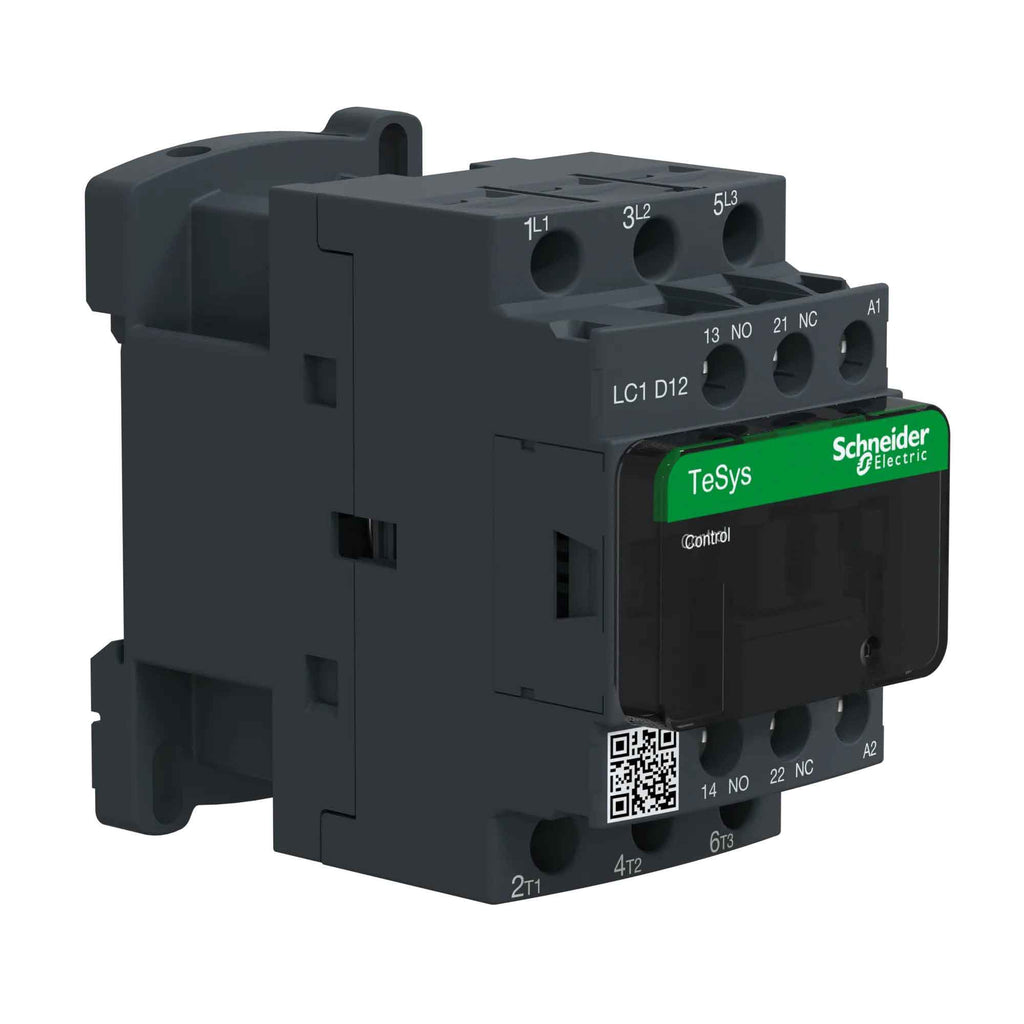

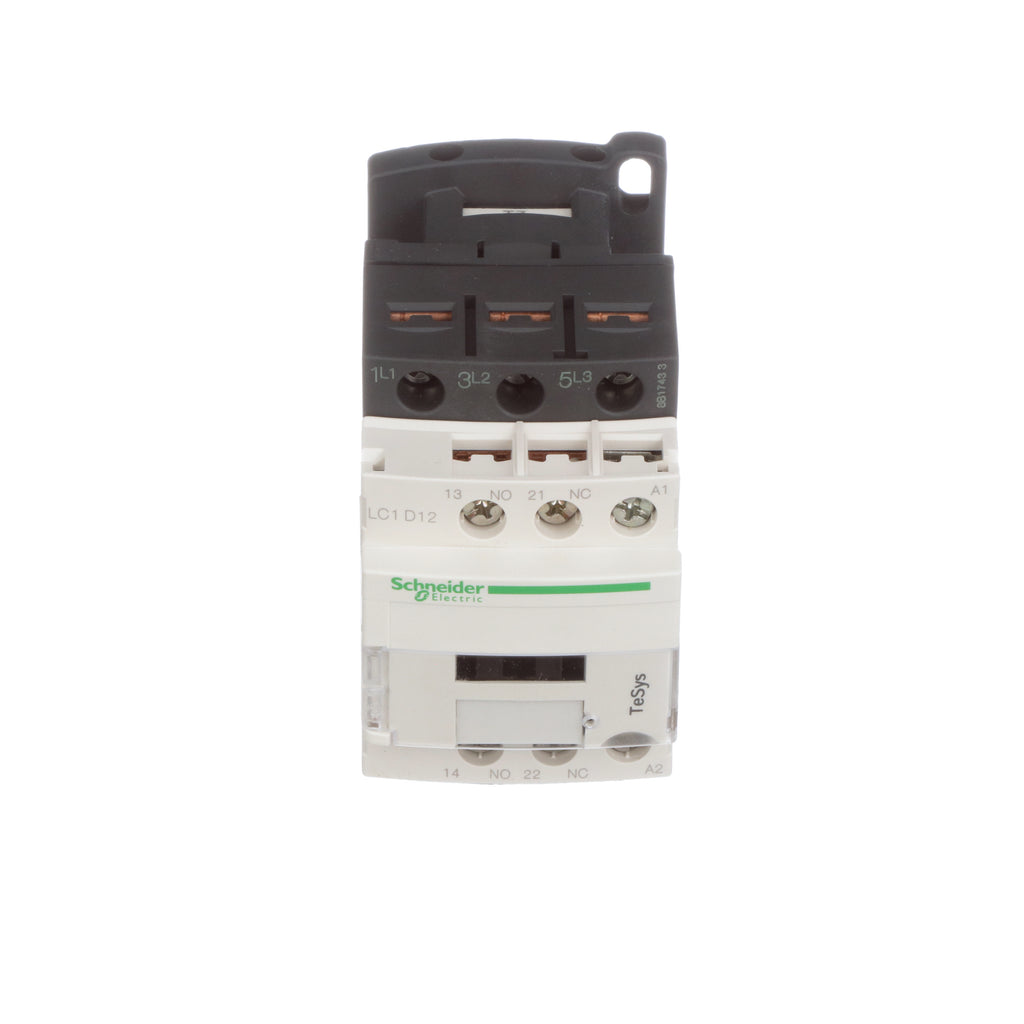

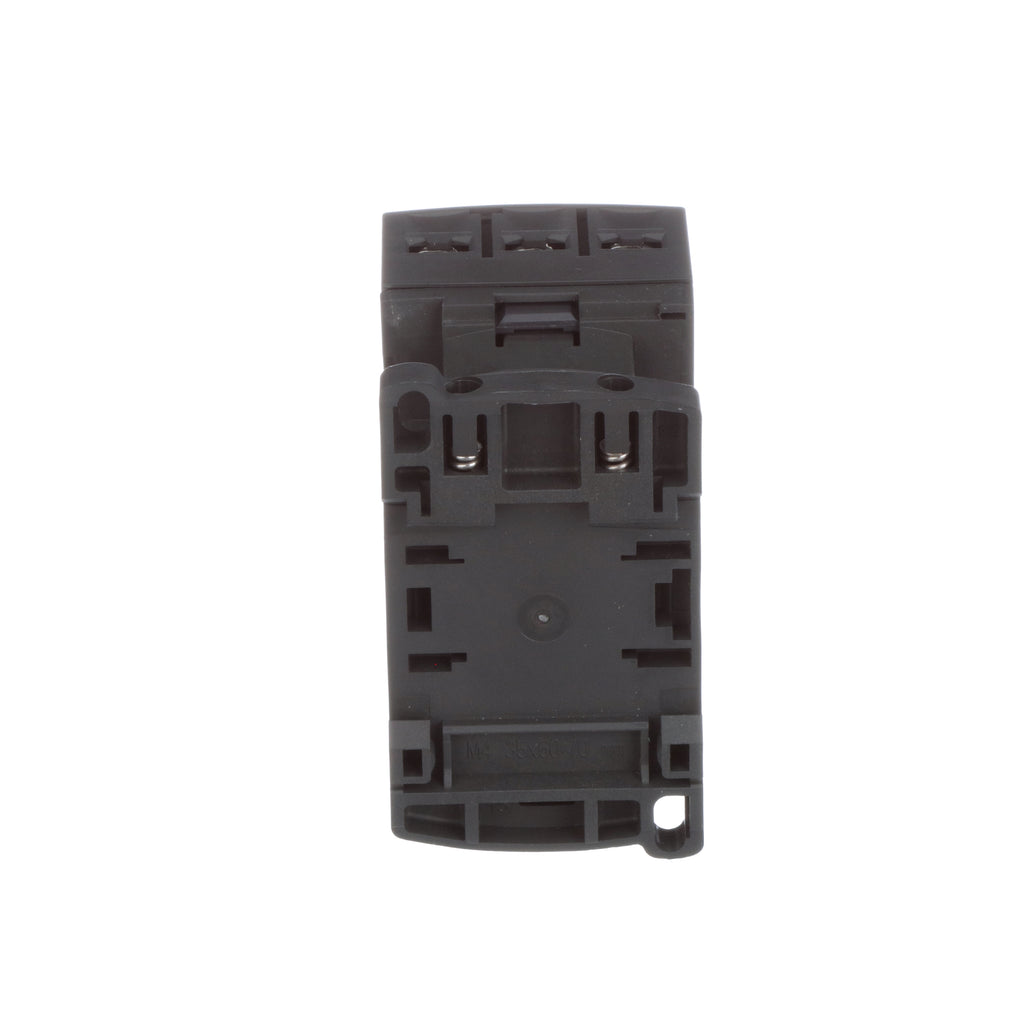

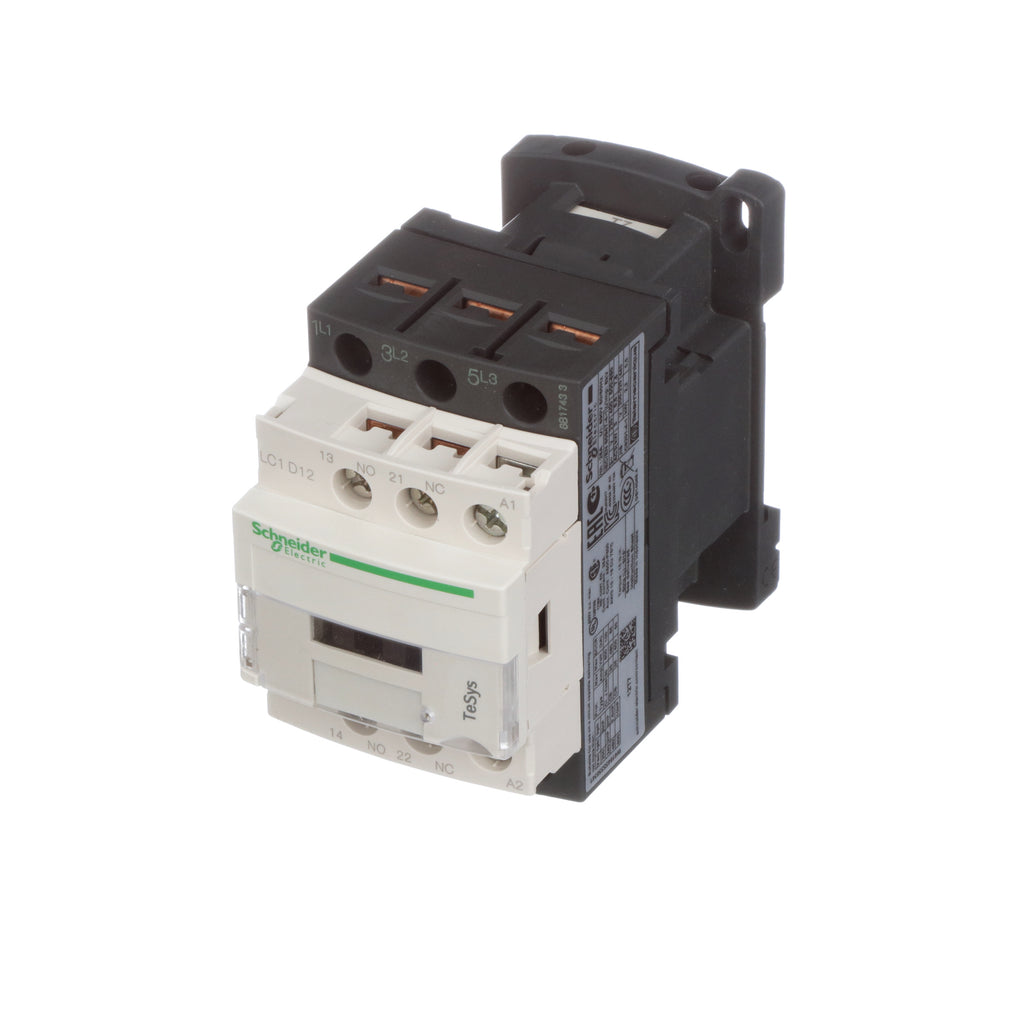

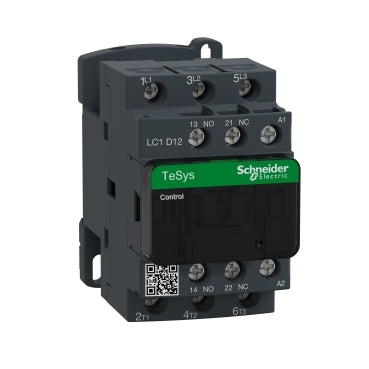

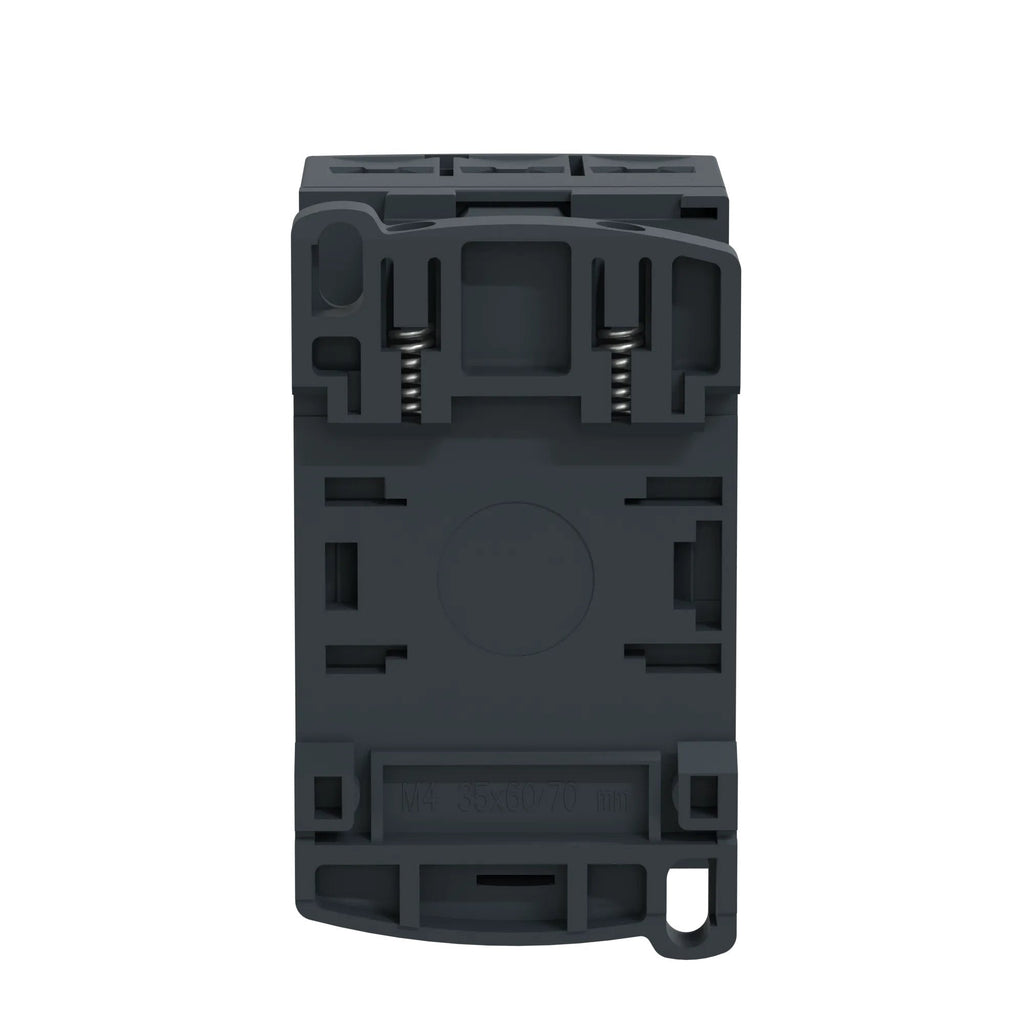

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 12
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 480 V
- Auxiliary contacts
- 3 NO
- Country of origin
- Indonesia
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Horse Power
- 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 480
Show all specifications (8 more)
- Full Load Amps
- Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
- Coil Voltage Minimum
- 480
- Frequency
- 50/60 Hz
- UPC
- 785901207030
- GTIN
- 03389110349238
- Dimensions
- 1.77 in x 3.03 in
- Weight
- 0.78
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D12T7
LC1D12T7 is a 3-pole IEC motor contactor from Square D's TeSys D series designed for motor control applications with a 12 amp rating and 480V AC coil.This non-reversing contactor supports up to 7.5 HP at 460-480V AC, with a rated operational current of 12A AC-3 and 25A AC-1. It features 3 normally open (NO) contacts, screw clamp terminals, and mounts on a standard 35mm DIN rail. The LC1D12T7 is suitable for industrial and HVAC applications, offering high reliability and compatibility with various overload relays and auxiliaries.
- Key Specifications
- Amperage: 12A AC-3, 25A AC-1
- Voltage: 480V AC coil, up to 690V AC power circuit
- Poles: 3 (3 NO contacts)
- Frame/Series: TeSys D, LC1D
- Mounting: 35mm DIN rail or plate mount
- Interrupt Rating: Up to 100kA SCCR
- Horsepower: 7.5 HP at 460-480V AC
- Trip Unit: Non-reversing contactor
- Terminals: Screw clamp
- Certifications: UL, CSA approved
- Part Number: LC1D12T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Horse Power : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 480
- Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
- Coil Voltage Minimum : 480
- Frequency : 50/60 Hz
- UPC : 785901207030
- GTIN : 03389110349238
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.03 in
- Weight : 0.78
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Additional Information
This TeSys D IEC Contactor includes a 480 VAC coil.
