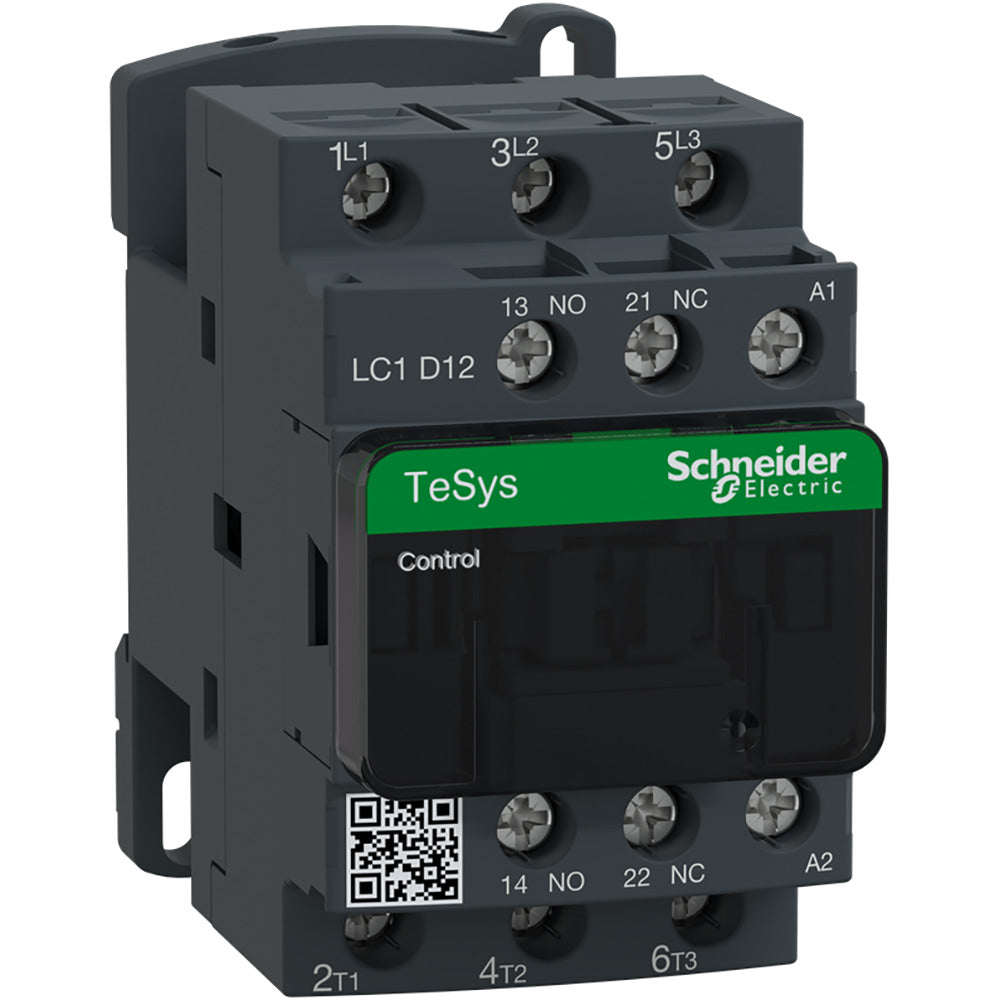

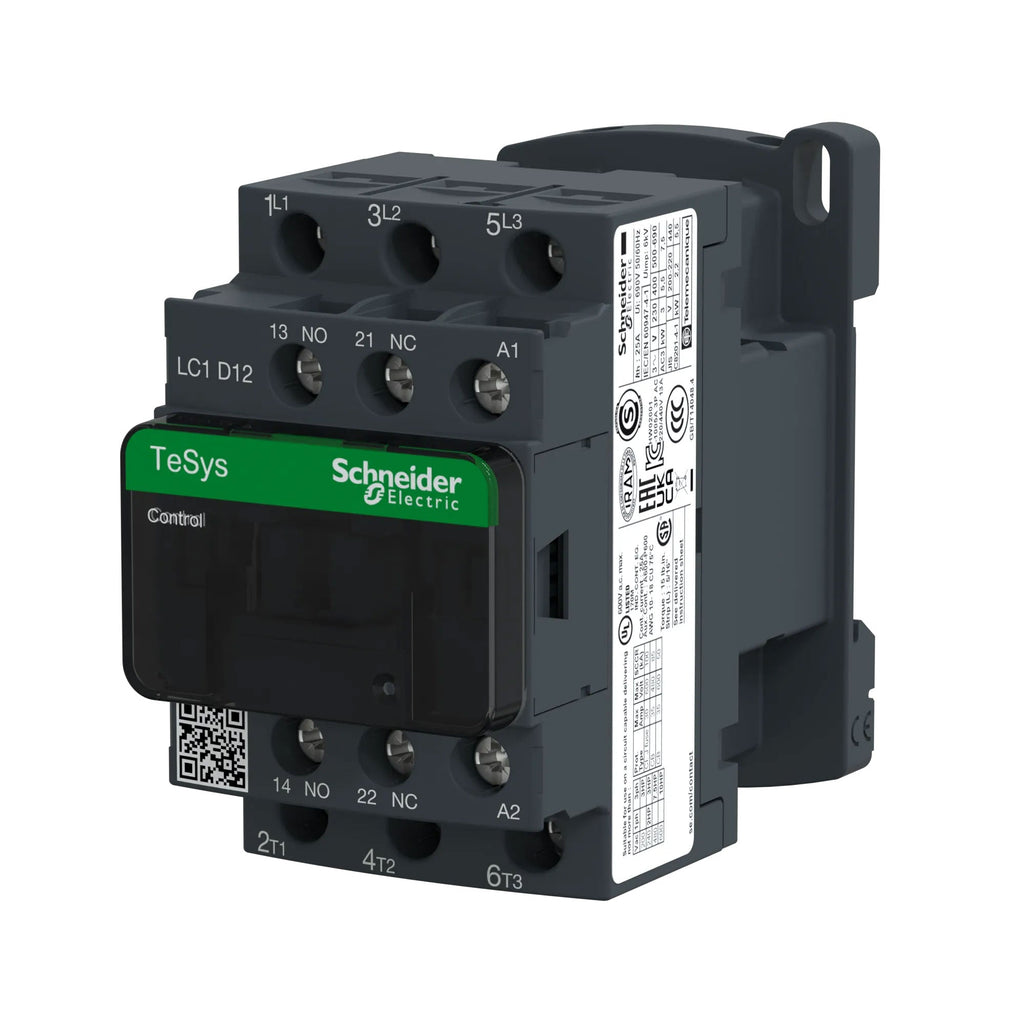

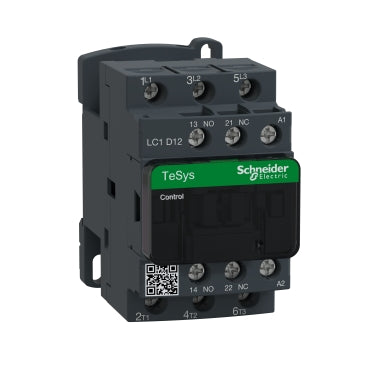

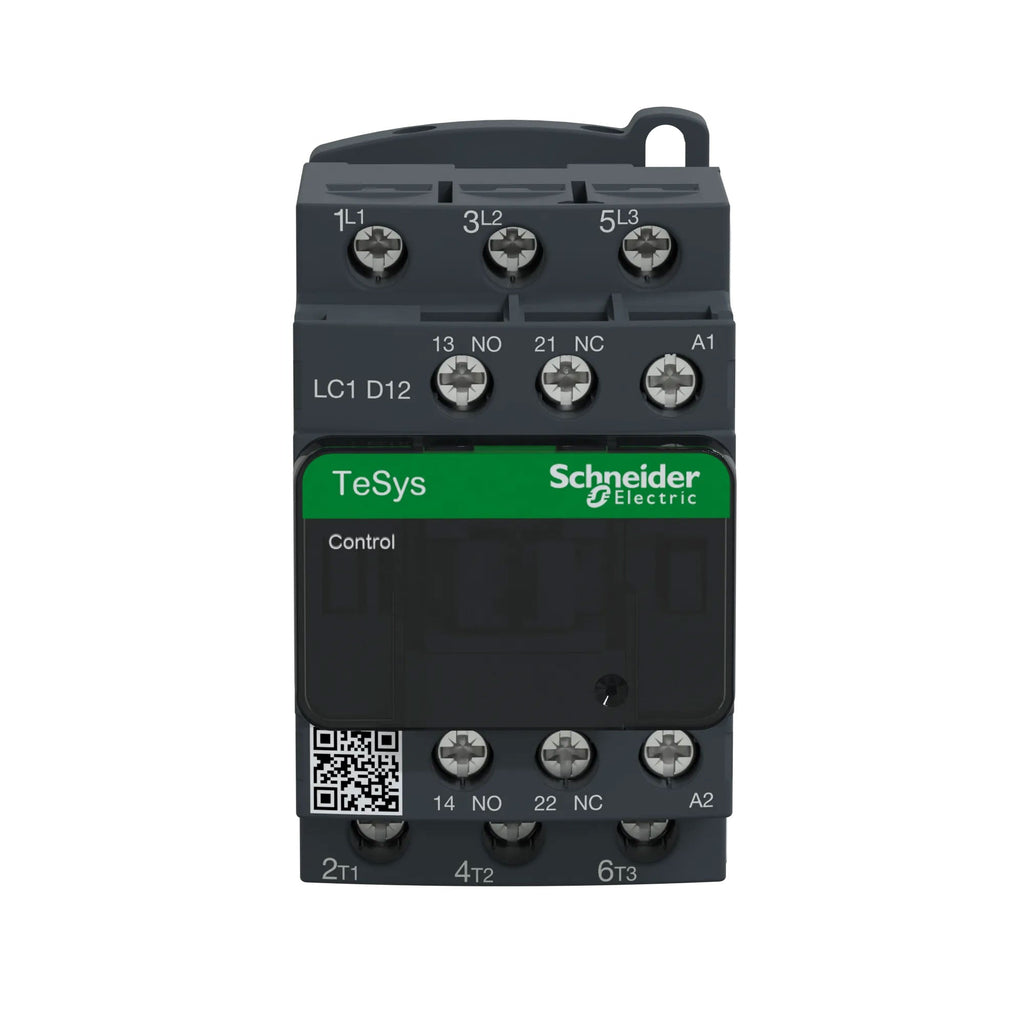

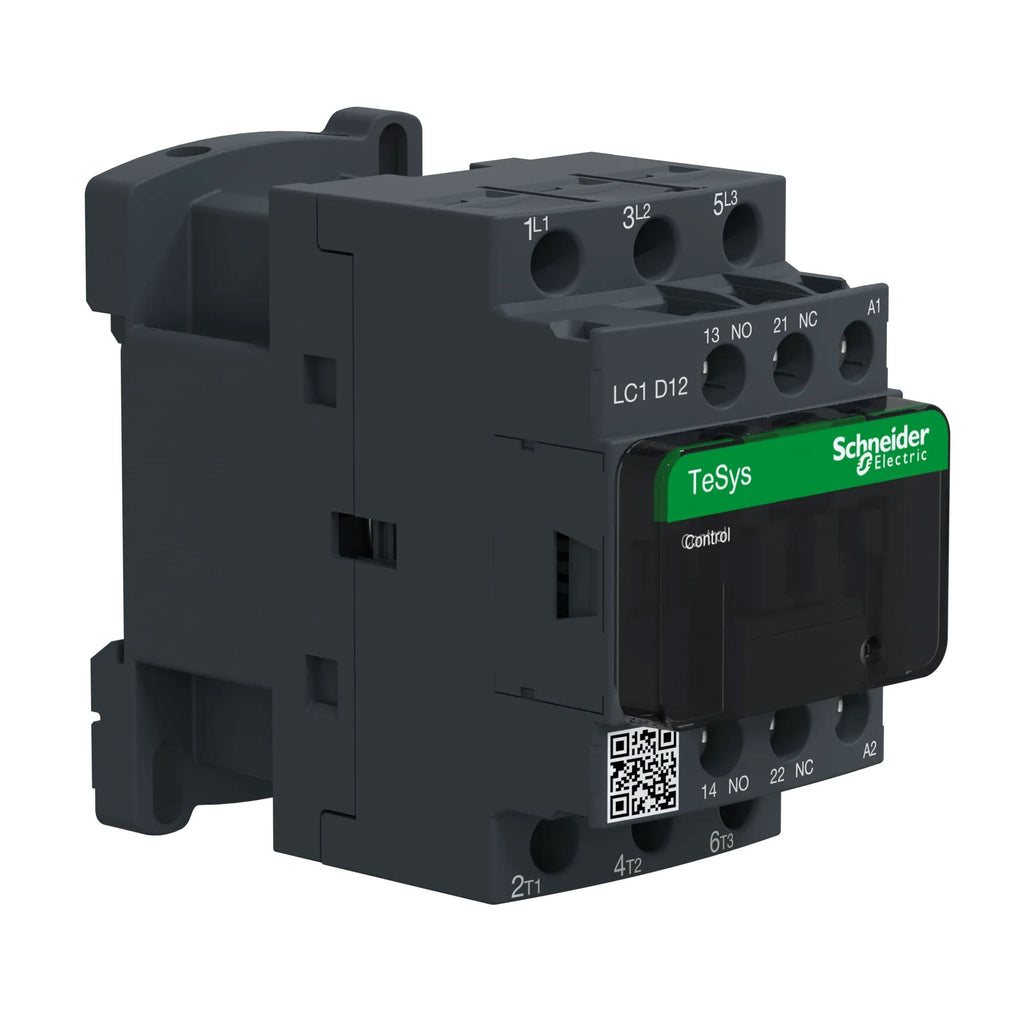

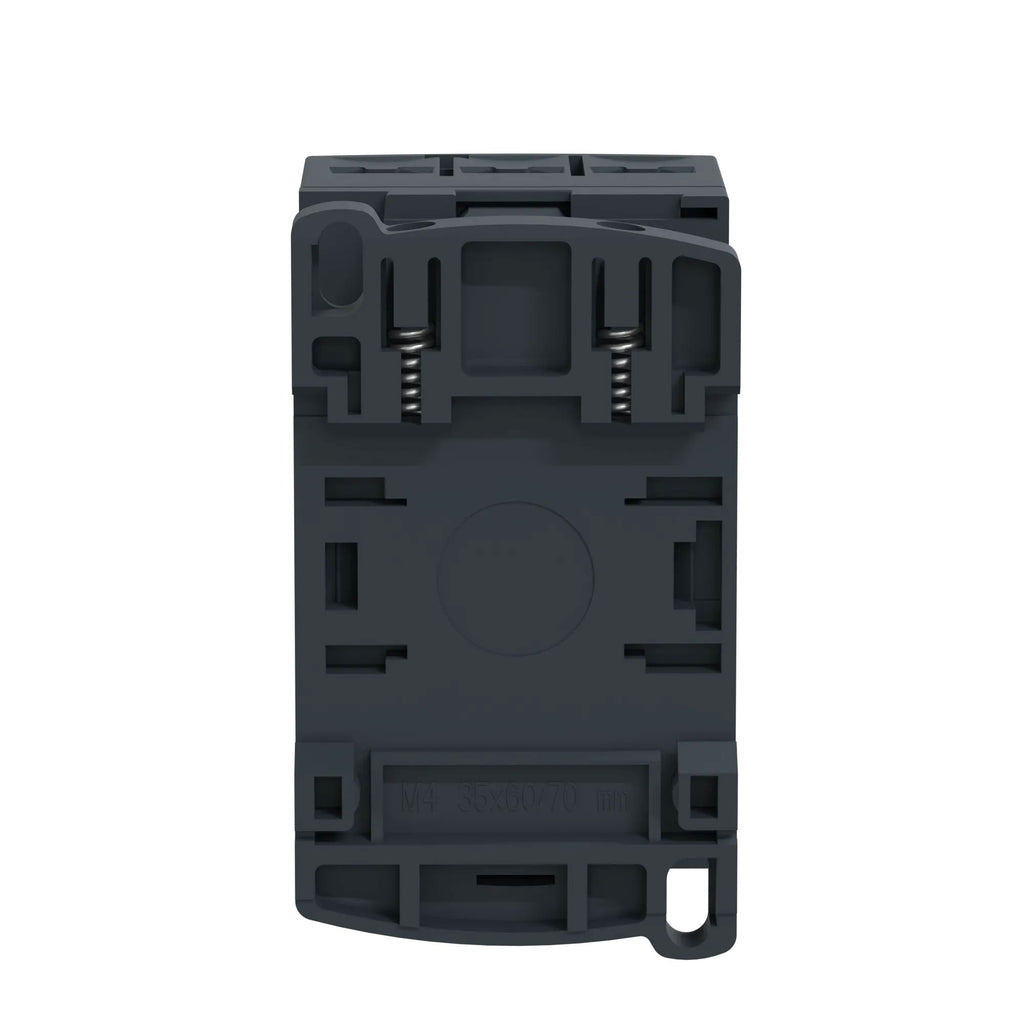

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 12
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 220–240 V
- Auxiliary contacts
- 3 NO
- Country of origin
- Indonesia
- Horse Power
- 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 240
- Full Load Amps
- Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
Show all specifications (7 more)
- Coil Voltage Minimum
- 220
- Frequency
- 50/60 Hz
- UPC
- 785901207054
- GTIN
- 03389110349276
- Dimensions
- 45 mm x 77 mm
- Weight
- 0.794
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D12M7
LC1D12M7 is a 3-pole motor contactor from Square D||Schneider Electric's TeSys D series, rated for 12 amps with a 220V AC coil voltage.This contactor supports motor control applications up to 7.5 HP at 460V AC and features 3 normally open (NO) contacts. It is designed for non-reversing operation with screw terminal connections and can be mounted on a DIN rail or panel. The device complies with UL, CSA, IEC 60947 standards and includes an IP20 enclosure for protection.
- Key Specifications
- Rated Current: 12A (AC-3)
- Motor Power: Up to 7.5 HP at 460V AC
- Poles: 3 (3 NO contacts)
- Coil Voltage: 220V AC 50/60 Hz
- Mounting Type: DIN Rail or Panel Mount
- Interrupt Rating: 25A AC-1 at 440V
- Series/Frame: TeSys D
- Trip Unit: Non-Reversing
- Certifications: UL, CSA, IEC 60947, RoHS
- Electrical Durability: 2 million cycles at 12A AC-3
- Enclosure Rating: IP20
Additional Information
This TeSys D IEC Contactor includes a 220 VAC coil.
Specifications
- Part Number: LC1D12M7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Horse Power : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
- Coil Voltage Minimum : 220
- Frequency : 50/60 Hz
Product Data
- UPC : 785901207054
- GTIN : 03389110349276
- Country of Origin : Indonesia
- Dimensions : 45 mm x 77 mm
- Weight : 0.794
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
