LC1D12G7 - Schneider Electric TeSys D 12A 3-Pole IEC Contactor 120V AC Coil 7.5HP Motor Control

LC1D12G7

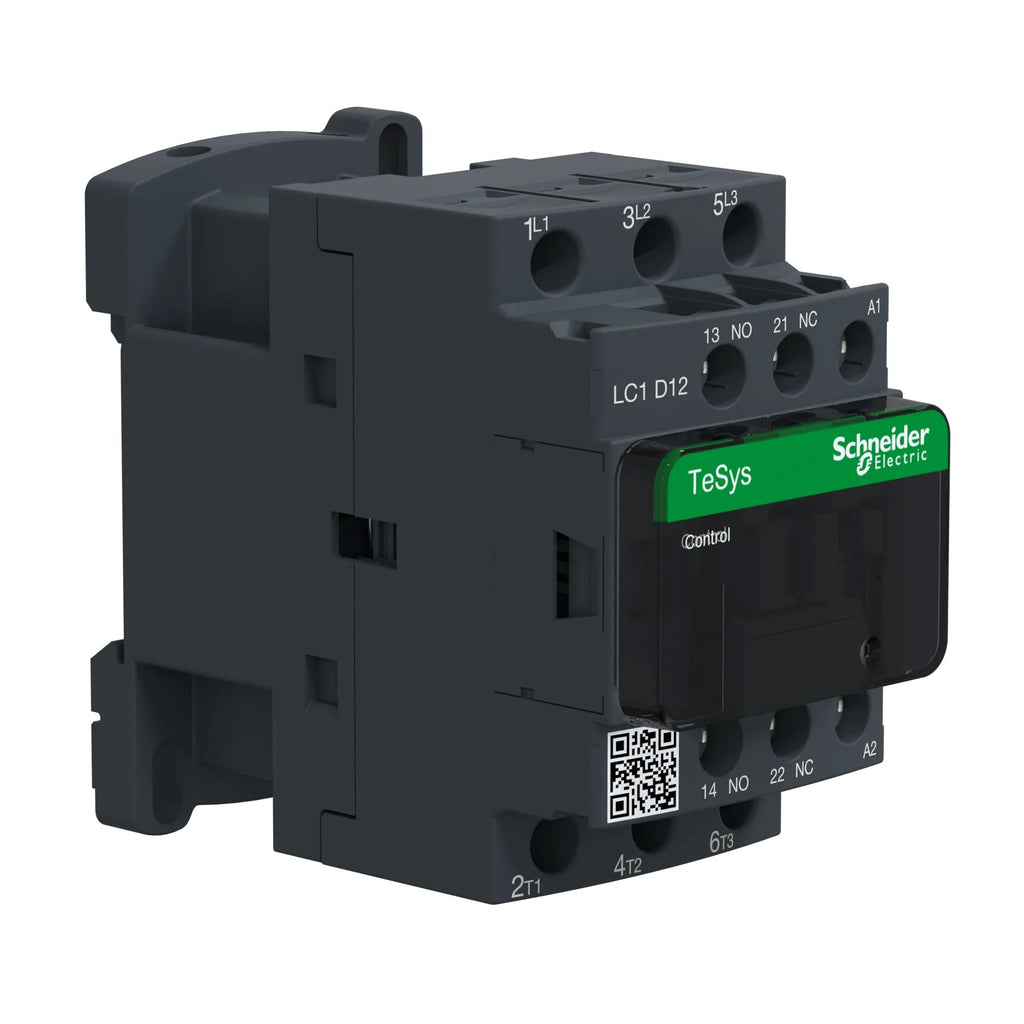

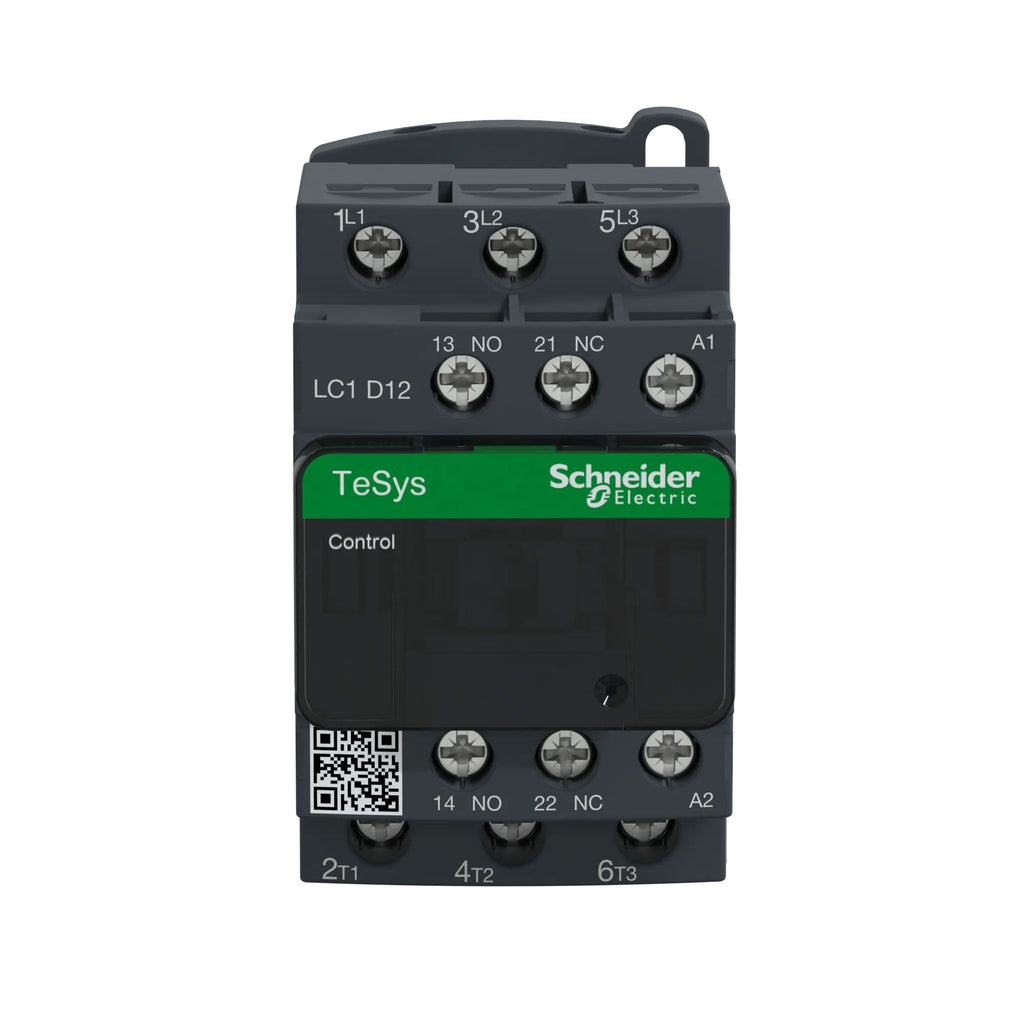

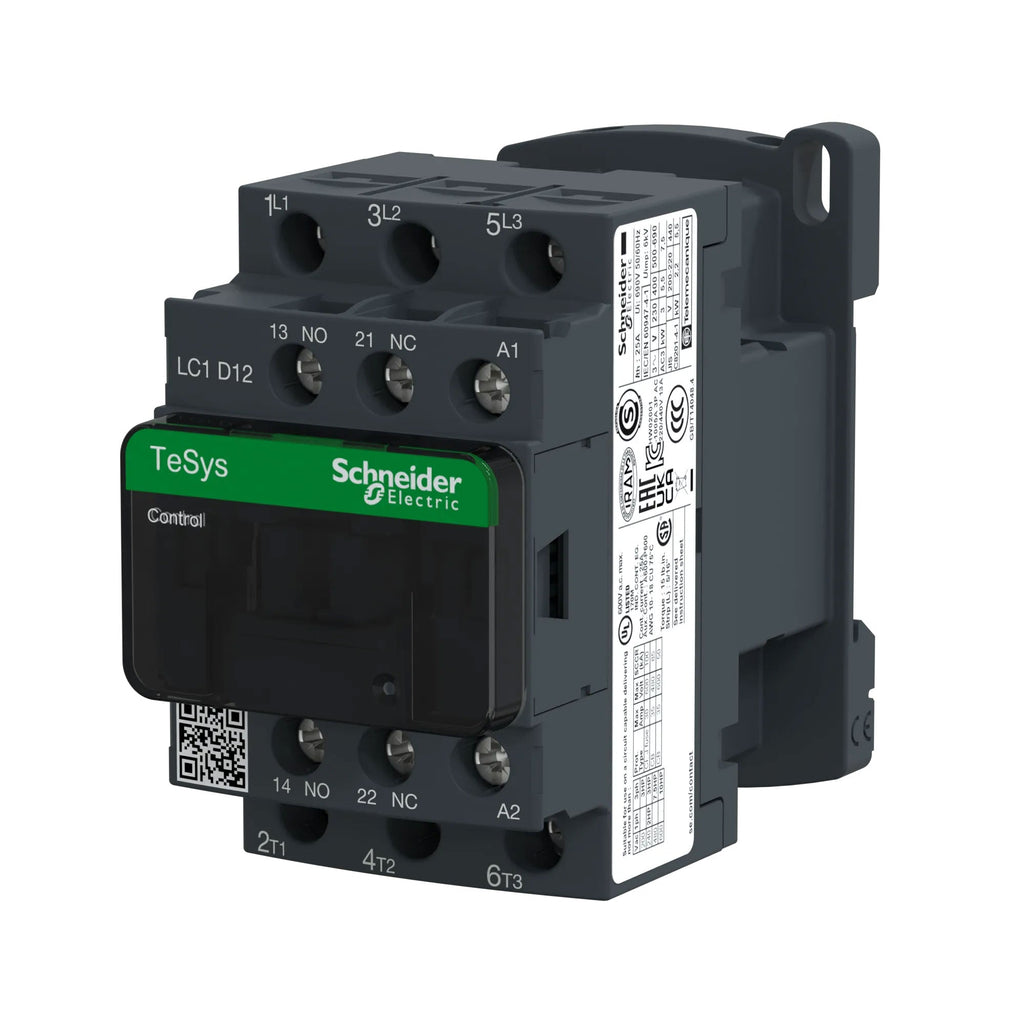

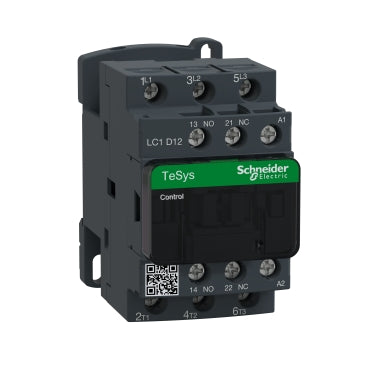

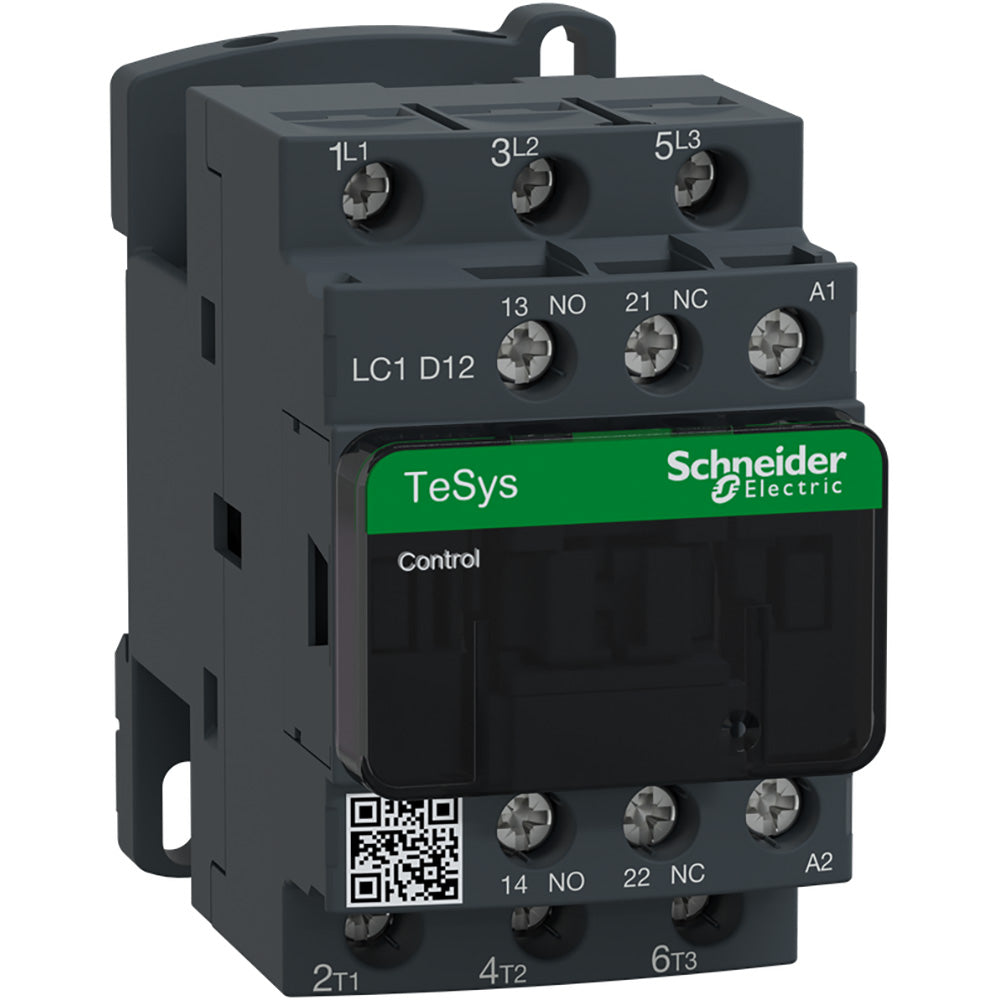

LC1D12G7 is a Schneider Electric TeSys D series 3-pole IEC contactor designed for motor control applications with a 12 amp rated operational current and 120 V AC coil.This contactor supports AC-1, AC-3, and AC-4 utilization categories with a rated operational voltage up to 690 V AC and 300 V DC. It features 3 normally open (NO) contacts, suitable for controlling motors up to 7.5 kW (10 HP) depending on voltage. The device includes screw clamp terminals for secure wiring and complies with IEC 60947 standards, offering a rated impulse withstand voltage of 6 kV and overvoltage category III. It is certified by UL, CSA, DNV, and other agencies, and designed for easy installation with multi-standard screws and rail or plate mounting.

Key Specifications
• Rated operational current: 12 A at <= 440 V AC (AC-3)
• Rated operational voltage: <= 690 V AC, <= 300 V DC
• Poles: 3P (3 normally open contacts)
• Control circuit voltage: 120 V AC 50/60 Hz
• Motor power rating: up to 7.5 kW (10 HP) depending on voltage

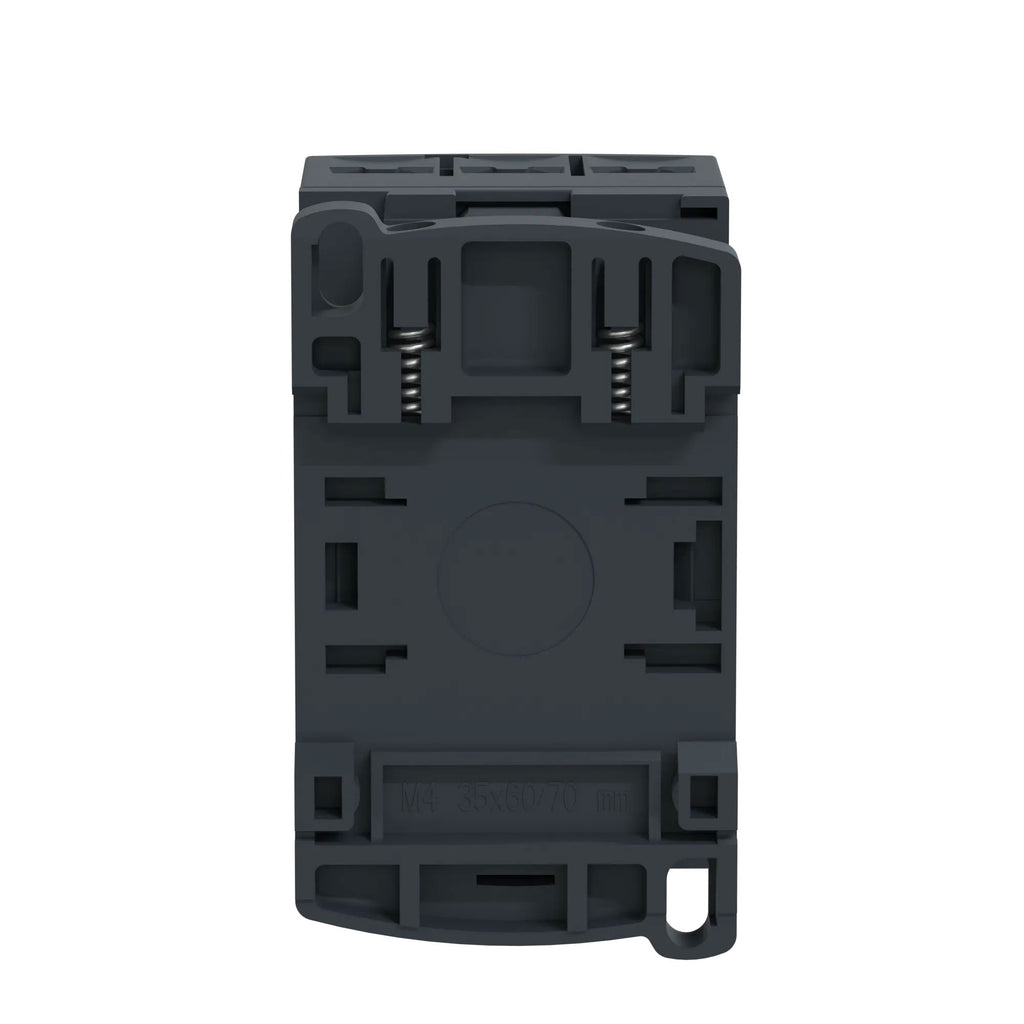

• Mounting type: Rail or plate
• Rated impulse withstand voltage: 6 kV
• Standards: IEC 60947-4-1, IEC 60(more...)


  Specifications

  • Part Number: LC1D12G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 12
  • Phase : 3
  • Poles : 3
  • Horse Power : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 1NO/1NC
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
  • Coil Voltage Minimum : 110



  Product Data

  • UPC : 785901207047
  • GTIN : 03389110349245
  • Country of Origin : Indonesia
  • Dimensions : 1.77 in x 3.03 in
  • Weight : 0.796
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
