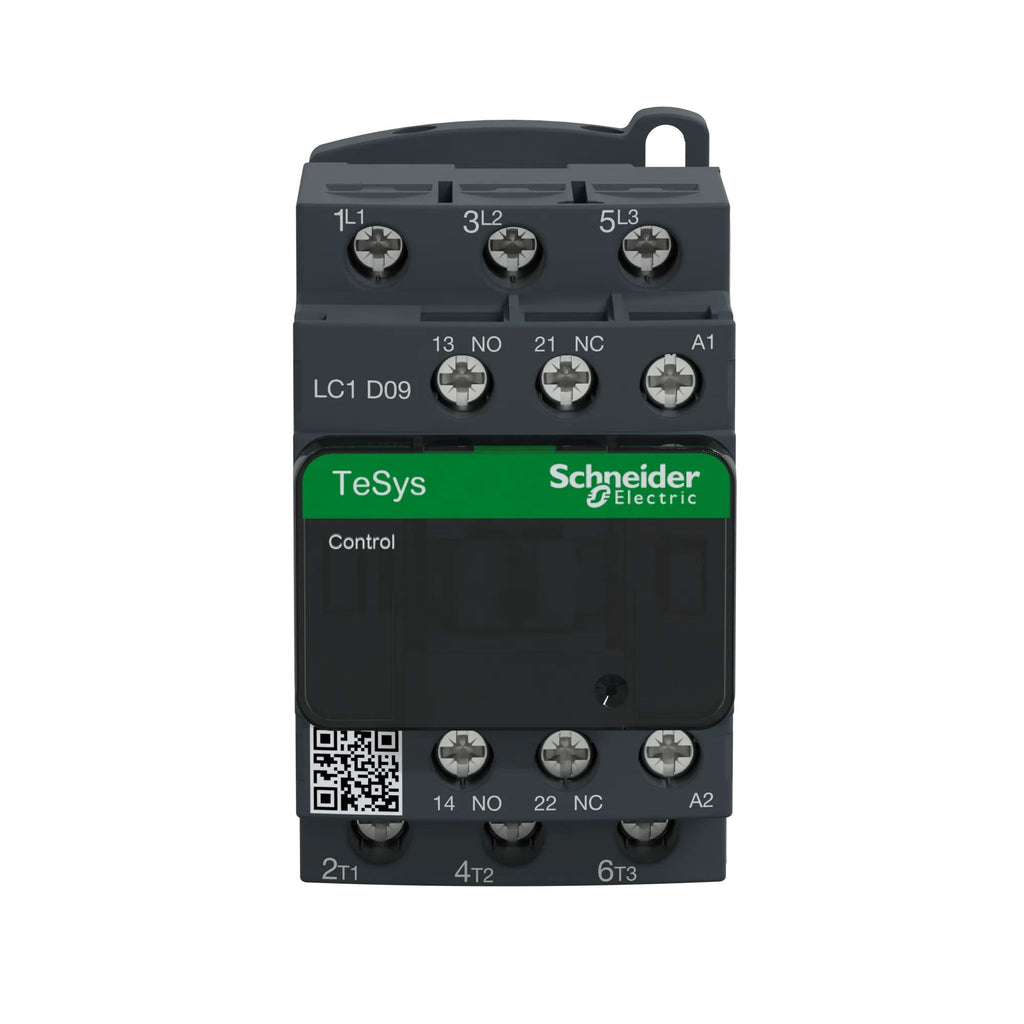

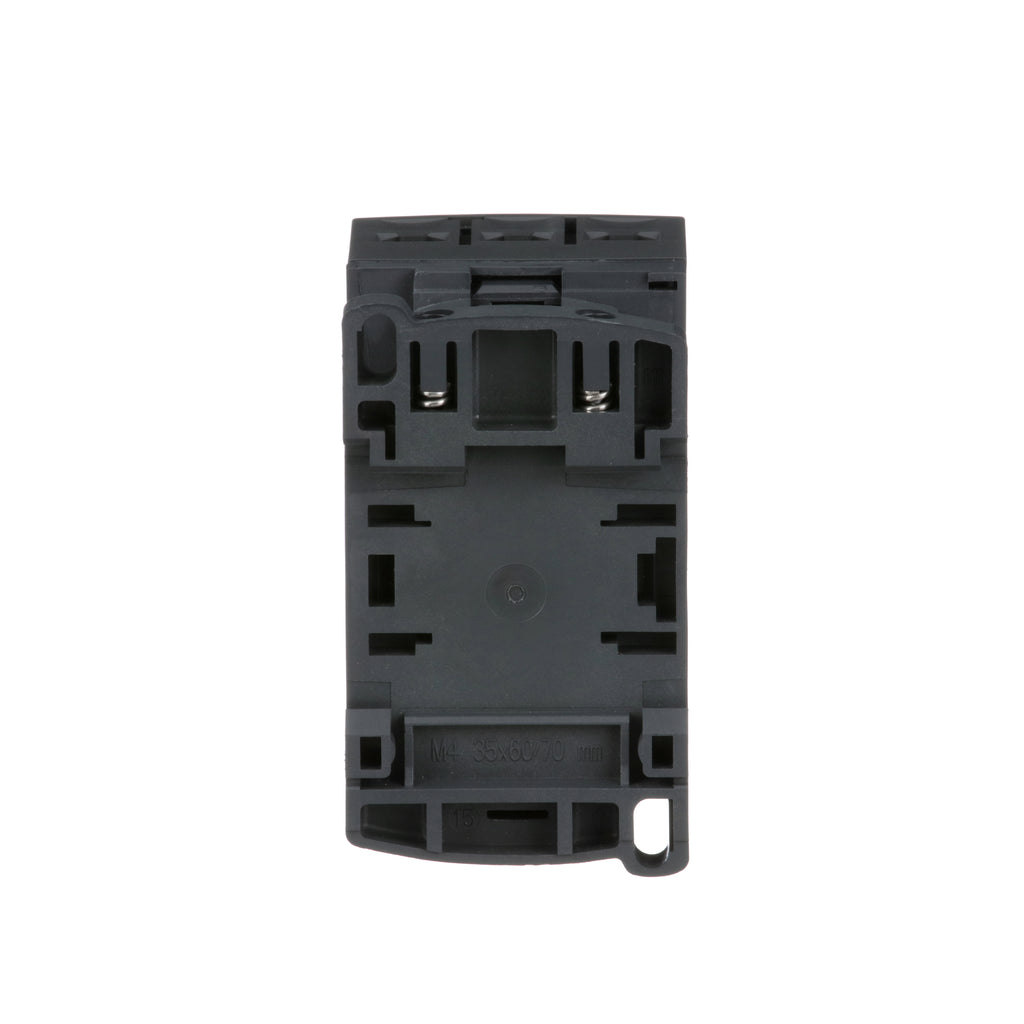

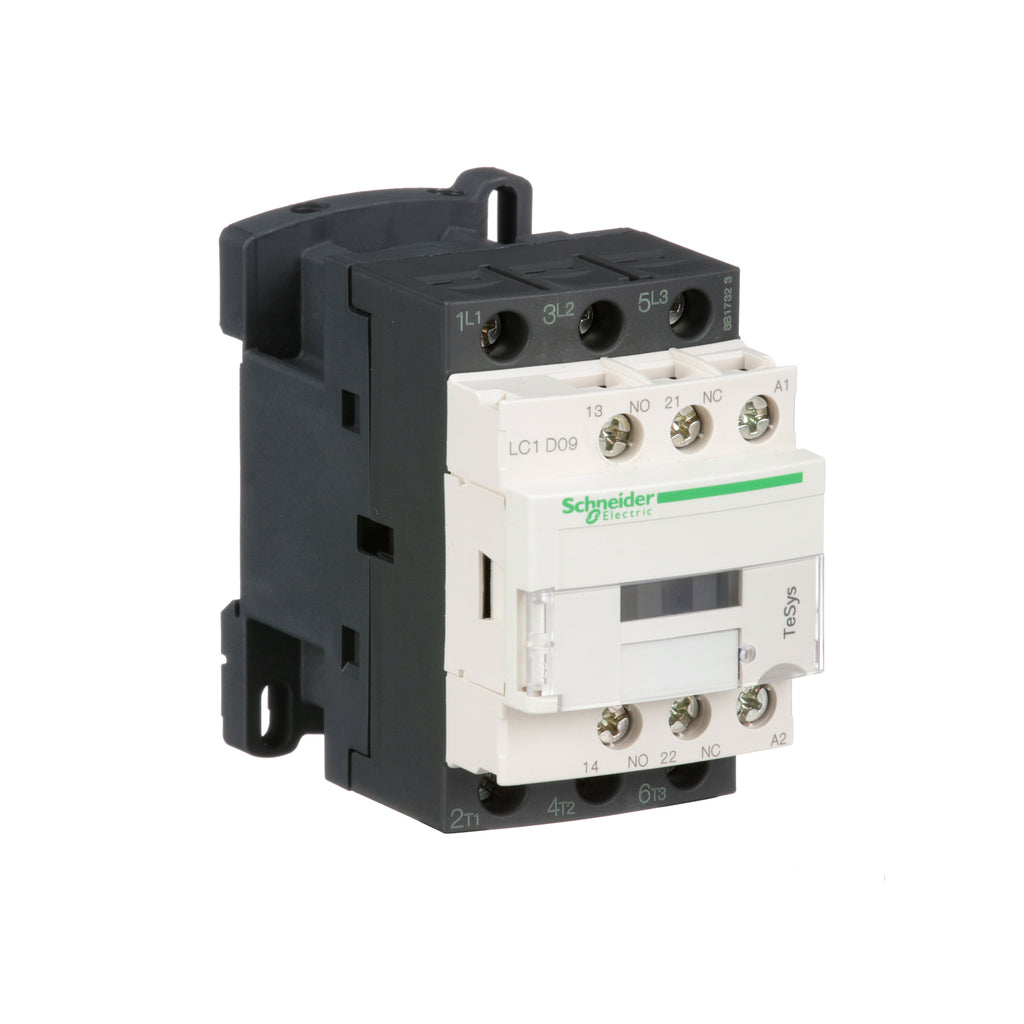

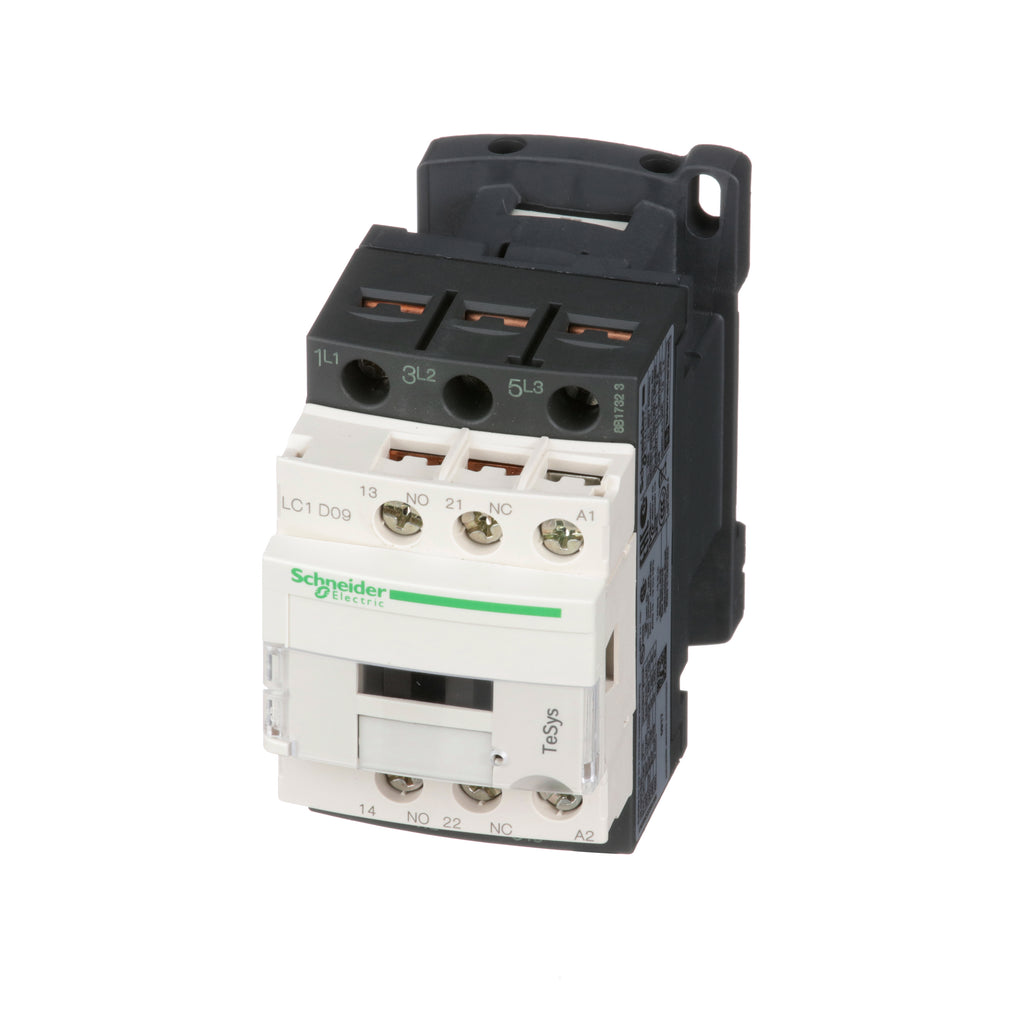

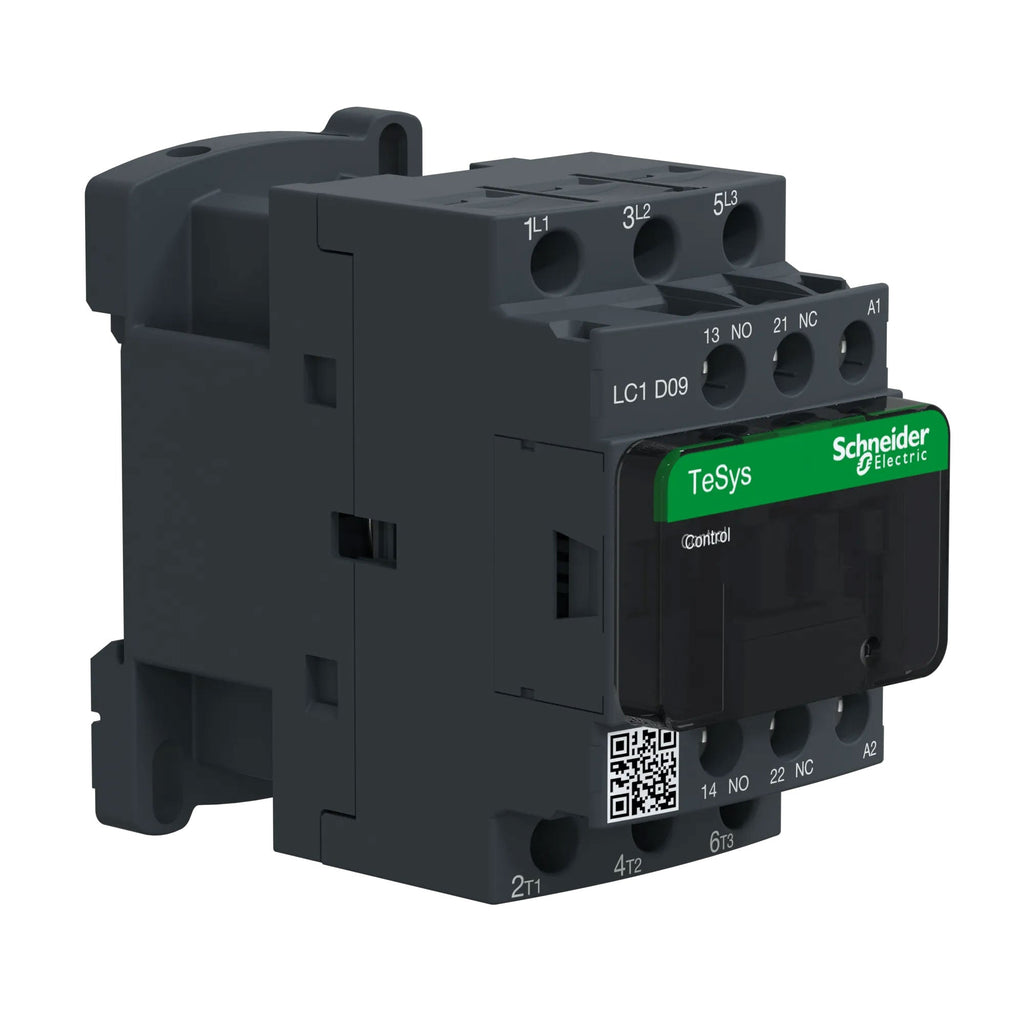

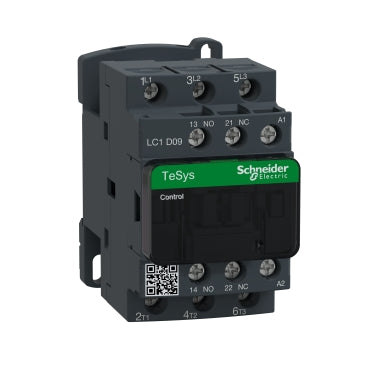

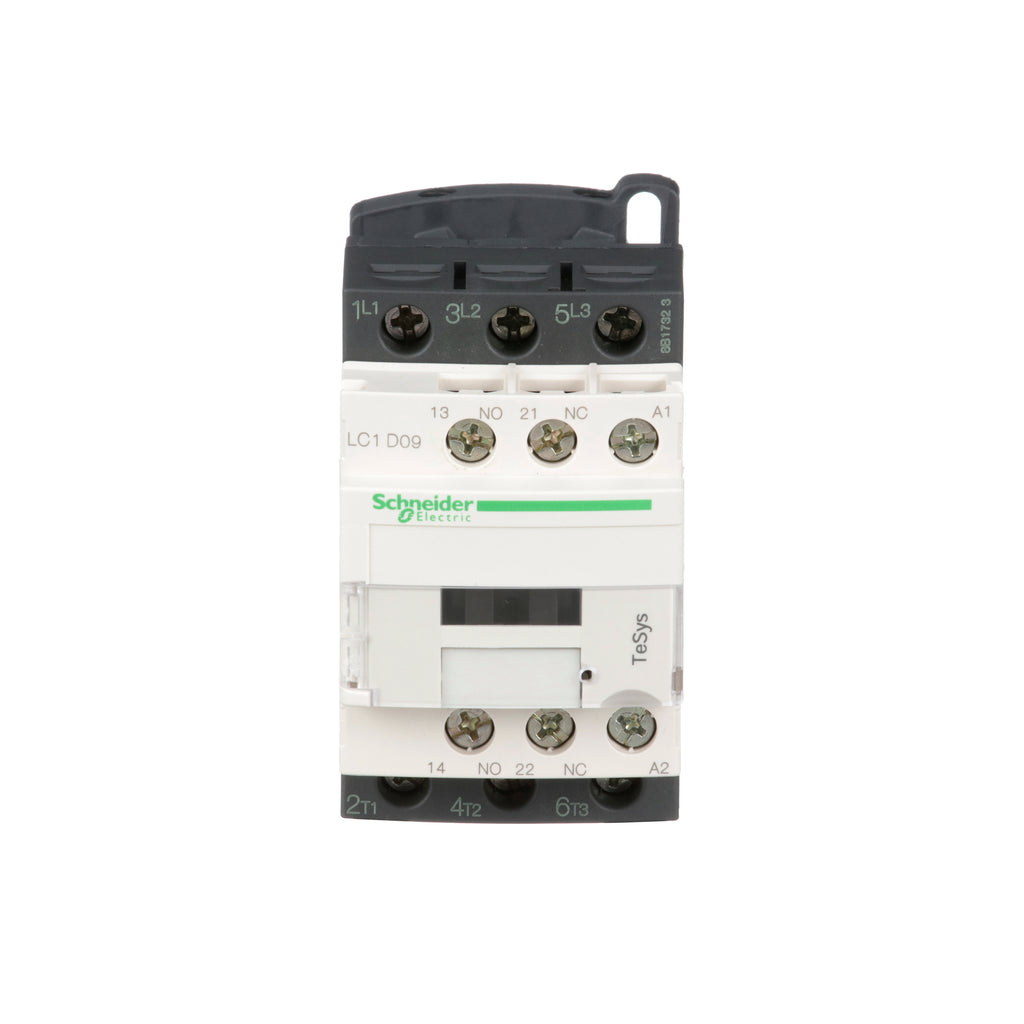

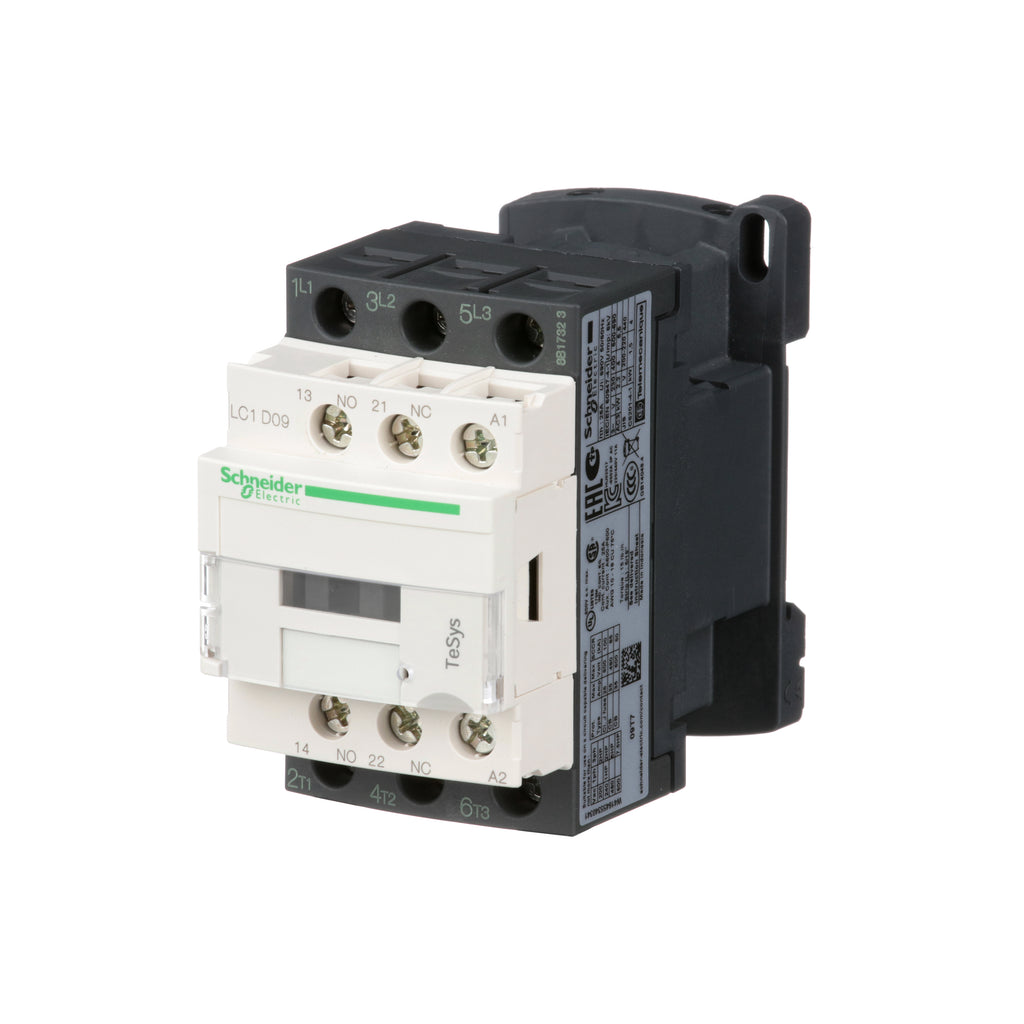

Reference images. Contact us for photos of the available unit.


Schneider Electric

LC1D09T7

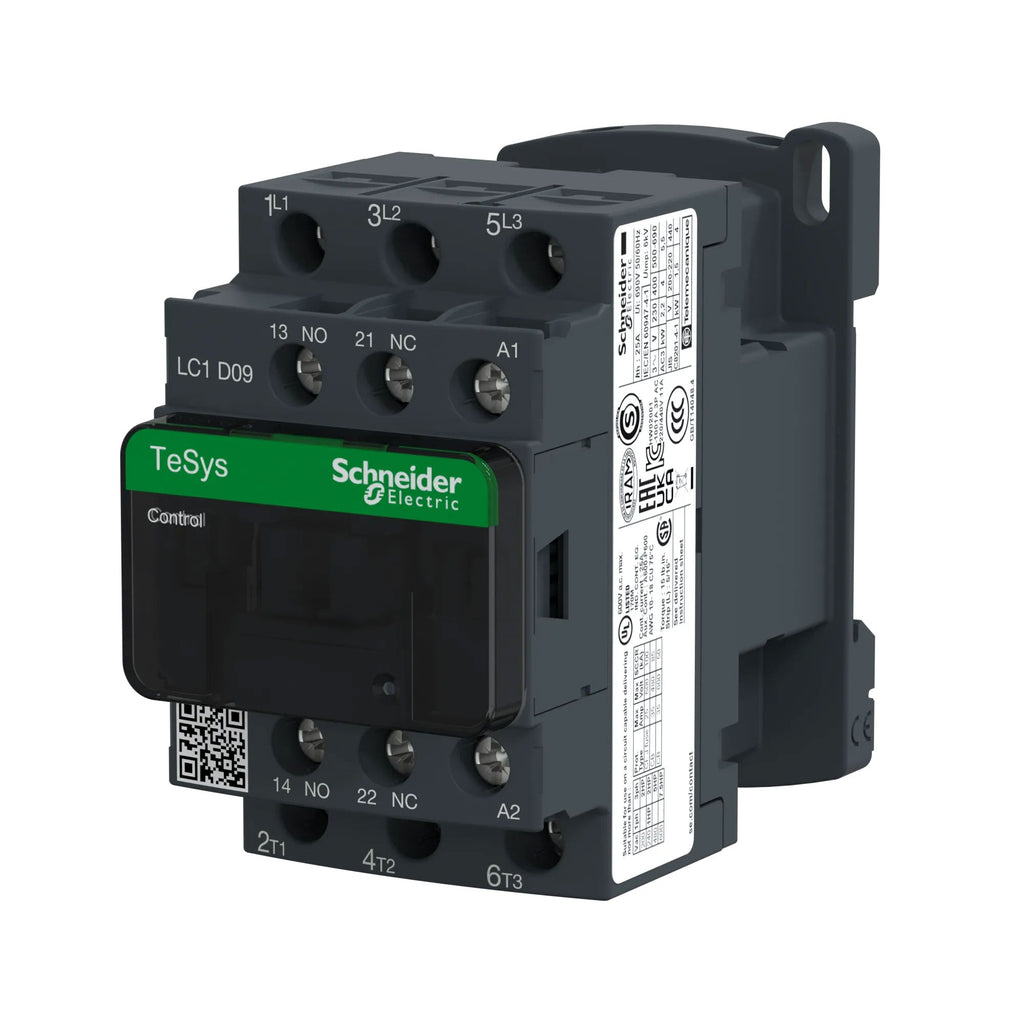

Square D TeSys D 3 Pole Motor Contactor 9A 690V AC Coil 480V AC


Current: 9Poles: 3Voltage: 600V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
Price:
Sale price $159.82
Stock:
37 In stock, ready to be shipped

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Sub-Category
Contactor
Series
TeSys D
Frame
LC1D
Rated current
9
Voltage
600V
Poles
3
Phases
3
Coil voltage
480 V
Auxiliary contacts
3 NO
Country of origin
Indonesia
Horse Power
1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
Coil Voltage Maximum
480
Full Load Amps
Full Load Amps-Inductive 9A Full Load Amps-Resistive 20A
Show all specifications (7 more)
Coil Voltage Minimum
480
Frequency
50/60 Hz
UPC
785901206941
GTIN
03389110348811

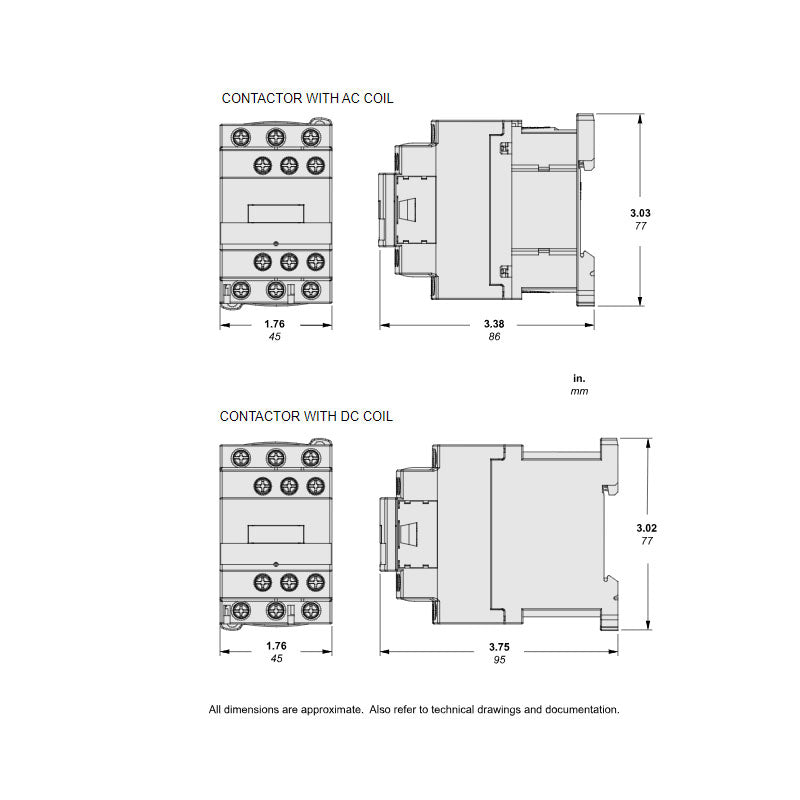

Dimensions
1.77 in x 3.03 in
Weight
0.776
Certification
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details

LC1D09T7


LC1D09T7 is a Square D TeSys D 3 pole motor contactor designed for reliable motor control applications with a 9 amp AC-3 rating and 690V operational voltage.LC1D09T7 features a 3 normally open pole configuration, suitable for motor starters up to 5 HP at 480V AC. It supports AC-1, AC-3, and AC-4 utilization categories with a 480V AC coil voltage and can handle resistive and inductive loads. The contactor is DIN rail mountable and includes screw terminals for secure wiring. It meets multiple certifications including UL, CSA, CE, and RoHS compliance, and offers a high interrupt rating up to 100kA SCCR when paired with appropriate circuit protection.
    Key Specifications
    • Amperage: 9 A AC-3, 25 A AC-1
    • Voltage Rating: 690 V AC operational, 480 V AC coil
    • Poles: 3 (3 Normally Open)
    • Mounting Type: DIN rail or panel mount
    • Interrupt Rating: Up to 100 kA SCCR with proper fusing
    • Horsepower Ratings: 5 HP at 480 V AC, 2 HP at 230 V AC
    • Series/Frame: TeSys D
    • Trip Unit: None (contactor only)
    • Certifications: UL, CSA, CE, RoHS, CCC, IEC standards
(more...)

Additional Information

This TeSys D IEC Contactor includes a 480 VAC coil.


Specifications

  • Part Number: LC1D09T7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 9
  • Phase : 3
  • Poles : 3
  • Horse Power : 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 480
  • Full Load Amps : Full Load Amps-Inductive 9A Full Load Amps-Resistive 20A
  • Coil Voltage Minimum : 480
  • Frequency : 50/60 Hz

Product Data

  • UPC : 785901206941
  • GTIN : 03389110348811
  • Country of Origin : Indonesia
  • Dimensions : 1.77 in x 3.03 in
  • Weight : 0.776
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
