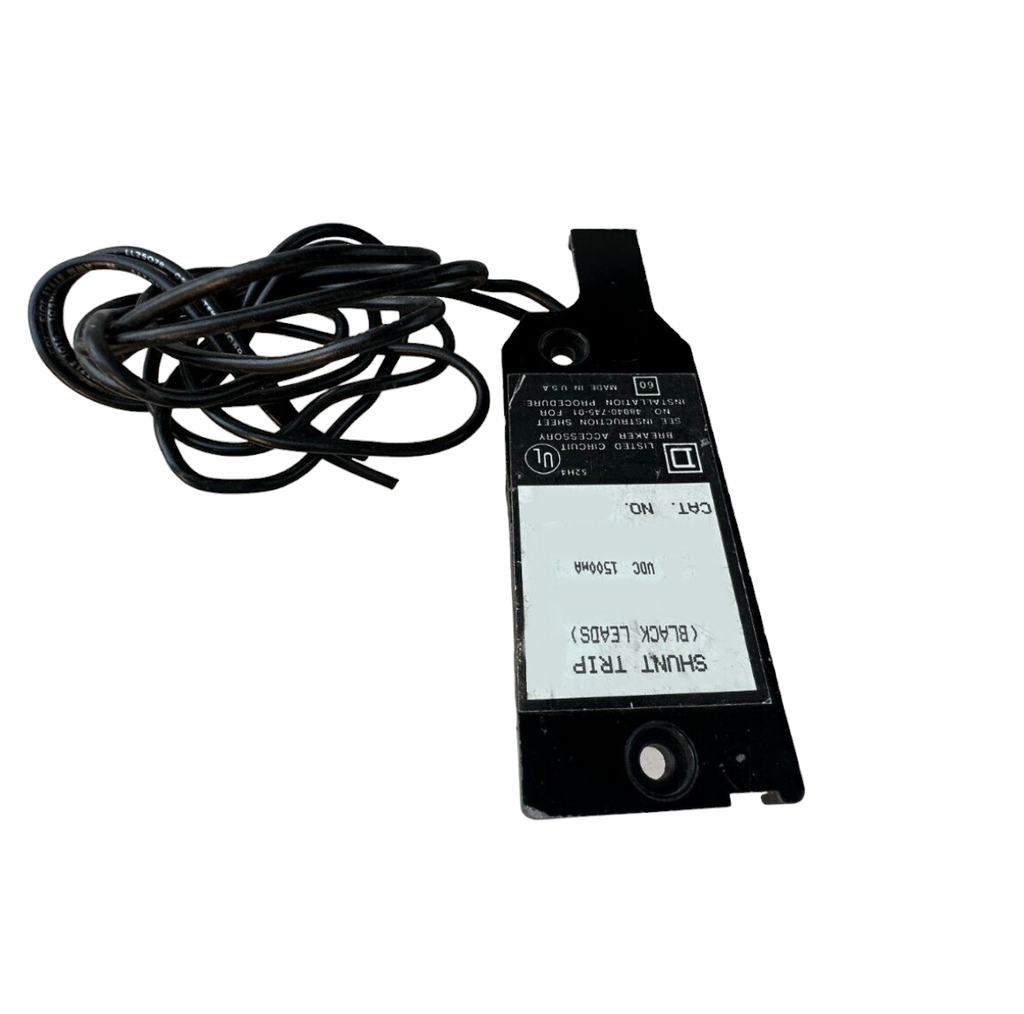

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Shunt Trip
- Series
- Square D Series
- Frame
- LA
- Country of origin
- United States
- Control Voltage Minimum
- 24
- Compatible Frames
- LA,LAF,LAL,LAP,LH,LHF,LHL,LHP,Q4
- Control Voltate Maximum
- 24
- UPC
- 785901848387
- GTIN
- 00785901848387
- Dimensions
- Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight
- 0.8
- Certification
- CSA - UL listed
Product description & additional details
LA11042
LA11042 is a Square D circuit breaker shunt trip designed for 24V AC control voltage applications in LA frame breakers.LA11042 provides reliable shunt trip functionality compatible with LA, LAF, LAL, LAP, LH, LHF, LHL, LHP, and Q4 frame circuit breakers. It features a 24V AC control voltage rating and is engineered for precise and safe electrical circuit interruption.
- Type: Circuit Breaker Shunt Trip
- Control Voltage: 24V AC
- Frame Compatibility: LA, LAF, LAL, LAP, LH, LHF, LHL, LHP, Q4
- Mounting Type: LA Frame Molded Case Breaker
- Interrupt Rating: Per LA Frame Specifications
- Trip Unit: Shunt Trip
- Manufacturer: Square D (Schneider Electric)
- Certifications: Complies with California Proposition 65
- Tightening Torque: 6.2 to 8.9 lbf.in (0.7 to 1 N.m)
Specifications
- Part Number: LA11042
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Square D Series
- Type : LA
- Control Voltage Minimum : 24
- Compatible Frames : LA,LAF,LAL,LAP,LH,LHF,LHL,LHP,Q4
- Control Voltate Maximum : 24
Product Data
- UPC : 785901848387
- GTIN : 00785901848387
- Country of Origin : United States
- Dimensions : Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight : 0.8
- Certification : CSA - UL listed
