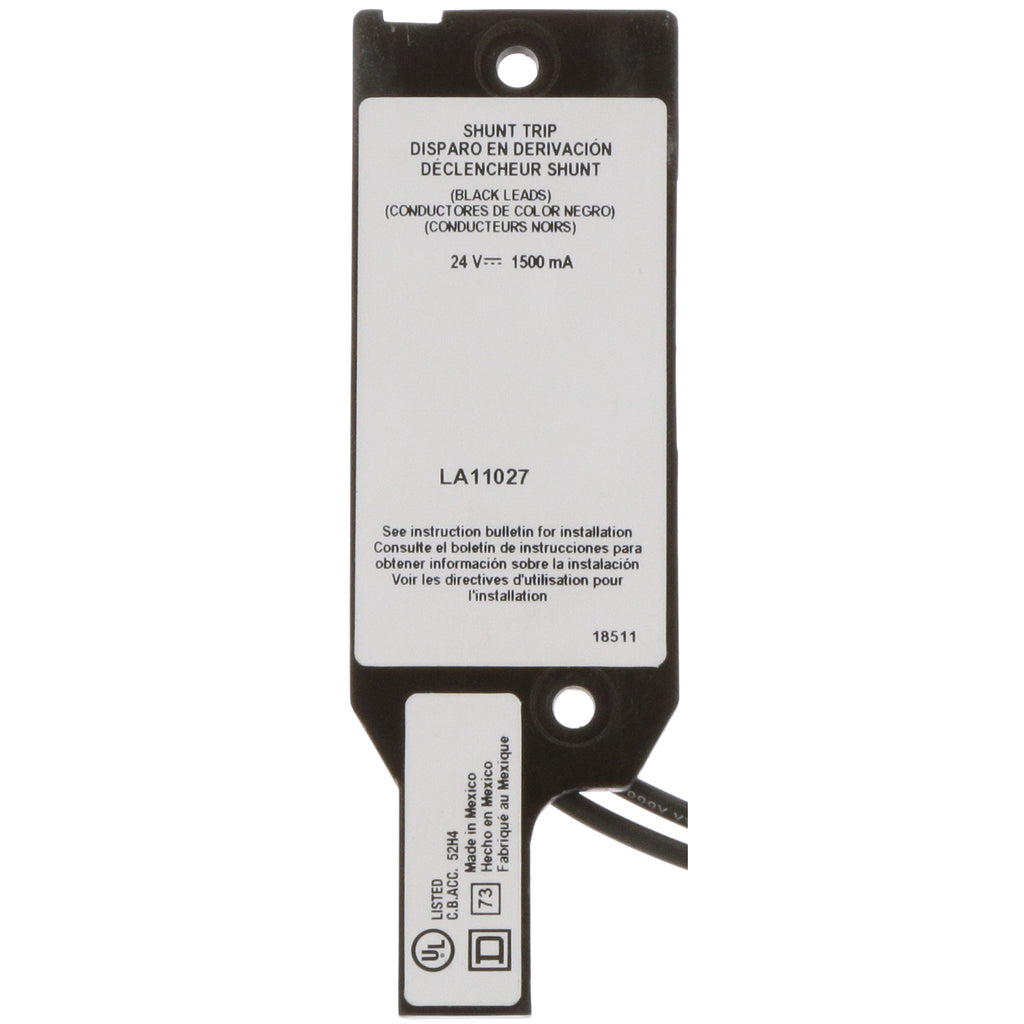

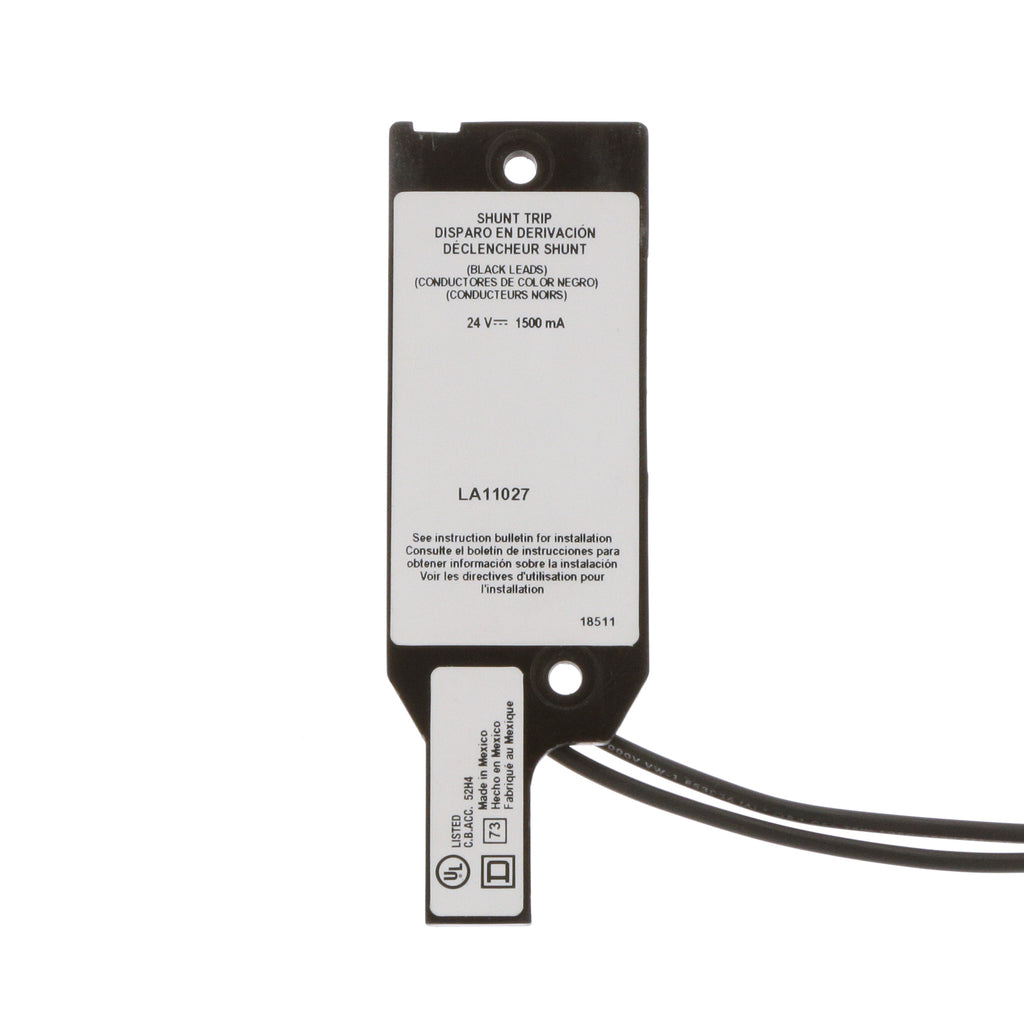

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Shunt Trip
- Series
- Square D Series
- Frame
- LA
- Country of origin
- Mexico
- Control Voltage Minimum
- 24
- Compatible Frames
- LA,LAF,LAL,LAP,LH,LHF,LHL,LHP,Q4
- Control Voltate Maximum
- 24
- UPC
- 078590178934
- GTIN
- 00785901789345
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 0.628
- Certification
- UL
Show all specifications (1 more)
- Wire Size
- 18 AWG Copper
Product description & additional details
LA11027
LA11027 is a Square D shunt trip accessory designed for remote tripping of circuit breakers with a 24V DC control voltage.This shunt trip is compatible with Square D LA, LAF, LAL, LAP, LH, LHF, LHL, LHP, and Q4 frame molded case circuit breakers. It allows the breaker to be tripped remotely by energizing the trip coil from another circuit. The accessory is field installable without affecting the breaker's UL listing and is factory mounted with a 36 VA power rating.
- Manufacturer: Square D
- Part Number: LA11027
- Type: Shunt Trip Accessory
- Control Voltage: 24 V DC
- Compatible Frames: LA, LAF, LAL, LAP, LH, LHF, LHL, LHP, Q4
- Power Rating: 36 VA
- Connection: (2) 18 AWG Copper Wire Leads
- UL Listed
- Mounting: Field installable, factory mounted option
- Series: LA / LH / Q4
Specifications
- Part Number: LA11027
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Square D Series
- Type : LA
- Control Voltage Minimum : 24
- Compatible Frames : LA,LAF,LAL,LAP,LH,LHF,LHL,LHP,Q4
- Control Voltate Maximum : 24
Product Data
- UPC : 078590178934
- GTIN : 00785901789345
- Country of Origin : Mexico
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.628
- Certification : UL
- Wire Size : 18 AWG Copper
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
