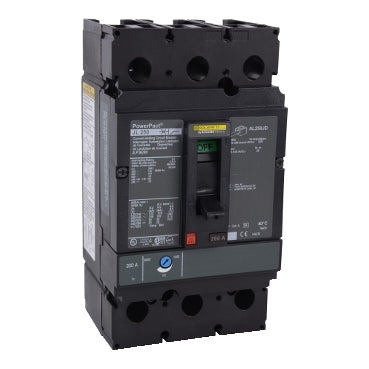

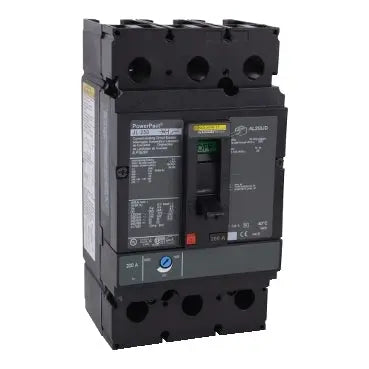

JLP36250 - Square D 250A 600V 3-Pole PowerPact J Molded Case Circuit Breaker Thermal Magnetic

JLP36250

JLP36250 is a Square D PowerPact J series molded case circuit breaker rated for 250 amps and 600 volts with 3 poles and thermal magnetic trip unit.This circuit breaker features a 3-pole design with a 250 amp continuous current rating and is suitable for 600 VAC applications. It provides overload and short-circuit protection with a thermal magnetic trip unit. The breaker has a breaking capacity of 50kA at 600V, 100kA at 480V, and 125kA at 240V. It includes lug line and load connections and is designed for unit mount lug installation. The breaker meets UL and CSA certifications and is part of the PowerPact J frame series.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 50kA @ 600V, 100kA @ 480V, 125kA @ 240V
• Mounting Type: Unit Mount Lug
• Frame/Series: PowerPact J
• Trip Unit: Thermal Magnetic
• Connection Type: Lug line/load
• Certifications: UL, CSA
• Continuous Current Rating: 80%
• Dimensions (HxWxD): Approx. 7.52" x 4.09" x 3.39"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLP36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLP
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901879411
• GTIN : 00785901879411
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
