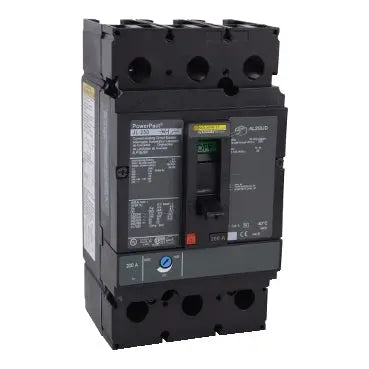

JLP36175 - Square D PowerPacT J 175A 3-Pole 600VAC Thermal Magnetic Circuit Breaker

JLP36175

JLP36175 is a Square D PowerPacT J series molded case circuit breaker rated 175 amperes at 600VAC with 3-pole configuration and thermal magnetic trip protection. JLP36175 provides reliable overcurrent and short-circuit protection for AC power distribution systems with unit mount lug connections and long-time and instantaneous trip functions. This heavy-duty circuit breaker is designed for industrial and commercial applications requiring dependable switching and protection on three-phase systems.

• Amperage: 175A
• Voltage: 600VAC
• Poles: 3
• Series: PowerPacT J
• Frame Type: JDA
• Trip Unit: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
• Connection Type: Unit Mount Lug
• Interrupting Rating: 18kAIC at 480VAC, 25kAIC at 240VAC
• Certifications: UL 489, CSA, NOM, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLP36175
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLP
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901661030
• GTIN : 00785901661030
• Country of Origin : United States
• Dimensions : Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 4.5
• Certification : IEC-CCC-CSA-UL LISTED-CE
• Wire Size : AWG 4...AWG 4/0 aluminum/copper terminal
