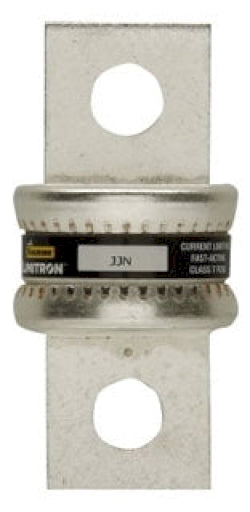

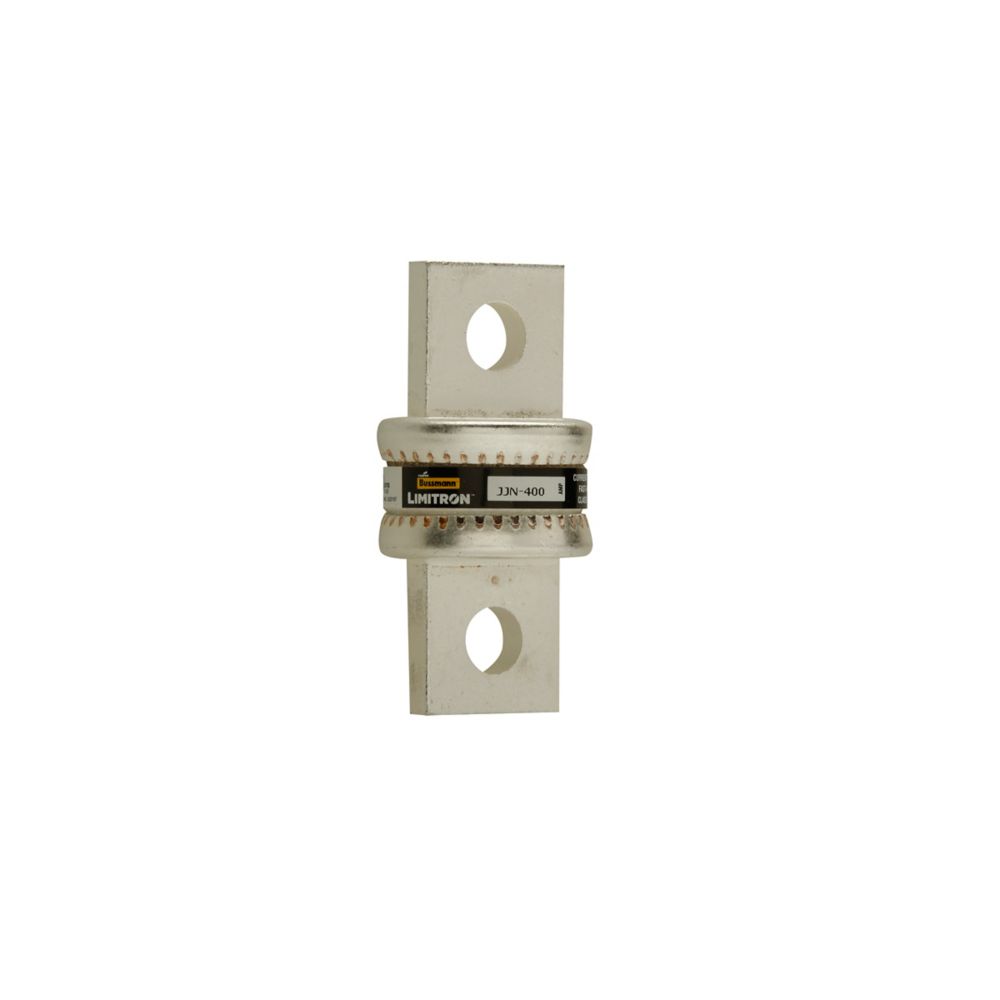

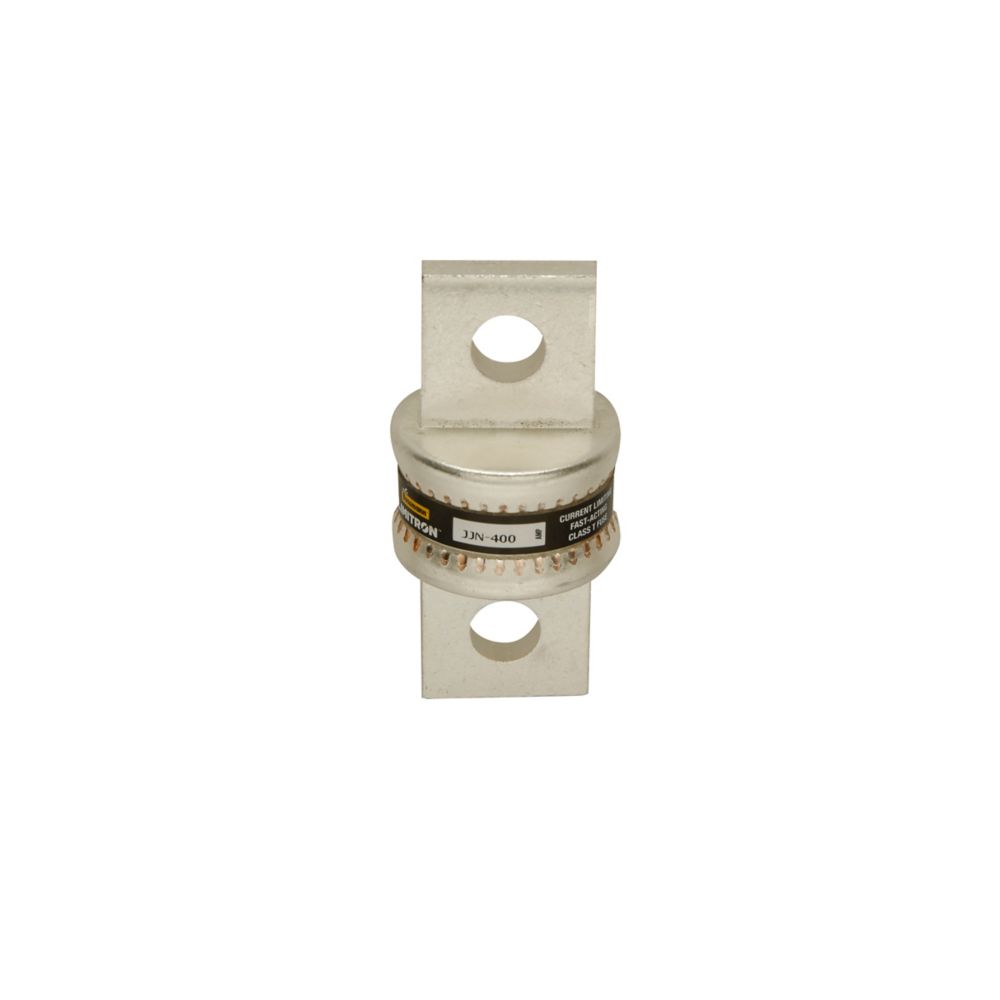

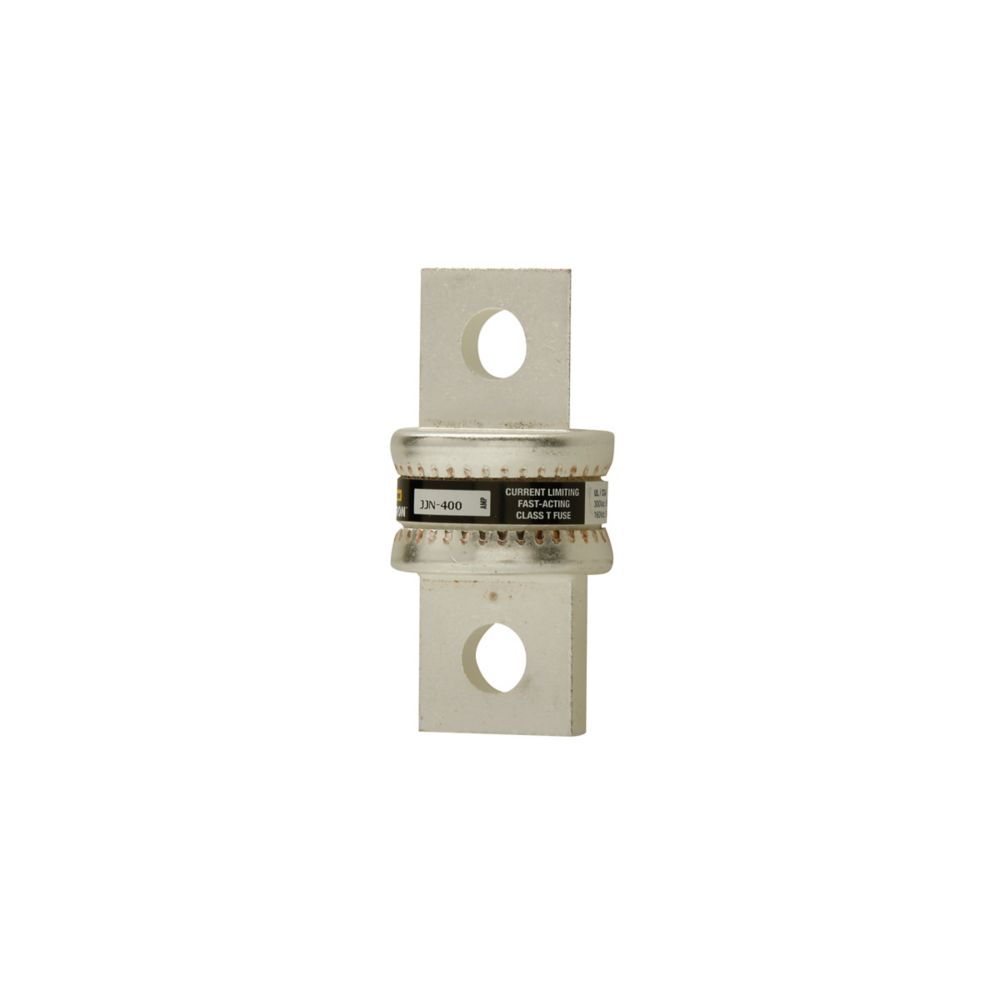

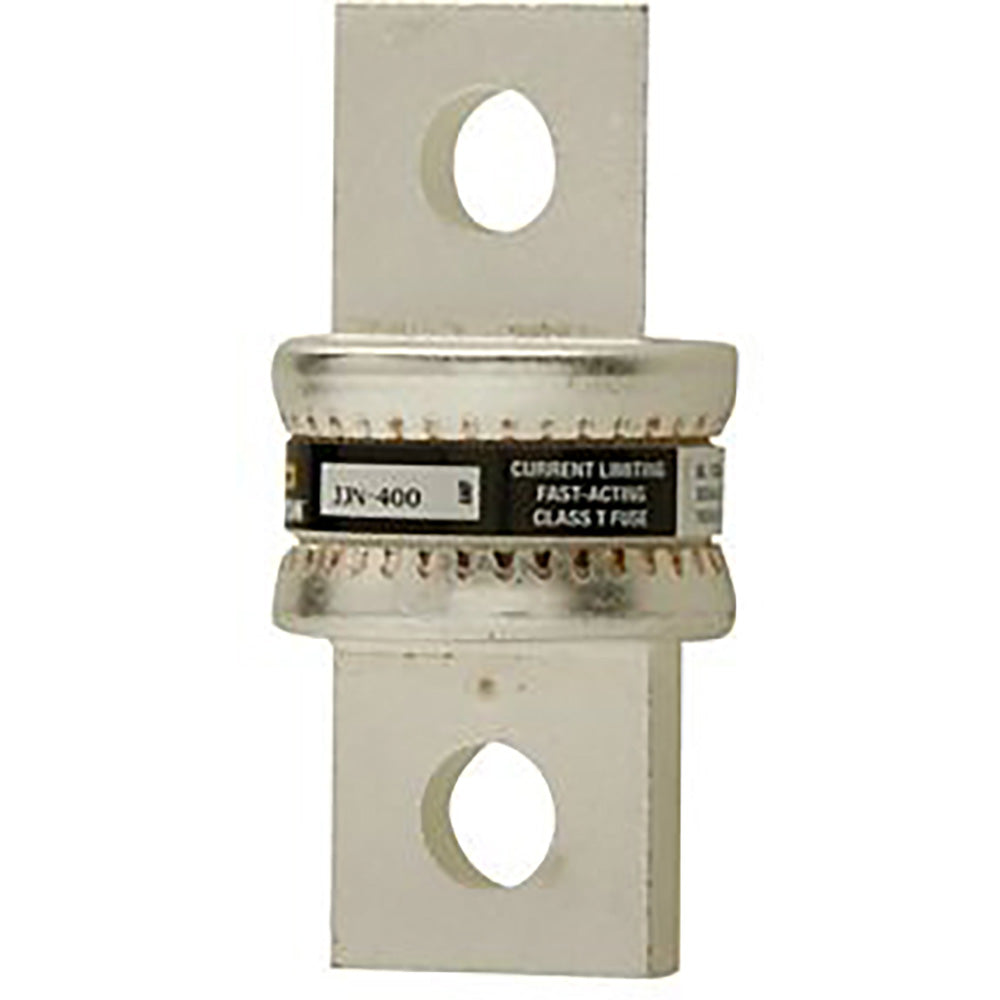

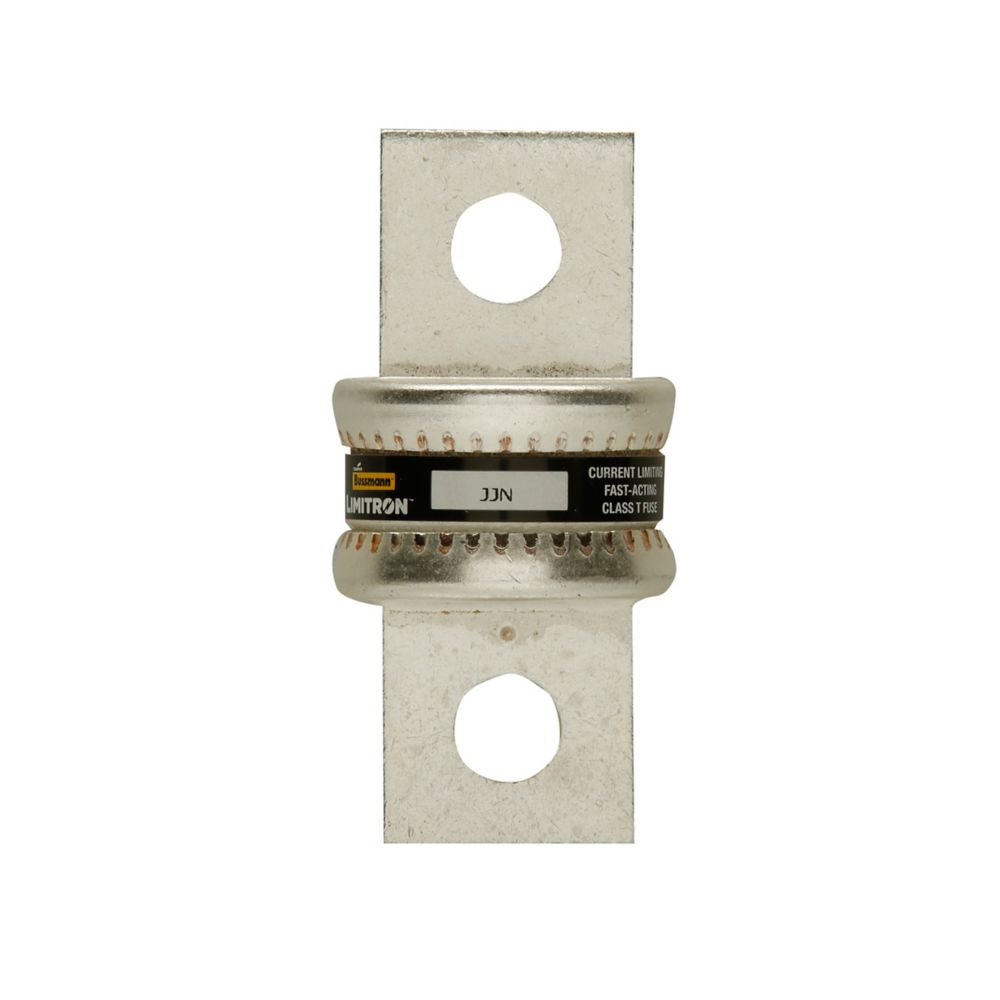

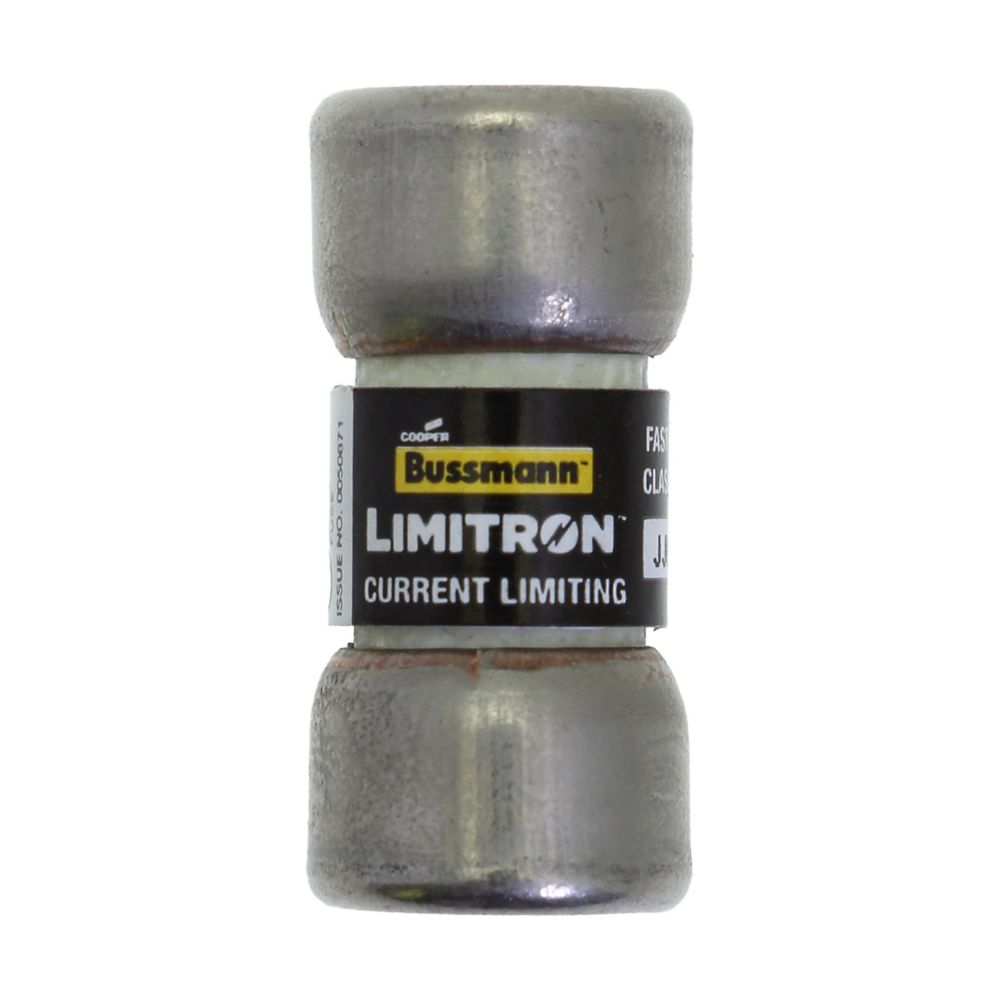

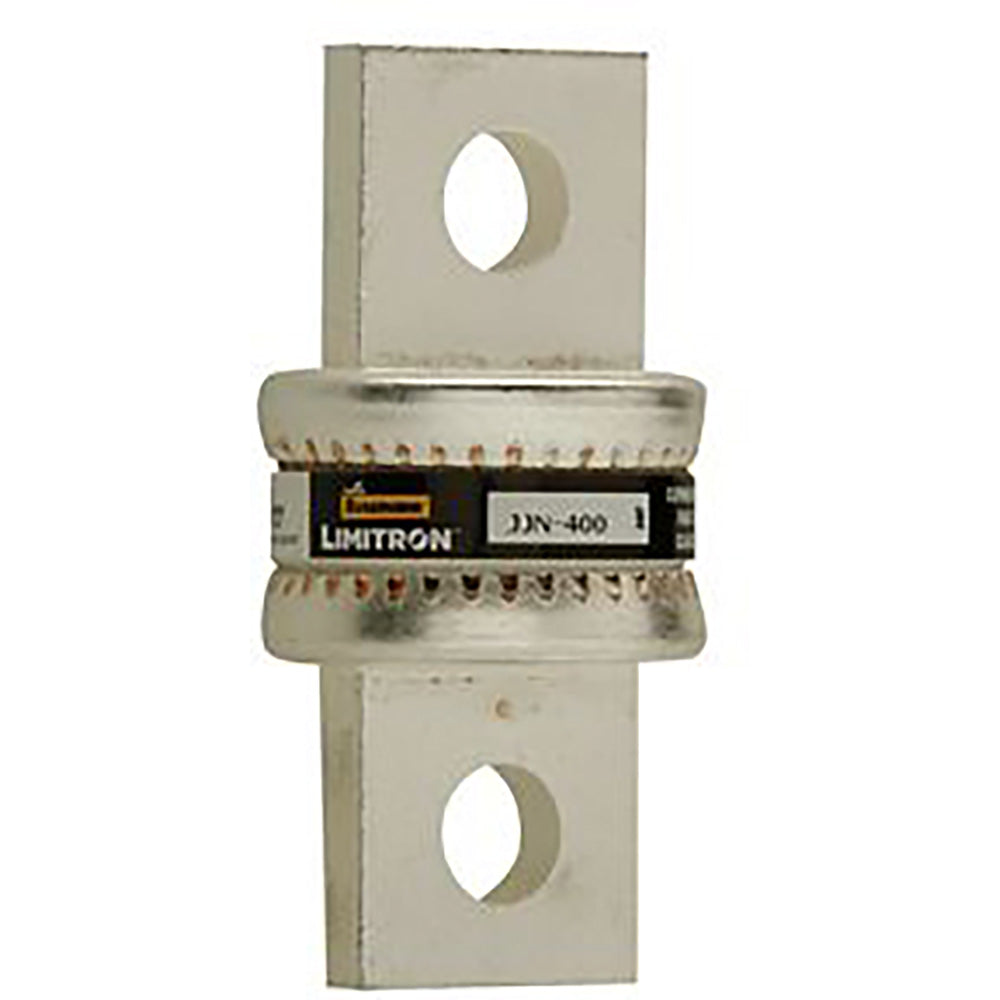

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Bussmann
- Sub-Category
- Low Voltage Fuse
- Series
- T-Tron
- Frame
- JJN
- Rated current
- 225
- Voltage
- 300V
- Interrupting rating
- 200kA@300V
- Class rating
- T
- Barrels
- 1
- Diameter
- 1 in
- Country of origin
- Mexico
- UPC
- 051712627221
- GTIN
- 00051712627221
Show all specifications (3 more)
- Dimensions
- 2.75 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight
- 0.25
- Certification
- CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
Product description & additional details
JJN-225
JJN-225 is a 225 Amp, 300 Volt AC Class T fast-acting fuse from Eaton Bussmann designed for reliable circuit protection.This JJN series fuse features very fast-acting characteristics with current limiting capability, a 200,000 Amp interrupting rating at 300VAC, and a cartridge body style suitable for bolt-on mounting. It is UL Listed (Std. 248-15), CSA Certified, and meets T-Tron brand standards for industrial applications.
- Amperage: 225A
- Voltage Rating: 300VAC / 160VDC
- Fuse Class: T (Class T)
- Fast-Acting, Current Limiting
- Interrupting Rating: 200,000 AIC at 300VAC
- Mounting Type: Bolt-On Cartridge
- Dimensions: Approx. 1" diameter x 2.75" length
- Certifications: UL Listed, CSA Certified
- Series: JJN Limitron
- Blade Terminal Style
Specifications
- Part Number: JJN-225
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 225
- AIC rating : 200kA@300V
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627221
- GTIN : 00051712627221
- Country of Origin : Mexico
- Dimensions : 2.75 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.25
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
