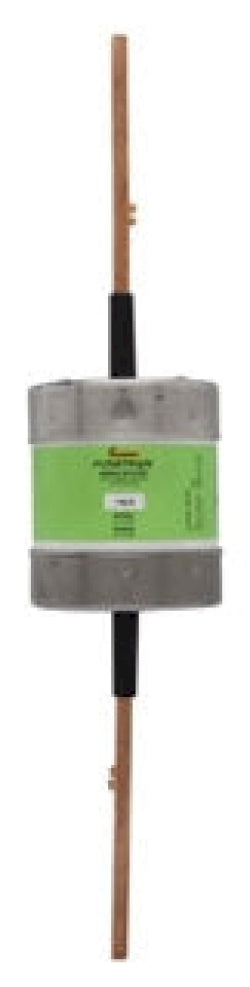

FRS-R-600 - Eaton Bussmann 600A 600V Class RK5 Dual Element Time Delay Fuse

FRS-R-600

FRS-R-600 is a 600 Amp, 600 Volt Class RK5 dual element time delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a dual element, current-limiting design with a 10 second minimum time delay at 500% of rated current. It has an interrupting rating of 200,000 AIC at 600 Vac and 20,000 AIC at 300 Vdc. The fuse is non-indicating with blade end connections and complies with UL Class RK5 standards, CSA certified, and RoHS compliant. It measures approximately 2.88 inches by 13.38 inches.

Key Specifications
• Amperage: 600 A
• Voltage Rating: 600 Vac, 300 Vdc
• Class: RK5
• Interrupting Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
• Time Delay: 10 seconds minimum at 500% rated current
• Dual Element, Current Limiting
• Non-indicating
• Blade End x Blade End Connection
• Physical Size: 2.88" x 13.38"
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-600
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 600
• AIC rating : 200kA@600V
• Diameter : 2.88
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508568
• GTIN : 00051712508568
• Country of Origin : Mexico
• Dimensions : 13.38 in x 3.13 in x 3.13 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
