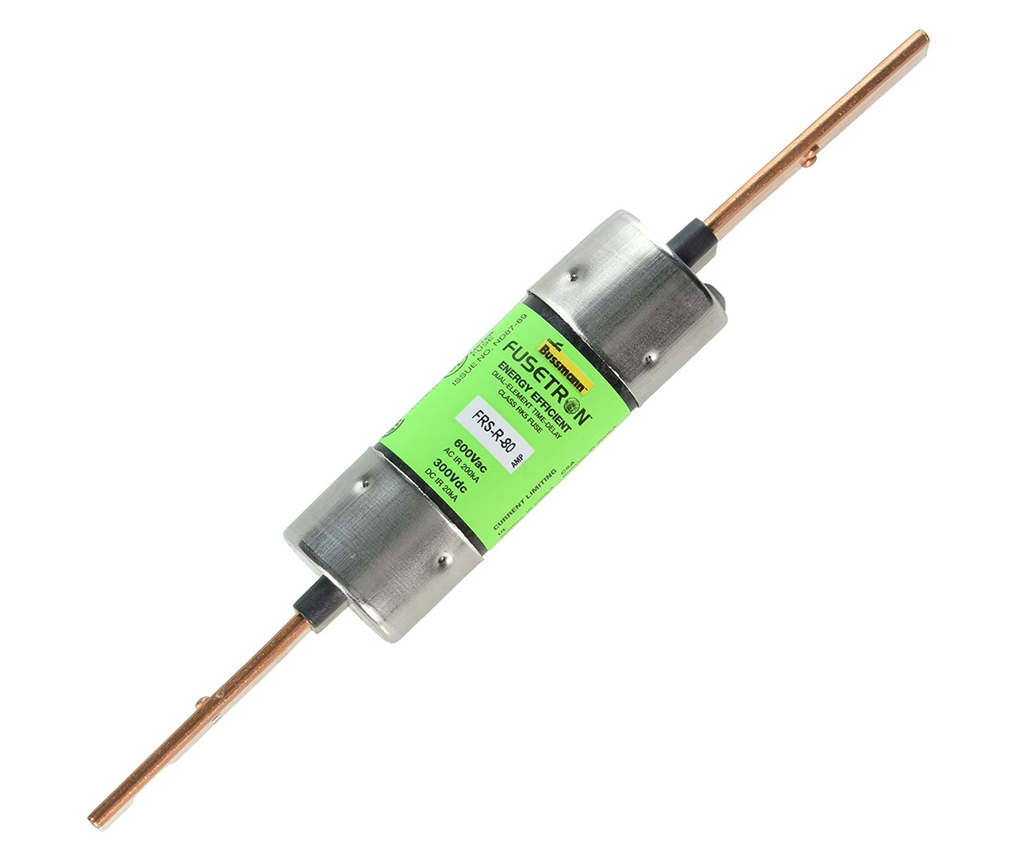

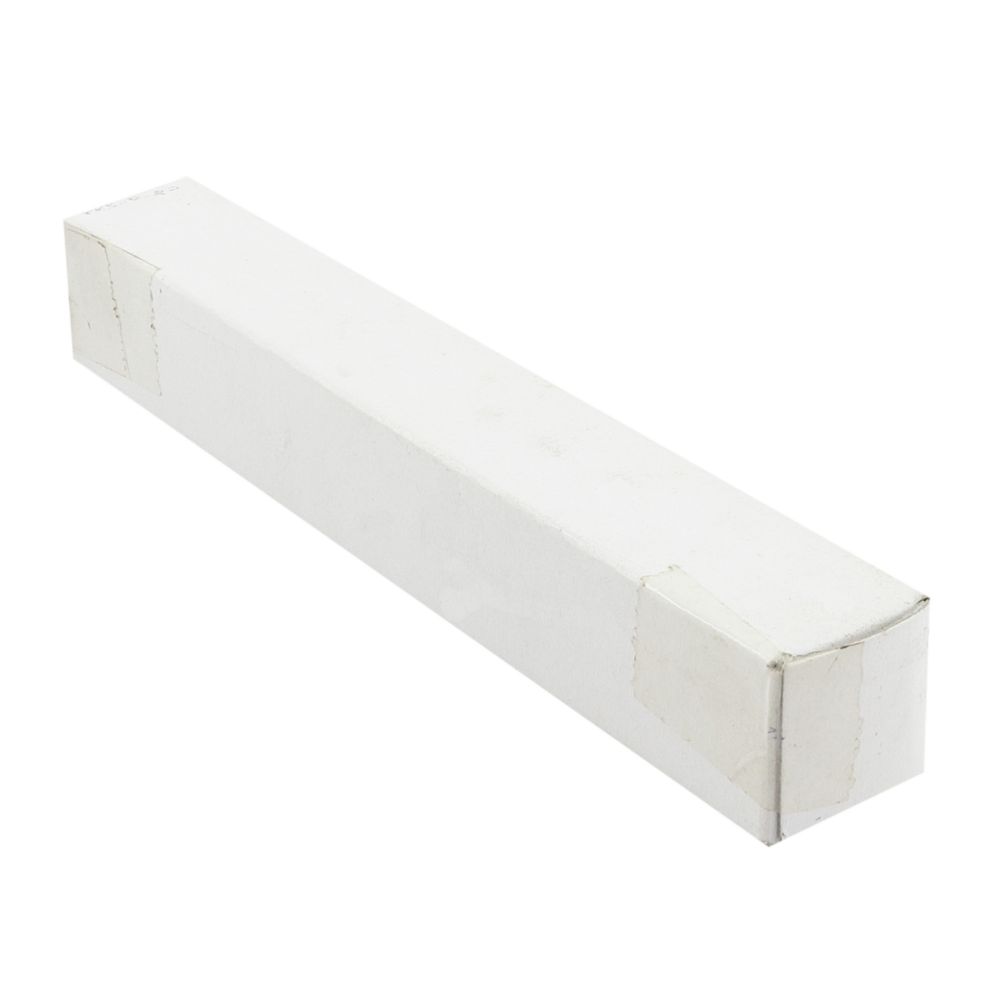

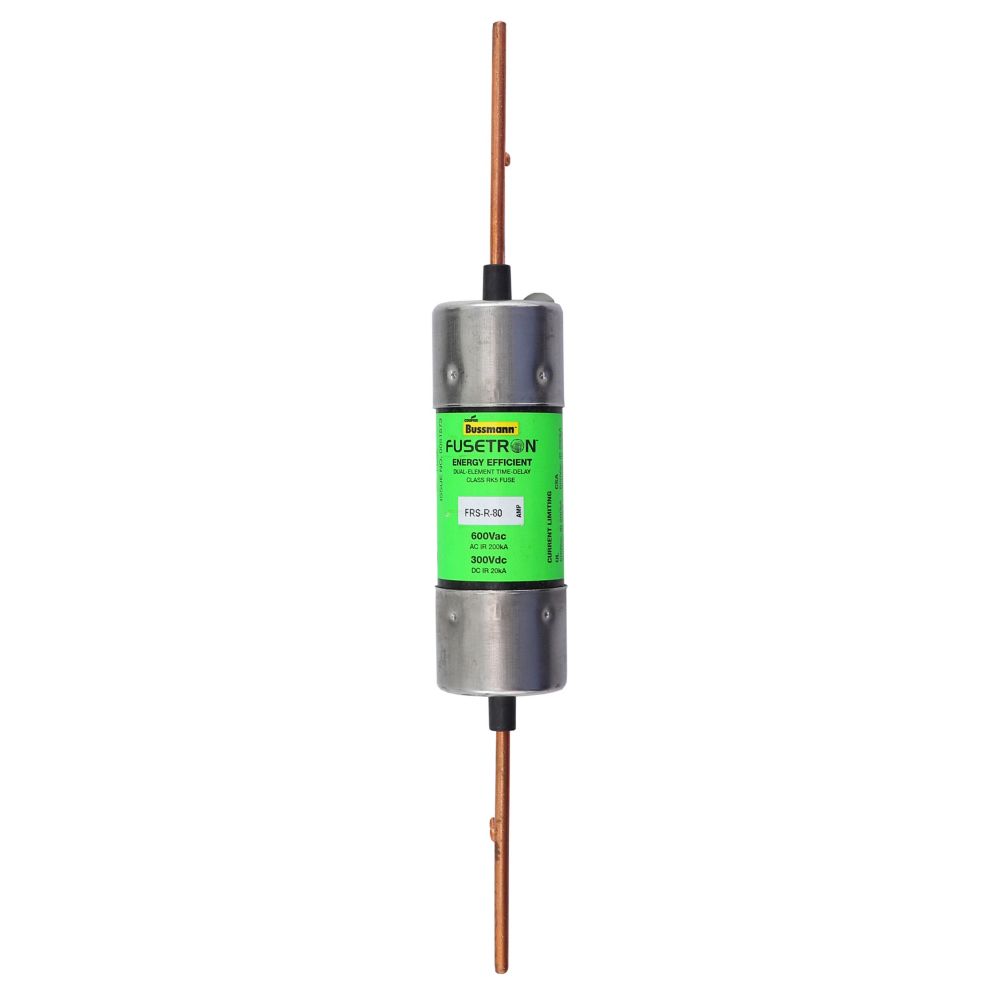

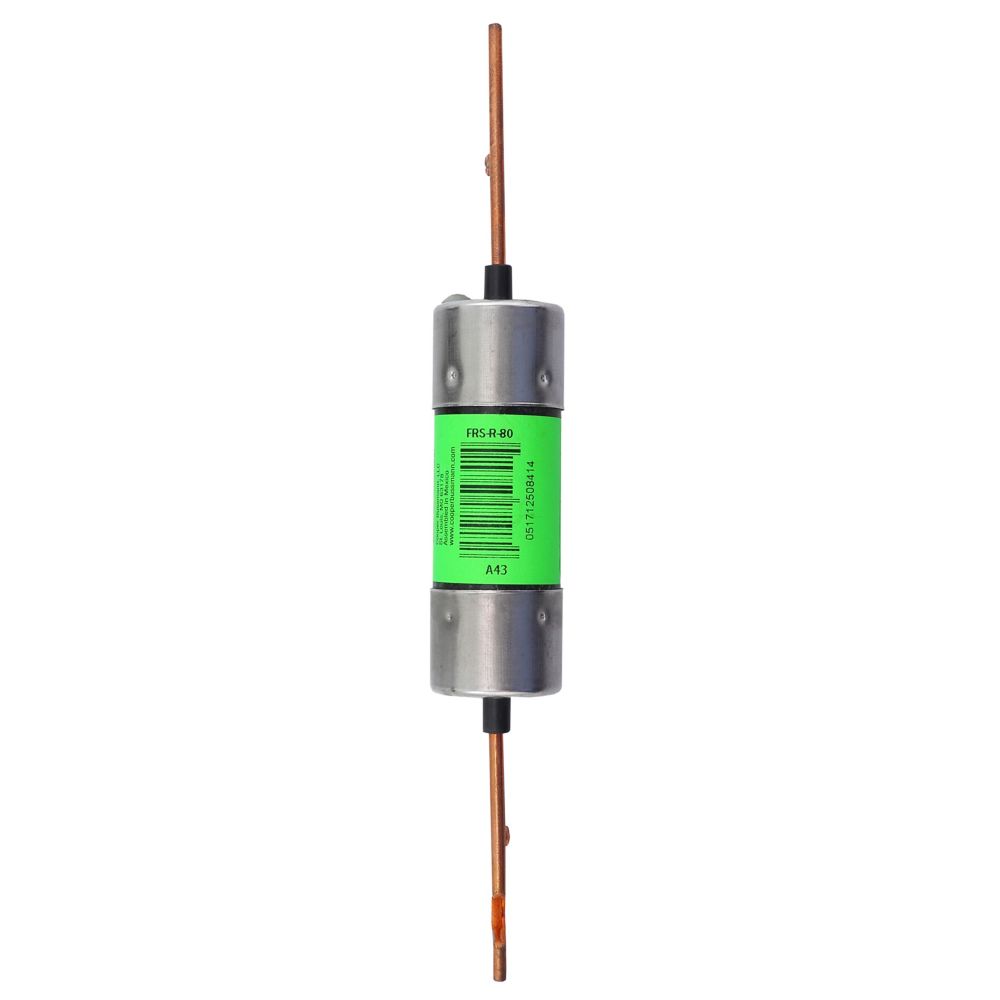

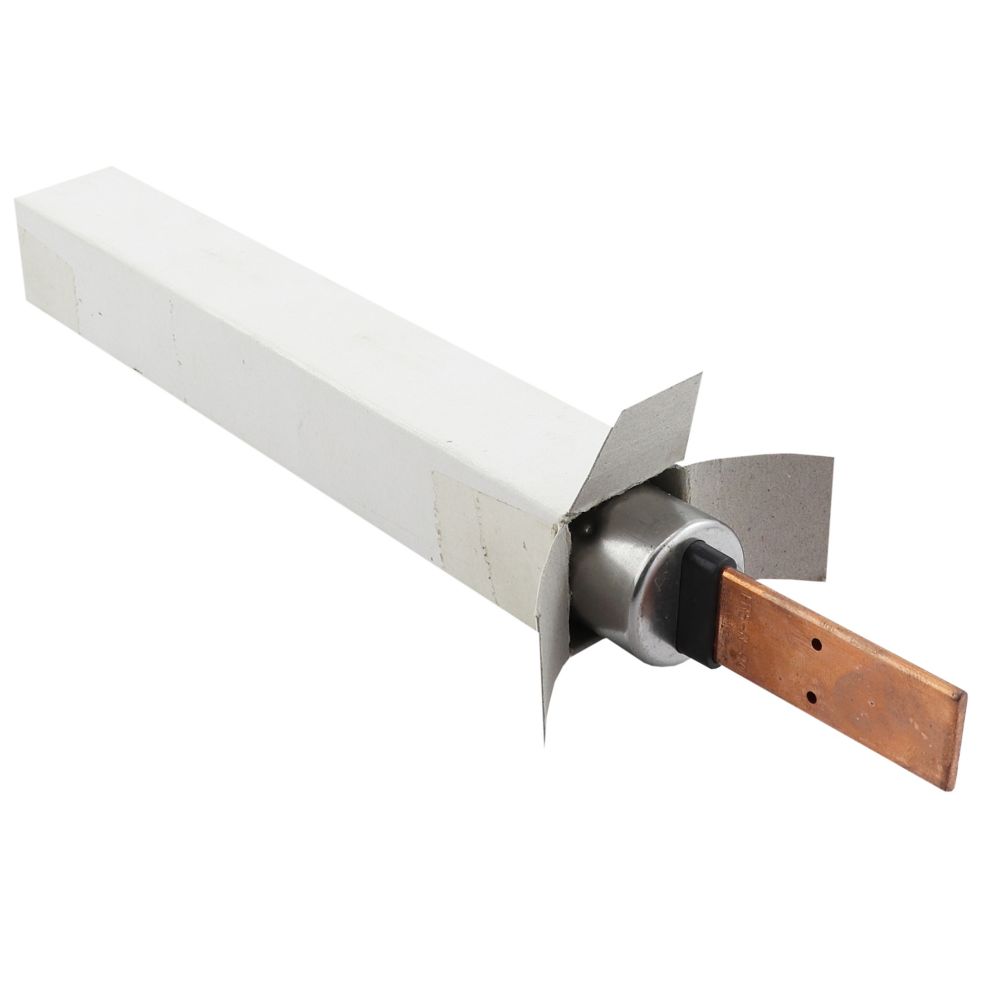

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Bussmann
- Sub-Category
- Low Voltage Fuse
- Series
- Fusetron
- Frame
- FRS-R
- Rated current
- 80
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 1.11 in
- Country of origin
- Mexico
- UPC
- 051712508414
- GTIN
- 00051712508414
Show all specifications (3 more)
- Dimensions
- 7.88 in x 1.34 in x 1.34 in (Length/Depth x Height x Width)
- Weight
- 0.4 lb
- Certification
- CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Product description & additional details
FRS-R-80
FRS-R-80 is an Eaton Bussmann series Class RK5 time-delay fuse rated for 80 amperes and dual-element current limiting protection.
This fuse features a 600 Vac and 300 Vdc voltage rating with a high interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc. It has a non-indicating blade end x blade end connection and a 10 second response time at 500% overload. The fuse body measures 1.11 inches in diameter by 7.88 inches in length and is CE marked for compliance.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 600 Vac / 300 Vdc
- Interrupting Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
- Class: RK5
- Fuse Type: Time-Delay, Dual Element
- Connection: Blade end x blade end
- Fuse Indicator: Non-indicating
- Response Time: 10 seconds at 500% rated current
- Body Dimensions: 1.11 in diameter x 7.88 in length
- Certifications: CE Marked
- Part Number: FRS-R-80
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Diameter : 1.11
- Class Rating : RK5
- Barrels : 1
- UPC : 051712508414
- GTIN : 00051712508414
- Country of Origin : Mexico
- Dimensions : 7.88 in x 1.34 in x 1.34 in (Length/Depth x Height x Width)
- Weight : 0.4 lb
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
