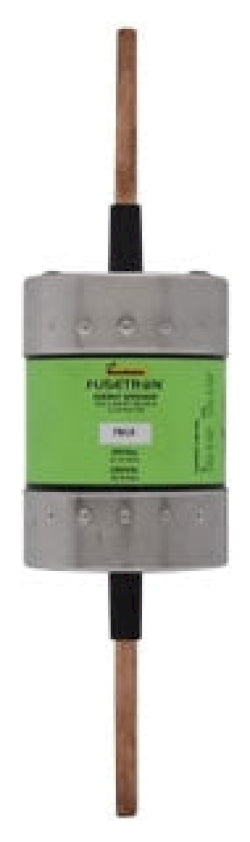

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Bussmann
- Sub-Category
- Low Voltage Fuse
- Series
- Fusetron
- Frame
- FRN-R
- Rated current
- 300
- Voltage
- 250V
- Interrupting rating
- 20kA@250Vdc
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 2.38 in
- Country of origin
- Mexico
- UPC
- 051712507516
- GTIN
- 00051712507516
Show all specifications (3 more)
- Dimensions
- 8.63 in x 2.38 in x 2.38 in (Length/Depth x Height x Width)
- Weight
- 1.95
- Certification
- CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Product description & additional details
FRN-R-300
FRN-R-300 is a 300 Amp, 250 Volt AC/DC, Class RK5 time delay fuse by Eaton Bussmann designed for motor overload and short circuit protection.
This dual-element, current limiting fuse features a cartridge body type with a 200,000 AIC interrupt rating at 250 VAC and 20,000 AIC at 125 VDC. It provides reliable protection against motor burnout from overloads and single phasing, with a 10-second response time at 500% rated current. The fuse is non-indicating and mounts in a holder, measuring 2.38 inches in diameter by 8.63 inches in length. It is UL Listed and CSA Certified for safety and performance.
- Key Specifications
- Amperage Rating: 300 A
- Voltage Rating: 250 VAC / 125 VDC
- Class: RK5
- Fuse Type: Dual Element, Time Delay
- Body Type: Cartridge
- Interrupt Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
- Response Time: 10 seconds at 500% rated current
- Mounting Type: Holder
- Dimensions: 2.38 in diameter x 8.63 in length
- Indicating: Non-Indicating
- Certifications: UL Listed, CSA Certified
- Manufacturer: Eaton Bussmann
- Part Number: FRN-R-300
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRN-R
- Voltage : 250
- Amperage : 300
- AIC rating : 20kA@250Vdc
- Diameter : 2.38
- Class Rating : RK5
- Barrels : 1
- UPC : 051712507516
- GTIN : 00051712507516
- Country of Origin : Mexico
- Dimensions : 8.63 in x 2.38 in x 2.38 in (Length/Depth x Height x Width)
- Weight : 1.95
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
