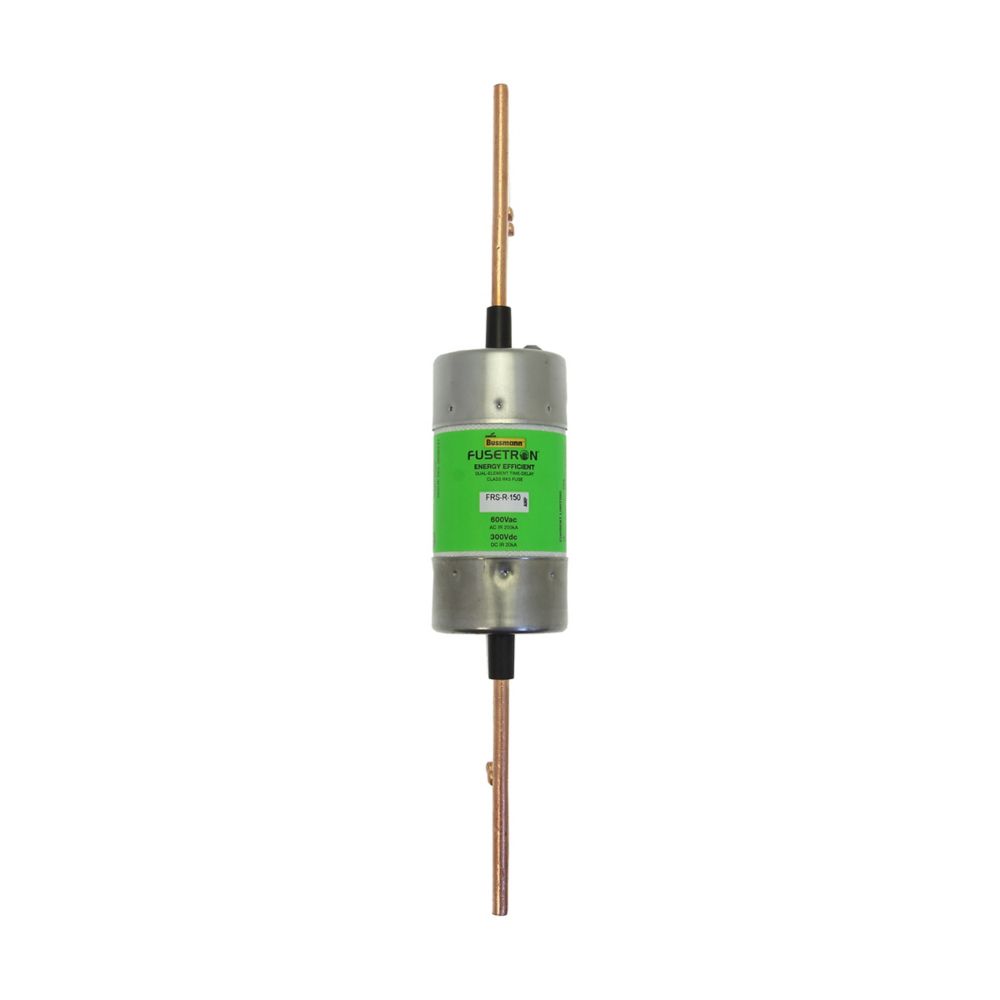

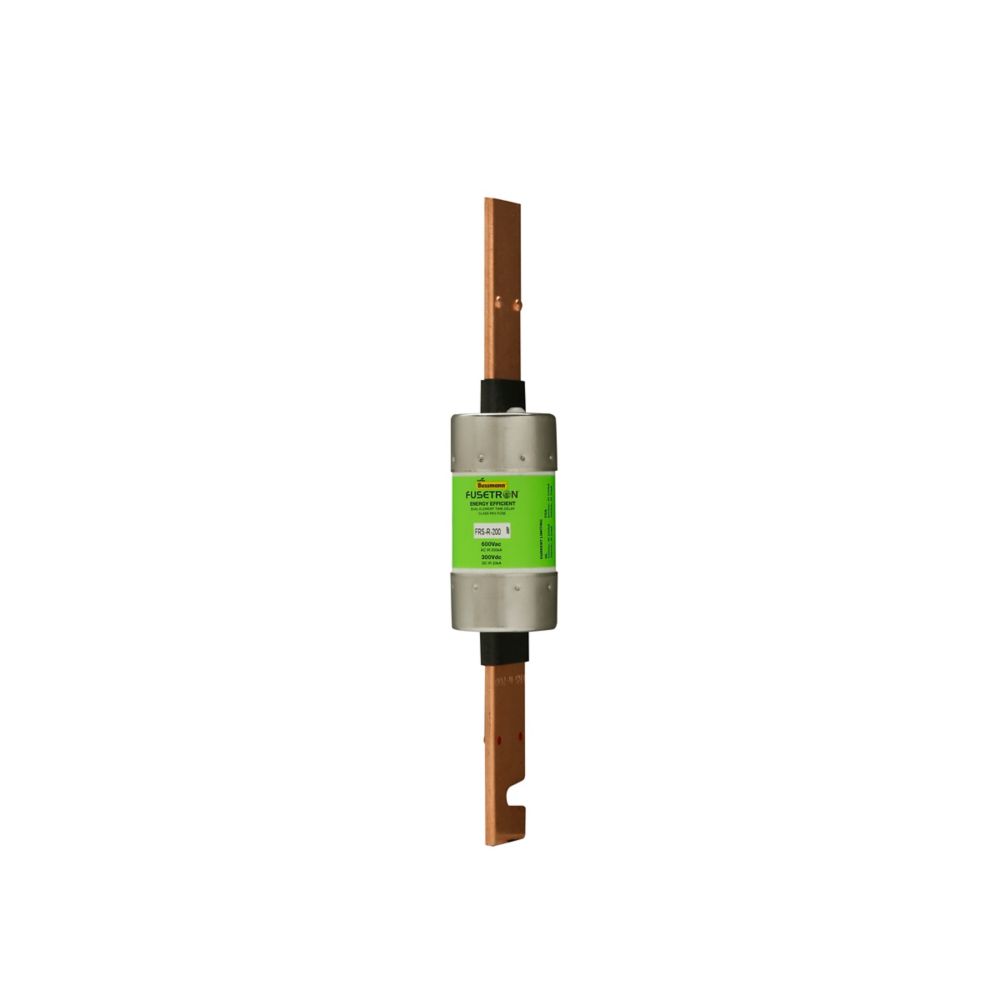

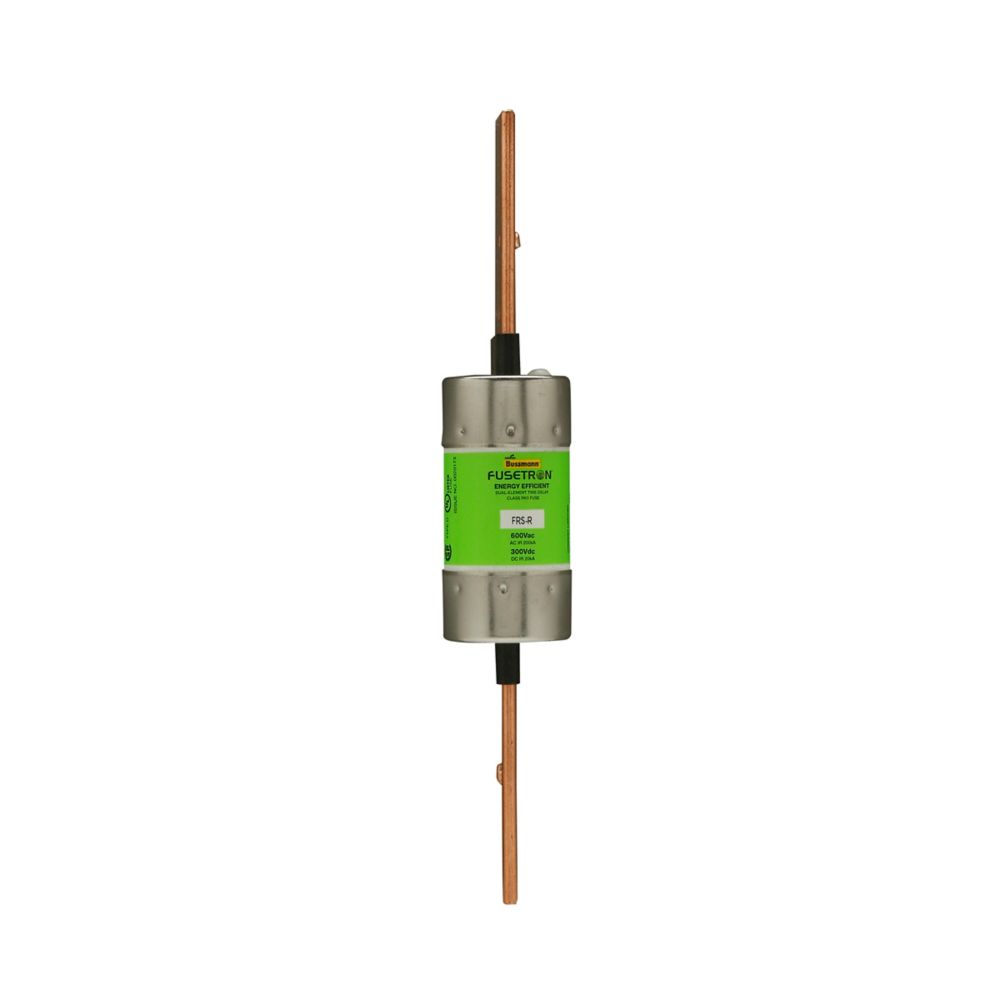

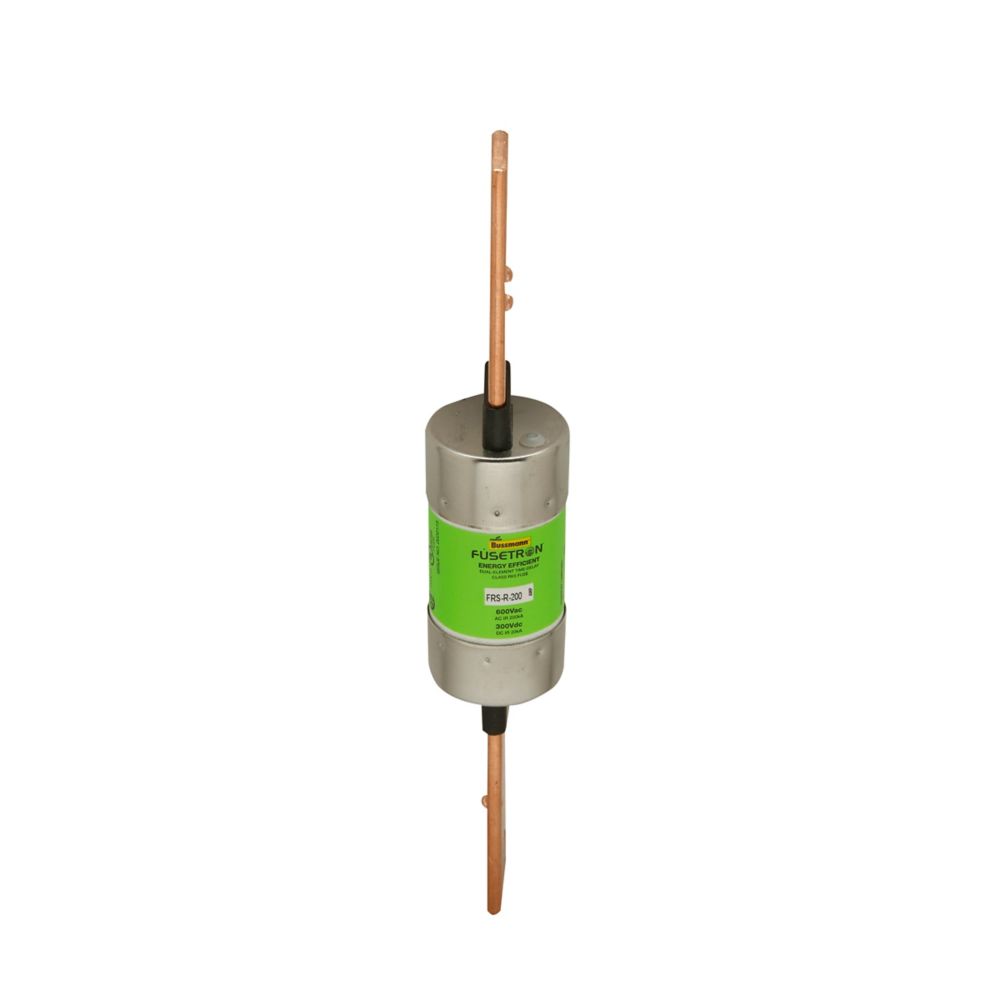

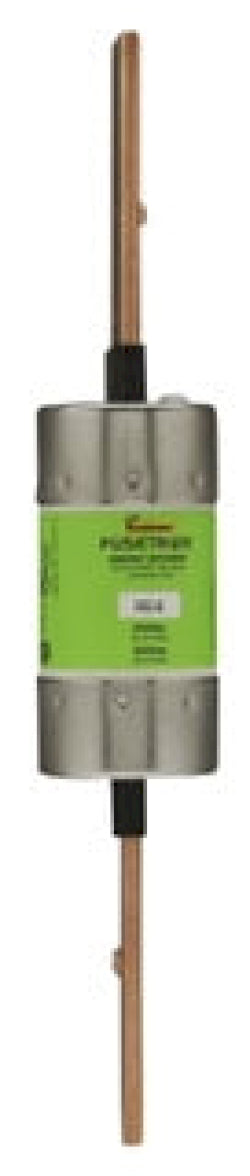

FRS-R-150 - Eaton Bussmann 150A 600V Class RK5 Dual Element Time-Delay Fuse

FRS-R-150

FRS-R-150 is a Eaton Bussmann series Class RK5 dual-element, time-delay fuse rated at 150 amperes and 600 volts AC/300 volts DC.This fuse features a current-limiting design with a 10 second delay at 500% overload, blade end x blade end connection, and an interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC. It is non-indicating and CE marked for compliance.

• Amperage Rating: 150 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kAIC at 600 VAC, 20 kAIC at 300 VDC
• Class: RK5
• Fuse Type: Dual-element, time-delay
• Connection: Blade end x blade end
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Compliance: CE Marked
• Physical Size: 9.63 in length, 0.81 in diameter
• Weight: 0.4 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-150
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 150
• AIC rating : 200kA@600V
• Diameter : 1.61
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508469
• GTIN : 00051712508469
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.4
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
